2019 MAZDA MODEL CX-3 flat tire

▼Temporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it is properly
inflated and stored.
NOTE
The temporary spare tire condition
gradually deteriorates even if it has not
been used.
The temporary spare tire is easier to
handle because of its c
onstruction which is
lighter and smaller than a conventional
tire. This tire should be used only for an
emergency and only for a short distance.

Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
Refer to Tires on page 9-7.

CAUTION
 Do not use your temporary spare tire rim
with a snow tire or a conventional tire.
Neither will properly fit and could
damage both tire and rim.
 The temporary spare tire has a tread life
of less than 5,000 km (3,000 miles). The
tread life may be shorter depending on
driving conditions.
 The temporary spare tire is for limited
use, however, if the tread wear
solid-band indicator appears, replace the
tire with the same type of temporary
spare (page 6-38).
NOTE
Tires degrade over time, even when they
are not being used on the road. It is
recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate the
aging process. You should replace the
spare tire when you replace the other road
tires due to the aging of the spare tire. The
period in which the tire was manufactured
(both week and year) is indicated by a
4-digit number.
Refer to Tire Labeling on page 8-25.
Maintenance and Care
Owner Maintenance
6-39
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

▼Replacing a Wheel
WA R N I N G
Always use wheels of the correct size on
your vehicle:
Using a wrong-sized wheel is dangerous.
Braking and handling could be affected,
leading to loss of control and an accident.
CAUTION
A wrong-sized wheel may adversely
affect:
 Tire fit
 Wheel and bearing life
 Ground clearance
 Snow-chain clearance
 Speedometer calibration
 Headlight aim
 Bumper height
 Tire Pressure Monitoring System
*
NOTE
•When replacing a wheel, make sure the
new one is the same as the original
factory wheel in diameter, rim width,
and offset (inset/outset).
•For details, contact an Authorized
Mazda Dealer.

Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
Maintenance and Care
Owner Maintenance
6-40*Some models.
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.
Parking in an Emergency................. 7-2 Parking in an Emergency..............7-2
Flat Tire.............................................. 7-3 Spare Tire and Tool Storage......... 7-3
Changing a Flat Tire..................... 7-8
Battery Runs Out............................ 7-18 Jump-Starting............................. 7-18
Emergency Starting.........................7-21 Starting a Flooded Engine.......... 7-21
Push-Starting.............................. 7-21
Overheating......................................7-22 Overheating................................ 7-22
Emergency Towing.......................... 7-24 Towing Description.................... 7-24
Tiedown Hooks
*......................... 7-25
Warning/Indicator Lights and
Warning Sounds.............................. 7-27If a Warning Light Turns On or
Flashes........................................ 7-27
Message Indicated on Display
*..........
.................................................... 7-41
Warning Sound is Activated....... 7-43
When Liftgate Cannot be
Opened..............................................7-48 When Liftgate Cannot be
Opened........................................7-48
Active Driving Display Does Not
Operate............................................. 7-49 If the Active Driving Display Does
Not Operate................................ 7-49
*Some models.7-1
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Jack Flat tire belt
Jack lever
Spare tire hold-down bolt
Spare tire
With sub-woofer
Type A
Tiedown eyelet
Lug wrench
Jack
Jack lever
Spare tire hold-down bolt
Spare tire
Type B
Tiedown eyelet
Lug wrench
Some models.
If Trouble Arises
Flat Tire
7-3
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Spare tire hold-down bolt
Tiedown eyelet
Jack
Spare tire
Jack lever Lug wrench
Spare tire hold-down bolt
Without sub-woofer
Tiedown eyelet
Jack
Flat tire belt
Spare tire
Jack lever Lug wrench
Type A
Type B
Some models.
If Trouble Arises
Flat Tire
7-4
CX-3_8GR7-EA-18B_Edition1
2017-12-20 16:18:14

▼Jack
To remove the jack
1.
(With luggage board)
Lift up the luggage board.
2. (With luggage board)
Pull the luggage board outward a little
and insert the opposite end into the
holders so that the luggage board
stands.
Luggage board
Holders
3. Lift the luggage mat.
Luggage mat
4. Remove the cargo sub compartment.
5. Remove the cover.
Tabs
6. Turn the wing bolt and jack screw counterclockwise.
Wing bolt
Jack screw
If Trouble Arises
Flat Tire
7-5
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

To secure the jack
1. Insert the wing bolt into the jack withthe jack screw pointing down and turn
the wing bolt clockwise to temporarily
tighten it.
2. Turn the jack screw in the direction shown in the figure.
Wing bolt
Jack screw
3. Turn the wing bolt completely tosecure the jack.
NOTE
If the jack is not completely secured, it
could rattle while driving. Make sure
the jack screw is sufficiently tightened.
4. Insert the cover tabs and install the cover.
NOTE
Verify that the cover is securely
installed.
Maintenance
•Always keep the jack clean.
•Make sure the moving parts are kept
free from dirt or rust.
•Make sure the screw thread is
adequately lubricated.
▼ Spare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used fo
r long drives or
extended periods.
WA R N I N G
Do not install the temporary spare tire on
the front wheels (driving wheels):
Driving with the temporary spare tire on
one of the front driving wheels is
dangerous. Handling will be affected. You
could lose control of the vehicle, especially
on ice or snow bound roads, and have an
accident. Move a regular tire to the front
wheel and install the temporary spare tire
to the rear.
CAUTION
 When using the temporary spare tire,
driving stability may decrease compared
to when using only the conventional tire.
Drive carefully.
 To avoid damage to the temporary spare
tire or to the vehicle, observe the
following precautions:
 Do not exceed 80 km/h (50 mph).
 Avoid driving over obstacles. Also, do
not drive through an automatic car
wash. This tire's diameter is smaller
than a conventional tire, so the ground
clearance is reduced.
If Trouble Arises
Flat Tire
7-6
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

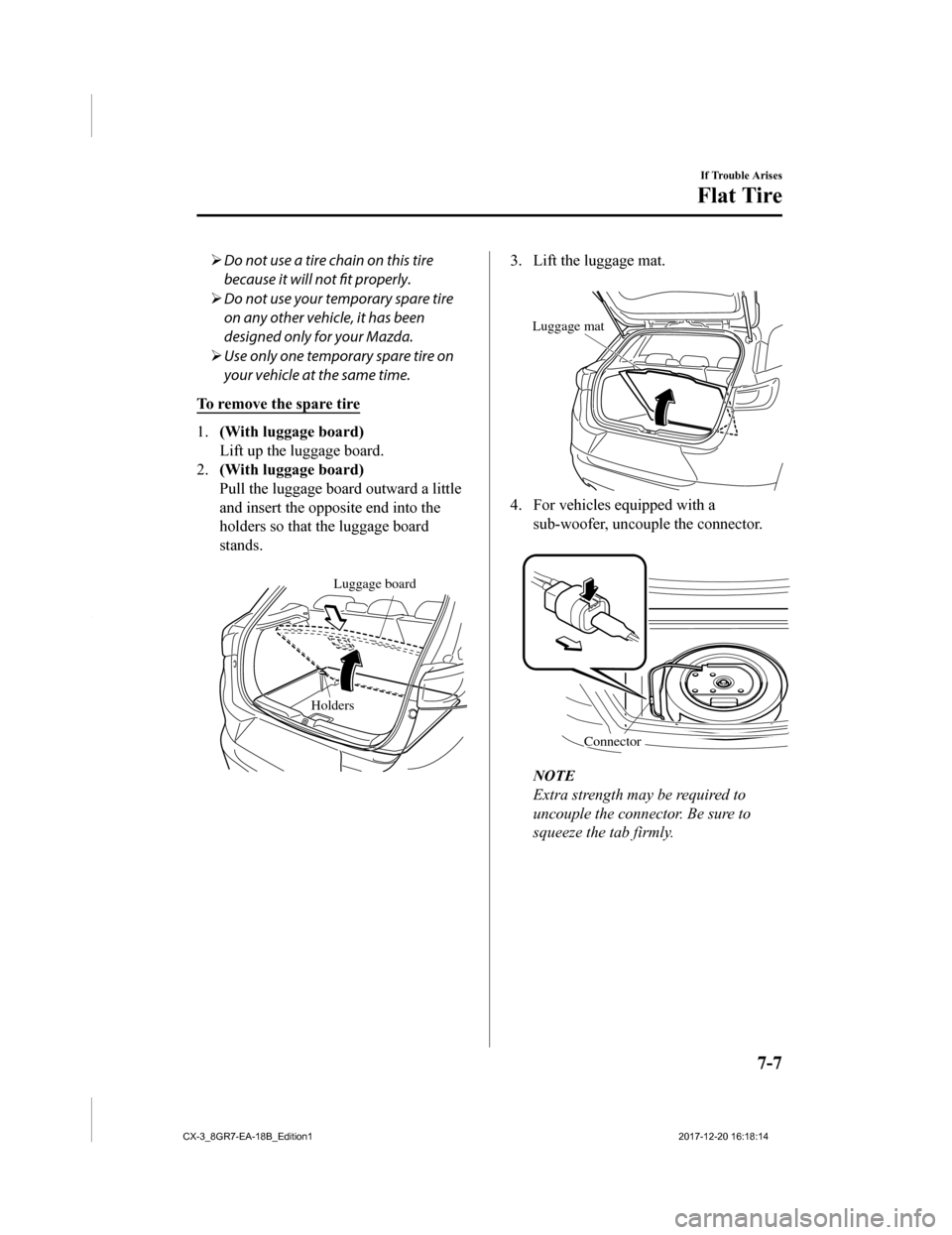

Do not use a tire chain on this tire
because it will not fit properly.
 Do not use your temporary spare tire
on any other vehicle, it has been
designed only for your Mazda.
 Use only one temporary spare tire on
your vehicle at the same time.
To remove the spare tire
1. (With luggage board)
Lift up the luggage board.
2. (With luggage board)
Pull the luggage board outward a little
and insert the opposite end into the
holders so that the luggage board
stands.

Luggage board
Holders
3. Lift the luggage mat.
Luggage mat
4. For vehicles equipped with asub-woofer, uncouple the connector.

Connector
NOTE
Extra strength may be required to
uncouple the connector. Be sure to
squeeze the tab firmly.
If Trouble Arises
Flat Tire
7-7
