2019 MAZDA MODEL CX-3 engine

Outside the United States/Canada
Government regulations in the United States/Canada require that automobiles meet specific
emission regulations and safety standards. Therefore, vehicles built for use in the United
States/Canada may differ from those sold in other countries.

The differences may make it difficult or even impossible for yo ur vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside the United States/Canada.

United States
However, in the event that you are moving to Canada permanently, Mazda vehicles built for
use in the United States could be eligible for exportation to C anada with specific vehicle
modifications to comply with the Canadian Motor Vehicle Safety Standards (CMVSS).

Canada
However, in the event that you a re moving to the United States permanently, Mazda
vehicles built for use in Canada could be eligible for exportat ion to the United States with
specific vehicle modifications t o comply with the United States Federal Motor Vehicle
Safety Standards (FMVSS).
NOTE
The above is applicable for a permanent import/export situation and not related to travelers
on vacation.
You may have the following problems if you do take your vehicle outside of the United
States/Canada:
•Recommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
•Proper repair facilities, tools, testing equipment, and replacement parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
Customer Information and Reporting Safety Defects
Wa r r an t y
8-17
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Add-On Non-Genuine Parts and Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, th ey could affect your vehicle's
performance or safety systems; th e Mazda warranty doesn't cover this. Before you install
any non-genuine parts or accessories, consult an Authorized Maz da Dealer.
WA R N I N G
Always consult an Authorized Mazda Dealer before you install non-genuine parts or
accessories:
Improperly designed parts or accessories could seriously affect your vehicle's performance or
safety systems. This could cause you to have an accident or increase your chances of injuries
in an accident.
Be very careful in choosing and installing add-on electrical equipment, such as mobile
telephones, two-way radios, stereo systems, and car alarm systems:
Incorrectly choosing or installing improper add-on equipment or choosing an improper
installer is dangerous. Essential systems could be damaged, causing engine stalling, air-bag
(SRS) activation, ABS/TCS/DSC inacti vation, or a fire in the vehicle.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
Customer Information and Reporting Safety Defects
Wa r r an t y
8-19
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Recording of Vehicle Data
This vehicle is equipped with a computer which records the following main vehicle data
related to vehicle controls, ope ration, and other driving conditions.

Recorded data
•Vehicle conditions such as engine speed and vehicle speed
•Driving operation conditions such as accelerator and brake peda ls, and information related
to the environmental circumstances while the vehicle is driven
•Malfunction diagnosis i nformation from each on-vehicle computer
•Information related to controls of other on-vehicle computers
NOTE
The recorded data may vary depending on the vehicle grade and optional equipment. Voice
and images are not recorded.

Data handling
Mazda and its subcontracting parties may obtain and use the rec orded data for vehicle
malfunction diagnosis, research and development, and quality im provement.
Mazda will not disclose or provide any of the obtained data to a third party unless:
•An agreement from the vehicle owner (agreements from lessor and lessee for leased
vehicle) is obtained
•Officially requested by the police or other law enforcement aut horities
•For statistical processing by a research institution after processing the data so that
identification of the owner o r the vehicle is impossible
Customer Information and Reporting Safety Defects
Recording of Vehicle Data
8-22
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

GVW (Gross Vehicle Weight) is the Vehicle Curb Weight cargo passengers.

GVWR (Gross Vehicle Weight Rating) is the maximum allowable weight of the fully
loaded vehicle (including all options, equipment, passengers an d cargo). The GVWR is
shown on the Safety Compliance C ertification Label located on the driver's door
frame or door pillar. The GVW must never exceed the GVWR.

SAMPLE

WA R N I N G
Never Exceed Axle Weight Rating Limits:
Exceeding the Safety Certification Label axle weight rating limits is dangerous and could
result in death or serious injury as a result of substandard vehicle handling, performance,
engine, transmission and/or structural damage , serious damage to the vehicle, or loss of
control.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-40
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

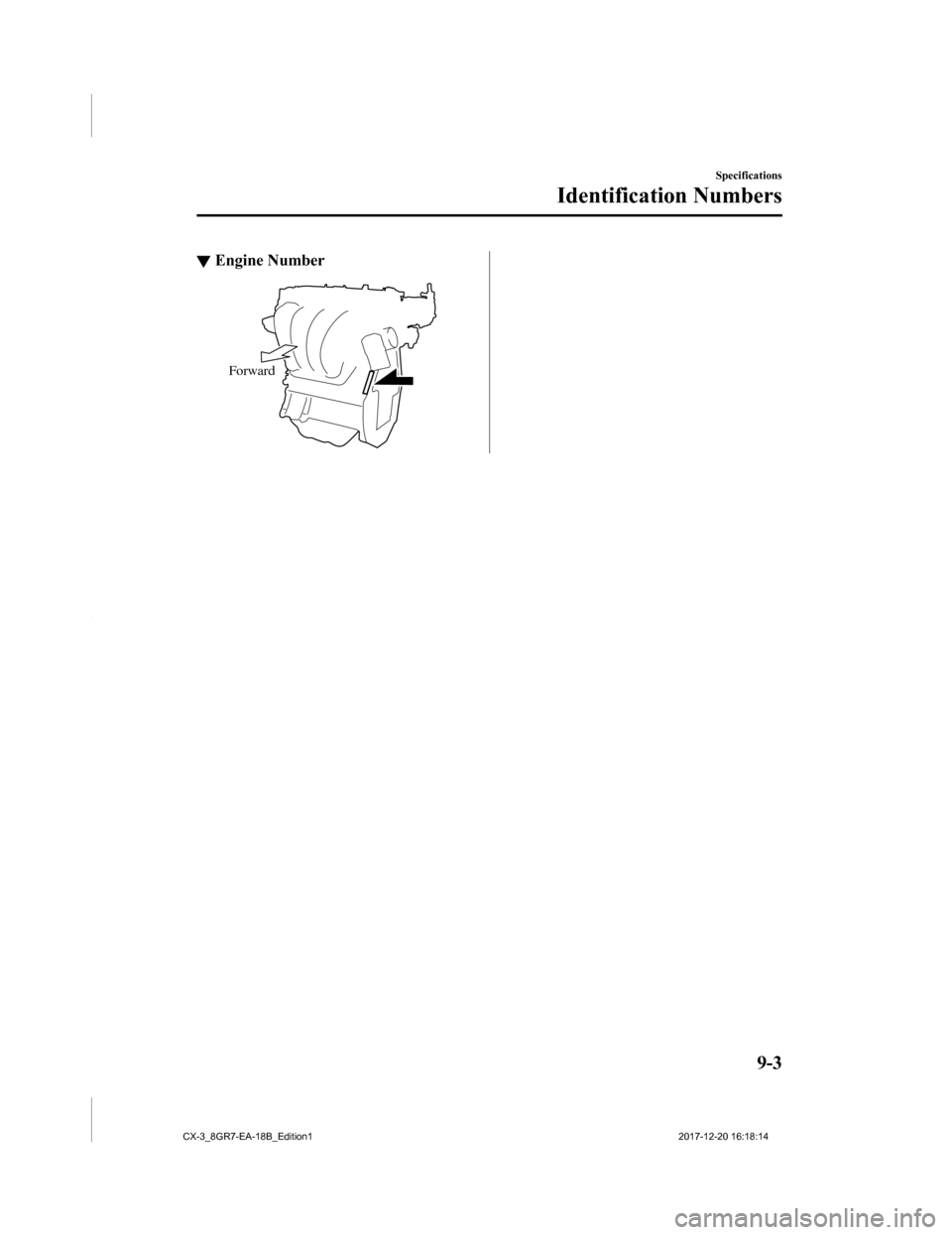

▼Engine Number
Forward
Specifications
Identification Numbers
9-3
CX-3_8GR7-EA-18B_Edition1
2017-12-20 16:18:14

Specifications
▼Engine
Item
Specification
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 × 3.59 in)
Displacement 1,997.6 ml (1,997.6 cc)
Compression ratio 13.0
▼Electrical System
Item
Specification
Battery Canada
12V-65Ah/20HR
Except Canada 12V-60Ah/20HR or 12V-65Ah/20HR
Spark-plug number Mazda Genuine spark
plug
*1PE5R-18-110 or PE5S-18-110
*1 The spark plugs provide the SKY
ACTIV-G its optimum performance. Consult an Authorized Mazda Dealer
for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the
iridium alloy and platinum tips could be damaged.
▼ Lubricant Quality
Lubricant
Specification
Engine oil Refer to Recommended Oil on page 6-22.
Coolant FL-22 type
Manual transaxle oil API Service
GL-4
SAE 75W-80
Automatic transaxle fluid Mazda Genuine ATF-FZ
Transfer case oil Mazda Long Life Hypoid Gear Oil SG1
Rear differential oil Mazda Long Life Hypoid Gear Oil SG1
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.
Specifications
Specifications
9-4
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

▼Capacities
(Approximate Quantities)
Item
Capacity
Engine oil With oil filter replacement
4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil filter replacement 4.0 L (4.2 US qt, 3.5 Imp qt)
Coolant Manual transaxle
5.6 L (5.9 US qt, 4.9 Imp qt)
Automatic transaxle U.S.A. and Canada
5.9 L (6.2 US qt, 5.2 Imp qt)
Mexico 6.1 L (6.4 US qt, 5.4 Imp qt)
Manual transaxle fluid 1.70 L (1.80 US qt, 1.50 Imp qt)
Automatic transaxle fluid 7.8 L (8.2 US qt, 6.9 Imp qt)
Transfer case oil 0.40 L (0.42 US qt, 0.35 Imp qt)
Rear differential oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Fuel tank 2WD
48.0 L (12.7 US gal, 10.6 Imp gal)
AWD 45.0 L (11.9 US gal, 9.90 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
▼Dimensions
U.S.A. and Canada
Item
Vehicle specification
Overall length 4,275 mm (168.3 in)
Overall width 1,765 mm (69.5 in)
Overall height 1,550 mm (61.0 in)
Front tread 1,525 mm (60.0 in)
Rear tread 1,520 mm (59.8 in)
Wheelbase 2,570 mm (101.2 in)

Mexico
ItemVehicle specification
Overall length 4,275 mm (168.3 in)
Overall width 1,765 mm (69.5 in)
Overall height 1,545 mm (60.8 in)
Front tread 1,525 mm (60.0 in)
Rear tread 1,520 mm (59.8 in)
Wheelbase 2,570 mm (101.2 in)
Specifications
Specifications
9-5
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

▼We i g h t s
U.S.A. and Canada
Item We i g h t
2WD AW D
Automatic transaxle Manual transaxle
GVWR (Gross Vehicle Weight
Rating) 1,742 kg (3,840 lbs) 1,700 kg (3,748 lbs) 1,810 kg (3,990 lbs)
GAWR (Gross Axle
Weight Rating) Front 933 kg (2,057 lbs) 900 kg (1,984 lbs) 958 kg (2,112 lbs)
Rear 812 kg (1,790 lbs) 808 kg (1,781 lbs) 860 kg (1,896 lbs)

Mexico
Item
We i g h t
With moonroof Without moonroof
GVW (Gross Vehi-
cle Weight) Total
1,762 kg (3,885 lbs) 1,751 kg (3,860 lbs)
Front 924 kg (2,037 lbs) 918 kg (2,024 lbs)
Rear 838 kg (1,847 lbs) 833 kg (1,836 lbs)
GAW (Permissible
axle load) Front
939 kg (2,070 lbs) 933 kg (2,057 lbs)
Rear 887 kg (1,955 lbs) 887 kg (1,955 lbs)
▼Air Conditioner
The type of refrigerant used is indicated on a label attached t
o the inside of the engine com-
partment. Check the la bel before recharging the refrigerant. Re fer to Climate Control Sys-
tem on page 5-4.
Item Specification
Refrigerant Type HFC134a (R-134a)
▼Light Bulbs
Exterior light
Light bulb Category
Wattage UNECE*1 (SAE)
Headlights Halogen head-
lights
High beam/Daytime run-
ning lights
60
HB3 (9005)
Low beam 55H11 (H11)
LED headlights High beam
LED
*2― (―)
Low beam LED
*2― (―)
Specifications
Specifications
9-6
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14
