▼Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
CAUTION
Do not run the engine with the tachometer
needle in the RED ZONE.
This may cause severe engine damage.

1. STRIPED ZONE*1
2. RED ZONE*1
*1 The range varies depending on the type of gauge.
NOTE
When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.
When Driving
Instrument Cluster and Display
4-13
Mazda3_8HE9-EA-18K_Edition3
2018-11-21 14:31:58

▼Engine Coolant Temperature Gauge
Displays the engine coolant temperature.
The blue gauge indicates that the engine
coolant temperature is low, and the red
gauge indicates that the engine coolant
temperature is high and overheating.

CAUTION
When the engine coolant temperature
gauge needle is in the red range, the engine
coolant temperature is extremely high.
Drive slowly to reduce engine load. If the
engine coolant temperature gauge needle
is in the red range, there is the possibility of
overheating. Park the vehicle in a safe
place immediately and take appropriate
measures.
Refer to Overheating on page 7-20.
NOTE
If the engine or engine coolant
temperature is high or low, the engine
output may be restricted to protect the
engine.
During normal driving, the engine
coolant temperature stabilizes at 100 °C
(210 °F) or less, and the gauge indicates
a range lower than 100 °C (210 °F).
▼Fuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON. We
recommend keeping the tank over 1/4 full.

1. Full
2. 1/4 Full
3. Empty

If the low fuel warni
ng light illuminates or
the fuel level is very low, refuel as soon as
possible.
Refer to Low Fuel Warning Indication/
Warning Light on page 7-33.
NOTE
After refueling, it may require some time
for the indicator to stabilize. In addition,
the indicator may deviate while driving
on a slope or curve since the fuel moves
in the tank.
When Driving
Instrument Cluster and Display
4-17
Mazda3_8HE9-EA-18K_Edition3 2018-11-21 14:31:58

▼Outside Temperature Display
When the ignition is switched ON, the
outside temperatur
e is displayed.

NOTE
Under the following conditions, the
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and
vehicle conditions:
Significantly cold or hot temperatures.
Sudden changes in outside
temperature.
The vehicle is parked.
The vehicle is driven at low speeds.
Changing the Temperature Unit of the
Outside Temperature Display
The outside temperature unit can be
switched between Celsius and Fahrenheit.
Settings can be changed by operating the
center display screen.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
NOTE
When the temperature unit indicated in the
outside temperature display is changed,
the temperature unit indicated in the
engine coolant gauge display changes in
conjunction with it.
▼ Distance-to-empty
This displays the approximate distance
you can travel on the remaining fuel based
on the fuel economy.
The distance-to-empty will be calculated
and displayed every second.

NOTE
Even though the distance-to-empty
display may indicate a sufficient amount
of remaining driving distance before
refueling is required
, refuel as soon as
possible if the fuel level is very low or
the low fuel warning light illuminates.
The display will not change unless you
add more than approximately 9 L (2.3
US gal, 1.9 Imp gal) of fuel.
The distance-to-empty is the
approximate remaining distance the
vehicle can be driven until all the
graduation marks in the fuel gauge
indicating the remaining fuel supply
disappear.
If there is no past fuel economy
information such as after first
purchasing your vehicle or the
information is deleted when the battery
cables are disconnected, the actual
distance-to empty/range may differ from
the amount indicated.
When Driving
Instrument Cluster and Display
4-19
Mazda3_8HE9-EA-18K_Edition3 2018-11-21 14:31:58

▼Warning Indication/Warning Lights
These lights turn on or flash to notify the user of the system
operation status or a system
malfunction.
Signal Warning Refer to
Brake System Warning Indication/Warning Light*17-26
ABS Warning Indication/Warning Light*1
Electronic Brake
Force Distribu‐ tion SystemWa r n i n g 7-27
ABS warning 7-29
Charging System Warning Indication/Warning Light*17-27
Engine Oil Warning Indication/Warning Light*17-27
High Engine Coolant Temperat ure Warning Indication 7-28
Power Steering Malfunction Indication/Indicator Light*17-28
Master Warning Indication 7-29
Brake Control System Warning Indication/Warning Light*17-29
Brake Override Warning Indication 7-30
Check Engine Indication/Light*17-30
*Automatic Transmission Warning Indication/Warning Light*17-30
*AWD Warning Indication/Warning Light*17-30
Air Bag/Front Seat Belt Pretensi oner System Warning Indication/ Wa r n i n g
Light*17-31
When Driving
Instrument Cluster and Display
4-22*Some models.
Mazda3_8HE9-EA-18K_Edition3 2018-11-21 14:31:58

SignalWarning Refer to
Tire Pressure Monitoring System (TPMS) Warning Indication/Warni ng
Light*1
Flashing 7-32
Turns on 7-36
(Red) KEY Warning Indication/Warning Light
*17-32
(Amber)
*High Beam Control System (HBC) Warning Indication/Warning Light*17-33
i-ACTIVSENSE Warning Indication/Warning Light*17-33
Exterior Light Warning I
ndication/Warning Light*17-33
Low Fuel Warning Indication/Warning Light 7-33
Check Fuel Cap Warning Indication/Warning Light*17-34
Engine Oil Level Warning Indication/Warning Light*17-34
Seat Belt Warning Indication/Warning Light (Front seat) 7-34
(Red)Seat Belt Warning Light (Rear seat) 7-35
*Low Washer Fluid Level Warning Indication/Warning Light
7-35
Door-Ajar Warning Indication
7-36
*Trunk lid-Ajar Warning Indication 7-36
*Liftgate-Ajar Warning Indication 7-36
When Driving
Instrument Cluster and Display
*Some models.4-23
Mazda3_8HE9-EA-18K_Edition3
2018-11-21 14:31:58

SignalWarning Refer to
Door-Ajar Warning Light 7-36
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
▼ Indication/Indicator Lights
These lights turn on or flash to notify the user of the system
operation status or a system
malfunction.
Signal Indicator Refer to
(Green)Seat Belt Indicator Light (Rear seat) 2-27
*Front Passenger Air Bag Deactivation Indicator Light
2-72
Security Indicator Light
3-40
(Green)KEY Indicator Light 4-5
Wrench Indication/Indicator Light*14-27
*Shift Position Indication
4-35
Lights-On Indicator Light
4-43
Headlight High-Beam Indicator LightHeadlight
High-Low Beam 4-46
Flashing the Headlights 4-46
When Driving
Instrument Cluster and Display
4-24*Some models.
Mazda3_8HE9-EA-18K_Edition3 2018-11-21 14:31:58

▼Wrench Indication/Indicator Light
The wrench indication/indicator light is
displayed/turns on un
der the following
conditions.
When the preset maintenance period has
arrived.
Refer to the Information section in the
Mazda Connect Owner's Manual.
When the engine oil replacement period
has arrived.
NOTE
The wrench indication/indicator light
may display/turn on earlier than the
preset period depending on vehicle
usage conditions.
Whenever the engine oil is replaced, a
reset of the vehicle engine control unit is
necessary.
Refer to the Information section in the
Mazda Connect Owner's Manual.

When Driving
Instrument Cluster and Display
4-27
Mazda3_8HE9-EA-18K_Edition3 2018-11-21 14:31:58

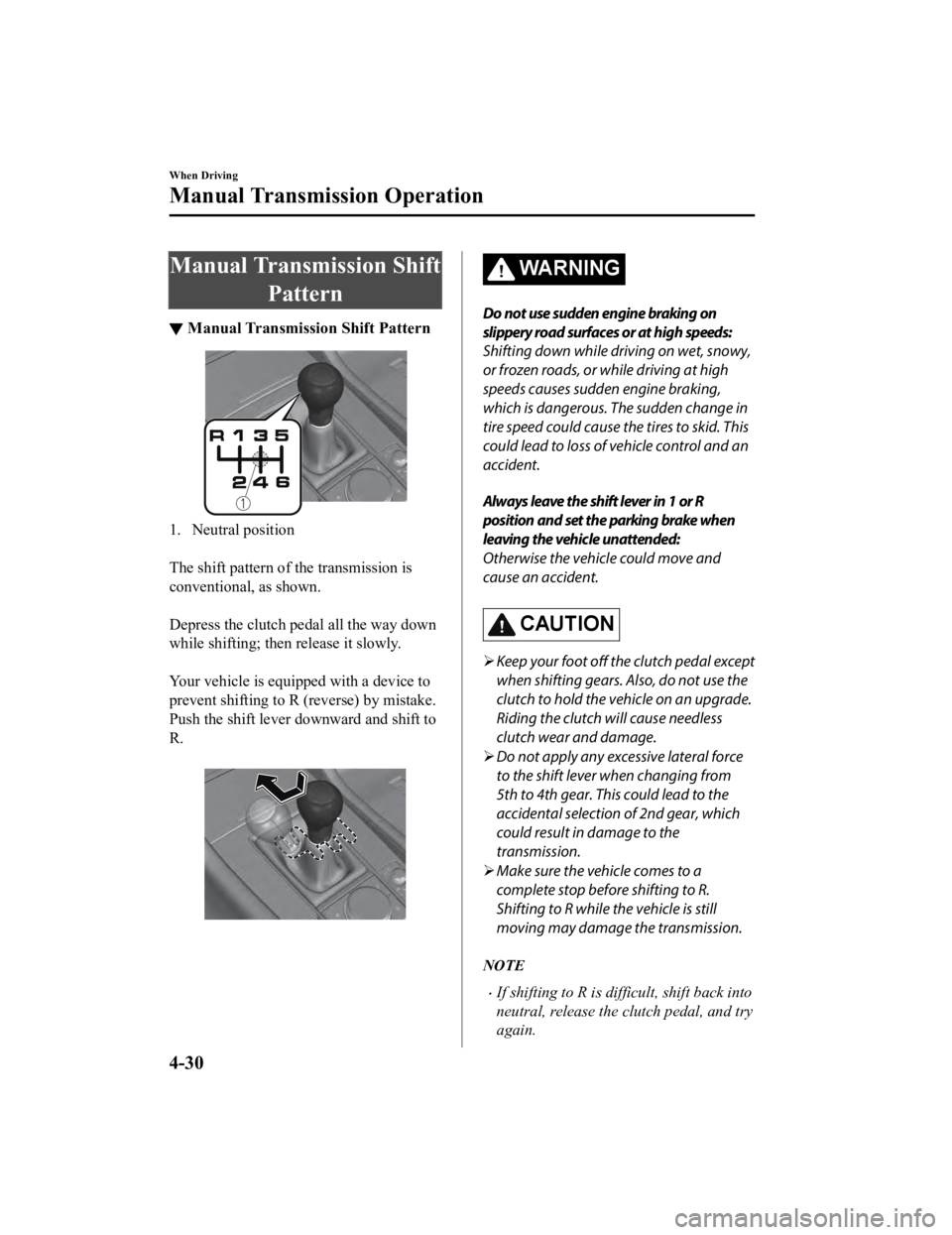

Manual Transmission ShiftPattern
▼Manual Transmission Shift Pattern
1. Neutral position

The shift pattern of the transmission is
conventional, as shown.

Depress the clutch pedal all the way down
while shifting; then release it slowly.

Your vehicle is equipped with a device to
prevent shifting to R (reverse) by mistake.
Push the shift lever downward and shift to
R.

WA R N I N G
Do not use sudden engine braking on
slippery road surfaces or at high speeds:
Shifting down while driving on wet, snowy,
or frozen roads, or while driving at high
speeds causes sudden engine braking,
which is dangerous. The sudden change in
tire speed could cause the tires to skid. This
could lead to loss of vehicle control and an
accident.
Always leave the shift lever in 1 or R
position and set the parking brake when
leaving the vehicle unattended:
Otherwise the vehicle could move and
cause an accident.
CAUTION
 Keep your foot off the clutch pedal except
when shifting gears. Also, do not use the
clutch to hold the vehicle on an upgrade.
Riding the clutch will cause needless
clutch wear and damage.
 Do not apply any excessive lateral force
to the shift lever when changing from
5th to 4th gear. This could lead to the
accidental selection of 2nd gear, which
could result in damage to the
transmission.
 Make sure the vehicle comes to a
complete stop before shifting to R.
Shifting to R while the vehicle is still
moving may damage the transmission.
NOTE
If shifting to R is difficult, shift back into
neutral, release the clutch pedal, and try
again.
When Driving
Manual Transmission Operation
4-30
