3807-2. Steps to take in an emergency
1Remove the cover inside the lug-
gage compartment by inserting a
screwdriver.
When removing the cover, to prevent dam-
age, cover the tip of the screwdriver with a
rag.
2Pull the lever.
■When the electronic key does not work
properly
●Make sure that the smart access system
with push-button start has not been deac-
tivated using the Remote Touch or at your
Lexus dealer. If it is off, turn the function
on.
●Check if battery-saving mode is set. If it is
set, cancel the function. (P.115)
■Unlocking the door
Use the mechanical key ( P.96) to
perform the following operations.
If the fuel filler door cannot
b
e opened
If the fuel filler door opener switch
cannot be operated, the following
procedure can be used to open the
fuel filler door.
Opening the fuel filler door
If the electronic key does not
o
perate properly
If communication between the
electronic key and vehicle is inter-
rupted ( P.115) or the electronic
key cannot be used because the
battery is depleted, the smart
access system with push-button
start and wireless remote control
cannot be used. In such cases, the
doors can be opened and the
engine can be started by following
the procedure below.
NOTICE
■In case of a smart access system with
push-button start malfunction or
other key-related problems
Take your vehicle with all the electronic
keys provided with your vehicle, includ-
ing the card key, to your Lexus dealer.
Locking and unlocking the doors

3847-2. Steps to take in an emergency
6Open and close any of the doors of
your vehicle with the engine switch
OFF.
7 Maintain the engine speed of the
second vehicle and start the engine
of your vehicle by turning the
engine switch to ON.
8 Once the vehicle’s engine has
started, remove the jumper cables
in the exact reverse order from
which they were connected.
Once the engine starts, have the vehi-
cle inspected at your Lexus dealer as
soon as possible.■Starting the engine when the battery is
discharged
The engine cannot be started by push-start-
ing.
■To prevent battery discharge
●Turn off the headlights, the air condition-
ing system, the audio system, etc. while
the engine is off.
●Turn off any unnecessary electrical com-
ponents when the vehicle is running at a
low speed for an extended period, such
as in heavy traffic.
■Charging the battery
The electricity stored in the battery will dis-
charge gradually even when the vehicle is
not in use, due to natural discharge and the
draining effects of certain electrical appli-
ances. If the vehicle is left for a long time,
the battery may discharge, and the engine
may be unable to start. (The battery
recharges automatically during driving.)
■When the battery is removed or dis-
charged
●Information stored in the ECU is cleared.
When the battery is depleted, have the
vehicle inspected at your Lexus dealer.
●In some cases, it may not be possible to
unlock the doors using the smart access
system with push-button start when the
battery is discharged. Use the wireless
remote control or the mechanical key to
lock or unlock the doors.
●The engine may not start on the first
attempt after the battery has recharged
but will start normally after the second
attempt. This is not a malfunction.
●The engine switch mode is memorized by
the vehicle. When the battery is recon-
nected, the system will return to the
mode it was in before the battery was dis-
charged. Before disconnecting the bat-
tery, turn the engine switch off.
If you are unsure wh at mode the engine
switch was in before the battery dis-
charged, be especially careful when
reconnecting the battery.
●The power back door must be initialized.
(  P.109)

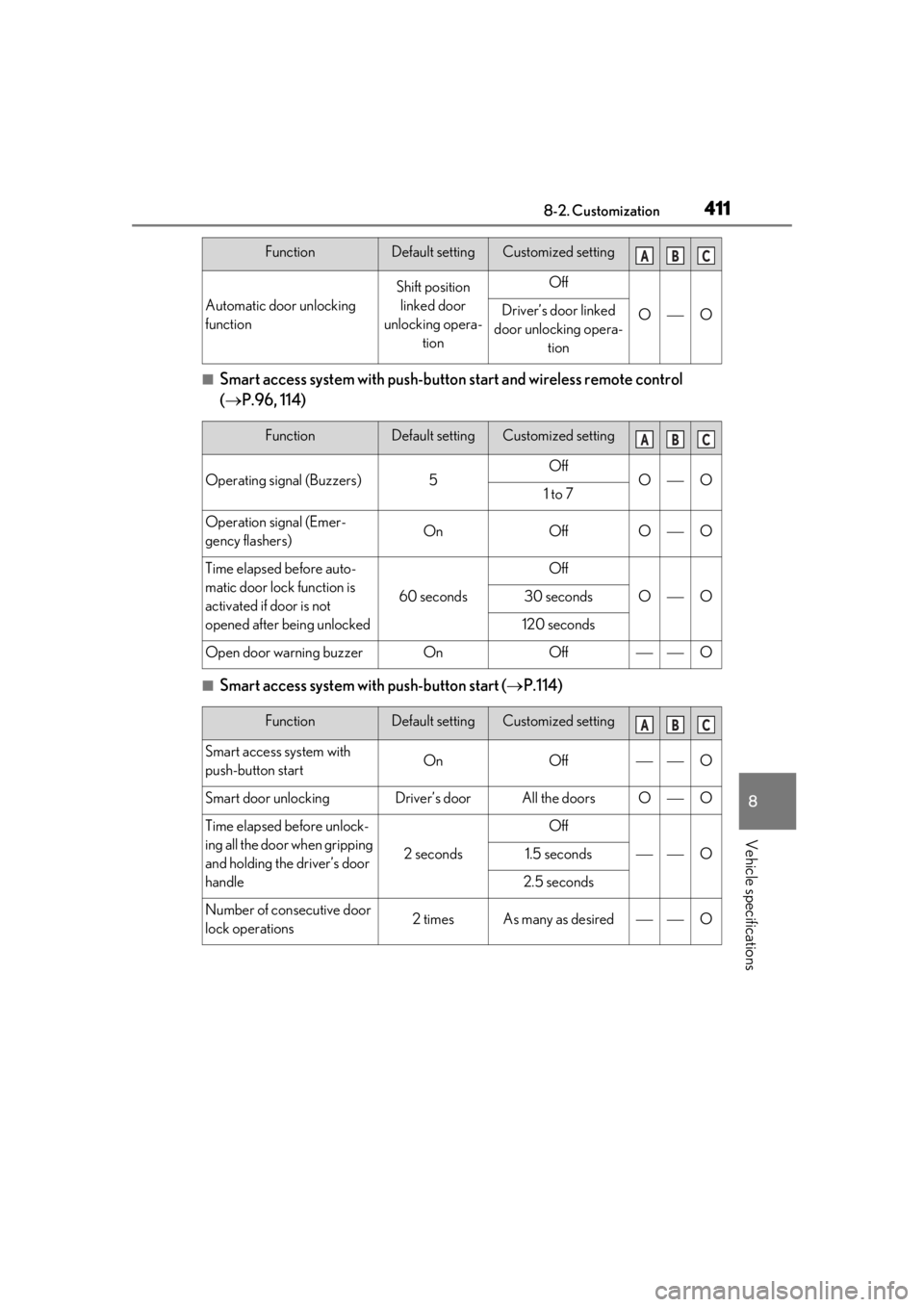

4118-2. Customization
8
Vehicle specifications
■Smart access system with push-button start and wireless remote control
(  P.96, 114)
■Smart access system with push-button start ( P.114)
Automatic door unlocking
function
Shift position
linked door
unlocking opera- tionOff
OODriver’s door linked
door unlocking opera- tion
FunctionDefault settingCustomized setting
Operating signal (Buzzers)5OffOO1 to 7
Operation signal (Emer-
gency flashers)OnOffOO
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being unlocked
60 seconds
Off
OO30 seconds
120 seconds
Open door warning buzzerOnOffO
FunctionDefault settingCustomized setting
Smart access system with
push-button startOnOffO
Smart door unlockingDriver’s doorAll the doorsOO
Time elapsed before unlock-
ing all the door when gripping
and holding the driver’s door
handle
2 seconds
Off
O1.5 seconds
2.5 seconds
Number of consecutive door
lock operations2 timesAs many as desiredO
FunctionDefault settingCustomized settingABC
ABC
ABC

437Alphabetical Index
Alphabetical Index
A
A/C ................................................................... 262Air conditioning filter ...............................340
Automatic air conditioning system ... 262
ABS (Anti-lock Brake System).............. 244 Function .......................................................... 244
Warning light ...............................................360
ACA (Active Cornering Assist) ........... 245
Active Cornering Assist (ACA) ........... 245
Active Sound Control (ASC) ..................164
Airbags ............................................................... 30 Airbag operating conditions....................32
Airbag precautions for your child ........ 35
Correct driving posture ............................ 25
Curtain shield airbag operating condi- tions .................................................................. 33
Curtain shield airbag precautions ....... 35
Front passenger occupant classification system ............................................................. 39
General airbag precautions ................... 35
Locations of airbags.................................... 30
Modification and disposal of airbags ..37
Side airbag operating conditions ......... 33
Side airbag precautions ............................ 35
Side and curtain shield airbags operating conditions...................................................... 33
Side and curtain shield airbags precau- tions .................................................................. 35
SRS airbags ..................................................... 30
SRS warning light ......................................360
Air conditioning filter ................................. 340
Air conditioning system ............................ 262 Air conditioning filter ...............................340
Automatic air conditioning system ... 262
Alarm ................................................................... 64 Warning buzzer ........................................ 358
Anchor brackets ..................................... 46, 54
Antennas (smart access system with push- button start) ................................................... 114
Anti-lock Brake System (ABS).............. 244 Function .......................................................... 244 Warning light .............................................. 360
Approach warning........................................210
Armrest............................................................ 294
ASC (Active Sound Control) ..................164
Assist grips ..................................................... 295
Audio system-linked display ...................... 83
Automatic headlight leveling system ....166
Automatic High Beam ............................... 168
Automatic light control system................165
Average fuel economy...................................81
Average vehicle speed ..................................81
B
Back door .........................................................102 Hands Free Power Back Door ........... 106
Power back door........................................ 105
Wireless remote control ........................... 96
Back-up lights Replacing light bulbs ................................346
Battery Battery checking ........................................325
If the battery is discharged ....................382
Preparing and checking before winter.......................................................................... 249
Replacing ...................................................... 385
Warning light .............................................. 358
Blind Spot Monitor (BSM)......................... 214
Bottle holders ................................................ 279
Brake Brake Hold..................................................... 163
Fluid...................................................................394
Parking brake ............................................... 160
Warning light .............................................. 358
Brake assist .................................................... 244
Brake Hold .......................................................163
Break-in tips.....................................................143
Brightness control Instrument panel light control........ 74, 78
BSM (Blind Spot Monitor)......................... 214

Alphabetical Index439
Intuitive parking assist.............................. 220
LTA (Lane-Tracing Assist) .................... 198
Multi-information display .......................... 79
RCTA ...............................................................227
Warning messages .................................. 367
Distance until next engine oil change ...73, 78
Do-it-yourself maintenance ...................... 317
Door lock Doors.................................................................. 98
Smart access system with push-button start ....................................................................114
Wireless remote control........................... 96
Doors Automatic door lock ing and unlocking
system ............................................................. 101
Back door........................................................102
Door glasses ..................................................135
Door lock.......................................................... 98
Open door warning buzzer .......... 99, 101
Outside rear view mirrors ...................... 132
Rear door child-protectors ..................... 101
Side doors ........................................................ 98
Drive distance ....................................................81
Drive info 1/Drive info 2 ................................81
Driver’s seat position memory .................123
Drive-start control ........................................143
Driving................................................................ 142 Break-in tips ................................................... 143
Correct driving posture ............................ 25
Driving mode select switch .................. 243
Procedures ..................................................... 142
Winter drive tips......................................... 249
Driving information display ..........................81
Driving position memory............................123 Memory recall function ............................125
Driving range .....................................................81
Driving support system information display ............................................................................. 83
Dynamic radar cruise control with full- speed range................................................ 204Warning message........................... 212, 367E
Eco drive mode ............................................ 243
Eco Driving Indicator............................82, 89
Eco Driving Indicator Light ........................ 82
EDR (Event data recorder) ........................... 8
Elapsed time .......................................................81
Electric Power Steering (EPS) Function ..........................................................245
Warning light .............................................. 360
Electronic key .................................................. 94 Battery-saving function.............................. 115
If the electronic key does not operate properly ...................................................... 380
Replacing the battery .................................341
Emergency, in case of If a warning buzzer sounds.................. 358
If a warning light turns on...................... 358
If a warning message is displayed ..... 367
If the battery is discharged ....................382
If the electronic key does not operate properly ...................................................... 380
If the engine will not start........................378
If the fuel filler do or cannot be opened
......................................................................... 380
If the vehicle is trapped in rising water ........................................................................... 351
If you have a flat tire ...................... 370, 377
If you lose your keys ................................. 379
If you think something is wrong......... 356
If your vehicle becomes stuck ............ 388
If your vehicle has to be stopped in an emergency ................................................ 350
If your vehicle needs to be towed .....353
If your vehicle overheats ....................... 386
Emergency flashers ....................................350
Engine ACC.................................................................. 154
Compartment................................................321
Engine switch ................................................ 152
Hood ................................................................. 319
How to start the engine ........................... 152

Alphabetical Index441
H
Hands Free Power Back Door ............... 106
Headlights ........................................................165Automatic High Beam system............. 168
Light switch .................................................... 165
Replacing light bulbs................................ 346
Headlights aim .............................................. 345
Head restraints ............................................... 126
Head-up display.............................................. 86 Driving information display area........... 86
Driving support system display area ..88
Eco Driving Indicator ................................. 89
Head-up display switch............................. 87
Navigation system-linked display ........ 86
Pop-up display...............................................88
Settings .............................................................. 87
Head-up display switch................................ 87
Heated steering wheel ................................ 271
Heaters Automatic air conditioning system ... 262
Heated steering wheel.............................. 271
Outside rear view mirrors .................... 263
Seat heaters .................................................... 271
Hill-start assist control ............................... 245
Hood ...................................................................319 Open .................................................................319
Hooks Cargo hooks................................................280
Coat hooks ................................................... 294
Grocery bag hooks .................................280
Retaining hooks (floor mat)......................24
Horn ................................................................... 130
I
I/M test ..............................................................316
Identification Engine ...............................................................391
Vehicle ............................................................390
Ignition switch (Engine switch) ................152 Auto power off function ...........................154
Changing the engine switch modes..154 If your vehicle has to be stopped in an
emergency ................................................ 350
Starting the engine ..................................... 152
Illuminated entry system ............................274
Indicators ........................................................... 70
Initialization Items to initialize .......................................... 419
Maintenance.......................................312, 323
Power windows ........................................... 135
Tire pressure warning system .............333
Inside rear view mirror ............................... 130
Instrument panel light control ........... 74, 78
Interior lights...................................................274
Intuitive parking assist...................... 219, 220 Function ..........................................................220
Warning message ..................................... 222
J
JackPositioning a floor jack ............................320
Vehicle-equipped jack .............................371
Jack handle ...................................................... 371
Jam protection function Moon roof ...................................................... 138
Power back door opener and closer109
Power windows ........................................... 135
K
Keyless entrySmart access system with push-button start ................................................................... 114
Wireless remote control ........................... 96
Keys...................................................................... 94 Battery-saving function.............................. 115
Electronic key ................................................. 94
Engine switch ................................................ 152
If the electronic key does not operate properly ...................................................... 380
If you lose your keys ................................. 379
Key number plate ......................................... 94
Keyless entry ............................... 98, 103, 114
