100 2. Instrument cluster
RX350/RX350L_U ■
Clock (on the multi-information display) (  P. 86)
Vehicles with a navigation system
The following clock setting can be changed: 
Vehicles with a Lexus Display Audio system
The following clock settings can be changed: Press the / switch to select an it em and then press the / switch to
change the setting or adjust the time. Item Settings Details
Display mode 12-hour display
Select to set the display mode of the
clock.
24-hour display
Item Settings Details
Display mode 12-hour display
Select to set the display mode of the
clock.
24-hour display
Adjust time Select to adjust the hour/minute.

102 2. Instrument cluster
RX350/RX350L_U ■
Meter settings Scheduled maintenance (U.S.A. only)
Maintenance data reset Select to reset the message indicating
maintenance is re quired, after the
required maintenance is performed.
(  P. 585)
Oil maintenance
Engine oil maintenance data reset Select to reset the engine oil mainte-
nance information (message indicat-
ing maintenance is required and
distance until the next oil change)
after engine oil maintenance is per-
formed. (  P. 597)Item Settings Details
Item Settings Details
Language Select to change the language dis-
played.
Units Select to change the units of measure
displayed.
(Eco Driving
Indicator Light) On
Select to enable/dis able the Eco Driv-
ing Indicator Light. (  P. 105)
Off
Switch settings Select to display how to change the
top screen.
Drive information 1 Select to select up to 2 items that will
be displayed on ea ch Drive informa-
tion screen (Drive information 1
screen, Drive information 2 screen,
and Drive inform ation 3 screen)
respectively.
(Selectable items:  P. 94)Drive information 2
Drive information 3

1032. Instrument cluster
2
Instrument cluster

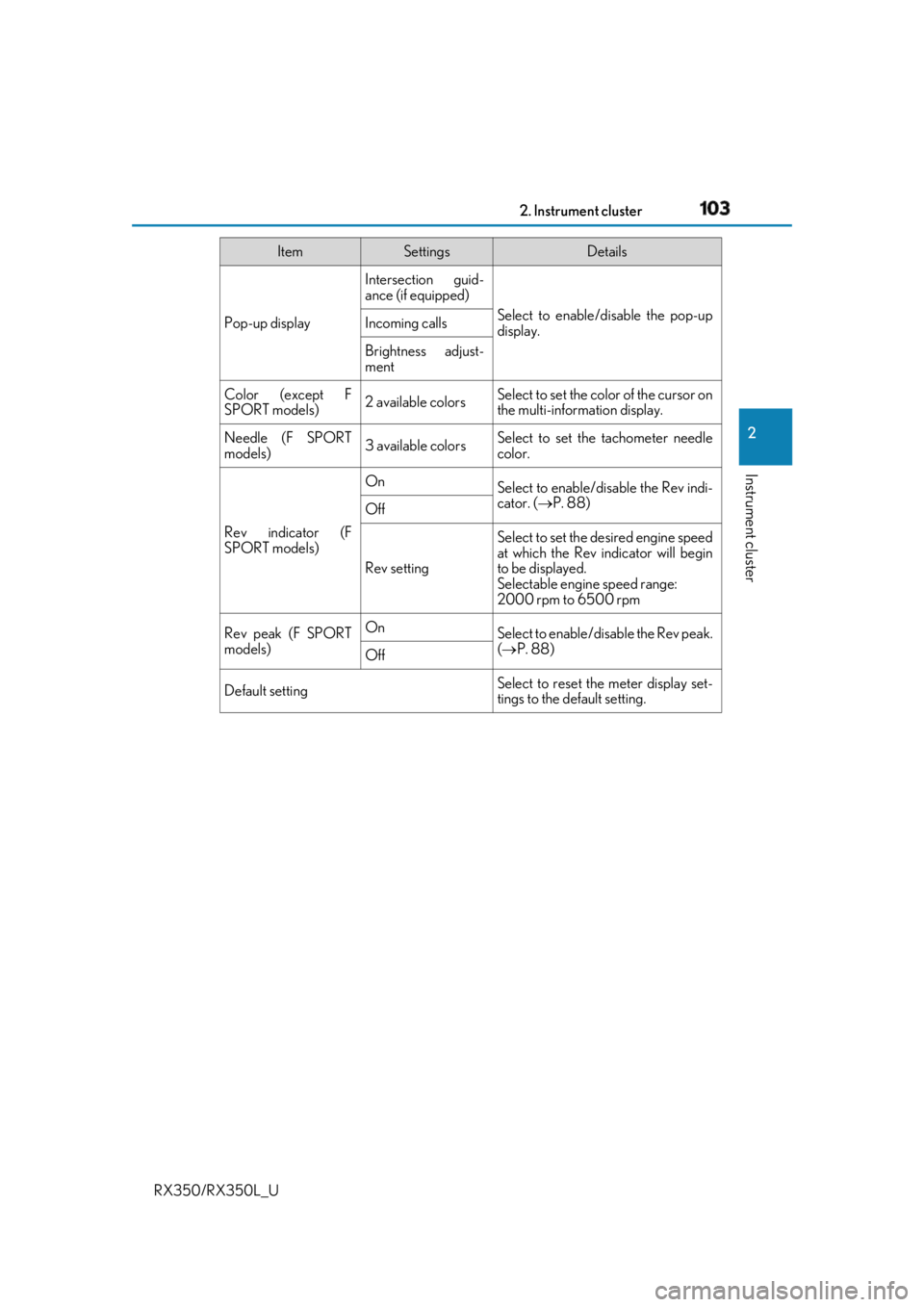

RX350/RX350L_U Pop-up display Intersection guid-
ance (if equipped)
Select to enable/disable the pop-up
display.Incoming calls
Brightness adjust-
ment
Color (except F
SPORT models) 2 available colors Select to set the color of the cursor on
the multi-information display.
Needle (F SPORT
models) 3 available colors Select to set the tachometer needle
color.
Rev indicator (F
SPORT models) On
Select to enable/disable the Rev indi-
cator. (  P. 88)
Off
Rev setting Select to set the desired engine speed
at which the Rev indicator will begin
to be displayed.
Selectable engine speed range:
2000 rpm to 6500 rpm
Rev peak (F SPORT
models) On
Select to enable/disable the Rev peak.
(  P. 88)
Off
Default setting Select to reset the meter display set-
tings to the default setting.Item Settings Details

104 2. Instrument cluster
RX350/RX350L_U ◆ Display items ■
Odometer
Displays the total distance the vehicle has been driven. ■
Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently. To reset, display the desired trip meter and press and hold the “ODO/TRIP”
switch.■
Distance until next engine oil change
Displays the distance the vehicle can be driven until an oil change is neces-
sary.
◆ Pop-up display
In some situations the following will be temporarily displayed:■
Distance until next engine oil change
Displays the distance until the next engi ne oil change. This display will be dis-
played in the following situations: • When the engine switch is tu rned to IGNITION ON mode.
• When a warning message indicating that oil maintenance shou ld be performed
soon or is required is displayed.Odometer/trip meter display area

1052. Instrument cluster
2
Instrument cluster
RX350/RX350L_U Displays suggestions to the driver in the following situations. To select a response
to a displayed suggestion, use the meter control switches. The suggestion function can be turned on/off. (Customizable features:  P. 723)■
Suggestion to enable the power back door
If the power back door system is disabled (setting on set to off) and the
power back door switch on the instru ment panel is operated, a suggestion
message will be displayed asking if yo u wish to enable the power back door
system. To enable the power back door system, select “Yes”. After enabling the power back door syst em, press the power back door switch
again to open or close the power back door.■
Suggestion to turn off the headlights
If the headlights are left on for a certai n amount of time after the engine switch
has been turned off, a su ggestion message will be displayed asking if you wish
to turn the headlights off. To turn the headlights off, select “Yes”.If a front door is opened after the engine switch is turned off, this suggestion mes-
sage will not be displayed.■
Eco Driving Indicator
Eco Driving Indicator will not operate under the following conditions: ●
The shift lever is in any position other than D. ●
A paddle shift sw itch (if equipped) is operated.●
Sport mode is selected. ●
The driving mode is set to customized mode and the powertrain control is set to power
(  P. 373) ●
The vehicle speed is approximately 80 mph (130 km/h) or higher.Suggestion function
Eco Driving Indicator Light
During Eco-friendly acceleration (Eco driv-
ing), the Eco Driving Indicator Light will turn
on. When the acceleration exceeds the Zone
of Eco driving, or when the vehicle is stopped,
the light turns off.
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with current
Eco driving ratio based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of Eco
driving, the right side of the Eco Driving Indi-
cator Zone Display will illuminate.
Zone of Eco driving 1
2
3
4

106 2. Instrument cluster
RX350/RX350L_U ■
Background color of the indicator/shift posi tion display area (except F SPORT models)
The background color of the indicator/shift po sition display area is changed according to
the driving mode as follows (  P. 373):●
Eco drive mode: Blue ●
Sport mode: Red ■
G-force display (if equipped) ●
The G-force values may not be zero even when the vehicle is parked, such as when it is
parked on an incline. ●
Depending on the vehicle usage conditions, the brake fluid pressure display may not
reach its maximum reading even though the brake pedal is fully depressed. ●
If a battery terminal is disconnected and reconnected, the steering amount display may
be disabled temporarily. Afte r driving the vehicle for a while , the display will be enabled.■
Suspension of the settings display ●
Some settings cannot be changed while driv ing. When changing settings, park the
vehicle in a safe place. ●
If a warning message is displa yed, operation of the settin gs display will be suspended.■
Tire pressure ●
It may take a few minutes to display the tire inflation pressure after the engine switch is
turned to IGNITION ON mode. It may also take a few minutes to display the tire infla-
tion pressure after inflation pressure has been adjusted.●
“---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions. ●
Tire inflation pressure changes with temperat ure. The displayed values may also be dif-
ferent from the values measured using a tire pressure gauge. ■
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display. ■
Customization
Some functions can be customized. (  P. 97, 722)

1072. Instrument cluster
2
Instrument cluster
RX350/RX350L_U WARNING ■
Caution for use while driving ●
When operating the multi-information display while driving, pay extra attention to the
safety of the area around the vehicle. ●
Do not look continuously at the multi-info rmation display while dr iving as you may fail
to see pedestrians, objects on the road, etc. ahead of the vehicle. ■
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, th e information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the dr iver’s shifting and the new gear number
appearing on the display. This lag could ca use the driver to downshift again, causing
rapid and excessive engine braking and possibly an accident resulting in death or
injury. ■
Cautions during setting up the display
As the engine needs to be running during sett ing up the display, en sure that the vehicle
is parked in a place with adequate ventilation. In a closed area such as a garage,
exhaust gases including harmful carbon mo noxide (CO) may collect and enter the
vehicle. This may lead to death or a serious health hazard.
NOTICE ■
While setting up the display
To prevent battery discharge, ensure that the engine is running while setting up the dis-
play features.

108 2. Instrument cluster
RX350/RX350L_U The head-up display is linked to the meters and navigation system (if equipped)
and projects a variety of information in front of the driver, such as the current
vehicle speed and route guid ance to a set destination.
Navigation system-linked display area (if equipped) (  P. 111)Displays the following items, which are linked to the navigation system:
•Street name
• Route guidance to destination
•Compass
Message display area (  P. 110)Displays the following items:
• Warning/Message (if equipped)
• Audio system operation status
• Outside temperature
/ icon (  P. 110)
Driving assist system status display area (if equipped) Displays the operational stat us of the following systems:
• Dynamic radar cruise control with full-speed range (  P. 300)
• LKA (Lane-Keeping Assist) (  P. 291)
• Intuitive parking assist (  P. 326)
• Intelligent Clearance Sonar (ICS) (  P. 336)
Displayed content is the same as that disp layed on the multi-information display. For
details, refer to the explanations of each system.Head-up display 
 : If equippedSummary of functions
1
2
3
4
