GS350_300_OM_OM30G96U_(U)7-2. Steps to take in an emergency
If the engine will not start
One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
●The engine may be flooded.
Try to restart the engine again follo
wing correct starting procedures.
( P. 203)
●There may be a malfunction in th e engine immobilizer system. (P. 77)
One of the following may be the cause of the problem:
●The battery may be discharged. ( P. 507)
●The battery terminal connections may be loose or corroded.
The engine starting system may be malfun ctioning due to an electrical problem
such as electronic key battery depletio n or a blown fuse. However, an interim
measure is available to start the engine. ( P. 501)
One of the following may be the cause of the problem:
●One or both of the battery terminals may be disconnected.
●The battery may be discharged. ( P. 507)
●There may be a malfunction in the steering lock system.
Contact your Lexus dealer if the problem cannot be repaired, or if repair procedures
are unknown.
If the engine will not start even though correct starting procedures are being
followed (P. 203), consider each of the following points:
The engine will not start even thoug h the starter motor operates nor-
mally.
The starter motor turns over slowly , the interior lights and headlights
are dim, or the horn does not sound or sounds at a low volume.
The starter motor does not turn over
The starter motor does not turn over, the interior lights and headlights
do not turn on, or the horn does not sound.

5107-2. Steps to take in an emergency
GS350_300_OM_OM30G96U_(U)
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a low
speed for an extended period, such as in heavy traffic.
■Charging the battery
The electricity stored in the battery will disc harge gradually even when the vehicle is not
in use, due to natural discharge and the draini ng effects of certain electrical appliances. If
the vehicle is left for a long time, the battery may discharge, and the engine may be
unable to start. (The battery recharges automatically during driving.)
■When recharging or replacing the battery
●In some cases, it may not be possible to un lock the doors using the smart access system
with push-button start when the battery is discharged. Use the wireless remote control
or the mechanical key to lock or unlock the doors.
●The engine may not start on the first attempt after the battery has recharged but will
start normally after the second attempt. This is not a malfunction.
●The engine switch mode is memorized by the vehicle. When the battery is recon-
nected, the system will return to the mode it was in before the battery was discharged.
Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery discharged, be
especially careful when reconnecting the battery.

GS350_300_OM_OM30G96U_(U)

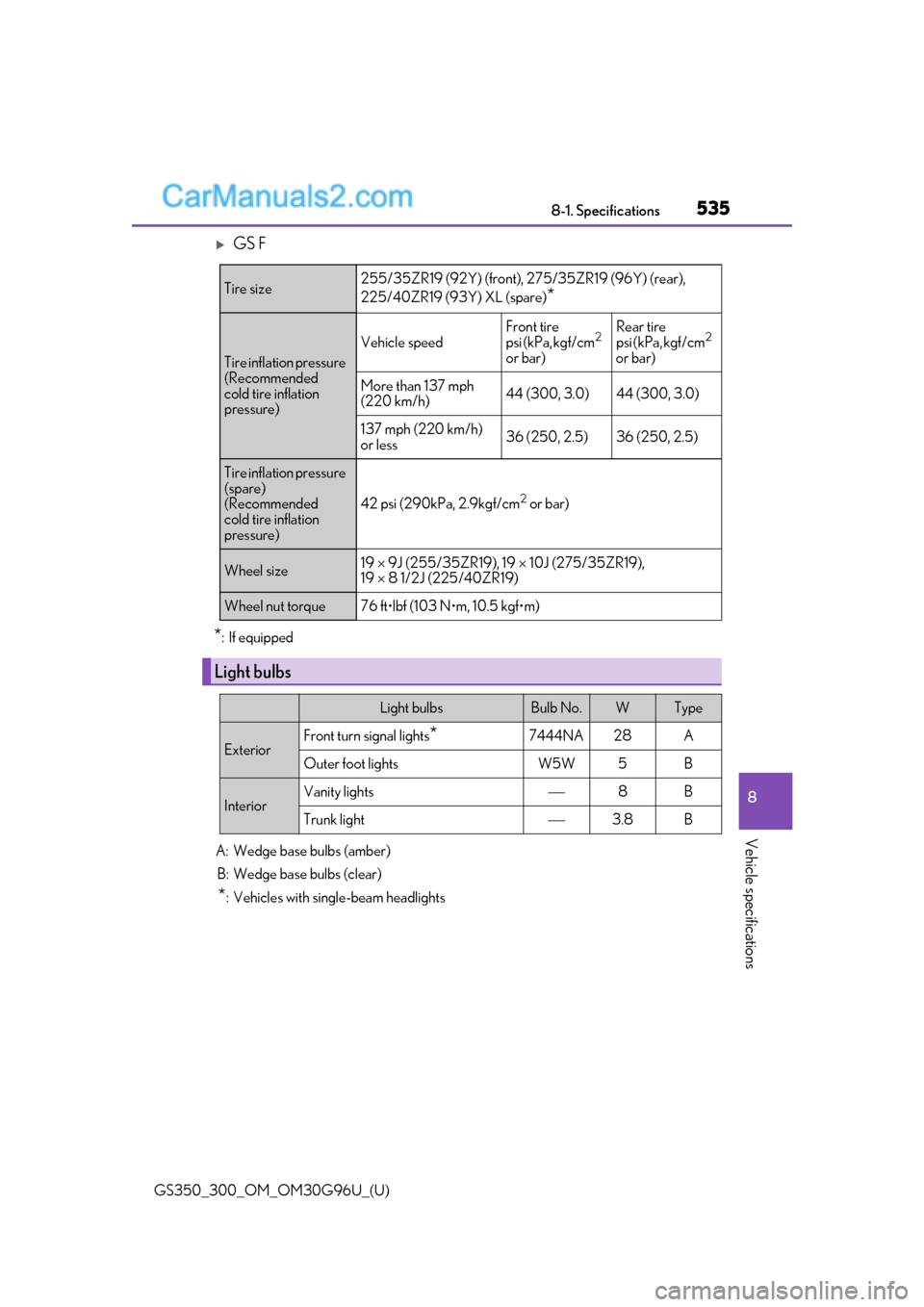

5358-1. Specifications
8
Vehicle specifications
GS F
*: If equipped
Tire size255/35ZR19 (92Y) (front), 275/35ZR19 (96Y) (rear),
225/40ZR19 (93Y) XL (spare)
*
Tire inflation pressure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front tire
psi (kPa, kgf/cm2
or bar)
Rear tire
psi (kPa, kgf/cm2
or bar)
More than 137 mph
(220 km/h)44 (300, 3.0)44 (300, 3.0)
137 mph (220 km/h)
or less36 (250, 2.5)36 (250, 2.5)
Tire inflation pressure
(spare)
(Recommended
cold tire inflation
pressure)
42 psi (290kPa, 2.9kgf/cm2 or bar)
Wheel size19  9J (255/35ZR19), 19  10J (275/35ZR19),
19  8 1/2J (225/40ZR19)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Light bulbs
Light bulbsBulb No.WType
ExteriorFront turn signal lights*7444NA28A
Outer foot lightsW5W5B
InteriorVanity lights8B
Trunk light3.8B
A: Wedge base bulbs (amber)
B: Wedge base bulbs (clear)
*: Vehicles with single-beam headlights

558
GS350_300_OM_OM30G96U_(U)8-2. Customization
■Power windows and moon roof (
P. 181, 184)
■Automatic light control system ( P. 222)
■Lights (P. 222)
*: U.S.A. only
FunctionDefault
settingCustomized setting
Mechanical key linked operationOffOn——O
Wireless remote co ntrol linked opera-
tionOffOn
(Open only)——O
Buzzer sounds if operated using wire-
less remote controlOnOff——O
123
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Time elapsed before the headlights
automatically turn off30
seconds
Off
O—O60
seconds
90
seconds
Welcome light illumination controlOnOff——O
123
FunctionDefault settingCustomized setting
Daytime running lights*OnOffO—O
123

565
GS350_300_OM_OM30G96U_(U)
9For owners
Reporting safety defects for U.S. owners..................................... 566
Seat belt instructions for Canadian owners
(in French) .............................................. 567
SRS airbag instructions for Canadian owners
(in French) .............................................. 569
Headlight aim instructions for Canadian owners
(in French) (vehicles with
single-beam headlights)................... 577

577
GS350_300_OM_OM30G96U_(U)
9
For owners
Headlight aim instructions for Canadian owners (in
French) (vehicles with single-beam headlights)
Boulon de réglage A
Boulon de réglage B
Assurez-vous que le réservoir de carburant du véhicule est plein et que la
partie de carrosserie située autour des phares n’est pas déformée.
Garez le véhicule sur un so l parfaitement horizontal.
Asseyez-vous sur le siège du conducteur.
Faites rebondir le véhicule à plusieurs reprises.
The following is a French explanation of headlight aim instructions from the
headlight aim section in this manual.
Boulons de réglage vertical
1
2
Avant de vérifier la portée des phares
1
2
3
4

590Alphabetical index
GS350_300_OM_OM30G96U_(U)
Fuel filler door ........................................ 234When the fuel filler door cannot be opened ......................... 237
Fuel pump shut off system................. 436
Fuses ............................................................414
Garage door opener ........................... 351
Gauges ................................................92, 98
Glove box ................................................ 339
Glove box light ...................................... 339
Hands-free system (for cellular phone)
*
HD Radio® system*
Head restraints ......................................... 171
Headlights ............................................... 222 Adaptive Front-lighting System (AFS) ................................... 223
Automatic High Beam system .... 225
Headlight leveling warning message ........................... 444
Light switch ........................................... 222
Replacing light bulbs ........................ 422
Headlights aim............................. 418, 577
Head-up display......................................126
Heated steering wheel ....................... 330 Heaters
Air conditioning system ...................316
Heated steering wheel ...................330
Seat heaters ............................................ 331
Outside rear view mirrors ............ 322
Hill-start assist control ........................296
Hood ..........................................................375 Open ....................................................... 375
Warning message............................. 444
Hooks Cargo hooks ....................................... 342
Coat hooks ...........................................350
Retaining hooks (floor mat)..............32
Horn............................................................. 174
I/M test ...................................................... 372
Identification........................................... 523 Engine ..................................................... 524
Vehicle .................................................... 523
Ignition switch (engine switch) ....... 203 Auto power off function .................205
Changing the engine switch modes .................................................. 204
If your vehicle has to be stopped in an emergency...........427
Starting the engine ............................ 204
Illuminated entry system ....................337
Immobilizer system ................................. 77
Indicators .....................................................87
G
H
I
