4357-2. Steps to take in an emergency
GS F_OM_OM30G90U_(U)
7
When trouble arises
Electric power steering system warning light (warning buzzer)
Indicates a malfunction in the EPS (Electric Power Steering) sys-
tem
 Have the vehicle inspected by your Lexus dealer immediately.
(Flashes or illuminates)
(If equipped)
PCS warning lightIndicates a malfunction in the PCS (Pre-Collision System) or that
the system is temporarily unavailable due to the vehicle being
extremely hot/cold, or dirt around a front sensor, etc.
( P. 248, 441)
 Follow the instructions displayed on the multi-information dis-
play. ( P. 248, 441)
If the PCS (Pre-Collision System ) or VSC (Vehicle Stability Con-
trol) system is disabled, the PC S warning light will illuminate.
 P. 292
Slip indicator
Indicates a malfunction in:
• The VSC system;
• The TRAC system; or
• The hill-start assist control system
 Have the vehicle inspected by your Lexus dealer immediately.
The light will flash when the VSC or TRAC system is operating.
(Flashes)
(If equipped)
“AFS OFF” indicator Indicates a malfunction in the adaptive front-lighting system
 Have the vehicle inspected by your Lexus dealer immediately.
(Flashes)
Brake hold operated indicator
Indicates a malfunction in the brake hold system
 Have the vehicle inspected by your Lexus dealer.
Warning lightWarning light/Details/Actions

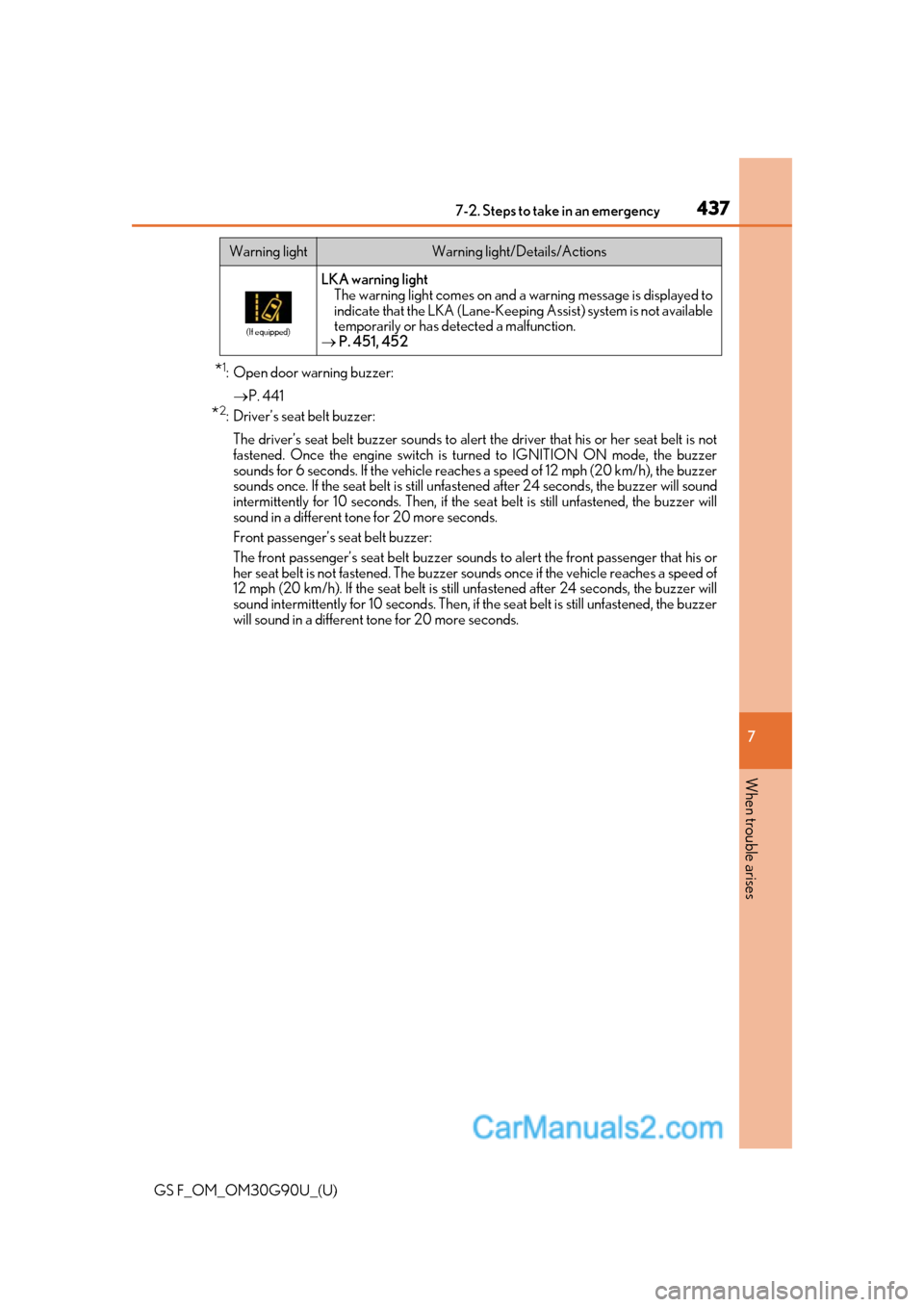

4377-2. Steps to take in an emergency
GS F_OM_OM30G90U_(U)
7
When trouble arises
*1: Open door warning buzzer:  P. 441
*2: Driver’s seat belt buzzer:
The driver’s seat belt buzzer sounds to alert the driver that his or her seat belt is not
fastened. Once the engine switch is turned to IGNITION ON mode, the buzzer
sounds for 6 seconds. If the vehicle reaches a speed of 12 mph (20 km/h), the buzzer
sounds once. If the seat belt is still unfast ened after 24 seconds, the buzzer will sound
intermittently for 10 seconds. Then, if the se at belt is still unfastened, the buzzer will
sound in a different tone for 20 more seconds.
Front passenger’s seat belt buzzer:
The front passenger’s seat belt buzzer soun ds to alert the front passenger that his or
her seat belt is not fastened. The buzzer so unds once if the vehicle reaches a speed of
12 mph (20 km/h). If the seat belt is still unfastened after 24 se conds, the buzzer will
sound intermittently for 10 se conds. Then, if the seat belt is still unfastened, the buzzer
will sound in a different to ne for 20 more seconds.
(If equipped)
LKA warning light
The warning light comes on and a warning message is displayed to
indicate that the LKA (Lane-Keepin g Assist) system is not available
temporarily or has detected a malfunction.
 P. 451, 452
Warning lightWarning light/Details/Actions

441
GS F_OM_OM30G90U_(U)
7
When trouble arises
7-2. Steps to take in an emergency
If a warning message is displayed
Master warning light
The master warning light also comes on or flashes in order to indicate that a message
is currently being displayed on the multi-information display.
Multi-information display
If any of the warning light comes on ag ain after the following actions have been
performed, contact your Lexus dealer.
If a warning is shown on the multi-info rmation display, stay calm and perform
the following actions:
GS350/GS300
(except F SPORT models)GS350/GS300
(F SPORT models)
GS F
1
2

4427-2. Steps to take in an emergency
GS F_OM_OM30G90U_(U)
Warning message and warning buzzer list
Warning messageDetails/Actions
(If equipped)
Indicates that there is a high possibility of a frontal colli-
sion, or that the pre-collision braking function is operat-
ing At the same time, will appear on the head-up
display.
A buzzer also sounds.
 Avoid the collision by decelerating using the brakes
or taking other evasive actions.
(If equipped)
Indicates that your vehicle is nearing the vehicle ahead
(in vehicle-to-vehicle distance control mode)
At the same time, will appear on the head-up dis-
play (the image flashes).
A buzzer also sounds.
 Slow the vehicle by applying the brakes.
(If equipped)
Indicates that the vehicle has deviated from the lane
(while the LKA [Lane-Keeping Assist] system is operat-
ing) The lane line on the side the vehicle has deviated from
flashes in amber.
At the same time, will appear on the head-up
display (the image flashes).
A buzzer also sounds.
 Check around the vehicle and back to inside of the
lane lines.
Indicates a malfunctio n in the brake system
A buzzer also sounds.
 Have the vehicle inspecte d by your Lexus dealer
immediately.
Continuing to drive the vehicle may be dangerous.
(U.S.A.) (Canada) (Flashes)

4467-2. Steps to take in an emergency
GS F_OM_OM30G90U_(U)
Indicates a malfunction in the parking brake system
A buzzer also sounds.
 Press the parking brake switch. If the warning mes-
sage is still displayed, have the vehicle inspected by
your Lexus dealer.
Indicates an attempt was made to release the parking
brake without depressing the brake pedal
A buzzer also sounds.
 Release the parking brake while depressing the
brake pedal.
Indicates that the shift position was changed and Drive-
Start Control was operated while depressing the accel-
erator pedal A buzzer also sounds.
 Momentarily release the accelerator pedal.
Indicates an attempt was made to shift to 1st gear with
the shift position in M while on a slippery surface
The vehicle will not shift down from 2nd gear.
A buzzer also sounds.
 The vehicle will not shift down from 2nd gear.
Warning messageDetails/Actions
(Flashes)
(U.S.A.) (Flashes)
(Canada) (Flashes)
(Flashes)

4557-2. Steps to take in an emergency
GS F_OM_OM30G90U_(U)
7
When trouble arises
Indicates an attempt was made to engage the parking
brake while driving A buzzer also sounds.
 Press the parking brake switch. If the warning mes-
sage is still displayed, have the vehicle inspected by
your Lexus dealer.
Indicates a malfunction in the parking brake system
A buzzer also sounds.
 Press the parking brake switch. If the warning mes-
sage is still displayed, have the vehicle inspected by
your Lexus dealer.
(If equipped)
Indicates that LKA (Lane-Ke eping Assist) system cannot
be used due to the vehicle speed being too high
 Slow down.
Warning messageDetails/Actions
(U.S.A.) (Canada)

4577-2. Steps to take in an emergency
GS F_OM_OM30G90U_(U)
7
When trouble arises
Indicates that the brake hold system cannot be turned off A buzzer also sounds.
 Depress the brake pedal.
Indicates that the brake hold system is not available
The reason the brake hold system is not available may
be displayed.
A buzzer also sounds.
 Close the driver’s door.
 Fasten the driver’s seat belt.
Indicates that the brake hold system is unable to con-
tinue brake hold function
The reason the brake hold system is not continue may
be displayed.
A buzzer also sounds.
 Depress the brake pedal.
 Close the driver’s door.
 Fasten the driver’s seat belt.
Warning messageDetails/Actions

4627-2. Steps to take in an emergency
GS F_OM_OM30G90U_(U)
Indicates a malfunction in the tire pressure warning sys-
tem
Stop the vehicle in a safe place and turn the engine
switch off then on again. If the tire pressure warning
indicator flashes for 1 minute then illuminates, there
is a malfunction in the system. Have the vehicle
inspected at your Lexus dealer.
Indicates that the tire position information cannot be rec-
ognized
 Drive for a short while an d check if the display
updates.
If the radio wave conditions improve, the display
may return to normal. If th e tire pressure is still not
displayed after driving for several minutes, stop the
vehicle in a safe place, turn the engine switch off
then on again, and start driv ing. If the tire pressure is
still not displayed even after repeating this process
several times, have the vehicle inspected at your
Lexus dealer.
Indicates that the washer fluid level is low
 Add washer fluid.
Except F SPORT models of GS350/GS300, and GS F:
Indicates that remaining fuel is approximately 2.6 gal.
(10.0 L, 2.2 Imp.gal.) or less
F SPORT models of GS350/GS300: Indicates remain-
ing fuel is approximately 2.6 gal. (9.9 L, 2.2 Imp.gal.) or
less
 Refuel the vehicle.
Warning messageDetails/Actions
