1For safety and security
2Vehicle status information and
indicators
3Before driving
4Driving

12Pictorial index

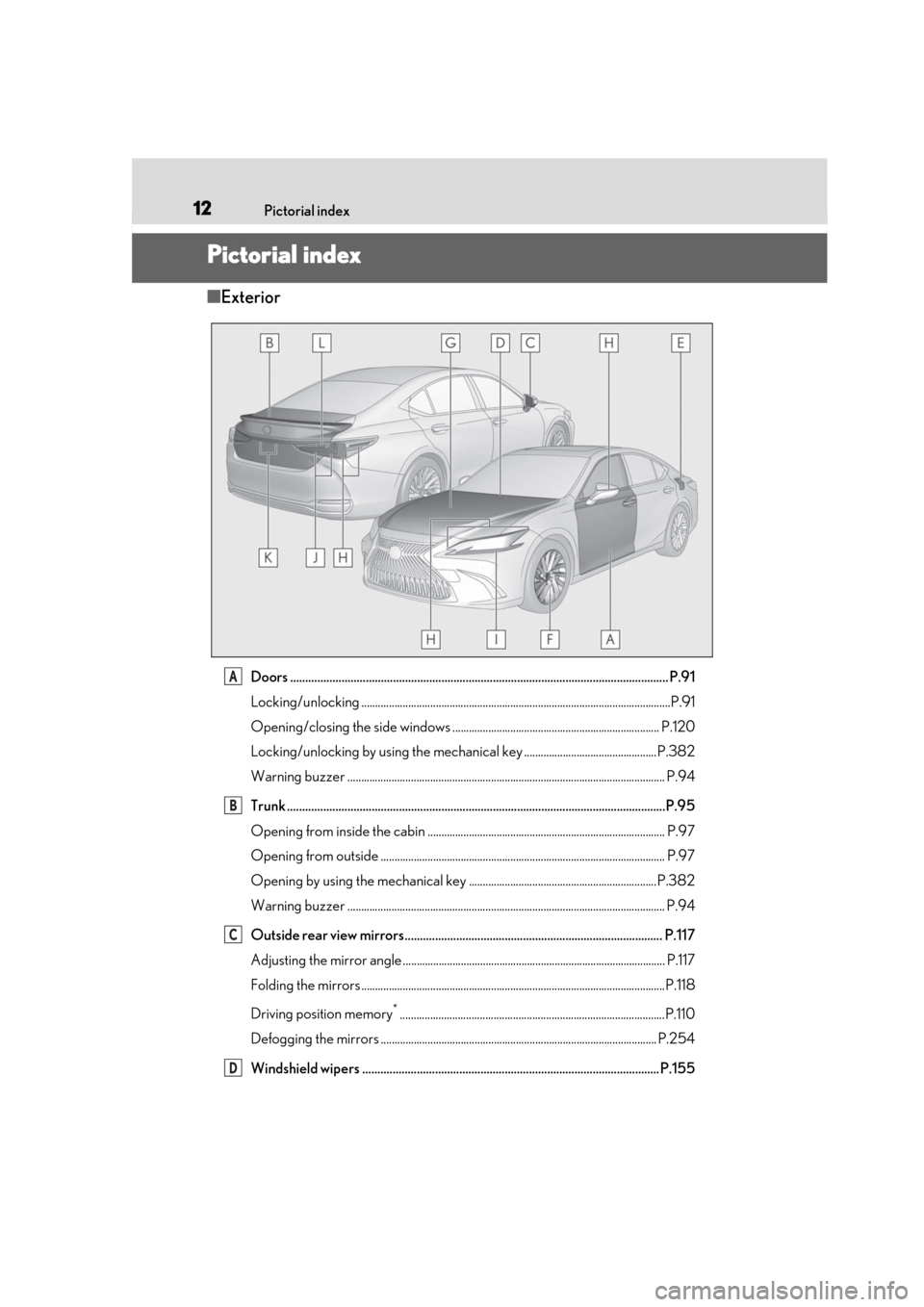

Pictorial index
■Exterior
Doors .......................................................................................................................... ... P.91
Locking/unlocking .............................................................................................................. ..P.91
Opening/closing the side windows ........................................................................... P.120
Locking/unlocking by using th e mechanical key ................................................P.382
Warning buzzer ................................................................................................................. .. P.94
Trunk .......................................................................................................................... ...P.95
Opening from inside the cabin ...................................................................................... P.97
Opening from outside ....................................................................................................... P.97
Opening by using the mechanical key ....................................................................P.382
Warning buzzer ................................................................................................................. .. P.94
Outside rear view mirrors..................................................................................... P.117
Adjusting the mirror angle ............................................................................................... P.117
Folding the mirrors ............................................................................................................ ..P.118
Driving position memory
*................................................................................................P.110
Defogging the mirrors .................................................................................................... P.254
Windshield wipers .................................................................................................. P.155
A
B
C
D

17Pictorial index
Driving position memory switches*.................................................................... P.110
Outside rear view mirror switches ..................................................................... P.117
Door lock switches ...................................................................................................P.93
Window lock switch ................................................................................................ P.121
Power window switches ........................................................................................P.120
*:If equipped
Meter control switches ........................................................................................... P.74
Paddle shift switches .............................................................................................. P.143
TEL switch
*
A
B
C
D
E
A
B
C

20Pictorial index
■Ceiling
Interior lights ........................................................................................................... P.266
Personal lights......................................................................................................... P.266
Moon roof switches
*.............................................................................................. P.122
“SOS” button
*.........................................................................................................P.292
Door-linked personal light switch ..................................................................... P.266
Vanity mirrors ......................................................................................................... P.272
Sun visors .................................................................................................................. P.2 72
Inside rear view mirror ........................................................................................... P.116
Garage door opener buttons ............................................................................ P.284
*:If equipped
A
B
C
D
E
F
G
H
I

231-1. For safe use
1
For safety and security
Adjust the angle of the seatback so
that you are sitting straight up and
so that you do not have to lean for-
ward to steer. (P.109)
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the
elbow when gripping the steering
wheel. ( P.109)
Lock the head restraint in place
with the center of the head restraint
closest to the top of your ears.
( P.113)
Wear the seat belt correctly.
( P.25) Make sure that all occupants are wear-
ing their seat belts before driving the
vehicle. (
P.25)
Use a child restraint system appropri-
ate for the child until the child becomes
large enough to properly wear the
vehicle’s seat belt. ( P.42)
Make sure that you can see backward
clearly by adjusting the inside and out-
side rear view mirrors properly.
( P.116, 117)
For safe driving
For safe driving, adjust the seat and
mirror to an appropriate position
before driving.
Correct driving posture
WARNING
Observe the following precautions.
Failure to do so may result in death or
serious injury.
A
B
C
D
●Do not adjust the position of the
driver’s seat while driving.
Doing so could cause the driver to lose
control of the vehicle.
●Do not place a cushion between the
driver or passenger and the seatback.
A cushion may prevent correct pos-
ture from being achieved, and reduce
the effectiveness of the seat belt and
head restraint.
●Do not place anything under the front
seats.
Objects placed under the front seats
may become jammed in the seat
tracks and stop the seat from locking in
place. This may lead to an accident
and the adjustment mechanism may
also be damaged.
●Always observe the legal speed limit
when driving on public roads.
●When driving over long distances, take
regular breaks before you start to feel
tired.
Also, if you feel tired or sleepy while
driving, do not force yourself to con-
tinue driving and take a break immedi-
ately.
Correct use of the seat belts
Adjusting the mirrors

662-1. Instrument cluster
2-1.Instrument cluster
The image may differ from the actual condition.
Warning lights inform the driver of mal-
functions in the indicated vehicle’s sys-
tems.
Warning lights and indicators
The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.
Warning lights and indicators displayed on the instrument cluster
Warning lights
(U.S.A.)
Brake system warning light*1
(  P.358)
(red)
(Canada)
Brake system warning light*1
(  P.358)
(yellow)
Brake system warning light*1
(  P.358)
High coolant temperature
warning light
*2 (  P.358)
Charging system warning
light
*2 ( P.359)
Low engine oil pressure warn-
ing light
*2 (  P.359)
(U.S.A.) Malfunction indicator lamp
*1
(  P.359)
(Canada) Malfunction indicator lamp
*1
(  P.359)
SRS warning light
*1 (  P.359)
(U.S.A.) ABS warning light
*1 (
 P.360)

682-1. Instrument cluster
systems.
Turn signal indicator (P.145)
(U.S.A.) Headlight indicator (
P.150)
(Canada) Tail light indicator (
P.150)
Headlight high beam indicator
(  P.152)
Automatic High Beam indicator
(  P.153)
PCS warning light
*1, 2 (  P.171)
Cruise control indicator
(  P.194)
Dynamic radar cruise control
indicator ( P.187)
Cruise control “SET” indicator
(  P.187)
(white)
LTA indicator ( P.181)
(green)
LTA indicator ( P.181)
(orange)
(flashes)LTA indicator ( P.181)
BSM outside rear view mirror
indicators
*1, 3 (if equipped)
(  P.197, P.211)
BSM indicator (if equipped)
(  P.197)
Intuitive parking assist OFF indi-
cator
*1, 2 (if equipped)
(  P.205)
RCTA OFF indicator
*1, 2 (if
equipped) ( P.211)
RCD OFF indicator*2 (if
equipped) ( P.215)
PKSB OFF indicator
*1, 2 (if
equipped) ( P.219)
(flashes)
Slip indicator*1 ( P.236)
VSC OFF indicator
*1, 2
(  P.237)
Smart access system with push-
button start indicator ( P.135)
“READY” indicator ( P.135)
AGC indicator
*4 (  P.203)
EV drive mode indicator
(  P.139)
(U.S.A.) Parking brake indicator
(
 P.146)
(Canada) Parking brake indicator
(
 P.146)
Brake hold standby indicator
*1
(  P.148)
Brake hold operated indicator
*1
(  P.148)
EV indicator ( P.54)
Low outside temperature indi-
cator
*5 (  P.70)
Security indicator
*6 (  P.60,
P.62)
(U.S.A.) “AIR BAG ON/OFF” indica-
tor
*1, 6 (
 P.37)

692-1. Instrument cluster
2
Vehicle status information and indicators
Drive mode indicators
*1: These lights come on when the power
switch is turned to ON mode to indi-
cate that a system check is being per-
formed. They will go off after the hybrid
system is on, or after a few seconds.
There may be a malfunction in a system
if the lights do not come on, or go off.
Have the vehicle inspected by your
Lexus dealer.
*2: This light comes on when the system is turned off.
*3: This light illuminates on the outside rear view mirrors.
*4: This light illuminates on the multi-infor- mation display.
*5: When the outside temperature is approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10
seconds, then stay on.
*6: This light illuminates on the center panel.
(Canada)
“AIR BAG ON/OFF” indica-
tor
*1, 6 (
 P.37)
Traction battery status indica-
tor
*4 (  P.81)
Eco drive mode indicator
(  P.202)
Sport mode indicator
(  P.202)
