Features of your vehicle
✽ ✽NOTICE
• Do not place any accessories,
stickers or tint on the windshield.
• Have the windshield glass replaced by an authorized dealer.
• Do not remove or damage related parts of the High Beam Assist sys-
tem.
• Be careful that water doesn’t get into the High Beam Assist unit.
• Do not place objects on the dash- board that reflect light such as
mirrors, white paper, etc. The sys-
tem may not be able to function if
sunlight is reflected.
• At times, the High Beam Assist system may not operate due to sys-
tem limitations. Always check the
road conditions for your safety.
When the system does not operate
normally, manually change
between the high beam and low
beam.
Turn signals and lane change
signals
The ignition switch must be on for the
turn signals to function. To turn on
the turn signals, move the lever up or
down (A). The green arrow indicators
on the instrument panel indicate
which turn signal is operating.
They will self-cancel after a turn is
completed. If the indicator continues
to flash after a turn, manually return
the lever to the OFF position.
To signal a lane change, move the
turn signal lever slightly and hold it in
position (B). The lever will return to
the OFF position when released. If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned
out and will require replacement.
✽ ✽
NOTICE
If an indicator flash is abnormally
quick or slow, a bulb may be burned
out or have a poor electrical connec-
tion in the circuit.
OCK047415C

Features of your vehicle
120
4
One-touch lane change function
To activate an one-touch lane
change function, move the turn sig-
nal lever slightly and then release it.
The lane change signals will blink 3,
5 or 7 times.
You can choose one-touch lane
change blinking function in “One
touch turn lamp” of “User setting”.
Refer to “User setting” in chapter 4
✽ ✽
NOTICE
If the turn signal indicator stays on
and does not flash, or if it flashes
abnormally, a bulb may be burned
out or have a poor electrical connec-
tion in the circuit. The bulb may
require replacement.
Check headlight
This warning message illuminates if
there is a malfunction (burned-out
bulb except LED lamp or circuit mal-
function) with the headlamp. In this
case, have your vehicle inspected by
an authorized Kia dealer.
✽ ✽NOTICE
• When replacing the bulb, use the
same wattage bulb.
For more information, refer to
“BULB WATTAGE” in chapter 8.
• If a different wattage bulb is installed on the vehicle, this warn-
ing message is not displayed.
Headlight leveling device
(if equipped)
Automatic type
To ensure the proper headlight beam
is used under various conditions, the
headlight beam levels are automati-
cally adjusted depending on the
number of passengers, the weight in
the liftgate, and other driving condi-
tions.
✽ ✽ NOTICE
If it does not work properly even
though your car is inclined backward
according to passenger's posture, or
the headlight beam is irradiated to
the high or low position, have the sys-
tem be inspected by an authorized
Kia dealer.
Do not attempt to inspect or replace
the wiring yourself.OJFA055274

• Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
52
• Radial-ply tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52
• Low aspect ratio tire . . . . . . . . . . . . . . . . . . . . . . . . . . 7-53
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
7-54
• Inner panel fuse replacement . . . . . . . . . . . . . . . . . . . 7-56
• Engine compartment fuse replacement. . . . . . . . . . . 7-58
• Fuse/relay panel description. . . . . . . . . . . . . . . . . . . . 7-60
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-77
• Bulb replacement precaution . . . . . . . . . . . . . . . . . . . 7-77
• Light bulb position (Front) . . . . . . . . . . . . . . . . . . . . 7-79
• Light bulb position (Rear) . . . . . . . . . . . . . . . . . . . . . 7-79
• Light bulb position (Side) . . . . . . . . . . . . . . . . . . . . . . 7-80
• Headlamp (LED type) replacement(Headlamp Type B) . . . . . . . . . . . . . . . . . . . . . . . . . . 7-80
• Side marker bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . . 7-81
• Position lamp + DRL (LED type) bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . . 7-81
• Headlamp (Low/High beam) bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . . 7-81
• Front turn signal lamp bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . . 7-83
• Stop and tail lamp (LED type) bulb replacement . . 7-84
• Rear side marker (LED type) bulb replacement . . . 7-84
• Rear turn signal lamp (LED type) bulb replacement. . 7-85 • Rear turn signal lamp (bulb type) bulb replacement . .
7-85
• Back-up lamp bulb replacement . . . . . . . . . . . . . . . . 7-87
• High mounted stop lamp (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-88
• License plate lamp (LED type) bulb replacement . . 7-89
• Side repeater lamp (LED type) bulb replacement . . 7-89
• Map lamp (LED type) bulb replacement . . . . . . . . . 7-89
• Vanity mirror lamp (LED type) bulb replacement . . 7-90
• Room lamp (LED type) bulb replacement . . . . . . . . 7-90
• Glove box lamp (LED type) bulb replacement . . . . 7-90
• Luggage room lamp (LED type) bulb replacement. . 7-91
Appearance care . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-92
• Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-92
• Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-97
Emission control system . . . . . . . . . . . . . . . . . . . 7-100
• Crankcase emission control system . . . . . . . . . . . . . 7-100
• Evaporative emission control (including ORVR
Onboard Refueling Vapor Recovery) system . . . . 7-100
• Exhaust emission control system . . . . . . . . . . . . . . . 7-101
7

779
Maintenance

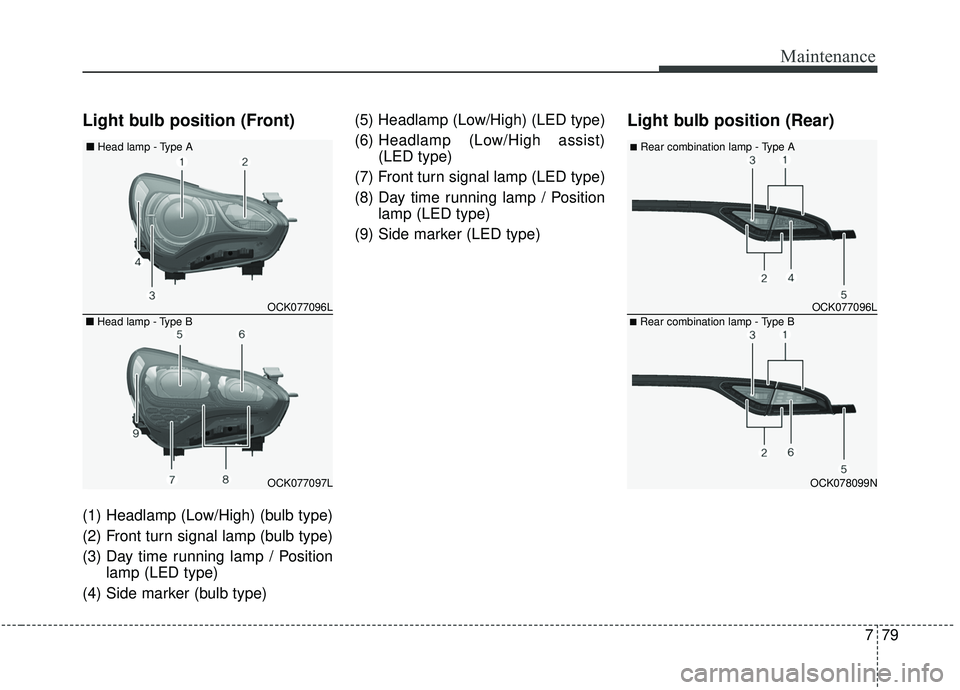

Light bulb position (Front)
(1) Headlamp (Low/High) (bulb type)
(2) Front turn signal lamp (bulb type)
(3) Day time running lamp / Positionlamp (LED type)
(4) Side marker (bulb type) (5) Headlamp (Low/High) (LED type)
(6)
Headlamp (Low/High assist)
(LED type)
(7) Front turn signal lamp (LED type)
(8) Day time running lamp / Position lamp (LED type)
(9) Side marker (LED type)
Light bulb position (Rear)
OCK077096L
OCK077097L
■ Head lamp - Type B
■
Head lamp - Type AOCK077096L
OCK078099N
■Rear combination lamp - Type B
■Rear combination lamp - Type A

Maintenance
80
7
(1) Stop and tail lamp (LED type)
(2) Stop lamp (LED type)
(3) Back-up lamp (bulb type)
(4) Rear turn signal lamp (bulb type)
(5) Side marker (LED type)
(6) Rear turn signal lamp (LED type)
(7) High mounted stop lamp (LED
type)
(8) License plate lamp (LED type)
Light bulb position (Side)
(1) Side repeater lamp (LED type)
Headlamp (LED type) replace-
ment (Headlamp Type B)
If the Low/High beam lamp (1, 2),
Front turn signal lamp (3), Day time
running lamp/Position lamp (4),
and/or Side marker (5) do not oper-
ate, have the vehicle checked by an
authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because they
are part of an integrated unit. The
LED lamps have to be replaced with
the unit.
A skilled technician should check or
repair the head lamp (LED), for it
may damage related parts of the
vehicle.
■High mounted stop lamp
OCK077050L ■License plate lamp
OCK077051L
OCK077052
■ Side repeater lamp
OCK077100L
■Head lamp - Type B

783
Maintenance
Never touch the glass with barehands. Residual oil may cause the
bulb to overheat and burst when lit.
A bulb should be operated only
when installed in a headlight.
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.Front turn signal lamp bulb
replacement (Headlamp Type A)
1. Open the hood.
2. Remove the strut bar and the air cleaner assembly. 3. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
4. Remove the bulb from the bulb- socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket.
5. Insert a new bulb by inserting it into the bulb-socket and rotating it
until it locks into place.
OCK077077
OCK077078
OCK077079

785
Maintenance
Rear turn signal lamp (LED
type) bulb replacement
If the rear turn signal lamp (LED) (1),
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because they
are part of an integrated unit. The
LED lamps have to be replaced with
the unit.
A skilled technician should check or
repair the rear turn signal lamp
(LED), for it may damage related
parts of the vehicle.
Rear turn signal lamp (bulb
type) bulb replacement
1. Open the liftgate.
2. Open the service cover.
OCK078087NOCK077080
OCK077081
OCK077082
OCK077055

83
BULB WATTAGESpecifications & Consumer information
Light Bulb
Wattage (W) Bulb type
Front Headlamps
(Low/High)
Bulb type
60WHB3
LED type LEDLED
Front turn signal
lamps Bulb type
21WPY21W
LED type LEDLED
Front position lamps LEDLED
Daytime running light LEDLED
Side Repeater lamps Bulb type
5WWY5W
LED type LEDLED
Side Marker lamps Bulb type
5WW5W
LED type LEDLED
Rear Rear Stop/Tail lamps (Outside)
LEDLED
Rear tail lamps (Inside) LEDLED
Rear turn signal
lamps Bulb type
21WPY21W
LED type LEDLED
Back-up lamps 16WW16W
Side Marker lamps LEDLED
High mounted stop lamp LEDLED
License plate lamps LEDLED
Interior Map lamps
LEDLED
Room lamps LEDLED
Vanity lamps LEDLED
Glove box lamp 5WFESTOON
Liftgate lamp LEDLED
