2019 KIA STINGER turn signal

Maintenance
80
7

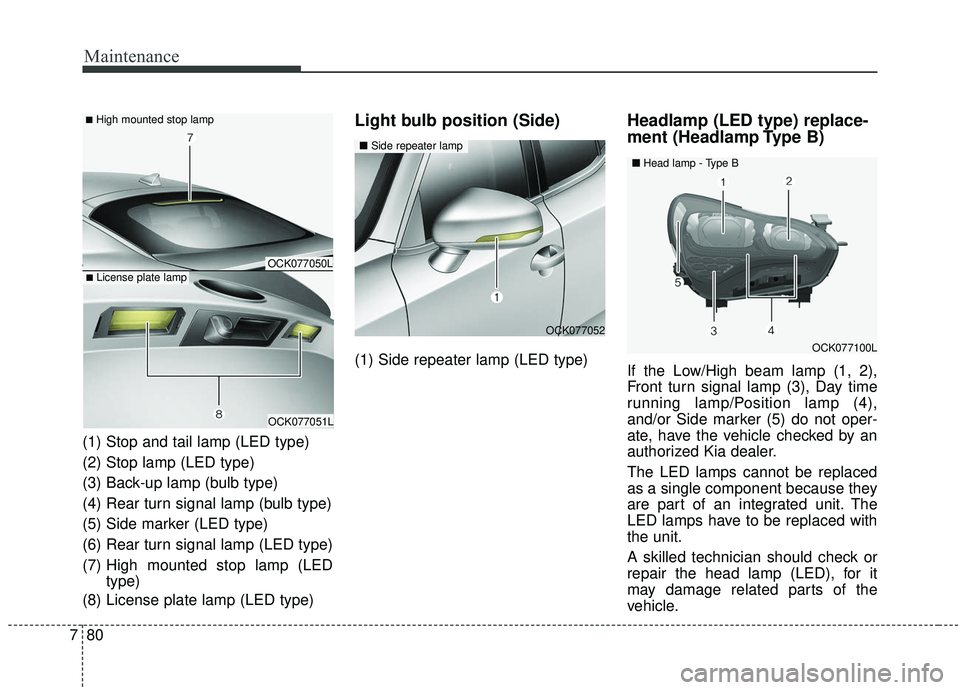

(1) Stop and tail lamp (LED type)
(2) Stop lamp (LED type)
(3) Back-up lamp (bulb type)
(4) Rear turn signal lamp (bulb type)
(5) Side marker (LED type)
(6) Rear turn signal lamp (LED type)
(7) High mounted stop lamp (LED
type)
(8) License plate lamp (LED type)
Light bulb position (Side)
(1) Side repeater lamp (LED type)
Headlamp (LED type) replace-
ment (Headlamp Type B)
If the Low/High beam lamp (1, 2),
Front turn signal lamp (3), Day time
running lamp/Position lamp (4),
and/or Side marker (5) do not oper-
ate, have the vehicle checked by an
authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because they
are part of an integrated unit. The
LED lamps have to be replaced with
the unit.
A skilled technician should check or
repair the head lamp (LED), for it
may damage related parts of the
vehicle.
■High mounted stop lamp
OCK077050L ■License plate lamp
OCK077051L
OCK077052
■ Side repeater lamp
OCK077100L
■Head lamp - Type B

783
Maintenance
Never touch the glass with barehands. Residual oil may cause the
bulb to overheat and burst when lit.
A bulb should be operated only
when installed in a headlight.
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.Front turn signal lamp bulb
replacement (Headlamp Type A)
1. Open the hood.
2. Remove the strut bar and the air cleaner assembly. 3. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
4. Remove the bulb from the bulb- socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket.
5. Insert a new bulb by inserting it into the bulb-socket and rotating it
until it locks into place.
OCK077077
OCK077078
OCK077079

785
Maintenance

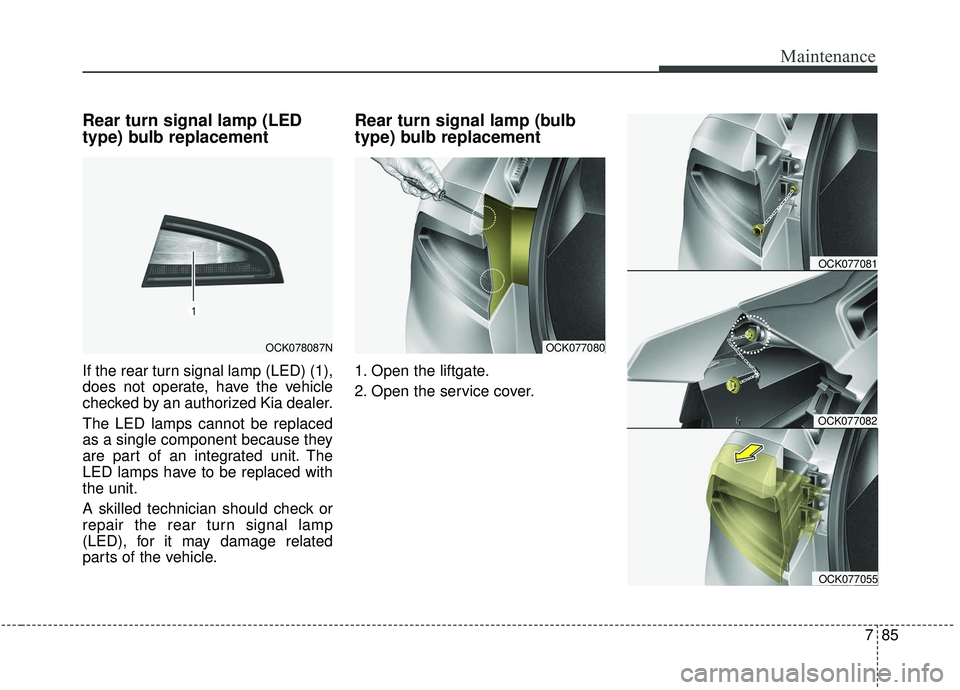

Rear turn signal lamp (LED
type) bulb replacement
If the rear turn signal lamp (LED) (1),
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because they
are part of an integrated unit. The
LED lamps have to be replaced with
the unit.
A skilled technician should check or
repair the rear turn signal lamp
(LED), for it may damage related
parts of the vehicle.
Rear turn signal lamp (bulb
type) bulb replacement
1. Open the liftgate.
2. Open the service cover.
OCK078087NOCK077080
OCK077081
OCK077082
OCK077055

83
BULB WATTAGESpecifications & Consumer information
Light Bulb
Wattage (W) Bulb type
Front Headlamps
(Low/High)
Bulb type
60WHB3
LED type LEDLED
Front turn signal
lamps Bulb type
21WPY21W
LED type LEDLED
Front position lamps LEDLED
Daytime running light LEDLED
Side Repeater lamps Bulb type
5WWY5W
LED type LEDLED
Side Marker lamps Bulb type
5WW5W
LED type LEDLED
Rear Rear Stop/Tail lamps (Outside)
LEDLED
Rear tail lamps (Inside) LEDLED
Rear turn signal
lamps Bulb type
21WPY21W
LED type LEDLED
Back-up lamps 16WW16W
Side Marker lamps LEDLED
High mounted stop lamp LEDLED
License plate lamps LEDLED
Interior Map lamps
LEDLED
Room lamps LEDLED
Vanity lamps LEDLED
Glove box lamp 5WFESTOON
Liftgate lamp LEDLED
