Maintenance
LIGHT BULBS
Bulb replacement precaution
Please keep extra bulbs on hand
with appropriate wattage ratings in
case of emergencies.
Refer to “Bulb Wattage” in chapter 8.
When changing lamps, first turn off
the engine at a safe place, firmly
apply the parking brake and detach
the battery’s negative (-) terminal.
Use only bulbs of the specifiedwattage. net-work failure
The headlamp, taillight, and fog light
may light up when the head lamp
switch is turned ON, and not light up
when the taillight or for light switch is
turned ON. This may be cause by
network failure or vehicle electrical
control system malfunction. If there is
a problem, we recommend the sys-
tem be serviced by an authorized Kia
dealer.
trical control system stabilization
A normally functioning lamp may
flicker momentarily. This momentary
occurrence is due to the stabilization
function of the vehicle's electrical
control system. If the lamp stops
flickering after a few moments, the
vehicle does not require service.
However, if the lamp goes out after
the momentary flickering, or the flick-
ering continues, we recommend the
system be serviced by an authorized
Kia dealer.
WARNING- Working on the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch
is turned to the LOCK position
and turn off the lights to avoid
sudden movement of the vehi-
cle burns to your skin or fin-
gers, or an electric shock.
CAUTION -Light replace-
ment
Be sure to replace the burned- out bulb with one of the samewattage rating. Otherwise, itmay cause damage to the fuseor electric wiring system.
CAUTION -Headlamp
Lens
To prevent damage, do notclean the headlamp lens withchemical solvents or strongdetergents.

Maintenance
82
7
2. Remove the headlamp bulb cover
by turning it counterclockwise.
3. Disconnect the headlamp bulb socket-connector. 4. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
5. Install a new bulb-socket assem- bly in the headlamp assembly by
aligning the tabs on the bulb-sock-
et with the slots in the headlamp
assembly. Push the bulb-socket
into the headlamp assembly and
turn the bulb-socket clockwise.
6. Connect the headlamp bulb sock- et-connector.
7. Install the headlamp bulb cover by turning it clockwise.
8. Install the clip on the service cover.
❈ If it is difficult to replace light bulbs,
have the vehicle checked by an
authorized Kia dealer.
Headlamp bulb
OCK077075
OCK077076
OQL075058
WARNING- Halogen
bulbs
Halogen bulbs contain pres- surized gas that will produce
flying pieces of glass if broken.
Always handle them carefully, and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids.

Maintenance
92
7

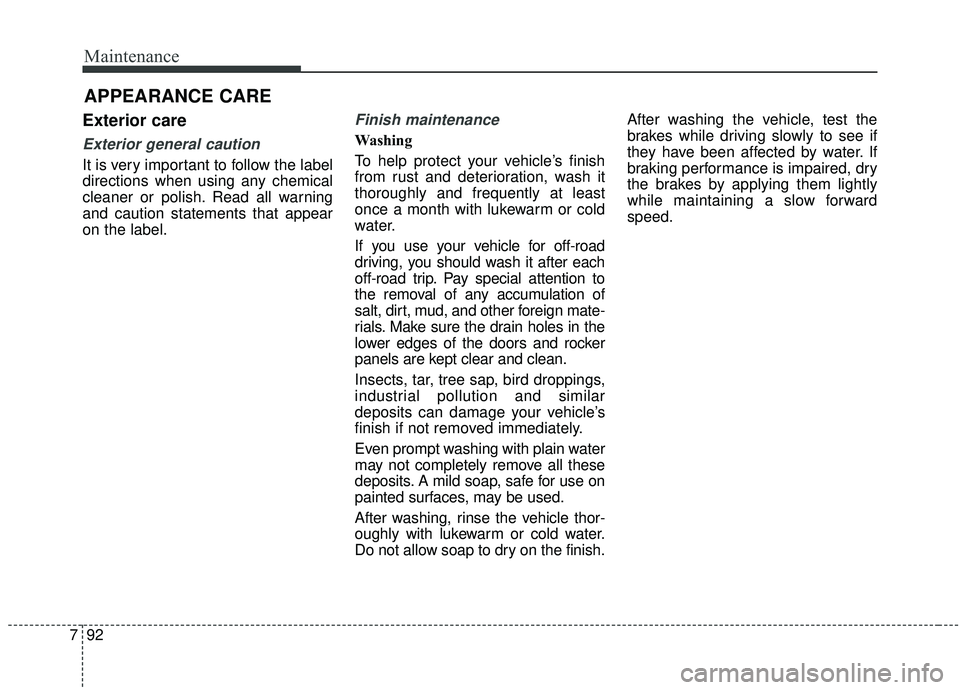

APPEARANCE CARE
Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning
and caution statements that appear
on the label.
Finish maintenance
Washing
To help protect your vehicle’s finish
from rust and deterioration, wash it
thoroughly and frequently at least
once a month with lukewarm or cold
water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to
the removal of any accumulation of
salt, dirt, mud, and other foreign mate-
rials. Make sure the drain holes in the
lower edges of the doors and rocker
panels are kept clear and clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar
deposits can damage your vehicle’s
finish if not removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, may be used.
After washing, rinse the vehicle thor-
oughly with lukewarm or cold water.
Do not allow soap to dry on the finish. After washing the vehicle, test the
brakes while driving slowly to see if
they have been affected by water. If
braking performance is impaired, dry
the brakes by applying them lightly
while maintaining a slow forward
speed.

Index
2I
Air bag - advanced supplemental restraint system . . . . 3-45Adding equipment to or modifying your air bag-equipped vehicle . . . . . . . . . . . . . . . . . . . . 3-71
Air bag warning label. . . . . . . . . . . . . . . . . . . . . . . . 3-71
Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . 3-48
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-64
Driver's and passenger's front air bag . . . . . . . . . . . 3-60
How does the air bag system operate? . . . . . . . . . . . 3-46
Occupant Detection System (ODS) . . . . . . . . . . . . . 3-52
Side air bag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-62
SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-70
SRS components and functions . . . . . . . . . . . . . . . . 3-49
Air cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29\
Filter replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
All Wheel Drive (AWD) . . . . . . . . . . . . . . . . . . . . . . . . 5-37 Emergency precautions . . . . . . . . . . . . . . . . . . . . . . 5-39
Using All wheel Drive (AWD). . . . . . . . . . . . . . . . . 5-37
Appearance care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-92 Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-92
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-97
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-164 Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-164
AUX, USB port . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-164 Automatic climate control system . . . . . . . . . . . . . . . 4-132
Automatic heating and air conditioning. . . . . . . . . 4-133
Checking the amount of air conditioner refrigerant and compressor lubricant . . . . . . . . . . 4-144
Climate control air filter. . . . . . . . . . . . . . . . . . . . . 4-144
Manual heating and air conditioning . . . . . . . . . . . 4-135
System operation . . . . . . . . . . . . . . . . . . . . . . . . . . 4-142
Automatic transmission . . . . . . . . . . . . . . . . . . . . . . . . 5-11 Automatic transmission operation . . . . . . . . . . . . . . 5-11
Good driving practices . . . . . . . . . . . . . . . . . . . . . . . 5-17
Launch control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-18
Automatic transmission (shift-by-wire) . . . . . . . . . . . . 5-20 Automatic transmission operation . . . . . . . . . . . . . . 5-20
Good driving practices . . . . . . . . . . . . . . . . . . . . . . . 5-30
Launch control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-32
LCD display messages . . . . . . . . . . . . . . . . . . . . . . . 5-27
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-\
27
Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 7-35 Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . 7-35
For best battery service . . . . . . . . . . . . . . . . . . . . . . 7-35
Recharging the battery . . . . . . . . . . . . . . . . . . . . . . . 7-37
Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38
A
B

Index
6I
Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-153
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-155
USB charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Wireless smart phone charging system . . . . . . . . . 4-157
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-126 Automatic turn off function . . . . . . . . . . . . . . . . . . 4-126
Door courtesy lamp . . . . . . . . . . . . . . . . . . . . . . . . 4-129
Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
Liftgate room lamp. . . . . . . . . . . . . . . . . . . . . . . . . 4-128
Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-127
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-126
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
Interior overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
ISG (Idle Stop and Go) system . . . . . . . . . . . . . . . . . 5-103 Auto start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-104
Auto stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-103
Condition of ISG system operation . . . . . . . . . . . . 5-105
ISG system deactivation . . . . . . . . . . . . . . . . . . . . . 5-105
ISG system malfunction . . . . . . . . . . . . . . . . . . . . . 5-106
Lane Keeping Assist (LKA) system . . . . . . . . . . . . . . 5-112 Driver's attention . . . . . . . . . . . . . . . . . . . . . . . . . . 5-118
LKA system function change. . . . . . . . . . . . . . . . . 5-120
LKA system malfunction . . . . . . . . . . . . . . . . . . . . 5-119
LKA system operation . . . . . . . . . . . . . . . . . . . . . . 5-114 LCD windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-73
Distance to empty. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-81
LCD modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-77
Over view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-73
Trip information (Trip computer) . . . . . . . . . . . . . . 4-73
User settings mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4-82
Warning message . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-87
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-21 Emergency liftgate safety release. . . . . . . . . . . . . . . 4-28
Non-Powered liftgate . . . . . . . . . . . . . . . . . . . . . . . . 4-21
Power liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-77\
Back-up lamp bulb replacement . . . . . . . . . . . . . . . 7-87
Bulb replacement precaution . . . . . . . . . . . . . . . . . . 7-77
Front turn signal lamp bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . 7-83
Glove box lamp (LED type) bulb replacement . . . . 7-90
Headlamp (LED type) replacement (Headlamp Type B) . . . . . . . . . . . . . . . . . . . . . . . . 7-80
Headlamp (Low/High beam) bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . 7-81
High mounted stop lamp (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-88
License plate lamp (LED type) bulb replacement . . 7-89
Light bulb position (Front) . . . . . . . . . . . . . . . . . . . 7-79
Light bulb position (Rear) . . . . . . . . . . . . . . . . . . . . 7-79
Light bulb position (Side) . . . . . . . . . . . . . . . . . . . . 7-80
Luggage room lamp (LED type) bulb replacement . 7-91
L

I7
Index
Map lamp (LED type) bulb replacement . . . . . . . . . 7-89
Position lamp + DRL (LED type) bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . 7-81
Rear side marker (LED type) bulb replacement . . . 7-84
Rear turn signal lamp (bulb type) bulb replacement . 7-85
Rear turn signal lamp (LED type) bulb replacement . . 7-85
Room lamp (LED type) bulb replacement . . . . . . . . 7-90
Side marker bulb replacement (Headlamp Type A) . 7-81
Side repeater lamp (LED type) bulb replacement . . 7-89
Stop and tail lamp (LED type) bulb replacement . . 7-84
Vanity mirror lamp (LED type) bulb replacement . . 7-90
Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-114 Battery saver function . . . . . . . . . . . . . . . . . . . . . . 4-114
Check headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-120
Daytime running light . . . . . . . . . . . . . . . . . . . . . . 4-114
Dynamic Bending Light (DBL) . . . . . . . . . . . . . . . 4-121
Headlight leveling device . . . . . . . . . . . . . . . . . . . . 4-120
High beam assist . . . . . . . . . . . . . . . . . . . . . . . . . . 4-117
High beam operation . . . . . . . . . . . . . . . . . . . . . . . 4-116
Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-114
Turn signals and lane change signals . . . . . . . . . . . 4-119
Limited Slip Differential (LSD) . . . . . . . . . . . . . . . . . . 5-41
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6 Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Owner maintenance precautions . . . . . . . . . . . . . . . . 7-5
Owner’s responsibility . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-55 Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . 4-55
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-64
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7 Owner maintenance schedule. . . . . . . . . . . . . . . . . . . 7-7
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-28 Checking the parking brake . . . . . . . . . . . . . . . . . . . 7-28
Parking distance warning - reverse . . . . . . . . . . . . . . . 4-107 Non-operational conditions of parking distance warning-reverse . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
Operation of the parking distance warning-reverse . 4-107
Parking distance warning-reverse precautions . . . . 4-109
Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-110M
O
P

Index
10I
Warning and indicator lights. . . . . . . . . . . . . . . . . . . . . 4-92Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-92
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-27 Checking the washer fluid level . . . . . . . . . . . . . . . . 7-27
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-130 Headlight (Headlamp) escort function . . . . . . . . . . 4-130
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-130
Pocket lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-130
Wide sunroof. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-45 Closing the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-49
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . 4-50
Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47
Sunroof open warning . . . . . . . . . . . . . . . . . . . . . . . 4-46
Sunshade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47\
Tilting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-49
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-34 Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-35
Windshield defrosting and defogging. . . . . . . . . . . . . 4-146 Automatic climate control system . . . . . . . . . . . . . 4-146
Automatic ventilation . . . . . . . . . . . . . . . . . . . . . . . 4-149
Defogging logic . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-147
Smart ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . 4-149
Winter driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-142 Carry emergency equipment . . . . . . . . . . . . . . . . . 5-144
Change to “winter weight” oil if necessary . . . . . . 5-143 Check battery and cables . . . . . . . . . . . . . . . . . . . . 5-143
Check spark plugs and ignition system . . . . . . . . . 5-143
Don’t let your parking brake freeze . . . . . . . . . . . . 5-144
Don't let ice and snow accumulate underneath . . . 5-144
Snowy or icy conditions . . . . . . . . . . . . . . . . . . . . . 5-142
To keep locks from freezing. . . . . . . . . . . . . . . . . . 5-144
Trailer towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-145
Use approved window washer anti-freeze in
system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14\
4
Use high quality ethylene glycol coolant. . . . . . . . 5-143
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32 Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32
Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-122 Front windshield washers. . . . . . . . . . . . . . . . . . . . 4-124
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . 4-122
360° camera monitoring system . . . . . . . . . . . . . . . . . 4-112
W
ETC
