2019 KIA SPORTAGE fuel

97
Specifications, Consumer information, Reporting safety defects
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *
1*2
(drain and refill)
Recommends 2.0 T-GDI5.07 US qt. (4.8 L)
API SM or above*3, ILSAC GF-4 or above*4,
ACEA-A5 or above
2.4 GDI
5.07 US qt. (4.8 L) API SM or above*3, ILSAC GF-4 or above*4,
ACEA-A5 or above
Automatic transmission
fluid 2.0 T-GDI
8.24 US qt. (7.8 L)
- ATF SP-IV
• The list of transaxle fluid approved by KIA: SK ATF SP-IV,
MICHANG ATF SP-IV, NOCA ATF SP-IV
2.4 GDI
7.01 US qt. (6.7 L) - ATF SP-IV
SK ATF SP-IV,
MICHANG ATF SP-IV, NOCA ATF SP-IV
Coolant 2.0 T-GDI
7.61 US qt. (7.2 L)
Mixture of antifreeze and water
(Ethylene-glycol with phosphate based coolant for cooling
device)
2.4 GDI
8.24 US qt. (7.8 L)
Brake fluid
0.401 ± 0.021 US qt. (385 ± 20 cc) DOT 3 or DOT 4

Specifications, Consumer information, Reporting safety defects
89
*1: Refer to the recommended SAE viscosity numbers on the next page.
*
2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3: If the API SM engine oil is not available, you can use API SN or above.
*
4: If the ILSAC GF-4 engine oil is not available, you can use ILSAC GF-5 or above. Lubricant

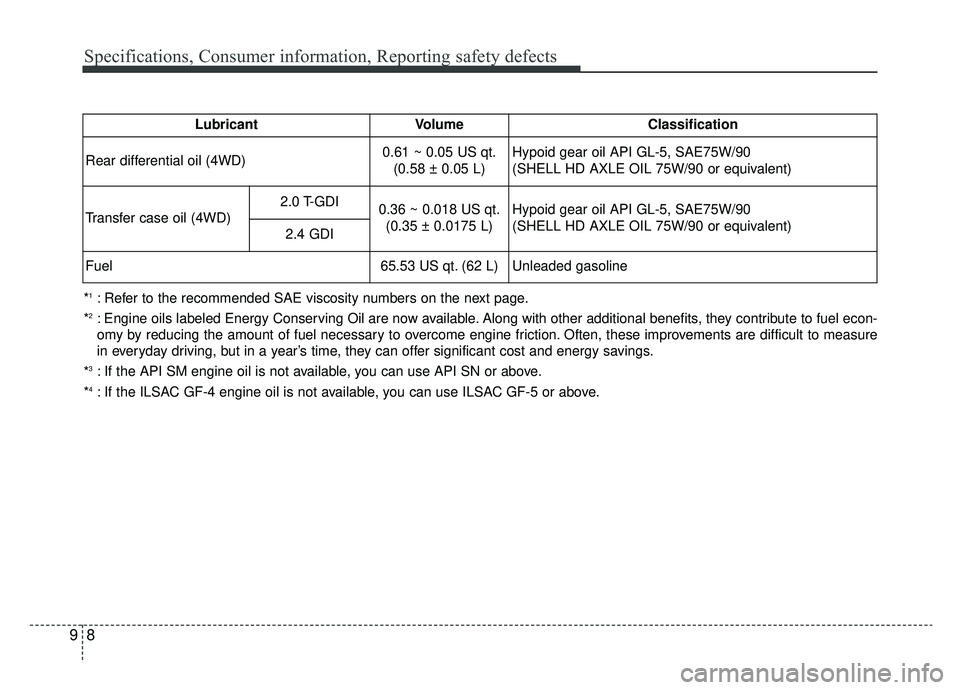

Volume
Classification
Rear differential oil (4WD)
0.61 ~ 0.05 US qt. (0.58 ± 0.05 L) Hypoid gear oil API GL-5, SAE75W/90
(SHELL HD AXLE OIL 75W/90 or equivalent)
Transfer case oil (4WD) 2.0 T-GDI
0.36 ~ 0.018 US qt.
(0.35 ± 0.0175 L) Hypoid gear oil API GL-5, SAE75W/90
(SHELL HD AXLE OIL 75W/90 or equivalent)
2.4 GDI
Fuel
65.53 US qt. (62 L) Unleaded gasoline

99
Specifications, Consumer information, Reporting safety defects

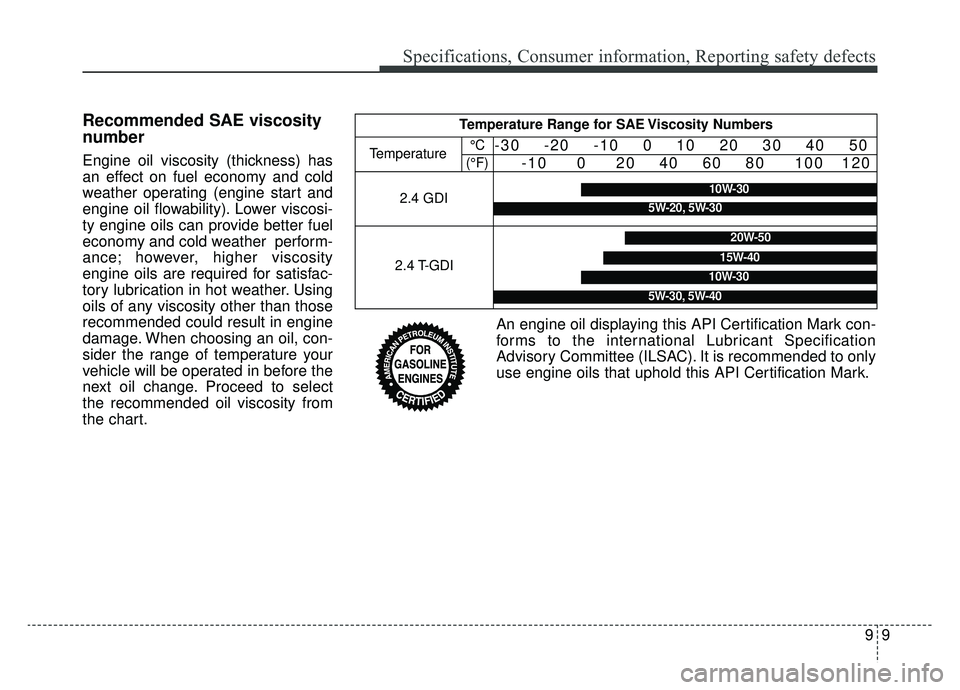

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance; however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage. When choosing an oil, con-
sider the range of temperature your
vehicle will be operated in before the
next oil change. Proceed to select
the recommended oil viscosity from
the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
2.4 T-GDI
20W-50
10W-30
15W-40
5W-30, 5W-40
2.4 GDI10W-30
5W-20, 5W-30
An engine oil displaying this API Certification Mark con-
forms to the international Lubricant Specification
Advisory Committee (ILSAC). It is recommended to only
use engine oils that uphold this API Certification Mark.

Specifications, Consumer information, Reporting safety defects
12
9

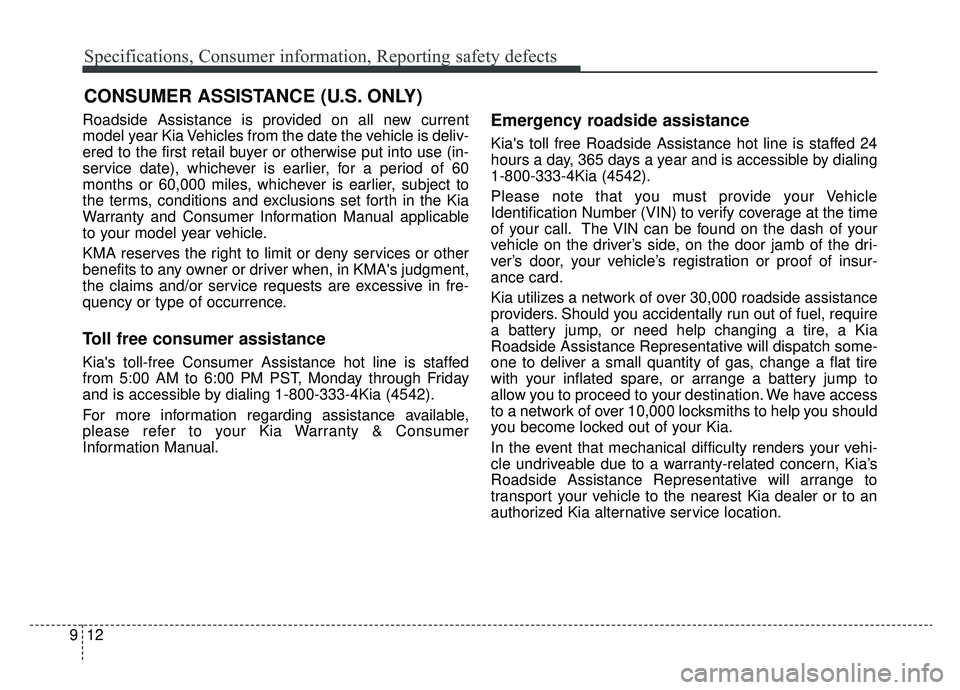

Roadside Assistance is provided on all new current
model year Kia Vehicles from the date the vehicle is deliv-
ered to the first retail buyer or otherwise put into use (in-
service date), whichever is earlier, for a period of 60
months or 60,000 miles, whichever is earlier, subject to
the terms, conditions and exclusions set forth in the Kia
Warranty and Consumer Information Manual applicable
to your model year vehicle.
KMA reserves the right to limit or deny services or other
benefits to any owner or driver when, in KMA's judgment,
the claims and/or service requests are excessive in fre-
quency or type of occurrence.
Toll free consumer assistance
Kia's toll-free Consumer Assistance hot line is staffed
from 5:00 AM to 6:00 PM PST, Monday through Friday
and is accessible by dialing 1-800-333-4Kia (4542).
For more information regarding assistance available,
please refer to your Kia Warranty & Consumer
Information Manual.
Emergency roadside assistance
Kia's toll free Roadside Assistance hot line is staffed 24
hours a day, 365 days a year and is accessible by dialing
1-800-333-4Kia (4542).
Please note that you must provide your Vehicle
Identification Number (VIN) to verify coverage at the time
of your call. The VIN can be found on the dash of your
vehicle on the driver’s side, on the door jamb of the dri-
ver’s door, your vehicle’s registration or proof of insur-
ance card.
Kia utilizes a network of over 30,000 roadside assistance
providers. Should you accidentally run out of fuel, require
a battery jump, or need help changing a tire, a Kia
Roadside Assistance Representative will dispatch some-
one to deliver a small quantity of gas, change a flat tire
with your inflated spare, or arrange a battery jump to
allow you to proceed to your destination. We have access
to a network of over 10,000 locksmiths to help you should
you become locked out of your Kia.
In the event that mechanical difficulty renders your vehi-
cle undriveable due to a warranty-related concern, Kia’s
Roadside Assistance Representative will arrange to
transport your vehicle to the nearest Kia dealer or to an
authorized Kia alternative service location.
CONSUMER ASSISTANCE (U.S. ONLY)

Specifications, Consumer information, Reporting safety defects
14
9

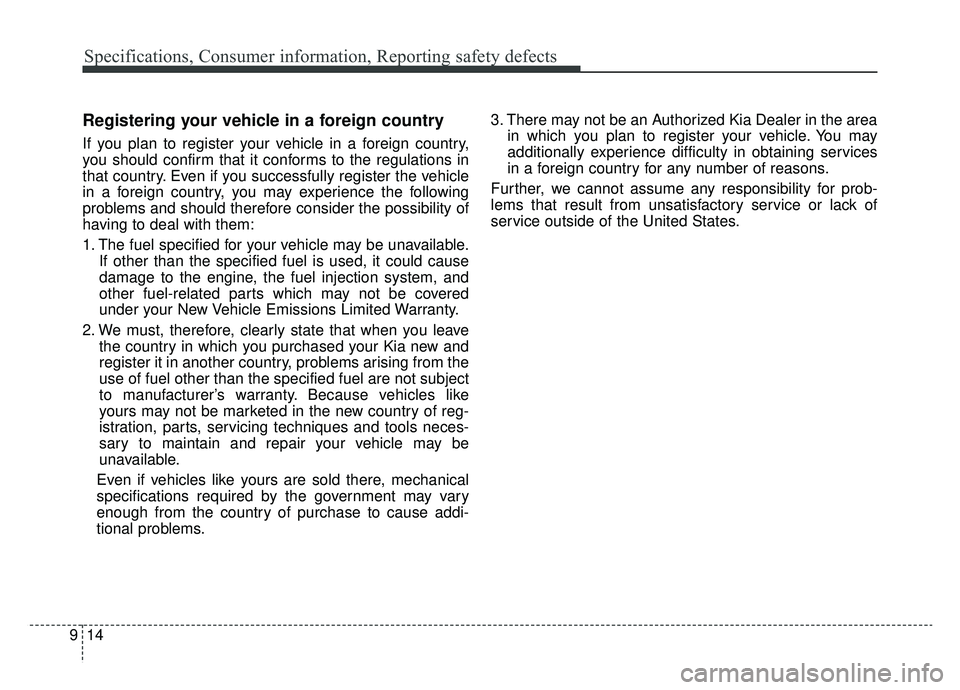

Registering your vehicle in a foreign country
If you plan to register your vehicle in a foreign country,
you should confirm that it conforms to the regulations in
that country. Even if you successfully register the vehicle
in a foreign country, you may experience the following
problems and should therefore consider the possibility of
having to deal with them:
1. The fuel specified for your vehicle may be unavailable.
If other than the specified fuel is used, it could cause
damage to the engine, the fuel injection system, and
other fuel-related parts which may not be covered
under your New Vehicle Emissions Limited Warranty.
2. We must, therefore, clearly state that when you leave the country in which you purchased your Kia new and
register it in another country, problems arising from the
use of fuel other than the specified fuel are not subject
to manufacturer’s warranty. Because vehicles like
yours may not be marketed in the new country of reg-
istration, parts, servicing techniques and tools neces-
sary to maintain and repair your vehicle may be
unavailable.
Even if vehicles like yours are sold there, mechanical
specifications required by the government may vary
enough from the country of purchase to cause addi-
tional problems. 3. There may not be an Authorized Kia Dealer in the area
in which you plan to register your vehicle. You may
additionally experience difficulty in obtaining services
in a foreign country for any number of reasons.
Further, we cannot assume any responsibility for prob-
lems that result from unsatisfactory service or lack of
service outside of the United States.

Index
6I
Engine start/stop button position ....................................6-9
Engine will not start ........................................................7-4
Evaporative emission control System ..........................8-100
Exhaust emission control system ................................8-101
Explanation of scheduled maintenance items ..............8-20Engine oil and filter ....................................................8-20
Drive belts ..................................................................8-20
Fuel filter (cartridge) ..................................................8-20
Fuel filter (for gasoline) ..............................................8-20
Fuel lines, fuel hoses and connections ......................8-20
Vapor hose and fuel filler cap ....................................8-20
Vacuum crankcase ventilation hoses ..........................8-21
Air cleaner filter ..........................................................8-21(for gasoline engine) ..................................................8-21
Valve clearance ..........................................................8-21
Cooling system ..........................................................8-21
Coolant ........................................................................\
8-21
Automatic transaxle fluid............................................8-2\
2
Brake hoses and lines..................................................8-22
Brake fluid ..................................................................8-22
Parking brake ..............................................................8-22
Brake discs, pads, calipers and rotors ........................8-23
Exhaust pipe and muffler ............................................8-23
Suspension mounting bolts ........................................8-23
Steering gear box, linkage & boots /lower arm ball joint ................................................8-23
Drive shafts and boots ................................................8-23
Air conditioning refrigerant ........................................8-23 Exterior care ..................................................................8-92
Exterior features ..........................................................4-175
Roof rack ..................................................................4-175
Exterior overview (Front) ................................................2-2
Exterior overview (Rear) ................................................2-3
Flat tire ........................................................................\
..7-15 Jack and tools ..............................................................7-15
Removing the spare tire ..............................................7-16
Storing the spare tire ..................................................7-16
Changing tires ............................................................7-17
Compact spare tire ......................................................7-21
Floor mat anchor(s) ....................................................4-172
Fluid Brake fluid ..................................................................8-31
Washer fluid ................................................................8-32
Fog light (front) ..........................................................4-123
Folding key ......................................................................4-\
5 Record your key number ..............................................4-5
Key operations ..............................................................4-5
Transmitter precautions ................................................4-7
Battery replacement ......................................................4-8
Immobilizer system ......................................................4-9
Folding the outside rearview mirror ..............................4-66
Folding the rear seat ......................................................3-16
F

I7
Index
Front fog lamp (Bulb and LED type) bulbreplacement ............................................................\
....8-83
Front seat adjustment (manual) ......................................3-7
Front seat adjustment (power) ........................................3-9
Front turn signal lamp bulb replacement ......................8-82
Fuel Economy ................................................................4-83
Fuel filler lid ..................................................................4-45
Fuel Gauge ....................................................................4-71\
Fuel requirements ............................................................1-2
Fuses ........................................................................\
......8-59 Inner panel fuse replacement ......................................8-60
Engine compartment fuse replacement ......................8-62
Fuse/relay panel description ......................................8-65
Gauges ........................................................................\
..4-70
Glove box ....................................................................4-16\
1
Glove box lamp bulb replacement ................................8-90
Gross vehicle weight........................................................9-6\
Hazard warning flasher ....................................................7-2
Hazardous driving conditions ........................................6-86
Headlamp (HID type) bulb replacement ......................8-80
Headlamp (High/Low beam) bulb replacement ............8-81
Headlight (Headlamp) escort function ........................4-132 Headlight position........................................................4-119
Headrest (rear) ..............................................................3-14
Headrest(front) ..............................................................3-11
Heated steering wheel....................................................4-56
High - beam operation ................................................4-120
High mounted stop lamp bulb replacement ..................8-87
Highway driving ............................................................6-89
Hill-start assist control (HAC) ......................................6-49
Hood ........................................................................\
......4-43
Horn ........................................................................\
......4-57
How to use this manual ..................................................1-2
Ignition switch illumination ............................................6-6
Ignition switch position ..................................................6-6
Immobilizer system (folding key) ..................................4-9
Indicator Lights............................................................4-103
Inflation conditions (Air bags) ......................................3-64
Inside rearview mirror ..................................................4-58
Instrument cluster ..........................................................4-68
Instrument Cluster Control ........................................4-69
LCD Display Control ..................................................4-69
Gauges ........................................................................\
4-70
LCD Display ..............................................................4-74
LCD Modes ................................................................4-74
Service Mode ..............................................................4-75
User settings mode ......................................................4-77
H
G
I

Index
8I
Trip computer..............................................................4-83
Trip modes ..................................................................4-83
Fuel Economy ............................................................4-83
Trip A/B ......................................................................4-\
85
One time driving information mode ..........................4-86
Turn By Turn Mode ....................................................4-87
A/V Mode ..................................................................4-87
LDWS Mode ..............................................................4-87
Warning and Indicator lights ......................................4-96
Warning lights ............................................................4-96
Indicator Lights ........................................................4-103
Instrument panel overview ..............................................2-5
Interior care....................................................................8-97\
Interior features............................................................4-164 Cup holder ................................................................4-164
Bottle holder ............................................................4-164
Seat warmer ..............................................................4-165
Air ventilation seat ....................................................4-166
Sunvisor ....................................................................4-16\
6
USB charger ..............................................................4-168
Power outlet ..............................................................4-167
Clothes hanger ..........................................................4-172
Floor mat anchor(s) ..................................................4-172
Wireless smart phone charging system ....................4-169
Luggage net holder ..................................................4-173
Cargo security screen ..............................................4-174
Interior lamp AUTO turn off function ........................4-129
Interior light ................................................................4-129 Interior lamp AUTO turn off function ......................4-129
Map lamp ..................................................................4-130
Room lamp ................................................................4-129
Liftgate room lamp ..................................................4-131
Glove box lamp ........................................................4-131
Vanity mirror lamp ....................................................4-131
Interior overview..............................................................2-4
Jack and tools ................................................................7-15
Jump starting....................................................................7-5
Key operations(folding key) ............................................4-5
Key positions ..................................................................6-6 Illuminated ignition switch ..........................................6-6
Ignition switch position ................................................6-6
Starting the engine ........................................................6-7
Label Air bag warning label ................................................3-70
Tire sidewall labeling ..................................................8-49
Vehicle certification label ..........................................9-10
J
K
L
