2019 KIA SPORTAGE headlamp

Maintenance
82
8
Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids. Never touch the glass with
bare hands. Residual oil may
cause the bulb to overheat and
burst when lit. A bulb should be
operated only when installed in a
headlamp.

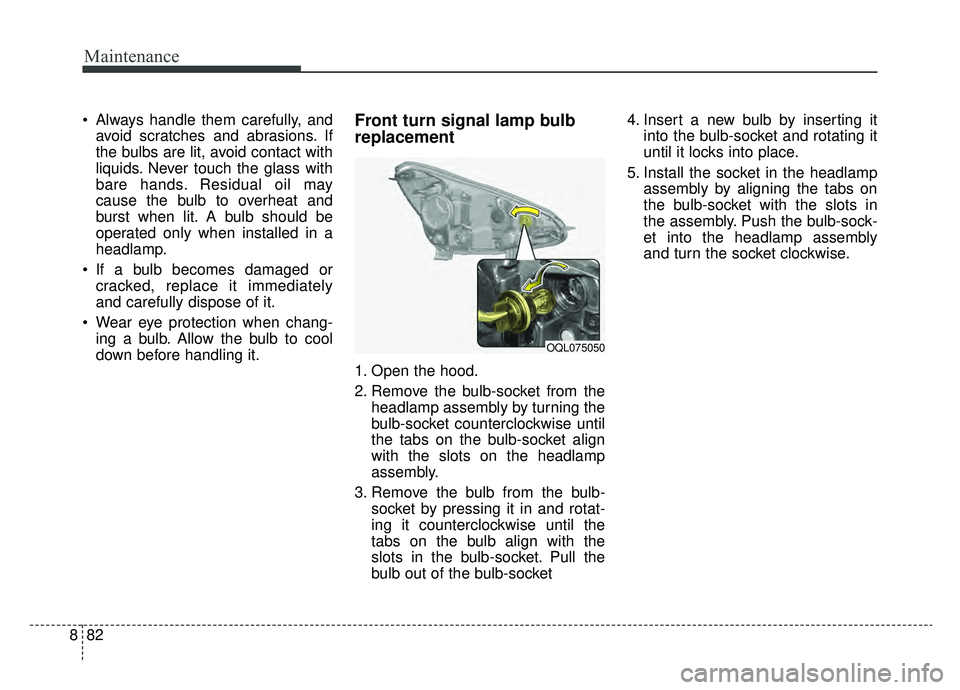

If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.Front turn signal lamp bulb
replacement
1. Open the hood.
2. Remove the bulb-socket from the headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
3. Remove the bulb from the bulb- socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket 4. Insert a new bulb by inserting it
into the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly
and turn the socket clockwise.
OQL075050

883
Maintenance

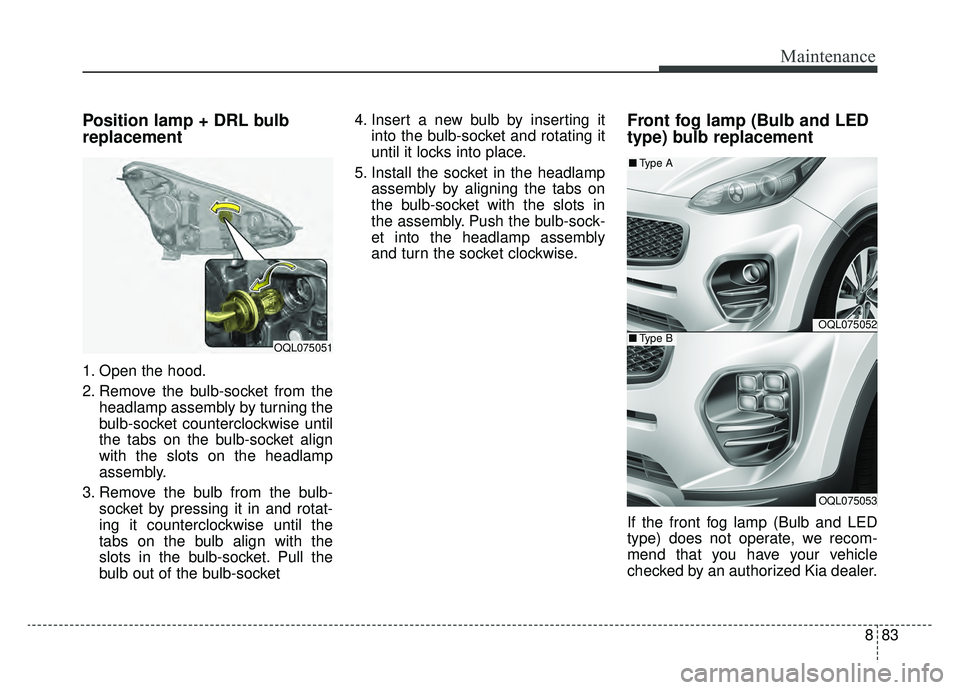

Position lamp + DRL bulb
replacement
1. Open the hood.
2. Remove the bulb-socket from theheadlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
3. Remove the bulb from the bulb- socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket 4. Insert a new bulb by inserting it
into the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly
and turn the socket clockwise.
Front fog lamp (Bulb and LED
type) bulb replacement
If the front fog lamp (Bulb and LED
type) does not operate, we recom-
mend that you have your vehicle
checked by an authorized Kia dealer.
OQL075051
OQL075052
OQL075053
■Type A
■Type B

93
Specifications, Consumer information, Reporting safety defects

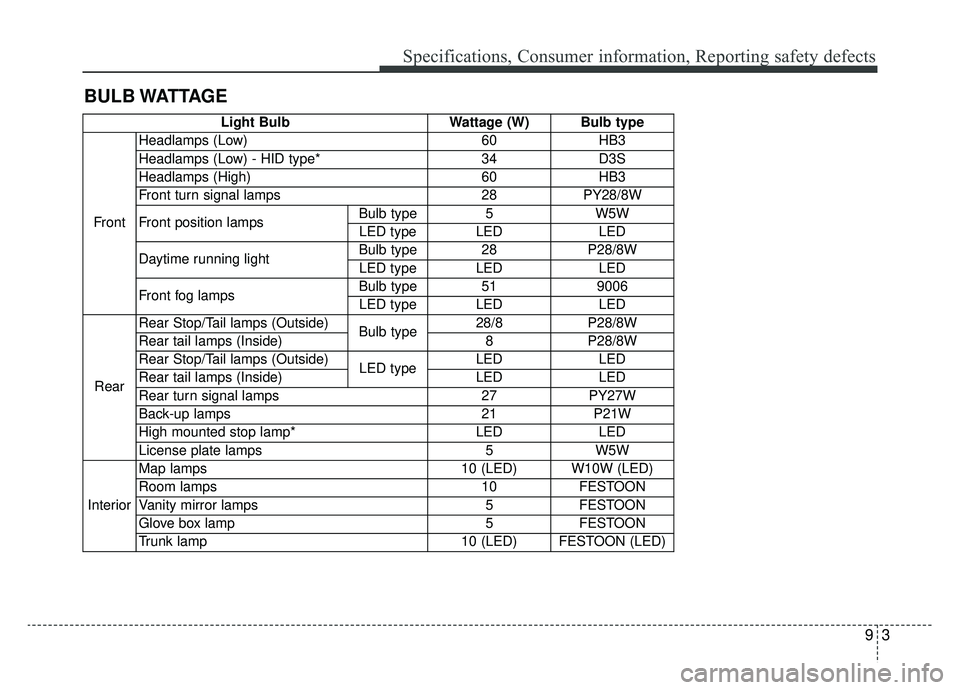

BULB WATTAGE
Light BulbWattage (W) Bulb type
Front Headlamps (Low)
60HB3
Headlamps (Low) - HID type* 34D3S
Headlamps (High) 60HB3
Front turn signal lamps 28PY28/8W
Front position lamps Bulb type 5
W5W
LED type LED LED
Daytime running light Bulb type 28
P28/8W
LED typeLEDLED
Front fog lampsBulb type519006
LED typeLEDLED
Rear Rear Stop/Tail lamps (Outside)
Bulb type28/8 P28/8W
Rear tail lamps (Inside) 8 P28/8W
Rear Stop/Tail lamps (Outside) LED typeLED LED
Rear tail lamps (Inside) LED LED
Rear turn signal lamps 27 PY27W
Back-up lamps 21 P21W
High mounted stop lamp* LED LED
License plate lamps 5 W5W
Interior Map lamps 10 (LED) W10W (LED)
Room lamps 10 FESTOON
Vanity mirror lamps 5 FESTOON
Glove box lamp 5 FESTOON
Trunk lamp 10 (LED) FESTOON (LED)
