2019 KIA SPORTAGE USB

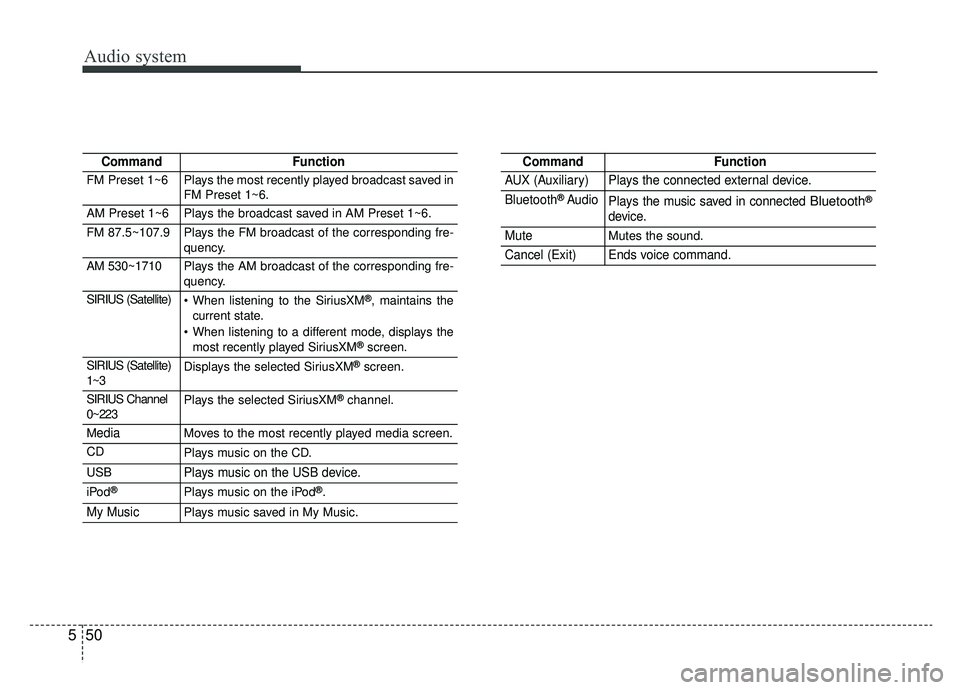

Audio system
50
5
CommandFunction
FM Preset 1~6Plays the most recently played broadcast saved in
FM Preset 1~6.
AM Preset 1~6Plays the broadcast saved in AM Preset 1~6.
FM 87.5~107.9Plays the FM broadcast of the corresponding fre-
quency.
AM 530~1710Plays the AM broadcast of the corresponding fre-
quency.
SIRIUS (Satellite) When listening to the SiriusXM®, maintains the
current state.
When listening to a different mode, displays the most recently played SiriusXM
®screen.
SIRIUS (Satellite)
1~3Displays the selected SiriusXM®screen.
SIRIUS Channel
0~223Plays the selected SiriusXM®channel.
MediaMoves to the most recently played media screen.
CDPlays music on the CD.
USBPlays music on the USB device.
iPod®Plays music on the iPod®.
My MusicPlays music saved in My Music.
CommandFunction
AUX (Auxiliary)Plays the connected external device.
Bluetooth®AudioPlays the music saved in connected Bluetooth®
device.
MuteMutes the sound.
Cancel (Exit)Ends voice command.

Audio system
52

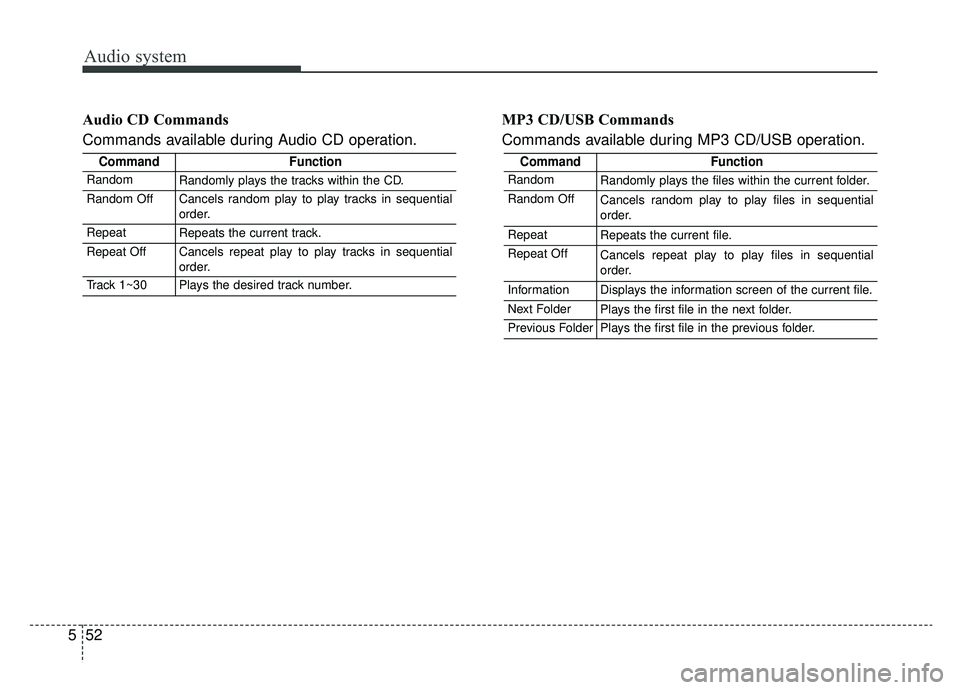

5 Audio CD Commands
Commands available during Audio CD operation.
MP3 CD/USB Commands
Commands available during MP3 CD/USB operation.
CommandFunction
RandomRandomly plays the files within the current folder.
Random OffCancels random play to play files in sequential
order.
RepeatRepeats the current file.
Repeat OffCancels repeat play to play files in sequential
order.
InformationDisplays the information screen of the current file.
Next FolderPlays the first file in the next folder.
Previous FolderPlays the first file in the previous folder.
CommandFunction
RandomRandomly plays the tracks within the CD.
Random OffCancels random play to play tracks in sequential
order.
RepeatRepeats the current track.
Repeat OffCancels repeat play to play tracks in sequential
order.
Track 1~30Plays the desired track number.

Audio system
56

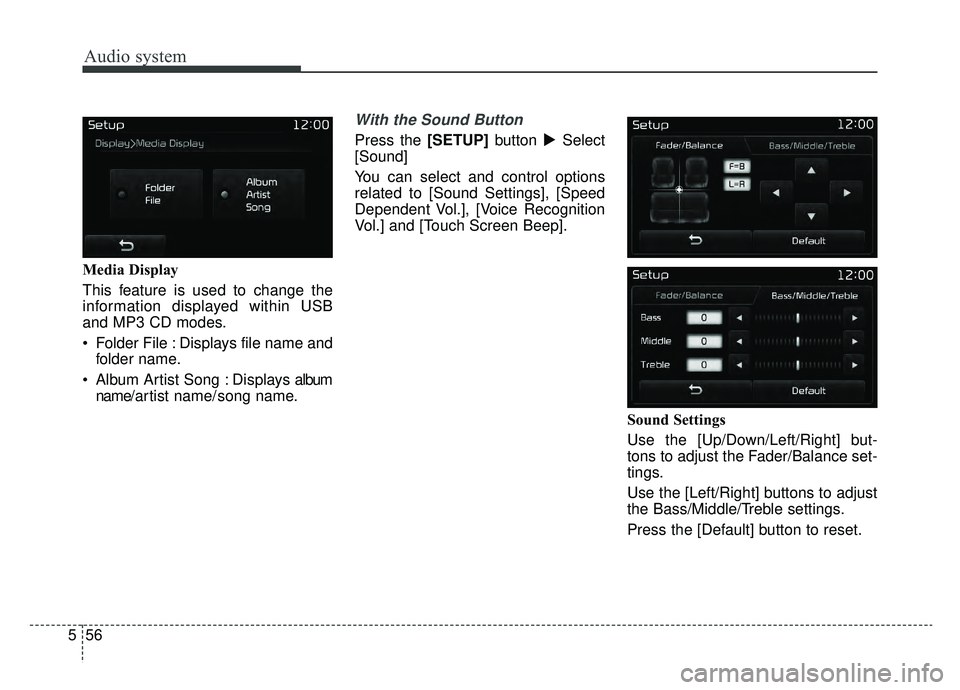

5 Media Display
This feature is used to change the
information displayed within USB
and MP3 CD modes.
Folder File : Displays file name and
folder name.
Album Artist Song : Displays album name/ a r tist name/ song name.
With the Sound Button
Press the [SETUP] button Select
[Sound]
You can select and control options
related to [Sound Settings], [Speed
Dependent Vol.], [Voice Recognition
Vol.] and [Touch Screen Beep].
Sound Settings
Use the [Up/Down/Left/Right] but-
tons to adjust the Fader/Balance set-
tings.
Use the [Left/Right] buttons to adjust
the Bass/Middle/Treble settings.
Press the [Default] button to reset.

Maintenance
68
8
Fuse NameFuse ratingCircuit Protected
MEMORY10AWireless Charger, Instrument Cluster, Data Link Connector, BCM, ICM Relay Box (Outside Mirror
Folding/Unfolding Relay), Electro Chromic Mirror, A/C Control Module, Console Switch
SUN ROOF 120APanorama Sunroof
TAIL GATE
OPEN10ATail Gate Relay
INTERIOR LAMP10AIgnition Key Ill.& Door Warning Switch, Room Lamp, Overhead Console Lamp, Front Vanity Lamp LH/RH,
Rear Personal Lamp LH/RH, Luggage Lamp, Glove Box Lamp
SMART KEY 215ASmart Key Control Module
MODULE 87.5AKey Solenoid
MULTI MEDIA15AAudio, A/V & Navigation Head Unit, Rear USB Charger
S/HEATER
DRV/PASS20AFront Seat Warmer Control Module, Front Air Ventilation Seat Control Module
SUN ROOF 220APanorama Sunroof
P/SEAT (PASS)30APassenger Seat Manual Switch

869
Maintenance
Fuse NameFuse ratingCircuit Protected
POWER OUTLET20AFront Power Outlet #1 (Front Cigarette Lighter)
S/HEATERREAR20ARear Seat Warmer Control Module
DOOR LOCK20ADoor Lock/Unlock Relay
4WD20AAWD ECM
MODULE 710AHazard Switch, Driver/Passenger Smart Key Outside Handle, AEB Sensor
AMP25AAMP
SAFETY
P/ WINDOW25ADriver Safety Power Window Module
HEATED
MIRROR10ADriver/Passenger Power Outside Mirror, A/C Control Module
P/SEAT (DRV)30ADriver Seat Manual Switch
ACC10ARear USB Charger, AMP, Power Outside Mirror Switch, PCB Block(Power Outlet Relay), Smart Key Control
Module, Audio, A/V & Navigation Head Unit, BCM, Wireless Charger

Index
2I
A/V Mode ......................................................................4-\
87
Air bag warning label ....................................................3-69
Air bag warning light ....................................................3-46
Air bags........................................................................\
..3-43Operation ....................................................................3-44\
Air bag warning light ..................................................3-46
SRS components and functions ..................................3-47
Occupant Detection System (ODS) ............................3-50
Driver's and passenger's front air bag ........................3-58
Side air bag ................................................................3-60
Curtain air bag ............................................................3-62
Inflation conditions ....................................................3-65
Non-inflation conditions ............................................3-67
SRS Care ....................................................................3-69\
Air bag warning label ................................................3-70
Air cleaner ....................................................................8-34\
Filter replacement ......................................................8-34
Air conditioning system ..................................................9-6
Air ventilation seat ......................................................4-166
All Wheel Drive (AWD) ................................................6-20 All Wheel Drive (AWD) transfer mode selection ......6-22
For safe all wheel drive operation ..............................6-23
Reducing the risk of a rollover ..................................6-26
Anti-lock brake system (ABS) ......................................6-42
Appearance care ............................................................8-92 Exterior care ................................................................8-92 Interior care ................................................................8-97
Armed stage ..................................................................4-19
Armrest (rear) ................................................................3-16
AUDIO (With Touch Screen) ..........................................5-7 Feature of Your Audio ..................................................5-8
Radio Mode ................................................................5-19
SiriusXM Radio Mode ................................................5-22
Media Mode ................................................................5-24
Phone Mode ................................................................5-39
Bluetooth
®Wireless Technology ................................5-40
Voice Recognition Mode ............................................5-47
Setup Mode ................................................................5-55
Audio system ..................................................................5-2 Antenna ........................................................................\
5-2
Steering wheel audio controls ......................................5-2
AUX, USB port ............................................................5-4
How vehicle audio works ............................................5-4
Auto light ....................................................................4-11\
9
Automatic transaxle ......................................................6-13 Manual mode ..............................................................6-15
Shift-lock override ......................................................6-18
Paddle shifter ..............................................................6-17
Autonomous Emergency Braking (AEB) ......................6-51 System setting and activation ....................................6-51
AEB warning message and system control ................6-54
Brake operation ..........................................................6-55
A

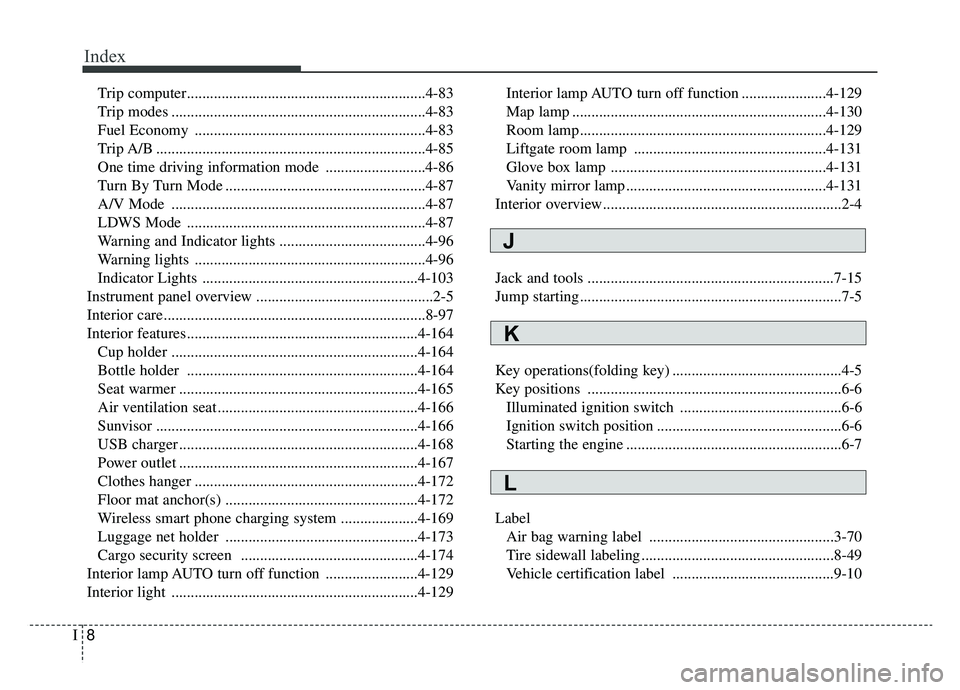

Index
8I
Trip computer..............................................................4-83
Trip modes ..................................................................4-83
Fuel Economy ............................................................4-83
Trip A/B ......................................................................4-\
85
One time driving information mode ..........................4-86
Turn By Turn Mode ....................................................4-87
A/V Mode ..................................................................4-87
LDWS Mode ..............................................................4-87
Warning and Indicator lights ......................................4-96
Warning lights ............................................................4-96
Indicator Lights ........................................................4-103
Instrument panel overview ..............................................2-5
Interior care....................................................................8-97\
Interior features............................................................4-164 Cup holder ................................................................4-164
Bottle holder ............................................................4-164
Seat warmer ..............................................................4-165
Air ventilation seat ....................................................4-166
Sunvisor ....................................................................4-16\
6
USB charger ..............................................................4-168
Power outlet ..............................................................4-167
Clothes hanger ..........................................................4-172
Floor mat anchor(s) ..................................................4-172
Wireless smart phone charging system ....................4-169
Luggage net holder ..................................................4-173
Cargo security screen ..............................................4-174
Interior lamp AUTO turn off function ........................4-129
Interior light ................................................................4-129 Interior lamp AUTO turn off function ......................4-129
Map lamp ..................................................................4-130
Room lamp ................................................................4-129
Liftgate room lamp ..................................................4-131
Glove box lamp ........................................................4-131
Vanity mirror lamp ....................................................4-131
Interior overview..............................................................2-4
Jack and tools ................................................................7-15
Jump starting....................................................................7-5
Key operations(folding key) ............................................4-5
Key positions ..................................................................6-6 Illuminated ignition switch ..........................................6-6
Ignition switch position ................................................6-6
Starting the engine ........................................................6-7
Label Air bag warning label ................................................3-70
Tire sidewall labeling ..................................................8-49
Vehicle certification label ..........................................9-10
J
K
L

Index
14I
Transaxle shift indicator ................................................4-73
Trip A/B ........................................................................\
4-85
Trip computer ................................................................4-83
Trip interruption ............................................................9-13
Trip modes ....................................................................4-83\
Turn By Turn Mode ......................................................4-87
Turn signals..................................................................4-123
USB charger ................................................................4-168
User settings mode ........................................................4-77
Using the Tire Mobility Kit ..........................................7-27
Vanity mirror lamp ......................................................4-131
Vanity mirror lamp bulb replacement ............................8-88
Vehicle break-in process ..................................................1-5
Vehicle certification label ..............................................9-10
Vehicle data collection and event data recorders ............1-6
Vehicle handling instructions ..........................................1-5
Vehicle identification number (VIN) ............................9-10
Vehicle load limit ........................................................6-104Tire and loading information label ..........................6-104
Certification label......................................................6-108
Vehicle stability management (VSM) ..........................6-48
Vehicle weight ............................................................6-109 Warning and Indicator lights ........................................4-96
Warning lights ................................................................4-96
Warning Messages ........................................................4-88
Washer fluid ..................................................................8-33
Checking the washer fluid level..................................8-33
Welcome system ..........................................................4-132 Headlight (Headlamp) escort function......................4-132
Wheel alignment and tire balance ................................8-47
Wheel replacement ........................................................8-49
Windows ........................................................................\
4-38 Power window lock button ........................................4-41
Windshield defrosting and defogging..........................4-156
Windshield washers ....................................................4-126
Windshield wipers ......................................................4-125
Winter driving ................................................................6-92 Snow tires....................................................................6-92\
Tire chains ..................................................................6-93
Wiper blades ..................................................................8-38 Blade inspection ..........................................................8-38
Blade replacement ......................................................8-39
Wipers and washers ....................................................4-125 Windshield wipers ....................................................4-125
Windshield washers ..................................................4-126
Rear window wiper and washer................................4-127
Wireless smart phone charging system ......................4-169
U
V
W
