823
Maintenance
(Continued)
1. Wash the undercarriage of yourvehicle regularly throughout the
winter and do a thorough washing
in the spring to remove road salt
and other de-icing chemicals.
2. Monitor the brake system for signs of corrosion by having regu-
lar professional inspections and
watching for signs of problems,
including loss of brake fluid,
unusual leaks and soft or spongy
feel in the brake pedal.
3. Replace the entire brake pipe assembly if you find severe corro-
sion that causes scaling or flaking
of brake components.
Brake fluid
Check the brake fluid level in the
brake fluid reservoir. The level should
be between “MIN” and “MAX” marks
on the side of the reservoir. Use only
hydraulic brake fluid conforming to
DOT 3 or DOT 4 specification.
Parking brake
Inspect the parking brake system
including the parking brake pedal
and cables.
Brake discs, pads, calipers
and rotors
Check the pads for excessive wear,
discs for run out and wear, and
calipers for fluid leakage.
Exhaust pipe and muffler
Visually inspect the exhaust pipes,
muffler and hangers for cracks, dete-
rioration, or damage. Start the
engine and listen carefully for any
exhaust gas leakage. Tighten con-
nections or replace parts as neces-
sary.
Suspension mounting bolts
Check the suspension connections
for looseness or damage. Retighten
to the specified torque.
Steering gear box, linkage &
boots/lower arm ball joint
With the vehicle stopped and engine
off, check for excessive free-play in
the steering wheel.
Check the linkage for bends or dam-
age. Check the dust boots and ball
joints for deterioration, cracks, or
damage. Replace any damaged
parts.
Drive shafts and boots
Check the drive shafts, boots and
clamps for cracks, deterioration, or
damage. Replace any damaged
parts and, if necessary, repack the
grease.
Air conditioning refrigerant
Check the air conditioning lines and
connections for leakage and dam-
age.
893
Maintenance
High-pressure washing
When using high-pressure wash-ers, make sure to maintain suffi-
cient distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.
Do not spray the camera, sensors or its surrounding area directly with
a high pressure washer. Shock
applied from high pressure water
may cause the device to not oper-
ate normally.
Do not bring the nozzle tip close to boots (rubber or plastic covers) or
connectors as they may be dam-
aged if they come into contact with
high pressure water. Waxing
Wax the vehicle when water will no
longer bead on the paint.
Always wash and dry the vehicle
before waxing. Use a good quality
liquid or paste wax, and follow the
manufacturer’s instructions. Wax all
metal trim to protect it and to main-
tain its luster.
Removing oil, tar, and similar materi-
als with a spot remover will usually
strip the wax from the finish. Be sure
to re-wax these areas even if the rest
of the vehicle does not yet need wax-
ing.
Do not apply wax on embossed
unpainted unit, as it may tarnish the
unit.
OJB037800
CAUTION - Wet engine
Water washing in the engine
compartment including highpressure water washing maycause the failure of electricalcircuits located in the enginecompartment.
Never allow water or other liq- uids to come in contact withelectrical/electronic compo-nents inside the vehicle asthis may damage them.

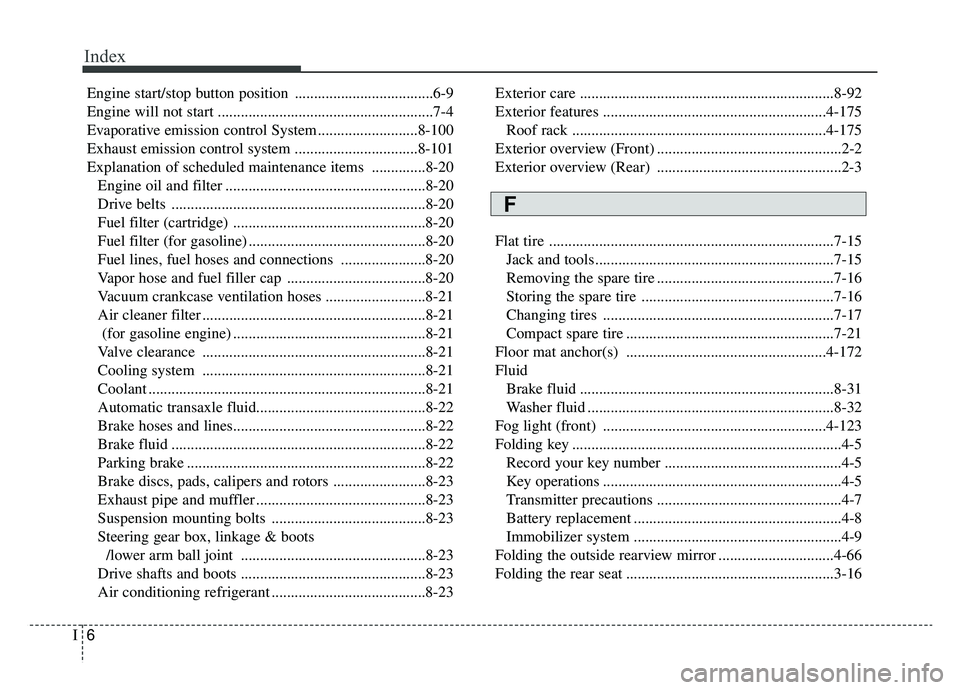

Index
6I
Engine start/stop button position ....................................6-9
Engine will not start ........................................................7-4
Evaporative emission control System ..........................8-100
Exhaust emission control system ................................8-101
Explanation of scheduled maintenance items ..............8-20Engine oil and filter ....................................................8-20
Drive belts ..................................................................8-20
Fuel filter (cartridge) ..................................................8-20
Fuel filter (for gasoline) ..............................................8-20
Fuel lines, fuel hoses and connections ......................8-20
Vapor hose and fuel filler cap ....................................8-20
Vacuum crankcase ventilation hoses ..........................8-21
Air cleaner filter ..........................................................8-21(for gasoline engine) ..................................................8-21
Valve clearance ..........................................................8-21
Cooling system ..........................................................8-21
Coolant ........................................................................\
8-21
Automatic transaxle fluid............................................8-2\
2
Brake hoses and lines..................................................8-22
Brake fluid ..................................................................8-22
Parking brake ..............................................................8-22
Brake discs, pads, calipers and rotors ........................8-23
Exhaust pipe and muffler ............................................8-23
Suspension mounting bolts ........................................8-23
Steering gear box, linkage & boots /lower arm ball joint ................................................8-23
Drive shafts and boots ................................................8-23
Air conditioning refrigerant ........................................8-23 Exterior care ..................................................................8-92
Exterior features ..........................................................4-175
Roof rack ..................................................................4-175
Exterior overview (Front) ................................................2-2
Exterior overview (Rear) ................................................2-3
Flat tire ........................................................................\
..7-15 Jack and tools ..............................................................7-15
Removing the spare tire ..............................................7-16
Storing the spare tire ..................................................7-16
Changing tires ............................................................7-17
Compact spare tire ......................................................7-21
Floor mat anchor(s) ....................................................4-172
Fluid Brake fluid ..................................................................8-31
Washer fluid ................................................................8-32
Fog light (front) ..........................................................4-123
Folding key ......................................................................4-\
5 Record your key number ..............................................4-5
Key operations ..............................................................4-5
Transmitter precautions ................................................4-7
Battery replacement ......................................................4-8
Immobilizer system ......................................................4-9
Folding the outside rearview mirror ..............................4-66
Folding the rear seat ......................................................3-16
F
