INSTRUMENT CLUSTER
Electric Vehicle (EV) Indicators
A Motor operation gauge
Soul EV’s motor operation gauge provides information on the
energy consumption rate of the vehicle and the charge status of the
regenerative brakes
•CHARGE – Shows the charging status of the battery when it is
being charged by the regenerative brakes The more electric
energy charged, the lower the gauge level
•ECO GUIDE – Shows the energy consumption rate during normal
driving conditions
•POWER – Shows the energy consumption rate of the vehicle when
driving uphill or accelerating The more electric energy used, the
higher the gauge level
B State of Charge gauge (SOC)
The State of Charge gauge displays the high-voltage battery
charge status
•MIN position on the gauge indicates that the driving battery
energy is low
•MA X position on the gauge indicates that the driving battery is
fully charged

Ready indicator light – Illuminates when the vehicle is ready
to drive When the ready indicator light is OFF or blinking, a
malfunction has occurred Have an authorized Kia dealer address
the concern as soon as possible
ECOMINDER® indicator – Indicates that the Active ECO System
is operational This indicator light is always illuminated unless
the Active ECO System is turned OFF
Service warning light – Illuminates when there is a malfunction
related to the electric vehicle control system Have an authorized
Kia dealer address the concern as soon as possible
Power down warning light – Illuminates when the power is
limited for the safety of the electric vehicle
Charging indicator light – Shows the charging status of the
high-voltage battery When charging, the red indicator turns on
When charging is complete, the green indicator turns on
High-voltage battery level warning light – Illuminates when
the high-voltage battery charge level is insufficient
Regenerative brake warning lights (when both indicators
are lit) – Illuminates when the regenerative brake system is not
functioning correctly

*IF EQUIPPED 7ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
INSTRUMENT CLUSTER

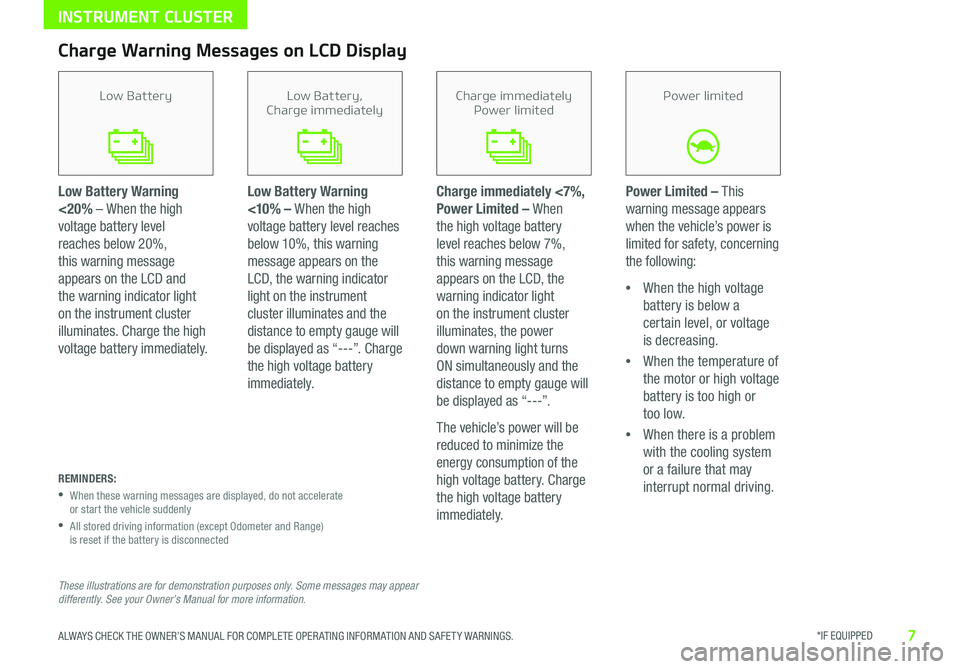

Low Battery Warning
<20% – When the high
voltage battery level
reaches below 20%,
this warning message
appears on the LCD and
the warning indicator light
on the instrument cluster
illuminates Charge the high
voltage battery immediately
Low Battery Warning
<10 % – When the high
voltage battery level reaches
below 10%, this warning
message appears on the
LCD, the warning indicator
light on the instrument
cluster illuminates and the
distance to empty gauge will
be displayed as “---” Charge
the high voltage battery
immediately
Charge immediately <7%,
Power Limited – When
the high voltage battery
level reaches below 7%,
this warning message
appears on the LCD, the
warning indicator light
on the instrument cluster
illuminates, the power
down warning light turns
ON simultaneously and the
distance to empty gauge will
be displayed as “---”
The vehicle’s power will be
reduced to minimize the
energy consumption of the
high voltage battery Charge
the high voltage battery
immediately
Power Limited – This
warning message appears
when the vehicle’s power is
limited for safety, concerning
the following:
•When the high voltage
battery is below a
certain level, or voltage
is decreasing
•When the temperature of
the motor or high voltage
battery is too high or
too low
•When there is a problem
with the cooling system
or a failure that may
interrupt normal driving
Charge Warning Messages on LCD Display
REMINDERS:
•
When these warning messages are displayed, do not accelerate or start the vehicle suddenly
•
All stored driving information (except Odometer and Range) is reset if the battery is disconnected
Low BatteryLow Battery,Charge immediatelyCharge immediatelyPower limitedPower limited
These illustrations are for demonstration purposes only. Some messages may appear differently. See your Owner’s Manual for more information.

8SOUL EV FEATURES & FUNCTIONS GUIDE
INSTRUMENT CLUSTER
*IF EQUIPPED
Unplug vehicle to start
– When starting the
vehicle while the charging
connector is still connected,
this warning message will
appear Remove the charging
connector and then start the
vehicle
Charging Door Open –
When starting the vehicle
while the charging door
is still open, this warning
message will appear Close
the charging door after
charging is complete and
then start the vehicle
Charger Error! – This
message appears when
the charging fails Check
the connector and charger
and restart charging If the
error continues, then stop
charging
Quick Charger Error! – This
message appears when the
quick charging fails Check
the connector and quick
charger and restart charging
If the error continues to
appear, then stop charging
Charge Warning Messages on LCD Display (Continued)
Unplug vehicle to startCharging Door Open
OPEN
Charger Error!Quick ChargerError!
These illustrations are for demonstration purposes only. Some messages may appear differently. See your Owner’s Manual for more information.

*IF EQUIPPED 9ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
INSTRUMENT CLUSTER
MODE
SETCRUISERESCANCELMODEVOL
VOL
SET
CRUISE
RES
MODE
A
Energy Consumption
Hold : Reset0 4
8--.-mi./kwh
MODE
SETCRUISERESCANCELMODEVOL
VOL
SET
CRUISE
RES
MODE
B
C
ENERGY CONSUMPTION
• Average Energy Consumption
• Instant Energy Consumption
TRIP A
• Tripmeter A • Average Vehicle Speed • Elapsed Time (E / T )
TRIP B
• Tripmeter B • Average Vehicle Speed • Elapsed Time (E / T )
(Buttons located on Steering Wheel)
(LCD Instrument Cluster mode buttons located on Steering Wheel)
LCD Instrument Cluster Modes
To cycle through the LCD Instrument Cluster modes, press
the Mode/Select button A
Trip Computer Mode: Displays driving information for tripmeter, energy consumption, etc
Master Warning / Service Modes: Informs on upcoming service intervals, and warning messages related to TPMS and others
User Settings Mode: Change settings of the doors, lamps and other features
A/V Mode: Displays the state of the A / V System
EV Information: Displays EV System energy flow and ECO level
Trip Computer / Tripmeter
The Trip Computer is a driver information system
that displays information related to driving —
such as Average and Instant Energy Consumption,
Tripmeter, Average Vehicle Speed and Driving
Time — on the display when the ignition switch is
in the ON position
To cycle through the LCD Instrument Cluster
modes, press the Mode/Select button B
When in the Trip Computer mode , press
the Move/Reset button C to cycle through the
screens When displaying Trip A or Trip B screens,
press and hold the Move/Reset button C to reset
the Tripmeter to zero
REMINDERS:
•
Appearance of Tripmeter display may differ as equipped
•
All stored driving information (except Odometer and Range) is reset if the battery is disconnected
These illustrations are for demonstration purposes only. Some items may appear different or vary in illustrations.
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering wheel mounted controls while driving.
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering wheel mounted controls while driving.

10*IF EQUIPPED SOUL EV FEATURES & FUNCTIONS GUIDE
INSTRUMENT CLUSTER
P35000 mi365days
Service Interval
Service IntervalOFF
P
P
Service Required
Service IntervalBack
On
Off01000 mi10 months
P
MODE
SETCRUISERESCANCELMODEVOL
VOL
MODE
A
B
(Buttons located on Steering Wheel)
(Instrument Cluster LCD Screens)
User Settings Mode
To enter the User Settings mode in the LCD Instrument
Cluster Modes, press the Mode/Select button A when the
vehicle is at a standstill and with the POWER button in the
ON position and select User Settings
You can navigate the selections on the display by pressing
the Move/Reset button B, and then selecting the item by
pressing the Mode/Select button A
Door:
•Automatically Lock
•Automatically Unlock
•Two Press Unlock
•Horn Feedback
Lights:
•One-Touch Turn Lamp*
•Headlamp Delay*
Settings:
•Language
•Temperature Unit
•Welcome Sound*
•Energy Consumption Auto Reset
Service Interval:
•Enable Service Interval
•Adjust Service Interval
•Reset
Service Interval Mode
To enter Service Interval Mode, press the Mode/Select button A, scroll to
User Settings , then scroll to Service Mode by pressing the Move/Reset
button B Then press the Mode/Select button A to enter The system will
display the number of miles remaining until next service is due, and type
of service
When service is required, the following will be displayed: Service Required
To reset the Service Interval Mode system, press and
hold the Move/Reset button B for more than 1 second
To turn Service In mode OFF, go to User Settings in the
LCD Instrument Cluster Modes
Service Interval Setting
To set the service interval when in User Settings mode:
•Press the Move/Reset button B and scroll to Service
Interval Press the Mode/Select button A to enter
•Press the Move/Reset button B and toggle to ON,
then press the Move/Select button A Then press the
Move/Reset button B to scroll and select the desired
miles or months for your next service
•Press the Mode/Select button A to enter
These illustrations are for demonstration purposes only. Some items may appear different or vary in illustrations.

14SOUL EV FEATURES & FUNCTIONS GUIDE
ELECTRIC VEHICLE (EV) FEATURES
*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
OFFMUSIC
MOODB
(Buttons located left of steering column)
AUTO
OFF
FRONT
DRIVER
EV
HEAT
REAR
ONLY
A/C MODE
CLIMATE
P
A SSE NGE R
A IR BA G
DRIVER
EV
ONLYPA SSE NGE R
A IR BA G
Charging Your Electric Vehicle (Continued)
Reserved Charging* - Charging times can be set using the UVO eco with Navigation settings
when in EV Mode You can also use the UVO eco App on your smartphone to set the Reserved
Charging*
When the Set Reserved Climate Control button* A is pressed, the indicator light on the button
blinks and the Reserved Climate Control Setting screen is displayed on the UVO eco with
Navigation system screen
Reserved Charging* with the UVO eco App†1:
The UVO eco App can help you find the nearest charging station, displays charging-status
information and the lists the Reserved Charging* schedule On your smartphone, go to an
app store or marketplace to download the UVO eco App
REMINDER: When Reserved Charging* is set and the charger is plugged in, charging of the electric vehicle will not begin until the time and date set
For more information on UVO eco and using the app refer to the Car Multimedia System User’s Manual.
Deactivate reserved charging - Depress the Deactivate Reserved Charging button* B to
disable the reserved charging feature when immediate charging is required
When you press the Deactivate Reserved Charge button* the reserved charging setting will temporarily disable, and start immediate charging mode If you need to completely deactivate the reserved charge setting, use the UVO eco with Navigation settings to finalize the deactivation
QUICK TIP
REMINDER: For more detail and/or subsequent steps in charging your vehicle, please see the Owner’s Manual
(Button located on Center Panel)
A

*IF EQUIPPED 15ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
ELECTRIC VEHICLE (EV) FEATURES
ECO Level 4P
Energy Flow
PECO Level 4P
Energy Flow
P
MODE
SET
CRUISE
RES
CANCELMODE
VOL
VOL
MODE
(Buttons located on Steering Wheel)
A
B
EV Information Modes - Instrument Cluster
To access the EV Information Mode screen, use the control buttons
located on the steering wheel Press the Mode/Select button A to enter
You can navigate the selections on the screen by pressing the
following buttons:
•Use the Mode/Select button A for changing modes and setting a
selected item
•Use the Move button B for changing items
Soul EV’s instrument cluster LCD displays the following EV system screens
to inform the driver of the current energy flow and ECO level
The EV Energy Flow screen notifies the driver of the EV system’s energy
flow in operating modes
EV Propulsion – Energy
flows from high-voltage
battery to the wheel when
the vehicle is driven by motor
Regenerative Braking –
Energy flows from wheel to
high-voltage battery when
the accelerator pedal is
released or the brake pedal
is pressed
The ECO Level screen
displays the current ECO
driving level If you drive
economically, the ECO level
will increase If you do not
drive economically, the ECO
level will decrease
These illustrations are for demonstration purposes only. Some items may appear different or vary in illustrations.
