VIDEOS & QR CODES . . . . . . . . . . . . . . . . . . . 2
INSTRUMENT CLUSTERInstrument Cluster Overview . . . . . . . . . . . . . . . . . 3Indicators & Warning Lights . . . . . . . . . . . . . . . . . 4Tire Pressure Monitoring System (TPMS) . . . . . . . . . . 5Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . 5LCD Instrument Cluster Modes . . . . . . . . . . . . . . . 6Trip Modes / Trip Computer . . . . . . . . . . . . . . . . . . 6User Settings . . . . . . . . . . . . . . . . . . . . . . . . . 7Service Interval Mode . . . . . . . . . . . . . . . . . . . . 7Drive Mode Integrated Control System . . . . . . . . . . . . 8ECO Mode (Active ECO)* . . . . . . . . . . . . . . . . . . . 8
DRIVER’S PANELElectronic Stability Control (ESC) . . . . . . . . . . . . . . . 9Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . . . 9Instrument Cluster Control . . . . . . . . . . . . . . . . . . 9AC Inverter* . . . . . . . . . . . . . . . . . . . . . . . . . . 9Blind-Spot Collision Warning (BCW )* . . . . . . . . . . . . . 10Lane Keeping Assist (LK A)* . . . . . . . . . . . . . . . . . 11Forward Collision-Avoidance Assist-Pedestrian (FCA-Ped)* / Forward Collision Warning (FCW )* . . . . . . . . . . . . . 11Power Windows, Window Lock & Central Door Lock . . . . . 12Power Folding Outside Mirrors* . . . . . . . . . . . . . . . 12Power/Heated Outside Mirrors* . . . . . . . . . . . . . . . 12Automatic Door Lock / Unlock . . . . . . . . . . . . . . . .12Fuel Filler LId Release Button . . . . . . . . . . . . . . . . 12Reverse Parking Aid Function* . . . . . . . . . . . . . . . . 13Engine Start/Stop Button* . . . . . . . . . . . . . . . . . .13
STEERING WHEEL CONTROLSTilt / Telescoping Steering Wheel . . . . . . . . . . . . . . . 14Headlights & High Beams . . . . . . . . . . . . . . . . . . . 14Turn Signals & Fog Lights* . . . . . . . . . . . . . . . . . .15Windshield / Rear Wipers & Washers . . . . . . . . . . . . . 15Bluetooth® Wireless Technology . . . . . . . . . . . . . . . 16Audio Controls . . . . . . . . . . . . . . . . . . . . . . . .18Cruise Control . . . . . . . . . . . . . . . . . . . . . . . .18Smart Cruise Control (SCC) with Stop and Go* . . . . . . . . 19
AUDIO SYSTEMSAndroid Auto™ / Apple CarPlay® Setup . . . . . . . . . . . .20UVO eServices Activation* . . . . . . . . . . . . . . . . . .20Standard Audio System* . . . . . . . . . . . . . . . . . . .21UVO eServices* . . . . . . . . . . . . . . . . . . . . . . . . 22UVO eServices with Premium Navigation* . . . . . . . . . .23
CENTER PANELSurround View Monitor (SVM)* . . . . . . . . . . . . . . . 24Automatic Gear Shift with Sportmatic® Shifting . . . . . . 25AWD (All-Wheel Drive) Lock* . . . . . . . . . . . . . . . . 27Automatic Climate Control* . . . . . . . . . . . . . . . . . 26Manual Climate Control* . . . . . . . . . . . . . . . . . . 28Digital Clock . . . . . . . . . . . . . . . . . . . . . . . . 29Aux / USB / iPod® Ports, Power Outlets, USB Charger & AC Inverter* . . . . . . . . . . . . . . . 29Wireless Smartphone Charging System* . . . . . . . . . . 30Electronic Parking Brake (EPB)* . . . . . . . . . . . . . . 31Auto Hold* . . . . . . . . . . . . . . . . . . . . . . . . . 31Heated Steering Wheel* . . . . . . . . . . . . . . . . . . 32Seat Warmers / Ventilated Seats* . . . . . . . . . . . . . 32
S E AT I N GFront Seat Headrest Adjustment . . . . . . . . . . . . . . 33Driver Position Memory System* . . . . . . . . . . . . . . 33Power Adjustable Driver's Seat* / Power Lumbar* . . . . . 34Manual Adjustable Driver's Seat* . . . . . . . . . . . . . . 342nd-Row Folding Seat . . . . . . . . . . . . . . . . . . . 352nd-Row Auto-Folding Seat* . . . . . . . . . . . . . . . . 353rd-Row Folding Seat* . . . . . . . . . . . . . . . . . . . 36
OTHER KEY FEATURESSunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . 37Sunglasses Holder . . . . . . . . . . . . . . . . . . . . . 37Remote Keyless Entry (Folding Key)* . . . . . . . . . . . . 37Double-Turn Lock / Unlock All . . . . . . . . . . . . . . . 37Smart Key* . . . . . . . . . . . . . . . . . . . . . . . . . 38Power Liftgate* . . . . . . . . . . . . . . . . . . . . . . . 39Smart Power Liftgate* . . . . . . . . . . . . . . . . . . . 40Driver Attention Warning (DAW)* . . . . . . . . . . . . . . 41HomeLink® with Auto-Dimming Rearview Mirror* . . . . . 42Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . 43Panoramic Sunroof with Power Sunshade* . . . . . . . . . 43Parking Distance Warning-Forward* and Reverse . . . . . 44Rear-Camera Display . . . . . . . . . . . . . . . . . . . . 44Hood Release Lever and Latch . . . . . . . . . . . . . . . 45 Fuel Cap / Malfunction Indicator (Check Engine Light) . . . 45Child-Protector Rear Door Locks . . . . . . . . . . . . . . 45
SAFETY FEATURESOccupant Detection System (ODS) /Passenger Airbag Off Indicator . . . . . . . . . . . . . . . 46Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . 46Seat Belt Retractor Locks . . . . . . . . . . . . . . . . . 46
LEGAL DISCLAIMERS . . . See Back Inside Cover Page
ESSENTIAL FEATURES
SORENTO FE ATURES & FUNCTIONS GUIDE
Air Conditioning / Automatic Climate Control* . . . . . . 26
Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . 20
Audio System – Standard Audio System* . . . . . . . . 21
Audio System – UVO eServices* . . . . . . . . . . . . . 22
Audio System – UVO eServices / Premium Navigation* . 23
Audio System – UVO eServices Activation . . . . . . . . 20
Aux/USB/iPod® Ports, Power Outlets & AC Inverter* . . . 29
Bluetooth® Wireless Technology . . . . . . . . . . . . . 16
Cruise Control . . . . . . . . . . . . . . . . . . . . . . 18
Digital Clock . . . . . . . . . . . . . . . . . . . . . . . 29
Passenger Airbag Off Indicator . . . . . . . . . . . . . . 46
Service Mode . . . . . . . . . . . . . . . . . . . . . . . . 7
Smart Cruise Control (SCC) with Stop & Go* . . . . . . . 19
Smart Key* . . . . . . . . . . . . . . . . . . . . . . . . 38
Tire Pressure Monitoring System (TPMS) . . . . . . . . . 5
Trip Modes / Trip Computer . . . . . . . . . . . . . . . . 6
User Settings . . . . . . . . . . . . . . . . . . . . . . . . 7
Windshield/Rear Wipers & Washers . . . . . . . . . . . 15
*IF EQUIPPED
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.

SORENTO FEATURES & FUNCTIONS GUIDE4*IF EQUIPPED
Indicators & Warning Lights
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations. For more information on the instrument cluster and the function of all indicator and warning lights, please refer to the Owner’s Manual.
Engine Oil Pressure Warning Light
Malfunction Indicator Light
Electric Parking Brake (EPB) Warning Light*
Seat Belt Warning Light
Light ON Indicator Light
High Beam Indicator Light
Low Beam Assist-Dynamic (LBA-D) Warning Light*
Front Fog Light Indicator Light
High Beam Assist Indicator Light*
Parking Brake & Brake Fluid Warning Light
Forward Collision-Avoidance Assist - Pedestrian (FCA-Ped) Warning Light*
All-Wheel Drive (AWD) Warning Light*
All-Wheel Drive (AWD) Lock Indicator Light*
Electronic Power Steering (EPS) Warning Light
Charging System Warning Light
Airbag Warning Light
Low Fuel Level Warning Light
Immobilizer Indicator Light*
Engine Coolant Temperature Warning Light
Icy Road Warning Indicator Light*

Low Tire Pressure Light / Tire Pressure Monitoring System ( TPMS) Malfunction Indicator Light
Anti-Lock Braking System (ABS) Warning Light
x1000rpm
00
20
2040
60
80100120140160
40
6080100
120
140
160
180
200
220
240
260
0
1
2
3
4
5
6
7
8AUTO
EPBF
C
H
EMPH km/h
AUTO
Electronic Stability Control (ESC) OFF Indicator Light
Electronic Stability Control (ESC) Warning Indicator Light
AUTO HOLD Indicator*
Cruise Control SET Indicator*
Cruise Control ON Indicator*
Washer Fluid Warning Light*
Master Warning Light
Electronic Brake Force Distribution (EBD) System Warning Light (two separate indicators on Instrument Cluster lit at same time)
Lane Keeping Assist (LK A)* ON/OFF Indicator Light
LED Headlamp Warning Indicator*
(Type B Cluster)
This illustration is for demonstration purposes only. Some indicators and warning lights may not appear in illustration. On the vehicle, they may appear in the LCD.
INSTRUMENT CLUSTER

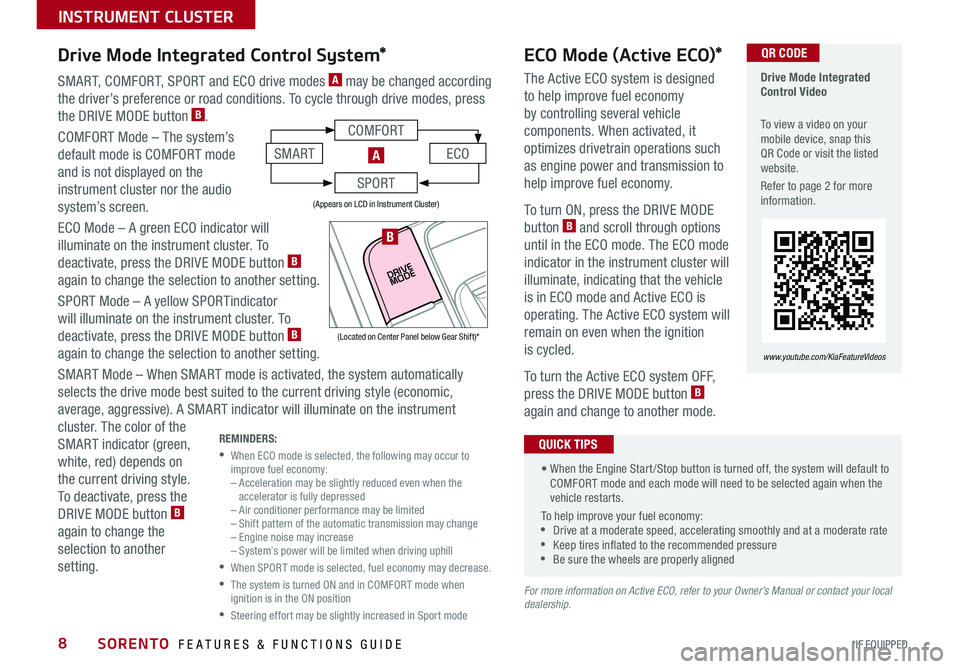

SORENTO FEATURES & FUNCTIONS GUIDE8*IF EQUIPPED
SMART, COMFORT, SPORT and ECO drive modes A may be changed according
the driver’s preference or road conditions . To cycle through drive modes, press
the DRIVE MODE button B .
COMFORT Mode – The system’s
default mode is COMFORT mode
and is not displayed on the
instrument cluster nor the audio
system’s screen .
ECO Mode – A green ECO indicator will
illuminate on the instrument cluster . To
deactivate, press the DRIVE MODE button B
again to change the selection to another setting .
SPORT Mode – A yellow SPORTindicator
will illuminate on the instrument cluster . To
deactivate, press the DRIVE MODE button B
again to change the selection to another setting .
SMART Mode – When SMART mode is activated, the system automatically
selects the drive mode best suited to the current driving style (economic,
average, aggressive) . A SMART indicator will illuminate on the instrument
cluster . The color of the
SMART indicator (green,
white, red) depends on
the current driving style .
To deactivate, press the
DRIVE MODE button B
again to change the
selection to another
setting .
Drive Mode Integrated Control Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
ECO Mode (Active ECO)*
The Active ECO system is designed
to help improve fuel economy
by controlling several vehicle
components . When activated, it
optimizes drivetrain operations such
as engine power and transmission to
help improve fuel economy .
To turn ON, press the DRIVE MODE
button B and scroll through options
until in the ECO mode . The ECO mode
indicator in the instrument cluster will
illuminate, indicating that the vehicle
is in ECO mode and Active ECO is
operating . The Active ECO system will
remain on even when the ignition
is cycled .
To turn the Active ECO system OFF,
press the DRIVE MODE button B
again and change to another mode .
For more information on Active ECO, refer to your Owner’s Manual or contact your local dealership.
Drive Mode Integrated Control System*
REMINDERS:
•
When ECO mode is selected, the following may occur to improve fuel economy: – Acceleration may be slightly reduced even when the accelerator is fully depressed – Air conditioner performance may be limited – Shift pattern of the automatic transmission may change – Engine noise may increase – System’s power will be limited when driving uphill
•
When SPORT mode is selected, fuel economy may decrease .
•
The system is turned ON and in COMFORT mode when ignition is in the ON position
•
Steering effort may be slightly increased in Sport mode
(Appears on LCD in Instrument Cluster)
QR CODE
• When the Engine Start /Stop button is turned off, the system will default to COMFORT mode and each mode will need to be selected again when the vehicle restarts .
To help improve your fuel economy: •Drive at a moderate speed, accelerating smoothly and at a moderate rate •Keep tires inflated to the recommended pressure •Be sure the wheels are properly aligned
QUICK TIPS
COMFORT
ECOSMART
SPORT
A
(Located on Center Panel below Gear Shift)*
B
INSTRUMENT CLUSTER

9ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
The ESC system is designed to help stabilize the vehicle during certain
cornering maneuvers . It is a good idea to keep the ESC turned on for
daily driving whenever possible .
Press ESC OFF button A to turn Traction Control OFF/ON .
To turn OFF both the Traction Control and Stability Control, press and
hold for more than 3 seconds . Press again to turn ON .
HAC helps prevent the vehicle from rolling backwards when
accelerating from a stop while on a steep incline . The HAC automatically
activates whether the ESC is OFF or ON but does NOT activate when the
ESC has malfunctioned .
REMINDERS:
•
ESC is active by default at vehicle start-up . When ignition is cycled, ESC will turn ON again
•
The ESC Indicator Light in the instrument cluster will illuminate whenever the ESC is in operation
For more information on Electronic Stability Control (ESC) and its specific features and operations, please refer to your Owner’s Manual.
Electronic Stability Control (ESC)†7
Hill-Start Assist Control (HAC)†7
REMINDERS:
•
The HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position .
•In the event of HAC system malfunction, see Authorized Kia Dealer for service .
•HAC does not replace the need to apply brakes while the vehicle is stopped on an incline .
(Button panel located left of Steering Wheel)
BCA
Instrument Cluster Control
With parking lights/headlights ON, press button B (+) or (-) to
adjust the brightness of the instrument panel illumination .
REMINDER: The Instrument Cluster Control does not adjust brightness on the audio head unit screens . Use the display settings in the Setup menu to adjust the brightness on the screen .
•
•When HAC is active (e .g ., during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator – this is normal HAC operation . •HAC provides a 2-second delay before the vehicle may start rolling backwards
QUICK TIPS
(Outlet located on back of Center Console*)
AC Inverter*
The AC Inverter supplies 115V/150W electrical
power to operate accessories or equipment .
Press AC Inverter button C to activate . Press
again to deactivate .AC115V
MAX150W
DRIVER'S PANEL

SORENTO FEATURES & FUNCTIONS GUIDE10*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Blind-Spot Collision Warning (BCW)*†6
The BCW system uses radar sensors to help alert the driver if it detects an
approaching vehicle in the driver’s blind spot area before changing lanes in
certain situations . The light on the BCW button A will illuminate when turned
ON . The outside rearview mirror warning lights will also illuminate for 3 seconds .
The system will become active when the vehicle is traveling more than 18 mph
and will alert the driver if another vehicle is detected by the radar sensor and will
alert the driver if another vehicle is detected by the radar sensor .
1st-stage alert: When another vehicle is detected within the BCW System
boundary B, or when a vehicle detected with the LCA boundary C
approaches at a high speed, a yellow indicator will illuminate on the
outside rearview mirrors .
2nd-stage alert: When 1st-stage alert is on and the driver activates a turn
signal, a flashing yellow indicator will illuminate on the outside rearview mirrors
and the system will sound an alert .
Rear Cross-Traffic Collision Warning (RCCW)*
If the RCCW system sensors detect approaching vehicles from the left or right
side D, the system will sound an audible alert, the warning indicators on the
outside rearview mirror will illuminate and a message will appear on the LCD
screen, when these conditions are met:
•The gear shift is in Reverse
•The vehicle is moving less than 6 mph
•The vehicle moves in reverse from a parked position
REMINDERS:
•The RCCW can be set to on/off in User Settings from the LCD Instrument Cluster modes
•When the BCW is ON and the vehicle power is cycled to OFF then ON again, the BSD system returns to ON
•When vehicle power is cycled, the RCCW will remain in the previous state
•
The RCCW system will show a warning if the approaching vehicle speed is between 2 .5 - 22 mph within sensing range . See owner’s manual for other conditions .
•The BCW and RCCW systems are supplemental systems . Do not solely rely on these systems and always pay attention to drive safely .
For more information on the above systems, please refer to the Owner’s Manual.
Blind-Spot Collision Warning w/RCCW Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
A
E
B
C
D
(Button panel located left of Steering Wheel)
QR CODE
DRIVER'S PANEL

11ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Lane Keeping Assist (LKA)*†6Forward Collision-Avoidance
Assist-Pedestrian (FCA-Ped)*† 9 /
Forward Collision Warning (FCW)*†6With the Engine Start /Stop button in the ON position, press the LK A
button E to turn system ON . The instrument cluster indicator will
initially illuminate white . It will remain white when vehicle is traveling
less than 40 mph and the system does not detect the lane markers .
When the LK A system detects the lane markers and can assist the
steering, the LK A icon will illuminate green .
If the LK A detects that you are veering outside of your lane, the system
may issue a warning on the LCD screen and an alert may sound, while
applying a slight adjustment to the steering, trying to prevent the vehicle
from moving outside its lane .
Standard LK A is the operating mode by default when the LK A button is
depressed to ON . To switch between modes (Standard LK A, Active LK A
and Lane Departure), go to User Settings in the Instrument Cluster .
All systems will operate under the following conditions:
• The vehicle exceeds approximately 40 mph
• The LK A system recognizes the lane the vehicle is traveling in .
• The vehicle is between the lane markers
REMINDERS:
•LK A will not issue a warning if the turn signals or hazard lights are activated .
•When ignition is cycled, the LK A will return to the previuosly set state
REMINDERS:
•
The FCA-Ped will be activated by default when vehicle power is cycled on, even when previously set to off
•
The FCA-Ped will not operate when the vehicle is traveling more than approximately 50 mph
•
If the FCA-Ped is operating and the ESC (Electronic Stability Control) is turned off, the FCA-Ped system is automatically turned off .
•
When FCA-Ped system is off, the FCA-Ped warning indicator is on in the Instrument Cluster .
The Forward Collision-Avoidance Assist-Pedestrian (FCA-Ped) / Forward Collision Warning (FCW)* are not substitutes for safe and proper driving. Always drive safely and use caution. FCA-Ped / FCW may not always alert the driver when the vehicle is approaching another vehicle.
The Lane Keeping Assist (LKA) is not a substitute for safe and proper driving. Always drive safely and use caution. LKA may not always alert the driver if the vehicle is driven outside of its lane.
When the LK A sensor detects the lane traveling in, the lane is illuminated
When the LK A sensor does not detect the lane traveling in the lanes is not illuminated
When the LK A sensor detects the vehicle veering outside of the lane traveling in, the lane the vehicle’s crossing will blink (shown in both images above)
Lane Keeping AssistLane Keeping Assist
Lane Keeping AssistLane Keeping AssistLane Keeping AssistLane Keeping Assist
Lane Keeping AssistLane Keeping Assist
Lane Keeping AssistLane Keeping Assist
Lane Keeping AssistLane Keeping AssistLane Keeping AssistLane Keeping Assist
Lane Keeping AssistLane Keeping Assist
Lane Keeping Assist Video
To view a video on your mobile device, snap this QR Code or visit the listed website . Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
The FCA-Ped is designed to help alert the driver,
and under certain conditions if necessary, apply
emergency braking, when rapidly approaching a
vehicle that is slowing down, braking or stopped .
Initially, the FCA-Ped provides Forward Collision
Warning (FCW) when it detects a potential collision
with a vehicle in front emitting an audible warning
and visual alert on the instrument cluster . Adjust
the alert settings (Early, Normal, Late) in the User
Settings . To turn the FCA-Ped/FCW off, go to User
Settings again and turn off .
If the system detects that the collision risk
increases, the Forward Collision-Avoidance Assist-
Pedestrian (FCA-Ped) automatically applies the brakes to reduce your speed,
helping to minimize the effects of a possible collision . FCA-Ped can be turned ON in
the User Settings menu on the Instrument Cluster display .
The FCA-Ped/FCW will become active when the:
• Engine Start /Stop button is ON
• Vehicle is traveling more than 5 mph
• Electronic Stability Control (ESC) is ON
DRIVER'S PANEL

SORENTO FEATURES & FUNCTIONS GUIDE12*IF EQUIPPED
Power Windows, Window Lock & Central Door Lock
A Pull/Press to operate Front Windows Auto Up/Down*
B Press to Unlock /Lock All Doors
C Press to disable Rear Passenger Windows
REMINDER: When pressed C, window controls for the Rear Passenger Windows are disabled .
Power/Heated Outside Mirrors*
Mirror heaters are activated when Rear Defroster is turned on .
Automatic Door Lock/Unlock
Auto Door Lock /Unlock will engage when the gear shift is moved in to
or out of the P (Park) position . Refer to the User Settings in the LCD
Instrument Cluster modes on how to turn Auto Door Lock /Unlock ON/OFF .
Fuel Filler Lid Release Button
Press the Fuel Filler Lid Release button G
to release the fuel door .
Power Folding Outside Mirrors*
D Press the L or R buttons to select the mirror to adjust .
E Press button arrows left /right or up/down to adjust mirror position .
F Toggle button left /right to unfold/fold the outside rearview mirrors .
F Toggle button to center to automatically fold/unfold mirrors when:
•The Smart Key* Lock /Unlock buttons are pressed
•The door outside handle button* is pressed
(Button/switch panel located on Driver's Door )
AUTO
AUTO
AUTO
L
RMIRROR
A
B
C
D
E
F

The mirrors will automatically unfold when the Smart Key* is within close proximity to the vehicle .
QUICK TIP
Press button again to stop Auto Up/Down function .
QUICK TIP
G
(Buttons located on Driver's Panel to the left of the Steering Wheel)
REMINDERS:
•
When mirror button F is in the center, press the Lock button on the Smart Key to automatically fold the mirrors
•To lock position of mirrors, toggle switch to the neutral (center) position
DRIVER'S PANEL

SORENTO FEATURES & FUNCTIONS GUIDE18*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
MODE
RESOKSET
CRUISE
CANCEL
REMINDER: Cruise Control is a part of the Smart Cruise Control with Stop & Go* and can be set as the operating mode . To switch from SCC to Cruise Control, press and hold the CRUISE button (the SCC system must not be activated to change modes) . Repeat to switch back to SCC mode .
Your vehicle’s steering wheel buttons may differ from those in the illustrations. See your Owner’s Manual for more details
Audio Controls†2 3Cruise Control†2 3
D CRUISE Control ON/OFF button: Press to turn the Cruise Control ON/OFF
E Resume Cruising Speed button: Press up to resume or increase
cruising speed
Set Cruising Speed button: Press down to set or decrease Cruising Speed
F Cruise Control CANCEL button: To cancel Cruise Control, do one of the
following:
•Press the brake pedal
•Press the CANCEL button
A Audio MODE button: Press to cycle through FM/AM/SiriusXM®* /
Media modes
Audio System ON/OFF: Press and hold to turn power on; Press to
turn power off
B Seek/Preset buttons:
FM/AM/SiriusXM® Modes: Press to advance through Preset Stations .
Press and hold to auto seek
Media Modes: Press up/down to move track up/down . Press and hold
to fast forward/rewind (except for Bluetooth® Audio)
C Volume button: Press up/down to raise/lower volume
Mute button: Press to mute all audio
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving.
A
CB
D
E
F
Pressing the Audio Mode button for more than 1 second will turn Audio Mode ON/OFF .
QUICK TIP

•Cruise Control is designed to function above 20 mph •The Cruise Control system will not activate until the brake pedal has been depressed at least once after ignition ON or engine start
QUICK TIPS
( Type B Steering Wheel shown)
STEERING WHEEL CONTROLS
