2019 KIA SORENTO lights

VIDEOS & QR CODES . . . . . . . . . . . . . . . . . . . 2
INSTRUMENT CLUSTERInstrument Cluster Overview . . . . . . . . . . . . . . . . . 3Indicators & Warning Lights . . . . . . . . . . . . . . . . . 4Tire Pressure Monitoring System (TPMS) . . . . . . . . . . 5Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . 5LCD Instrument Cluster Modes . . . . . . . . . . . . . . . 6Trip Modes / Trip Computer . . . . . . . . . . . . . . . . . . 6User Settings . . . . . . . . . . . . . . . . . . . . . . . . . 7Service Interval Mode . . . . . . . . . . . . . . . . . . . . 7Drive Mode Integrated Control System . . . . . . . . . . . . 8ECO Mode (Active ECO)* . . . . . . . . . . . . . . . . . . . 8
DRIVER’S PANELElectronic Stability Control (ESC) . . . . . . . . . . . . . . . 9Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . . . 9Instrument Cluster Control . . . . . . . . . . . . . . . . . . 9AC Inverter* . . . . . . . . . . . . . . . . . . . . . . . . . . 9Blind-Spot Collision Warning (BCW )* . . . . . . . . . . . . . 10Lane Keeping Assist (LK A)* . . . . . . . . . . . . . . . . . 11Forward Collision-Avoidance Assist-Pedestrian (FCA-Ped)* / Forward Collision Warning (FCW )* . . . . . . . . . . . . . 11Power Windows, Window Lock & Central Door Lock . . . . . 12Power Folding Outside Mirrors* . . . . . . . . . . . . . . . 12Power/Heated Outside Mirrors* . . . . . . . . . . . . . . . 12Automatic Door Lock / Unlock . . . . . . . . . . . . . . . .12Fuel Filler LId Release Button . . . . . . . . . . . . . . . . 12Reverse Parking Aid Function* . . . . . . . . . . . . . . . . 13Engine Start/Stop Button* . . . . . . . . . . . . . . . . . .13
STEERING WHEEL CONTROLSTilt / Telescoping Steering Wheel . . . . . . . . . . . . . . . 14Headlights & High Beams . . . . . . . . . . . . . . . . . . . 14Turn Signals & Fog Lights* . . . . . . . . . . . . . . . . . .15Windshield / Rear Wipers & Washers . . . . . . . . . . . . . 15Bluetooth® Wireless Technology . . . . . . . . . . . . . . . 16Audio Controls . . . . . . . . . . . . . . . . . . . . . . . .18Cruise Control . . . . . . . . . . . . . . . . . . . . . . . .18Smart Cruise Control (SCC) with Stop and Go* . . . . . . . . 19
AUDIO SYSTEMSAndroid Auto™ / Apple CarPlay® Setup . . . . . . . . . . . .20UVO eServices Activation* . . . . . . . . . . . . . . . . . .20Standard Audio System* . . . . . . . . . . . . . . . . . . .21UVO eServices* . . . . . . . . . . . . . . . . . . . . . . . . 22UVO eServices with Premium Navigation* . . . . . . . . . .23
CENTER PANELSurround View Monitor (SVM)* . . . . . . . . . . . . . . . 24Automatic Gear Shift with Sportmatic® Shifting . . . . . . 25AWD (All-Wheel Drive) Lock* . . . . . . . . . . . . . . . . 27Automatic Climate Control* . . . . . . . . . . . . . . . . . 26Manual Climate Control* . . . . . . . . . . . . . . . . . . 28Digital Clock . . . . . . . . . . . . . . . . . . . . . . . . 29Aux / USB / iPod® Ports, Power Outlets, USB Charger & AC Inverter* . . . . . . . . . . . . . . . 29Wireless Smartphone Charging System* . . . . . . . . . . 30Electronic Parking Brake (EPB)* . . . . . . . . . . . . . . 31Auto Hold* . . . . . . . . . . . . . . . . . . . . . . . . . 31Heated Steering Wheel* . . . . . . . . . . . . . . . . . . 32Seat Warmers / Ventilated Seats* . . . . . . . . . . . . . 32
S E AT I N GFront Seat Headrest Adjustment . . . . . . . . . . . . . . 33Driver Position Memory System* . . . . . . . . . . . . . . 33Power Adjustable Driver's Seat* / Power Lumbar* . . . . . 34Manual Adjustable Driver's Seat* . . . . . . . . . . . . . . 342nd-Row Folding Seat . . . . . . . . . . . . . . . . . . . 352nd-Row Auto-Folding Seat* . . . . . . . . . . . . . . . . 353rd-Row Folding Seat* . . . . . . . . . . . . . . . . . . . 36
OTHER KEY FEATURESSunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . 37Sunglasses Holder . . . . . . . . . . . . . . . . . . . . . 37Remote Keyless Entry (Folding Key)* . . . . . . . . . . . . 37Double-Turn Lock / Unlock All . . . . . . . . . . . . . . . 37Smart Key* . . . . . . . . . . . . . . . . . . . . . . . . . 38Power Liftgate* . . . . . . . . . . . . . . . . . . . . . . . 39Smart Power Liftgate* . . . . . . . . . . . . . . . . . . . 40Driver Attention Warning (DAW)* . . . . . . . . . . . . . . 41HomeLink® with Auto-Dimming Rearview Mirror* . . . . . 42Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . 43Panoramic Sunroof with Power Sunshade* . . . . . . . . . 43Parking Distance Warning-Forward* and Reverse . . . . . 44Rear-Camera Display . . . . . . . . . . . . . . . . . . . . 44Hood Release Lever and Latch . . . . . . . . . . . . . . . 45 Fuel Cap / Malfunction Indicator (Check Engine Light) . . . 45Child-Protector Rear Door Locks . . . . . . . . . . . . . . 45
SAFETY FEATURESOccupant Detection System (ODS) /Passenger Airbag Off Indicator . . . . . . . . . . . . . . . 46Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . 46Seat Belt Retractor Locks . . . . . . . . . . . . . . . . . 46
LEGAL DISCLAIMERS . . . See Back Inside Cover Page
ESSENTIAL FEATURES
SORENTO FE ATURES & FUNCTIONS GUIDE
Air Conditioning / Automatic Climate Control* . . . . . . 26
Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . 20
Audio System – Standard Audio System* . . . . . . . . 21
Audio System – UVO eServices* . . . . . . . . . . . . . 22
Audio System – UVO eServices / Premium Navigation* . 23
Audio System – UVO eServices Activation . . . . . . . . 20
Aux/USB/iPod® Ports, Power Outlets & AC Inverter* . . . 29
Bluetooth® Wireless Technology . . . . . . . . . . . . . 16
Cruise Control . . . . . . . . . . . . . . . . . . . . . . 18
Digital Clock . . . . . . . . . . . . . . . . . . . . . . . 29
Passenger Airbag Off Indicator . . . . . . . . . . . . . . 46
Service Mode . . . . . . . . . . . . . . . . . . . . . . . . 7
Smart Cruise Control (SCC) with Stop & Go* . . . . . . . 19
Smart Key* . . . . . . . . . . . . . . . . . . . . . . . . 38
Tire Pressure Monitoring System (TPMS) . . . . . . . . . 5
Trip Modes / Trip Computer . . . . . . . . . . . . . . . . 6
User Settings . . . . . . . . . . . . . . . . . . . . . . . . 7
Windshield/Rear Wipers & Washers . . . . . . . . . . . 15
*IF EQUIPPED
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.

3ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED
Instrument Cluster Overview
This illustration is for demonstration purposes only. Some indicators and warning lights may not appear in illustration. On the vehicle, they may appear in the LCD.
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations. For more information on the instrument cluster and the function of all indicator and warning lights, please refer to the Owner’s Manual.
A Tachometer
B Turn Signal Indicators
C Speedometer
D Engine Temperature Gauge
E Indicators & Warning Lights
F Gear Shift Position Indicator
G Odometer/ Trip Computer/ Tripmeter
H Fuel Gauge0
1 2
3
4
5
6
7
8
20 40
60
80
100
120
140
160
0
MPH
km/h
0
20
40 60
80
100
120
140
160
180
200
220
240
260
x1000rpm
EPB
AUTO
HOLD E
F
C H
AUTO
N
(Type A Cluster)
AC
BB
F
D
E
H
G
INSTRUMENT CLUSTER

SORENTO FEATURES & FUNCTIONS GUIDE4*IF EQUIPPED
Indicators & Warning Lights
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations. For more information on the instrument cluster and the function of all indicator and warning lights, please refer to the Owner’s Manual.
Engine Oil Pressure Warning Light
Malfunction Indicator Light
Electric Parking Brake (EPB) Warning Light*
Seat Belt Warning Light
Light ON Indicator Light
High Beam Indicator Light
Low Beam Assist-Dynamic (LBA-D) Warning Light*
Front Fog Light Indicator Light
High Beam Assist Indicator Light*
Parking Brake & Brake Fluid Warning Light
Forward Collision-Avoidance Assist - Pedestrian (FCA-Ped) Warning Light*
All-Wheel Drive (AWD) Warning Light*
All-Wheel Drive (AWD) Lock Indicator Light*
Electronic Power Steering (EPS) Warning Light
Charging System Warning Light
Airbag Warning Light
Low Fuel Level Warning Light
Immobilizer Indicator Light*
Engine Coolant Temperature Warning Light
Icy Road Warning Indicator Light*

Low Tire Pressure Light / Tire Pressure Monitoring System ( TPMS) Malfunction Indicator Light
Anti-Lock Braking System (ABS) Warning Light
x1000rpm
00
20
2040
60
80100120140160
40
6080100
120
140
160
180
200
220
240
260
0
1
2
3
4
5
6
7
8AUTO
EPBF
C
H
EMPH km/h
AUTO
Electronic Stability Control (ESC) OFF Indicator Light
Electronic Stability Control (ESC) Warning Indicator Light
AUTO HOLD Indicator*
Cruise Control SET Indicator*
Cruise Control ON Indicator*
Washer Fluid Warning Light*
Master Warning Light
Electronic Brake Force Distribution (EBD) System Warning Light (two separate indicators on Instrument Cluster lit at same time)
Lane Keeping Assist (LK A)* ON/OFF Indicator Light
LED Headlamp Warning Indicator*
(Type B Cluster)
This illustration is for demonstration purposes only. Some indicators and warning lights may not appear in illustration. On the vehicle, they may appear in the LCD.
INSTRUMENT CLUSTER

7ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED
To enter Service Interval Mode,
press the Mode button A, scroll
to User Settings and enter by
pressing the OK button C .
Scroll to Service Interval by
pressing the OK button B, then
press the OK button C to enter .
System will display number of
miles remaining until next service
is due, as well as the type of
service due .
When service is required, the
following will be displayed:
Service Required D .
To reset the Service Interval Mode system, press and
hold the OK button C for more than 1 second .
Press the OK button C to go back to the previous
mode/item
To turn Service In OFF E, go to User Settings .
Service Interval Setting F
To set the service interval in User Settings mode:
•Press the Mode button A to cycle to User
Settings and press the OK button C to enter
•If Service Interval is OFF, press the OK button C to turn ON
•Press the Move button B to select/change the interval setting
•Press the OK button C to select the interval
To enter the User Settings mode in the LCD Instrument Cluster
Modes, press the Mode button A when the vehicle is at a
stand-still and with the Engine/Start Stop button in the ON
position and select User Settings by pressing the Move
button B up/down .
You can navigate the selections on the display by pressing the
Move button B, and then selecting the item by pressing the
OK button C .
Press the OK button C to go back to the previous mode/item .
User Settings mode:Driving Assist
•Lane Safety* •Driver Attention Warning (DAW) •Smart Cruise Control with Stop & Go* •Forward Collision-Avoidance Assist-Pedestrian (FCA-Ped)* •Forward Collision Warning (FCW )* •Blind-Spot Collision Warning Sound* •Rear Cross Traf fic Collision Warning Sound* •Speed Limit Information Function*
Door/Liftgate (Tailgate)
•Automatically Lock •Automatically Unlock •Two Press Unlock* •Power Liftgate* •Smart Liftgate*
Lights
•One-Touch Turn Signal •Ambient Light* •Headlamp Delay*
Sound
•Parking Distance Warning-Forward* and Reverse System Volume* •Welcome Sound*
User Settings
Convenience
•Seat-Easy Access* •Welcome Mirror/Light* •Wireless Charging System* •Wiper/Lights Display* •Gear Position Pop-up*
Service Interval
•Service Interval •Adjust Interval •Reset
Other Features
•Fuel Economy Auto Reset •Speedometer Subscale* •Fuel Economy Unit •Temperature Unit •Tire Pressure Unit
Language
•Choose the language
Reset
•Reset the User Settings menus (except language and service interval)
Service Interval Mode
(Images are for illustration purposes only and may vary)
Servic e Interval
- 3 0 00 0mi.-3 3 65daysH old : R e se tOK
Service r equired
-20mi-5day
S e rv ic e Interval
Of f
Servic e Interval
- 3 0 00 0mi.-3 3 65daysH old : R e se tOK
Service r equired
-20mi-5day
S e rv ic e Interval
Of f
Servic e Interval
- 3 0 00 0mi.-3 3 65daysH old : R e se tOK
Service r equired
-20mi-5day
S e rv ic e Interval
Of fD
E
F
To view a video on your mobile device, snap these QR Codes or visit the listed website .
Refer to page 2 for more information .
LCD Display Video
LCD Display: Maintenance Video
www.youtube.com/KiaFeatureVideos
QR CODES
INSTRUMENT CLUSTER

9ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
The ESC system is designed to help stabilize the vehicle during certain
cornering maneuvers . It is a good idea to keep the ESC turned on for
daily driving whenever possible .
Press ESC OFF button A to turn Traction Control OFF/ON .
To turn OFF both the Traction Control and Stability Control, press and
hold for more than 3 seconds . Press again to turn ON .
HAC helps prevent the vehicle from rolling backwards when
accelerating from a stop while on a steep incline . The HAC automatically
activates whether the ESC is OFF or ON but does NOT activate when the
ESC has malfunctioned .
REMINDERS:
•
ESC is active by default at vehicle start-up . When ignition is cycled, ESC will turn ON again
•
The ESC Indicator Light in the instrument cluster will illuminate whenever the ESC is in operation
For more information on Electronic Stability Control (ESC) and its specific features and operations, please refer to your Owner’s Manual.
Electronic Stability Control (ESC)†7
Hill-Start Assist Control (HAC)†7
REMINDERS:
•
The HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position .
•In the event of HAC system malfunction, see Authorized Kia Dealer for service .
•HAC does not replace the need to apply brakes while the vehicle is stopped on an incline .
(Button panel located left of Steering Wheel)
BCA
Instrument Cluster Control
With parking lights/headlights ON, press button B (+) or (-) to
adjust the brightness of the instrument panel illumination .
REMINDER: The Instrument Cluster Control does not adjust brightness on the audio head unit screens . Use the display settings in the Setup menu to adjust the brightness on the screen .
•
•When HAC is active (e .g ., during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator – this is normal HAC operation . •HAC provides a 2-second delay before the vehicle may start rolling backwards
QUICK TIPS
(Outlet located on back of Center Console*)
AC Inverter*
The AC Inverter supplies 115V/150W electrical
power to operate accessories or equipment .
Press AC Inverter button C to activate . Press
again to deactivate .AC115V
MAX150W
DRIVER'S PANEL

SORENTO FEATURES & FUNCTIONS GUIDE10*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Blind-Spot Collision Warning (BCW)*†6
The BCW system uses radar sensors to help alert the driver if it detects an
approaching vehicle in the driver’s blind spot area before changing lanes in
certain situations . The light on the BCW button A will illuminate when turned
ON . The outside rearview mirror warning lights will also illuminate for 3 seconds .
The system will become active when the vehicle is traveling more than 18 mph
and will alert the driver if another vehicle is detected by the radar sensor and will
alert the driver if another vehicle is detected by the radar sensor .
1st-stage alert: When another vehicle is detected within the BCW System
boundary B, or when a vehicle detected with the LCA boundary C
approaches at a high speed, a yellow indicator will illuminate on the
outside rearview mirrors .
2nd-stage alert: When 1st-stage alert is on and the driver activates a turn
signal, a flashing yellow indicator will illuminate on the outside rearview mirrors
and the system will sound an alert .
Rear Cross-Traffic Collision Warning (RCCW)*
If the RCCW system sensors detect approaching vehicles from the left or right
side D, the system will sound an audible alert, the warning indicators on the
outside rearview mirror will illuminate and a message will appear on the LCD
screen, when these conditions are met:
•The gear shift is in Reverse
•The vehicle is moving less than 6 mph
•The vehicle moves in reverse from a parked position
REMINDERS:
•The RCCW can be set to on/off in User Settings from the LCD Instrument Cluster modes
•When the BCW is ON and the vehicle power is cycled to OFF then ON again, the BSD system returns to ON
•When vehicle power is cycled, the RCCW will remain in the previous state
•
The RCCW system will show a warning if the approaching vehicle speed is between 2 .5 - 22 mph within sensing range . See owner’s manual for other conditions .
•The BCW and RCCW systems are supplemental systems . Do not solely rely on these systems and always pay attention to drive safely .
For more information on the above systems, please refer to the Owner’s Manual.
Blind-Spot Collision Warning w/RCCW Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
A
E
B
C
D
(Button panel located left of Steering Wheel)
QR CODE
DRIVER'S PANEL

11ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER

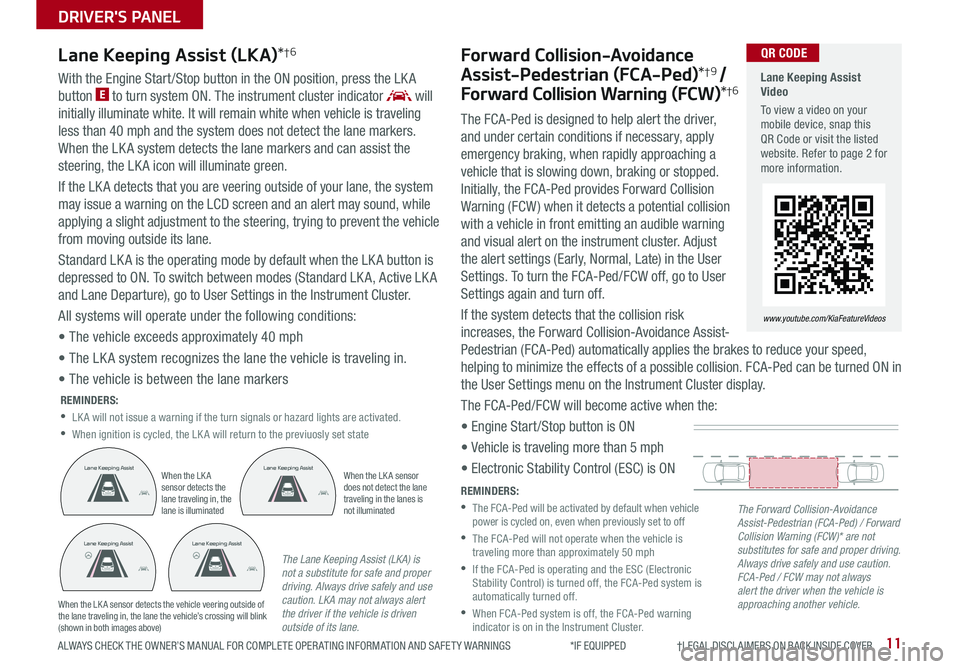

Lane Keeping Assist (LKA)*†6Forward Collision-Avoidance
Assist-Pedestrian (FCA-Ped)*† 9 /
Forward Collision Warning (FCW)*†6With the Engine Start /Stop button in the ON position, press the LK A
button E to turn system ON . The instrument cluster indicator will
initially illuminate white . It will remain white when vehicle is traveling
less than 40 mph and the system does not detect the lane markers .
When the LK A system detects the lane markers and can assist the
steering, the LK A icon will illuminate green .
If the LK A detects that you are veering outside of your lane, the system
may issue a warning on the LCD screen and an alert may sound, while
applying a slight adjustment to the steering, trying to prevent the vehicle
from moving outside its lane .
Standard LK A is the operating mode by default when the LK A button is
depressed to ON . To switch between modes (Standard LK A, Active LK A
and Lane Departure), go to User Settings in the Instrument Cluster .
All systems will operate under the following conditions:
• The vehicle exceeds approximately 40 mph
• The LK A system recognizes the lane the vehicle is traveling in .
• The vehicle is between the lane markers
REMINDERS:
•LK A will not issue a warning if the turn signals or hazard lights are activated .
•When ignition is cycled, the LK A will return to the previuosly set state
REMINDERS:
•
The FCA-Ped will be activated by default when vehicle power is cycled on, even when previously set to off
•
The FCA-Ped will not operate when the vehicle is traveling more than approximately 50 mph
•
If the FCA-Ped is operating and the ESC (Electronic Stability Control) is turned off, the FCA-Ped system is automatically turned off .
•
When FCA-Ped system is off, the FCA-Ped warning indicator is on in the Instrument Cluster .
The Forward Collision-Avoidance Assist-Pedestrian (FCA-Ped) / Forward Collision Warning (FCW)* are not substitutes for safe and proper driving. Always drive safely and use caution. FCA-Ped / FCW may not always alert the driver when the vehicle is approaching another vehicle.
The Lane Keeping Assist (LKA) is not a substitute for safe and proper driving. Always drive safely and use caution. LKA may not always alert the driver if the vehicle is driven outside of its lane.
When the LK A sensor detects the lane traveling in, the lane is illuminated
When the LK A sensor does not detect the lane traveling in the lanes is not illuminated
When the LK A sensor detects the vehicle veering outside of the lane traveling in, the lane the vehicle’s crossing will blink (shown in both images above)
Lane Keeping AssistLane Keeping Assist
Lane Keeping AssistLane Keeping AssistLane Keeping AssistLane Keeping Assist
Lane Keeping AssistLane Keeping Assist
Lane Keeping AssistLane Keeping Assist
Lane Keeping AssistLane Keeping AssistLane Keeping AssistLane Keeping Assist
Lane Keeping AssistLane Keeping Assist
Lane Keeping Assist Video
To view a video on your mobile device, snap this QR Code or visit the listed website . Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
The FCA-Ped is designed to help alert the driver,
and under certain conditions if necessary, apply
emergency braking, when rapidly approaching a
vehicle that is slowing down, braking or stopped .
Initially, the FCA-Ped provides Forward Collision
Warning (FCW) when it detects a potential collision
with a vehicle in front emitting an audible warning
and visual alert on the instrument cluster . Adjust
the alert settings (Early, Normal, Late) in the User
Settings . To turn the FCA-Ped/FCW off, go to User
Settings again and turn off .
If the system detects that the collision risk
increases, the Forward Collision-Avoidance Assist-
Pedestrian (FCA-Ped) automatically applies the brakes to reduce your speed,
helping to minimize the effects of a possible collision . FCA-Ped can be turned ON in
the User Settings menu on the Instrument Cluster display .
The FCA-Ped/FCW will become active when the:
• Engine Start /Stop button is ON
• Vehicle is traveling more than 5 mph
• Electronic Stability Control (ESC) is ON
DRIVER'S PANEL

SORENTO FEATURES & FUNCTIONS GUIDE14*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Tilt/Telescoping
Steering Wheel†2 5
To adjust the Steering Wheel, press the
Lock-Release Lever A down and adjust
the desired angle B and distance C .
When finished, pull the Lock-Release
Lever A up to lock Steering Wheel in place .
A
C
B
Headlights & High Beams
To o p e r a t e :
•Rotate switch to change the Headlight function
•Push lever to turn High Beams ON
•Pull lever to flash Headlights/High Beams
Daytime Running Lights (DRL)* — DRL may help others to see the
front of your vehicle during the day . The lights will be on automatically
when the ignition or Engine Start /Stop button is ON and the headlight
switch is in the AUTO position, unless one of the following occurs:
•Headlights are on
•Parking brake is applied
•Engine is turned off
•Switch is in the DRL OFF position
AUTO Light position* — When the light switch is in the AUTO
Light position, the tail lights and headlights will turn ON/OFF
automatically depending on the amount of light outside the vehicle .
Low Beam Assist-Dynamic (LBA-D)* — The LBA-D is designed to
help improve visibility during nighttime driving by aiming the low beam
headlights toward the direction the vehicle is moving . LBA-D controls the
aiming direction based on steering angle and speed . When the light switch
is in the AUTO Light position, the LBA-D will activate .
High Beam Assist (HBA)* — High Beam Assist is designed to
automatically adjust the headlight range by switching between high
and low beams based on light detected from other vehicles and road
conditions . To enable HBA, toggle the light switch to the AUTO Light
position and turn on the high beams by pushing the lever away from you .
The High Beam Assist indicator will illuminate .
DRL
OFF
DRLOFF
Headlight position
Parking light position
AUTOAuto Light / HBA* / LBA-D*
DRL OFFOFF position
It may be helpful to pull/push bottom of Steering Wheel towards/away from you to adjust desired distance prior to adjusting the angle .
QUICK TIP
Low Beam Assist-Dynamic (LBA-D) Video
To view a video on your mobile device, snap this QR Code or visit the listed website . Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
REMINDERS:
•
DRL only operates during the daytime
•
When the LBA-D indicator illuminates on the instrument cluster, the LBA-D is not working properly . See an authorized Kia dealer for service .
•
HBA will operate when vehicle speed exceeds 25 mph
•
If the lever is pushed away from you while HBA is operational, HBA will turn off and the high beams will be on continuously . If the lever is pulled toward you while HBA is operational, HBA will turn off
•
If the light switch is switched to the headlight position, HBA will turn off low beams will be on continuously
STEERING WHEEL CONTROLS
