2019 KIA SORENTO lock

45ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED
CLICK!
Fuel Cap / Malfunction
Indicator (Check Engine
Light)
Tighten for ONE CLICK to prevent
Malfunction Indicator from
illuminating .
REMINDERS:
• The Fuel Filler Door Release button is located on the driver’s button panel, left of the Steering Wheel .
• It is normal operation when tightening to hear one click and then when Fuel Cap is released, it clicks back .
Child-Protector Rear Door Locks
Located on the rear edge of the rear passenger doors, turn the Child-
Protector Rear Door Lock to the lock position to disable the inner door
handles from opening the rear doors .
REMINDER: Child-Protector Rear Door Locks are located on rear passenger’s door jamb .
Opening the Hood:
1 . Pull the Hood Release Lever A to unlatch the Hood
2 . In the front of the vehicle, lift the Hood slightly, push the secondary
Latch B to the left inside of the Hood’s center and lift the Hood
3 . It will open by itself after it has been raised about half way .
REMINDER: Open the Hood only after turning the engine off, on a flat surface, with the gear shift in P (Park) position and setting the parking brake .
Hood Release Lever and Latch
(Lever located near floor below Driver's Panel) (Latch located inside hood)
(Lock located on rear passenger inside door jam)
A
B
Closing the Hood:
Lower the Hood about halfway and then press down to securely
lock in place .
One-Click Fuel Cap Video To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
OTHER KEY FEATURES

SORENTO FEATURES & FUNCTIONS GUIDE46*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
REMINDER: For maximum protection, always wear your seat belt .
Seat Belts†19
To properly fasten your seat belts:
1 .
Insert the belt tongue plate A into
the buckle B until it clicks
2 .
Position the lap portion of the belt
across your lap as LOW ON THE
HIPS as possible C . Adjust the belt
to a SNUG FIT by pulling up on the
shoulder portion D
Seat Belt Retractor Locks
Retractor locks allow lap/shoulder safety belts to remain unlocked
during normal vehicle operation for freedom of movement and
increased comfort .
During a STRONG STOP, SUDDEN TURN OR CERTAIN COLLISIONS,
seatbelt retractors will automatically lock the belts to reduce the
risk of injury .
PRESS
A
B
D
C
ODS is designed to detect the presence and
position of the front passenger and adjusts or
turns off airbag deployment accordingly .
Depending on the situation and type of accident, the system may:
•Deploy airbag (Adult)
•Not deploy the airbag (Unoccupied)
If the system determines that the airbag should not be deployed, the
“PASSENGER AIR BAG OFF” light will illuminate .
Occupant Detection System (ODS)†15 /
Passenger Airbag†2 Off Indicator
CLIMATE
PASSENGER
AIR BAG
The seat belt warning chime operates for driver’s seat only .
QUICK TIP
REMINDER: Do not allow an adult passenger to ride in the front seat when the Passenger Airbag Indicator is illuminated OFF because the airbag will not deploy in the event of a crash . The driver must instruct the passenger to reposition her/himself in the seat .
For more information about the seat belts and airbags in the vehicle, please refer to the Owner’s Manual.
SAFETY

KEY FEATURE WALKTHROUGHDURING DELIVERY Aux/USB/iPod
® Ports, Power Outlets & AC Inverter* – page 29
Blind-Spot Collision Warning* – page 10 Clock Setup – page 29 Engine Start /Stop Button – page 13 HomeLink
® with Auto-Dimming Rearview Mirror – page 42
Lane Keeping Assist (LK A)* – page 11 Passenger Airbag Off Indicator – page 46
Panoramic Sunroof Operation* – page 43 Rear-Camera Display* – page 44 Seat Warmers / Ventilated Seats* – page 32 Smart Key – page 38 Sunvisor – page 37 Tire Pressure Monitoring System ( TPMS) – page 5
*if equipped
Explain first service process and schedule first service appointment Tour Parts & Service departments, introduce staff and explain value of Kia Parts and Service Review recommended maintenance schedule and maintenance requirements to validate warranty Review business hours and Customer 360° Care Review the Kia 10-year/100,000-mile warranty program Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle Confirm time and best contact number for initial dealer follow-up
Smart Cruise Control with

Stop & Go* – pages 18-19

Demonstrate operation
Bluetooth
® Wireless Technology
– pages 16-17

Demonstrate operation
MODE
RES
OK
SET
CRUISE
CANCEL
MODE
RES
OK
SET
CRUISE
CANCEL
Sales Consultant:
______________________________________________________________
Date:
____________________
Sales Manager:
________________________________________________________________
Date:
____________________
Customer:
_____________________________________________________________________
Date:
____________________
Standard Audio System* – page 21

For furthur operational information, refer to the Car Multimedia System User’s Manual.
UVO eServices with Premium Navigation* – page 23

For further operational information, refer to the Car Multimedia System User’s Manual.
UVO eServices* – page 22For further operational information, refer to the Car Multimedia System User’s Manual.
Android Auto
™ / Apple CarPlay
®
Setup* – page 20 UVO eServices / Activation*

- page 20

For further UVO operations, refer to the

Car Multimedia System User’s Manual.

For other audio system information, refer

to pages 21-23PWR
VOL
FILETUNE
N AV
MAPSETUP
RADIOMEDIASEEK
TRACK
MAP
RADIO
CD-IN
MAP
MEDIA
SEEK
TRACKPWR VOL FILETUNE
PHONEHOMESETUP
APPS
RADIO
CD-IN
MEDIA
SEEK
TRACKPWR VOL FILETUNE
PHONEHOME
DISPSETUP
APPS

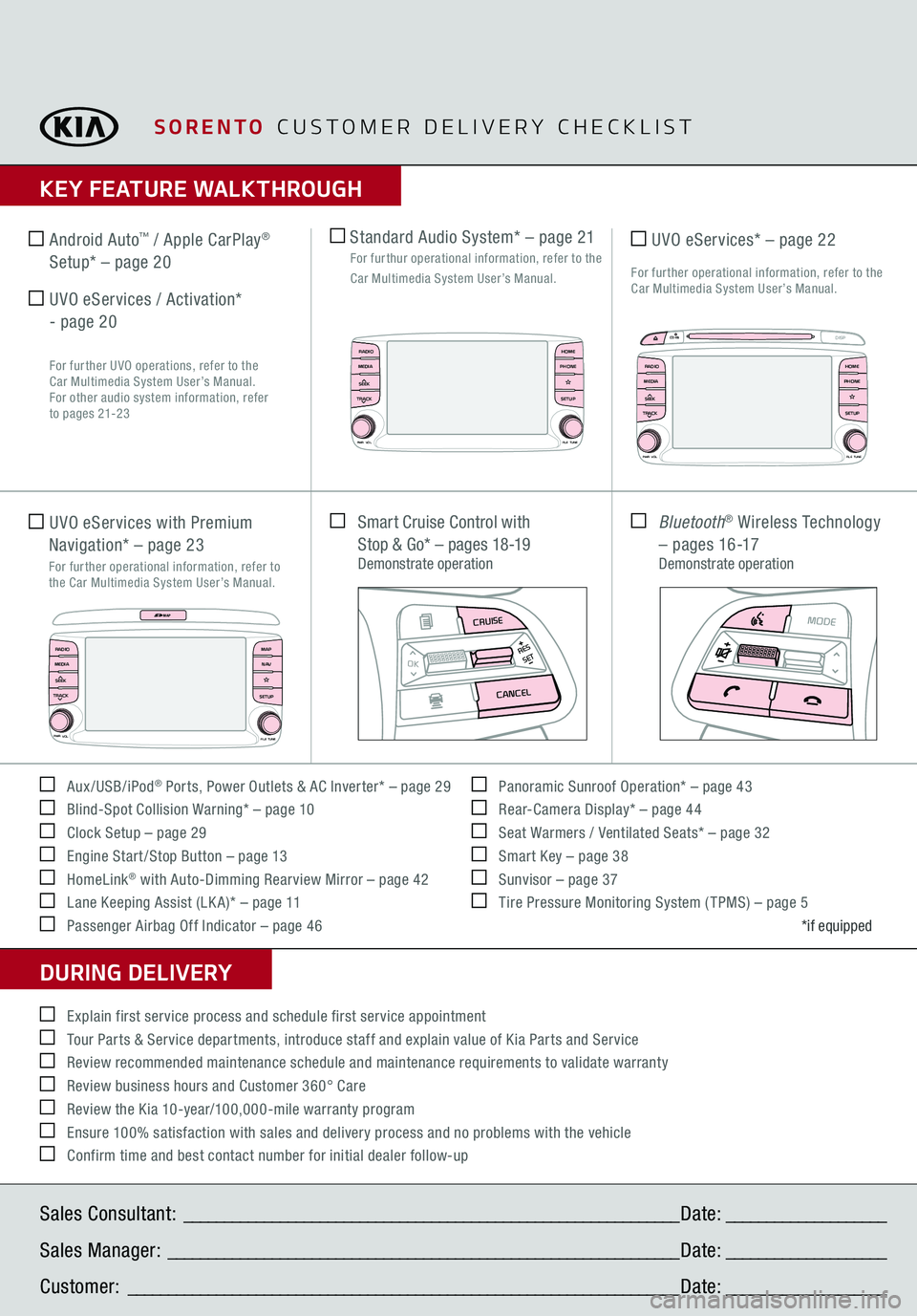

SORENTO
CUSTOMER DELIVERY CHECKLIST
