Normal Maintenance Schedule - Non Turbo Models
The following maintenance services must be performed to ensure good emission control and performance.
Keep receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown, the
frequency of service is determined by whichever occurs first.
Number of months or driving distance, whichever comes first
Months1224364860728496108120132144156168180
Miles×1,0007.51522.530 37.5 45 52.5 60 67.5 75 82.5 90 97.5 105 112.5
Km×1,00012 24 36 48 60 72 84 96 108 120 132 144 156 168 180
Drive belts *1At first, inspect at 96,000 km (60,000 miles) or 72 months,
after that, inspect every 24,000 km (15,000 miles) or 24 months
Engine oil and engine oil
filterLambda II 3.3L GDIRRRRRRRRRRRRRRR
Fuel additives *2Add every 12,000 km (7,500 miles) or 12 months
Air cleaner filterIIIRIIIRIIIRIII
Spark plugsLambda II 3.3L GDIReplace every 156,000 km (97,500 miles)
Valve clearance *3Lambda II 3.3L GDIInspect every 96,000 km (60,000 miles) or 72 months
Rotate tiresRotate every 12,000 km (7,500 miles)
Climate control air filterRRRRRRRRRRRRRRR
MAINTENANCE
INTERVALS
MAINTENANCE
ITEM
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*
1: The drive belt should be replaced when cracks occur or tension is reduced.
*2: If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your authorized Kia dealer along with information on how to use them. Do not mix other additives.
*
3: Inspect for excessive valve noise and/or engine vibration and adjust if necessary. Have an authorized Kia dealer perform the operation.

Maintenance
14
7
Severe driving conditions
A - Repeatedly driving short distance of less than 8 km (5 miles)
in normal temperature or less than 16 km (10 miles) in freez-
ing temperature
B - Extensive engine idling or low speed driving for long dis- tances
C - Driving on rough, dusty, muddy, unpaved, graveled or salt- spread roads
D - Driving in areas using salt or other corrosive materials or in very cold weather E - Driving in heavy dust condition
F - Driving in heavy traffic area
G- Driving on uphill, downhill, or mountain road repeatedly
H - Towing a Trailer, or using a camper, or roof rack
I - Driving as a patrol car, taxi, other commercial use or vehicle
towing
J - Driving over 170 km/h (106 mph)
K - Frequently driving in stop-and-go conditions
MAINTENANCE ITEMMAINTENANCE OPERATIONMAINTENANCE INTERVALSDRIVING
CONDITION
Drive shafts and bootsIMore frequentlyC, D, E, F, G, H, I, J
Climate control air filterRMore frequentlyC, E, G

Maintenance
30
7

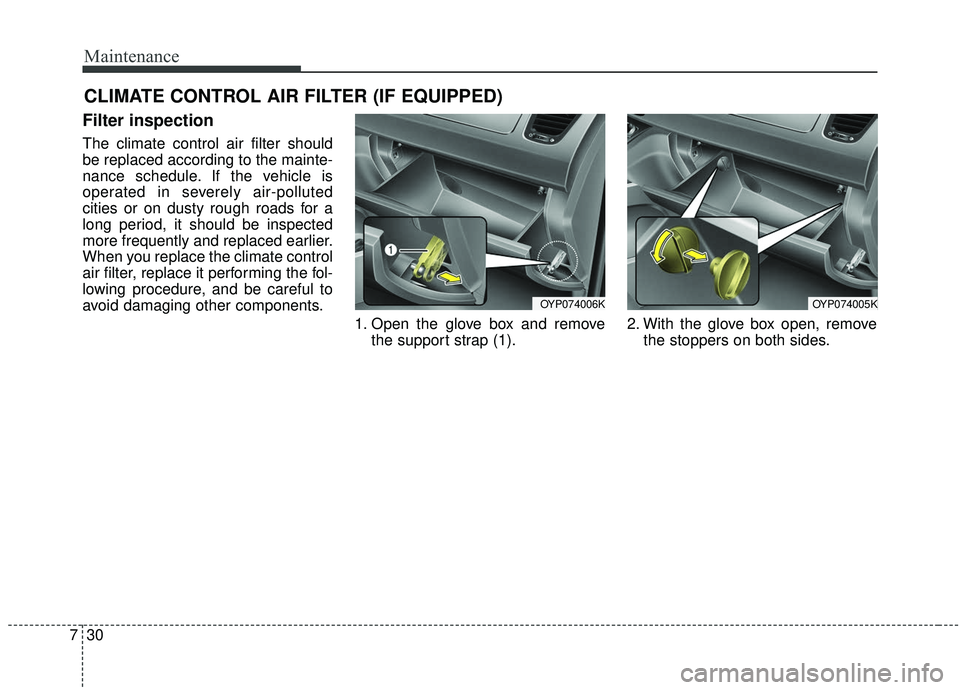

CLIMATE CONTROL AIR FILTER (IF EQUIPPED)
Filter inspection
The climate control air filter should
be replaced according to the mainte-
nance schedule. If the vehicle is
operated in severely air-polluted
cities or on dusty rough roads for a
long period, it should be inspected
more frequently and replaced earlier.
When you replace the climate control
air filter, replace it performing the fol-
lowing procedure, and be careful to
avoid damaging other components.
1. Open the glove box and removethe support strap (1). 2. With the glove box open, remove
the stoppers on both sides.
OYP074005KOYP074006K

731
Maintenance

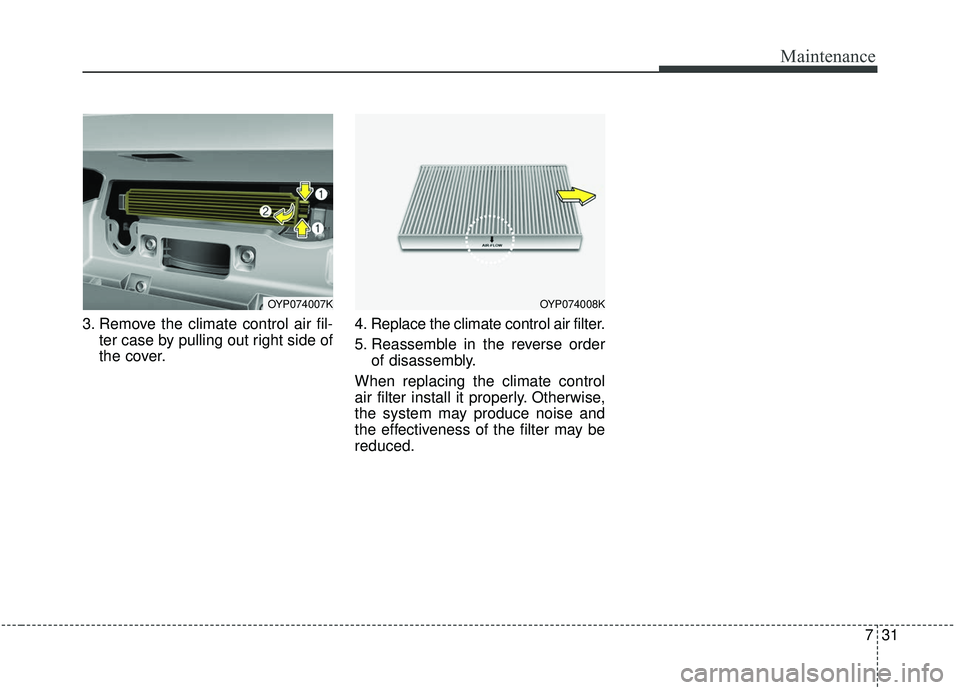

3. Remove the climate control air fil-ter case by pulling out right side of
the cover. 4. Replace the climate control air filter.
5. Reassemble in the reverse order
of disassembly.
When replacing the climate control
air filter install it properly. Otherwise,
the system may produce noise and
the effectiveness of the filter may be
reduced.
OYP074007KOYP074008K

Maintenance
38
7
Before performing maintenance or
recharging the battery, turn off all
accessories and stop the engine.
The negative battery cable must be removed first and installed last
when the battery is disconnected.Reset items
Items should be reset after the bat-
tery has been discharged or the bat-
tery has been disconnected.
Auto up/down window (See chapter 4)
Sunroof (See chapter 4)
Trip computer (See chapter 4)
Climate control system (See chapter 4)
Clock (See chapter 4)
Audio (See chapter 4)

747
Maintenance
5. Maximum permissible inflationpressure
This number is the greatest amount
of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure. Refer
to the Tire and Loading Information
label for recommended inflation
pressure.
6. Maximum load rating
This number indicates the maximum
load in kilograms and pounds that
can be carried by the tire. When
replacing the tires on the vehicle,
always use a tire that has the same
load rating as the factory installed
tire.
7. Uniform tire quality grading
Quality grades can be found where
applicable on the tire sidewall
between tread shoulder and maxi-
mum section width.
For example:
TREADWEAR 200
TRACTION AA
TEMPERATURE A
Tires degrade over time, even when
they are not being used. Regardless
of the remaining tread, we recom-
mend that tires be replaced after
approximately six (6) years of normal
service. Heat caused by hot climates
or frequent high loading conditions
can accelerate the aging process. Tread wear
The tread wear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specified govern-
ment test course. For example, a tire
graded 150 would wear one-and-a-
half times (1½) as well on the gov-
ernment course as a tire graded 100.
The relative performance of tires
depends upon the actual conditions
of their use, however, and may
depart significantly from the norm
due to variations in driving habits,
service practices and differences in
road characteristics and climate.
These grades are molded on the
side-walls of passenger vehicle tires.
The tires available as standard or
optional equipment on your vehicle
may vary with respect to grade.

Index
2I
AC inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-199
Accumulated driving information mode. . . . . . . . . . . . 4-98
Active ECO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-82\
Active ECO operation . . . . . . . . . . . . . . . . . . . . . . . 5-82
Limitation of Active ECO operation . . . . . . . . . . . . 5-82
When Active ECO is activated . . . . . . . . . . . . . . . . . 5-82
Adding equipment to or modifying your air bag-equipped vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
88
Air bag inflation conditions . . . . . . . . . . . . . . . . . . . . . 3-83
Air bag non-inflation conditions . . . . . . . . . . . . . . . . . 3-85
Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . . 3-88
Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . . . 3-64
Air bags. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 3-61 Adding equipment to or modifying your air bag-equipped vehicle . . . . . . . . . . . . . . . . . . . . 3-88
Air bag inflation conditions . . . . . . . . . . . . . . . . . . . 3-83
Air bag non-inflation conditions . . . . . . . . . . . . . . . 3-85
Air bag warning label. . . . . . . . . . . . . . . . . . . . . . . . 3-88
Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . 3-64
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-80
Driver's and passenger's front air bag . . . . . . . . . . . 3-75
Occupant detection system. . . . . . . . . . . . . . . . . . . . 3-68
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-62
Side air bag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-78
SRS care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-87\
SRS components and functions . . . . . . . . . . . . . . . . 3-65 Air cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-28\
Filter replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . 7-28
Air conditioning system lubricants. . . . . . . . . . . . . . . . . 8-5
Air ventilation seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-197
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-210
Anti-lock Brake System (ABS) . . . . . . . . . . . . . . . . . . 5-33
Appearance care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-89 Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-89
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-95
Assist mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-210 Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-210
AUX, USB port . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-210
Auto defogging system . . . . . . . . . . . . . . . . . . . . . . . . 4-189
Auto hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-\
30
Auto light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13\
7
Automatic climate control system . . . . . . . . . . . . . . . 4-168 Automatic heating and air conditioning. . . . . . . . . 4-169
Checking the amount of air conditioner refrigerant and compressor lubricant . . . . . . . . . . . . . . . . . . . . . . 4-185
Climate control air filter. . . . . . . . . . . . . . . . . . . . . 4-184
Manual heating and air conditioning . . . . . . . . . . . 4-170
Outside thermometer . . . . . . . . . . . . . . . . . . . . . . . 4-174
Rear climate control . . . . . . . . . . . . . . . . . . . . . . . . 4-179
System operation . . . . . . . . . . . . . . . . . . . . . . . . . . 4-182
Automatic heating and air conditioning . . . . . . . . . . . 4-169
A
