2019 KIA SEDONA service interval

ESSENTIAL FEATURES
SEDONA FE ATURES & FUNCTIONS GUIDE
Air Conditioning / Automatic Climate Control* 24
Android Auto™ / Apple CarPlay® Setup 19
Audio System – Standard Audio System* 20
Audio System – UVO eServices Activation* 19
Audio System – UVO eServices* 21
Audio System – UVO eServices / Premium Navigation* 22
Aux/USB/iPod® Ports, Power Outlets, USB Charger & AC Inverter* 27
Bluetooth® Wireless Technology 16
Cruise Control 15
Digital Clock* 27
Passenger Airbag Off Indicator 47
Service Mode 06
Smart Key* 38
Tire Pressure Monitoring System (TPMS) 04
Trip Computer / Tripmeter 05
User Settings 06
Windshield/Rear Wipers & Washers* 14
LEGAL DISCLAIMERS See Back Inside Cover Page
VIDEOS & QR CODES 02
INSTRUMENT CLUSTERInstrument Cluster Overview / Indicators & Warning Lights 03Tire Pressure Monitoring System (TPMS) 04Fuel Economy 04LCD Instrument Cluster Modes 05Trip Computer / Tripmeter 05User Settings 06Service Interval Mode 06Drive Mode Integrated Control System* 07ECO Mode (Active ECO)* 07
DRIVER’S PANELElectronic Stability Control (ESC) 08Hill-Start Assist Control (HAC) 08Instrument Cluster Control 08AC Inverter* 08Blind-Spot Collision Warning (BCW ) w/ RCCW* 09Lane Departure Warning (LDW )* 10Forward Collision-Avoidance Assist-Pedestrian (FCA-Ped)* / Forward Collision Warning (FCW )* 10Power Windows, Window Lock & Central Door Lock 11Power Folding Outside Mirrors* 11Power/Heated Outside Mirrors* 11Automatic Door Lock /Unlock 11Fuel Filler Lid Release Button 11Reverse Parking Aid Function* 12Engine Start/Stop Button* 12
STEERING WHEEL CONTROLSTilt/ Telescoping Steering Wheel 13Headlights & High Beams 13Turn Signals & Fog Lights* 14Windshield/Rear Wipers & Washers* 14Audio Controls 15Standard Cruise Control 15Bluetooth® Wireless Technology 16Smart Cruise Control (SCC) with Stop & Go* 18
AUDIO SYSTEMSAndroid Auto™ / Apple CarPlay® Setup 19UVO eServices Activation* 19Standard Audio System* 20UVO eServices* 21UVO eServices with Premium Navigation* 22
CENTER PANELSurround View Monitor (SVM)* 23Automatic Climate Control* 24Manual Climate Control* 26Digital Clock* 27Aux/USB/iPod® Ports, Power Outlets, USB Charger & AC Inverter* 27Wireless Smartphone Charging System* 28Electronic Parking Brake (EPB)* / Auto Hold* 29Automatic Gear Shift with Sportmatic® Shifting 30Heated Steering Wheel* 31Seat Warmers / Ventilated Seats* 31
S E AT I N GFront Seat Headrest Adjustment 32Driver Position Memory System* 32Power Adjustable Driver’s Seat* 33Manual Adjustable Driver’s Seat* 332nd-Row Seat 342nd-Row Walk-In Seat* 342nd-Row Tumble (Center) Seat* 35Unfastening Center Seat Belt 353rd-Row Seat - Folding and Stowing 36
OTHER KEY FEATURESRemote Keyless Entry (Folding Key)* 37Double-Turn Lock /Unlock All 37Smart Key* 38Map/Room Lamps 39Sunvisor 39Sunroof Operation* 40Power Sliding Doors 41Power Liftgate / Smart Power Liftgate* 41Parking Distance Warning–Forward* and Reverse* 43Rear View Monitor 43Hood Release Lever and Latch 44 Fuel Cap / Malfunction Indicator (Check Engine Light) 44Child-Protector Rear Door Lock 44Driver Attention Warning (DAW)* 45HomeLink® with Auto-Dimming Rearview Mirror* 46
SAFETY FEATURESOccupant Detection System (ODS) / Passenger Airbag Off Indicator 47Seat Belts 47Seat Belt Retractor Locks 47
NORMAL MAINTENANCE SCHEDULE Back Cover
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
*IF EQUIPPED

SEDONA FEATURES & FUNCTIONS GUIDE6*IF EQUIPPED

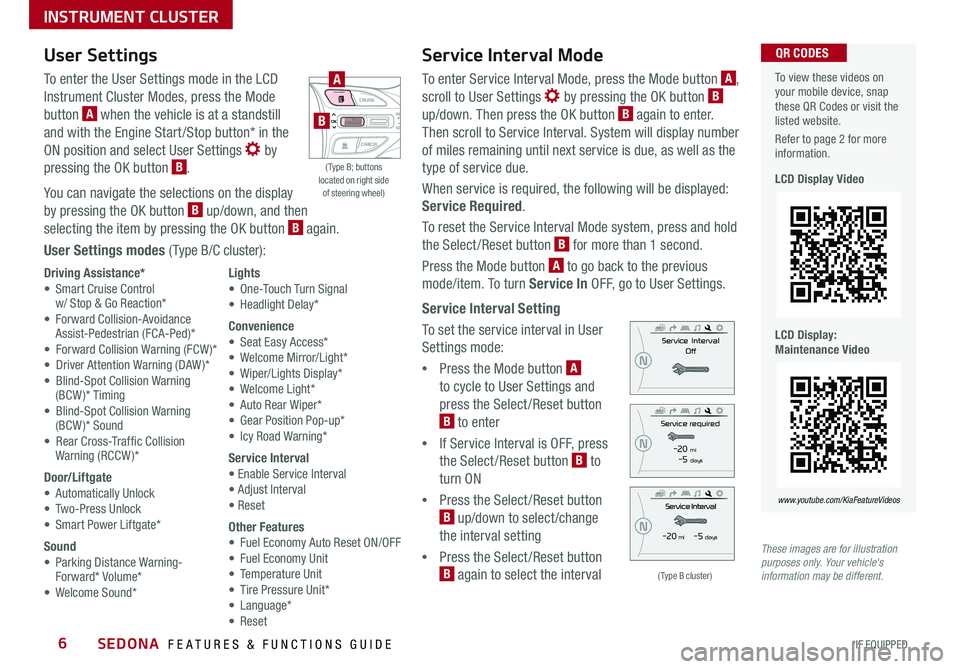

Service Interval Mode
To enter Service Interval Mode, press the Mode button A,
scroll to User Settings by pressing the OK button B up/down Then press the OK button B again to enter
Then scroll to Service Interval System will display number
of miles remaining until next service is due, as well as the
type of service due
When service is required, the following will be displayed:
Service Required
To reset the Service Interval Mode system, press and hold
the Select/Reset button B for more than 1 second
Press the Mode button A to go back to the previous
mode/item To turn Service In OFF, go to User Settings
Service Interval Setting
To set the service interval in User
Settings mode:
•Press the Mode button A
to cycle to User Settings and
press the Select /Reset button
B to enter
•If Service Interval is OFF, press
the Select /Reset button B to
turn ON
•Press the Select /Reset button
B up/down to select /change
the interval setting
•Press the Select /Reset button
B again to select the interval
To view these videos on your mobile device, snap these QR Codes or visit the listed website
Refer to page 2 for more information
LCD Display Video
LCD Display: Maintenance Video

QR CODES
www.youtube.com/KiaFeatureVideos
(Type B cluster)
-20 mi -5 days
-20 mi -5 daysThese images are for illustration purposes only. Your vehicle's information may be different.
( Type B; buttons located on right side of steering wheel)
A
B
User Settings
To enter the User Settings mode in the LCD
Instrument Cluster Modes, press the Mode
button A when the vehicle is at a standstill
and with the Engine Start /Stop button* in the
ON position and select User Settings by
pressing the OK button B
You can navigate the selections on the display
by pressing the OK button B up/down, and then
selecting the item by pressing the OK button B again
User Settings modes ( Type B/C cluster):
Driving Assistance*• Smart Cruise Control w/ Stop & Go Reaction* • Forward Collision-Avoidance Assist-Pedestrian (FCA-Ped)* • Forward Collision Warning (FCW )*• Driver Attention Warning (DAW )*• Blind-Spot Collision Warning (BCW)* Timing• Blind-Spot Collision Warning (BCW )* Sound• Rear Cross-Traffic Collision Warning (RCCW )*
Door/Liftgate• Automatically Unlock• Two-Press Unlock• Smart Power Liftgate*
Sound• Parking Distance Warning- Forward* Volume*• Welcome Sound*
Lights• One-Touch Turn Signal• Headlight Delay*
Convenience• Seat Easy Access*• Welcome Mirror/Light*• Wiper/Lights Display*• Welcome Light*• Auto Rear Wiper*• Gear Position Pop-up*• Icy Road Warning*
Service Interval• Enable Service Interval• Adjust Interval• Reset
Other Features• Fuel Economy Auto Reset ON/OFF• Fuel Economy Unit• Temperature Unit• Tire Pressure Unit*• Language*• Reset
INSTRUMENT CLUSTER

*IF EQUIPPED
(up to 60,000 miles)*MAINTENANCE INTERVALS (MILES)
MAINTENANCE ITEMS7, 5 0 015,00022,50030,0003 7, 5 0 045,00052,50060,000
Rotate tiresPPPPPPPP
Add fuel additive1PPPPPPPP
Engine Oil & FilterRRRRRRRR
Climate control air filterRRRRRRRR
Air cleaner filterIIIRIIIR
Battery conditionIIIIIIII
Brake lines, hoses and connectionsIIIIIIII
Brake discs and padsIIIIIIII
Vacuum hoseIIIIIIII
Power steering fluid*IIIIIIII
Power steering pump, belt and hoses*IIIIIIII
Steering gear rack, linkage & bootsIIIIIIII
Drive shafts and bootsIIIIIIII
Suspension ball jointsIIIIIIII
Air conditioner compressor/refrigerantIIIIIIII
Exhaust systemIIIIIIII
Brake fluidIIII
Fuel tank air filter ‡ 2IIII
Parking brake (foot type)IIII
Vapor hose and fuel filler capIIII
Cooling SystemIII
Fuel lines, hoses and connectionsII
Valve clearance3I
Drive belts (First 60,000 miles, then every 15,000 miles)4I
SEDONA NORMAL MAINTENANCE SCHEDULE P=Perform • R=Replace • I=Inspect**
* See the Owner’s Manual for complete maintenance schedule. These are approximate estimated intervals. Refer to vehicle mileage for maintenance item schedule* * And, if necessary, adjust, correct, clean or replace‡ If equipped1. If TOP TIER detergent gasoline is not available, one bottle of additive is recommended. Additives are available from your authorized Kia dealer along with information on how to use them. Do not mix other additives
2. Both the fuel filter & fuel tank air filter are generally considered to be maintenance free, depending on fuel quality being used. However, periodic inspection is recommended. If your vehicle is having issues like fuel flow restriction, power surging, loss of power, difficulty starting, etc., replace the fuel filter immediately and consult an authorized Kia dealer for service.3. Inspect for excessive tappet noise and/or engine vibration and adjust if necessary4. The drive belt should be replaced when cracks occur or tension is reduced excessively
See your Owner’s Manual for more details and complete maintenance information, including severe maintenance schedule. Warranty may be voided if maintenance schedule is not followed.© 2018 Kia Motors America, Inc. All rights reserved. Part Number: UV190-PS-004Consumer - Roadside Assistance†: 1-800-333-4KIA (4542)
Check your Maintenance Schedule or schedule an appointment with a dealer using your UVO account by logging into your UVO App or your account on MyUVO.com ( Vehicles equipped with UVO only – See page 19 for setup information)
QUICK TIP
†LEG AL DISCL AIMERS ON BACK INSIDE COVER
