2019 KIA RIO Owners Manual

Introduction
61
No special break-in period is need-
ed. By following a few simple precau-
tions for the first 1,000 km (600
miles) you may add to the perform-
ance, economy and life of your vehi-
cle.
Do not race the engine.
While driving, keep your enginespeed (rpm, or revolutions per
minute) between 2,000 rpm and
4,000 rpm.
Do not maintain a single speed for long periods of time, either fast or
slow. Varying engine speed is
needed to properly break-in the
engine.
Avoid hard stops, except in emer- gencies, to allow the brakes to seat
properly.
Don't tow a trailer during the first 2,000 km (1,200 miles) of opera-
tion.
VEHICLE BREAK-IN
PROCESS
SC CAN (ENG) 1.QXP 7/18/2018 5:30 PM Page 6

17
Introduction

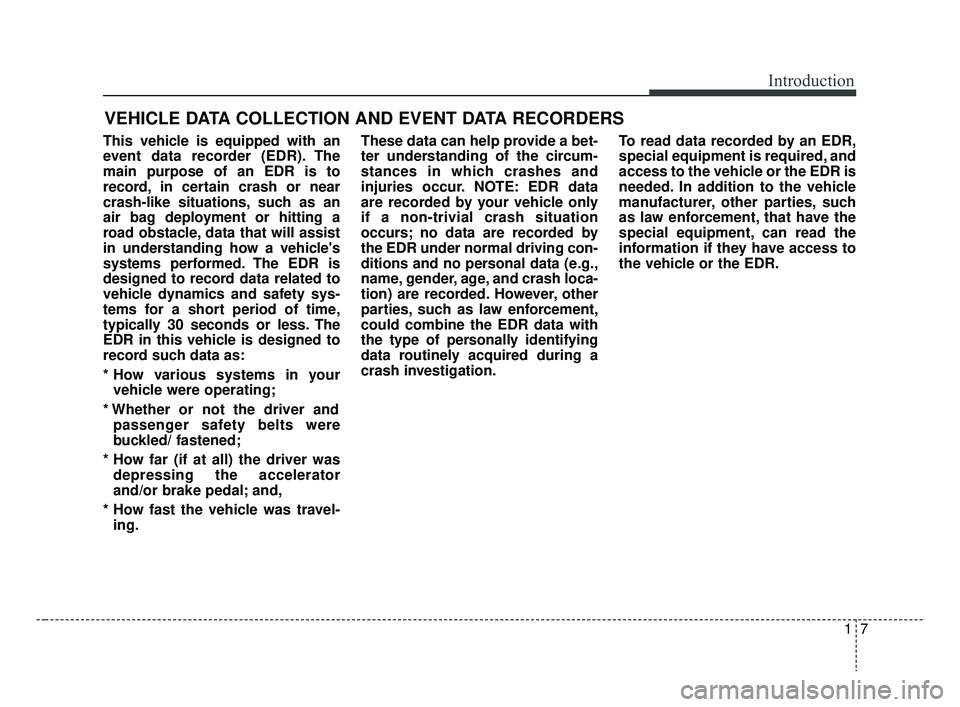

VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS
This vehicle is equipped with an
event data recorder (EDR). The
main purpose of an EDR is to
record, in certain crash or near
crash-like situations, such as an
air bag deployment or hitting a
road obstacle, data that will assist
in understanding how a vehicle's
systems performed. The EDR is
designed to record data related to
vehicle dynamics and safety sys-
tems for a short period of time,
typically 30 seconds or less. The
EDR in this vehicle is designed to
record such data as:
* How various systems in yourvehicle were operating;
* Whether or not the driver and passenger safety belts were
buckled/ fastened;
* How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
* How fast the vehicle was travel- ing. These data can help provide a bet-
ter understanding of the circum-
stances in which crashes and
injuries occur. NOTE: EDR data
are recorded by your vehicle only
if a non-trivial crash situation
occurs; no data are recorded by
the EDR under normal driving con-
ditions and no personal data (e.g.,
name, gender, age, and crash loca-
tion) are recorded. However, other
parties, such as law enforcement,
could combine the EDR data with
the type of personally identifying
data routinely acquired during a
crash investigation.
To read data recorded by an EDR,
special equipment is required, and
access to the vehicle or the EDR is
needed. In addition to the vehicle
manufacturer, other parties, such
as law enforcement, that have the
special equipment, can read the
information if they have access to
the vehicle or the EDR.
SC CAN (ENG) 1.QXP 7/18/2018 5:30 PM Page 7

Your vehicle at a glance
Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-6
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-7
2
SC CAN (ENG) 2.qxp 7/18/2018 5:29 PM Page 1

Your vehicle at a glance
22
EXTERIOR OVERVIEW
1. Hood ......................................................4-39
2. Head lamp (Features of your vehicle) ...4-93Head lamp (Maintenance) .....................8-72
3. Front fog lamp (Features of your vehicle)......................4-97
Front fog lamp or DRL lamp
(Maintenance) .......................................8-72
4. Wheel and tire ................................8-40, 9-5
5. Outside rearview mirror .........................4-54
6. Sunroof ..................................................4-45
7. Front windshield wiper blades (Features of your vehicle)......................4-98
Front windshield wiper blades
(Maintenance) .......................................8-34
8. Windows ................................................4-33
9. Forward Collision-avoidance Assist (FCA) system ...................................................6-39
OSC017005N
■Front view
❈ The actual shape may differ from the illustration.
SC CAN (ENG) 2.qxp 7/18/2018 5:29 PM Page 2

23
Your vehicle at a glance
1. Door locks .............................................4-19
2. Fuel filler lid ...........................................4-42
3. Rear combination lamp (Maintenance) .......................................8-74
4. High mounted stop lamp (Maintenance) .......................................8-74
5. Trunk ......................................................4-24
6. Antenna ...................................................5-2
7. Rear view monitor .................................4-91
OSC017006N
■ Rear view (4 DOOR)
❈The actual shape may differ from the illustration.
SC CAN (ENG) 2.qxp 7/18/2018 5:29 PM Page 3

Your vehicle at a glance
42
1. Door locks .............................................4-19
2. Fuel filler lid ...........................................4-42
3. Rear combination lamp (Maintenance) .......................................8-73
4. High mounted stop lamp (Maintenance) .......................................8-73
5. Tailgate ..................................................4-30
6. Antenna ...................................................5-2
7. Rear view monitor .................................4-91
8. Rear window wiper blade (Features of your vehicle)....................4-102
Rear window wiper blade (Maintenance) ...8-35
OSC017002N
■Rear view (5 DOOR)
❈The actual shape may differ from the illustration.
SC CAN (ENG) 2.qxp 7/18/2018 5:30 PM Page 4

25
Your vehicle at a glance
INTERIOR OVERVIEW
1. Inside door handle ............................4-20
2. Inner fuse panel ................................8-57
3. Power window switches ....................4-34
4. Power window lock button ................4-37
5. Outside rearview mirror control switch ................................................4-55
6. Outside rearview mirror folding switch ................................................4-56
7. Hood release lever ............................4-39
8. Fuel filler lid release lever .................4-42
9. Trunk open lever ...............................4-24
10. Steering wheel ................................4-51
11. Steering wheel tilt control ...............4-52
12. Instrument panel illumination control switch ..............................................4-57
13. ESC OFF button .............................6-30
14. Brake pedal .....................................6-24
15. Accelerator pedal
OSC017003N
• 4 Door
SC CAN (ENG) 2.qxp 7/18/2018 5:30 PM Page 5

Your vehicle at a glance
62
INSTRUMENT PANEL OVERVIEW
OSC018004N
1. Instrument cluster.............................4-57
2. Horn .................................................4-52
3. Driver’s front air bag .........................3-48
4. Light control/Turn signals .................4-92
5. Wiper/Washer ...................................4-98
6. Ignition switch .....................................6-6ENGINE START/STOP button .............6-8
7. Hazard warning flasher switch ................7-2
8. Audio ..................................................5-8
9. Central door lock switch ...................4-21
10. Climate control system .....4-109, 4-119
11. AUX, USB port .................................5-3
12. Manual Transmission ......................6-15 Automatic Transmission..................6-18
13. Parking brake lever ........................6-26
14. Passenger’s front air bag ...............3-48
15. Power outlet .................................4-138
16. Glove box .....................................4-133
17. Steering wheel audio control ............. 5-11
18. Seat warmer .................................4-137
19. Heated steering wheel switch ........4-53
20. Sport mode system ........................6-55
21. USB charger.................................4-139
22. Center console storage ................4-133
23. Cruise control button ......................6-50
SC CAN (ENG) 2.qxp 7/18/2018 5:30 PM Page 6
