2019 KIA RIO HATCHBACK automatic transmission

Specifications & Consumer information
69

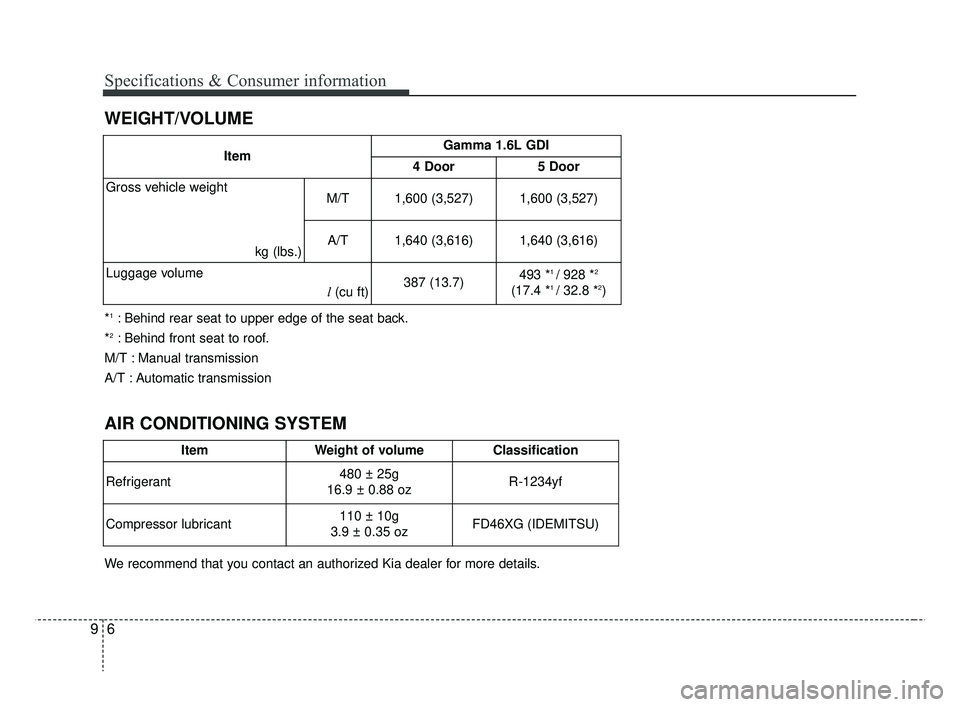

WEIGHT/VOLUME
ItemGamma 1.6L GDI
4 Door5 Door
Gross vehicle weight
kg (lbs.)M/T 1,600 (3,527)
1,600 (3,527)
A/T 1,640 (3,616)
1,640 (3,616)
Luggage volume l(cu ft)
387 (13.7)493 *1 / 928 *2
(17.4 *1 / 32.8 *2)
ItemWeight of volume Classification
Refrigerant
480 ± 25g
16.9 ± 0.88 oz R-1234yf
Compressor lubricant
110 ± 10g
3.9 ± 0.35 oz FD46XG (IDEMITSU)
We recommend that you contact an authorized Kia dealer for more details. *
1: Behind rear seat to upper edge of the seat back.
*
2: Behind front seat to roof.
M/T : Manual transmission
A/T : Automatic transmission
AIR CONDITIONING SYSTEM
SC CAN (ENG) 9.qxp 8/3/2018 5:47 PM Page 6

97
Specifications & Consumer information
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *1 *2 (drain and refill)
Recommends
Gamma 1.6L GDI3.5 l(3.7 US qt.)API Latest (ILSAC Latest)
Manual transmission fluidGamma 1.6L GDI1.6 ~ 1.7 l
(1.5 ~ 1.6 US qt.)
API Service GL-4 SAE 70W - HK SYN MTF 70W
- SPIRAX S6 GHME 70W MTF - GS MTF HD 70W
Automatic transmission fluidGamma 1.6L GDI6.7 l(7.1 US qt.)ATF SP-IV (Recommended MICHANG,
SK, NOCA, Kia genuine)
Coolant Gamma 1.6L GDI
M/T5.4 l (5.70 US qt.)Mixture of antifreeze and water
(Ethylene-glycol with phosphate
based coolant for cooling device)
A/T5.5 l (5.81 US qt.)
M/T : Manual transmission
A/T : Automatic transmission
SC CAN (ENG) 9.qxp 8/3/2018 5:47 PM Page 7

Index
2I
Air bag - advanced supplemental restraint system ........3-33Adding equipment to or modifying your air bag-equipped vehicle ..........................................3-61
Air bag warning label ................................................3-61
Air bag warning light ..................................................3-37
Curtain air bag ............................................................3-53
Driver's and passenger's front air bag ........................3-48
How does the air bag system operate ........................3-34
Inflation and non-inflation conditions of the air bag..3-55
Occupant detection system ........................................3-40
Side air bag ................................................................3-51
SRS Care ....................................................................3-60\
SRS components and functions ..................................3-37
Air cleaner ....................................................................8-29\
Filter replacement ......................................................8-29
Air conditioning system ..................................................9-6
Appearance care ............................................................8-99 Exterior care ................................................................8-99
Interior care ..............................................................8-104
Audio (with touch screen) ..............................................5-8 Feature of your audio ....................................................5-9
Media ........................................................................\
..5-20
Phone ........................................................................\
..5-30
Radio ........................................................................\
..5-15
Setup ........................................................................\
..5-39
SiriusXM ....................................................................5-18\
Audio system ..................................................................5-2
Antenna ........................................................................\
5-2
AUX, USB port ............................................................5-3
How vehicle audio works ............................................5-3
Automatic climate control system ..............................4-119 Automatic heating and air conditioning ..................4-120
Manual heating and air conditioning ........................4-121
System operation ......................................................4-126
Automatic transmission ................................................6-18 Automatic transmission operation ..............................6-18
Good driving practices ................................................6-23
Battery........................................................................\
....8-37 For best battery service ..............................................8-37
Recharging the battery ................................................8-38
Reset items ..................................................................8-39
Before driving ..................................................................6-4 Before entering vehicle ................................................6-4
Before starting ..............................................................6-4
Necessary inspections ..................................................6-4
Brake system..................................................................6-24 Anti-lock Brake System (ABS) ..................................6-29
Electronic Stability Control (ESC) ............................6-30
Good braking practices ..............................................6-37
Hill-start assist control (HAC) ....................................6-34
Parking brake ..............................................................6-26
A
B
SC CAN (ENG) Index.qxp 7/18/2018 5:31 PM Page 2

I5
Index
Distributing the sealant ..............................................7-23
Introduction ................................................................7-18
Notes on the safe use of the Tire Mobility Kit ..........7-19
Technical data ............................................................7-25
Using the Tire Mobility Kit ........................................7-21
In case of an emergency while driving............................7-3 If engine stalls while driving ........................................7-3
If the engine stalls at a crossroad or crossing ..............7-3
If you have a flat tire while driving ..............................7-3
Instrument cluster ..........................................................4-57 Gauges ........................................................................\
4-59
Instrument Cluster Control ........................................4-58
LCD window control ..................................................4-58
Transmission shift indicator........................................4-62
Instrument panel overview ..............................................2-6
Interior features............................................................4-136 Clothes hanger ..........................................................4-140
Covering shelf (for 5 door) ......................................4-142
Cup holder ................................................................4-136
Floor mat anchor(s) ..................................................4-141
Power outlet ..............................................................4-138
Seat warmer ..............................................................4-137
Shopping bag holder ................................................4-141
Sunvisor ....................................................................4-13\
6
USB charger ..............................................................4-139
Interior light ................................................................4-103 Automatic turn off function ......................................4-103
Glove box lamp ........................................................4-106 Luggage room lamp ..................................................4-106
Map lamp ..................................................................4-103
Room lamp................................................................4-104
Vanity mirror lamp ....................................................4-107
Interior overview ............................................................2-5
Key positions ..................................................................6-6 Ignition switch position ................................................6-6
Keys ........................................................................\
........4-4 Key operations ..............................................................4-4
Record your key number ..............................................4-4
LCD windows ................................................................4-64 LCD modes (for type B cluster) ................................4-69
Over view ....................................................................4-64\
Service mode ..............................................................4-70
Trip information (Trip computer) ..............................4-64
User settings mode (for type B cluster) ......................4-70
Light bulbs ....................................................................8-70\
Back-up lamp bulb replacement (for 4 door) ............8-92
Back-up lamp bulb replacement (for 5 door) ............8-86
Bulb replacement precaution ....................................8-70
Daytime running lamp (Bulb type) bulb replacement ..............................................................8-81
K
L
SC CAN (ENG) Index.qxp 7/18/2018 5:31 PM Page 5
