2019 KIA RIO HATCHBACK tailgate

63
Driving your vehicle
Be sure the exhaust system
does not leak.
The exhaust system should be
checked whenever the vehicle is
raised to change the oil or for any
other purpose. If you
hear a change in the sound of the
exhaust or if you drive over some-
thing that strikes the underneath side
of the vehicle, have the exhaust sys-
tem checked as soon as possible by
an authorized Kia dealer.
WARNING- Engineexhaust
Do not inhale exhaust fumes or
leave your engine running in an
enclosed area for a prolonged
time.
Exhaust fumes contain carbon
monoxide, a colorless, odorless
gas that can cause uncon-
sciousness and death by
asphyxiation.WARNING- Open trunk/tailgate
Do not drive with the trunk/tail-
gate open.
Poisonous exhaust gases can
enter the passenger compart-
ment. If you must drive with the
trunk/tailgate open proceed as
follows:
1.Close all windows.
2.Open side vents.
3.Set the air intake control at “Fresh”, the air flow control at
“Floor” or “Face” and the fan
at the highest speed.
SC CAN (ENG) 6.QXP 7/18/2018 5:41 PM Page 3

• Side marker (rear) (LED type) bulb replacement (Rear combination lamp Type B) (for 4 door) . . . . 8-92
• Back-up lamp bulb replacement (for 4 door) . . . . . . 8-92
• Tail lamp (Bulb type) bulb replacement (for 4 door) . 8-93
• Stop and tail lamp (LED type) bulb replacement (for 4 door) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-94
• High mounted stop lamp bulb replacement (for 4 door) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-94
• Trunk lamp bulb replacement (for 4 door) . . . . . . . 8-95
• Map lamp bulb replacement . . . . . . . . . . . . . . . . . . . 8-95
• Vanity mirror lamp bulb replacement . . . . . . . . . . . 8-96
• Room lamp bulb replacement . . . . . . . . . . . . . . . . . . 8-97
• Glove box lamp bulb replacement . . . . . . . . . . . . . . 8-97
• Tailgate room lamp bulb replacement (for 5 door) . 8-98
Appearance care . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-99
• Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-99
• Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-104
Emission control system . . . . . . . . . . . . . . . . . . . 8-107
• Crankcase emission control system . . . . . . . . . . . . . 8-107
• Evaporative emission control (including ORVR: Onboard Refueling Vapor Recovery) system . . . . 8-107
• Exhaust emission control system . . . . . . . . . . . . . . . 8-108
8
SC CAN (ENG) 8.qxp 7/18/2018 5:32 PM Page 3

Maintenance
86
8

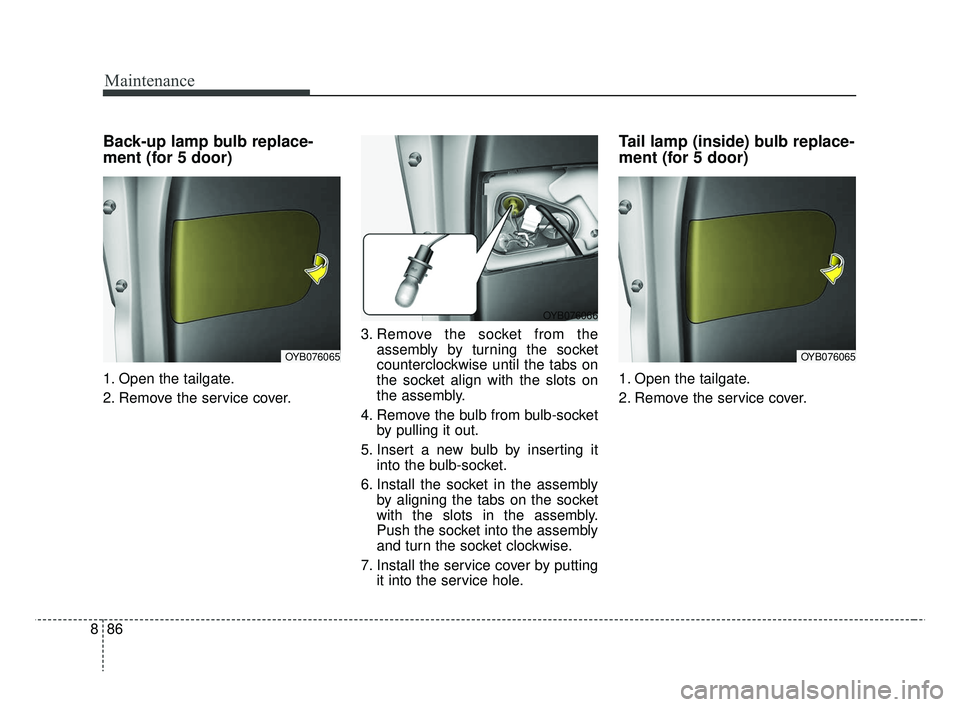

Back-up lamp bulb replace-
ment (for 5 door)
1. Open the tailgate.
2. Remove the service cover. 3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from bulb-socket by pulling it out.
5. Insert a new bulb by inserting it into the bulb-socket.
6. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Install the service cover by putting it into the service hole.
Tail lamp (inside) bulb replace-
ment (for 5 door)
1. Open the tailgate.
2. Remove the service cover.
OYB076066
OYB076065OYB076065
SC CAN (ENG) 8.qxp 7/18/2018 5:36 PM Page 86

Maintenance
98
8

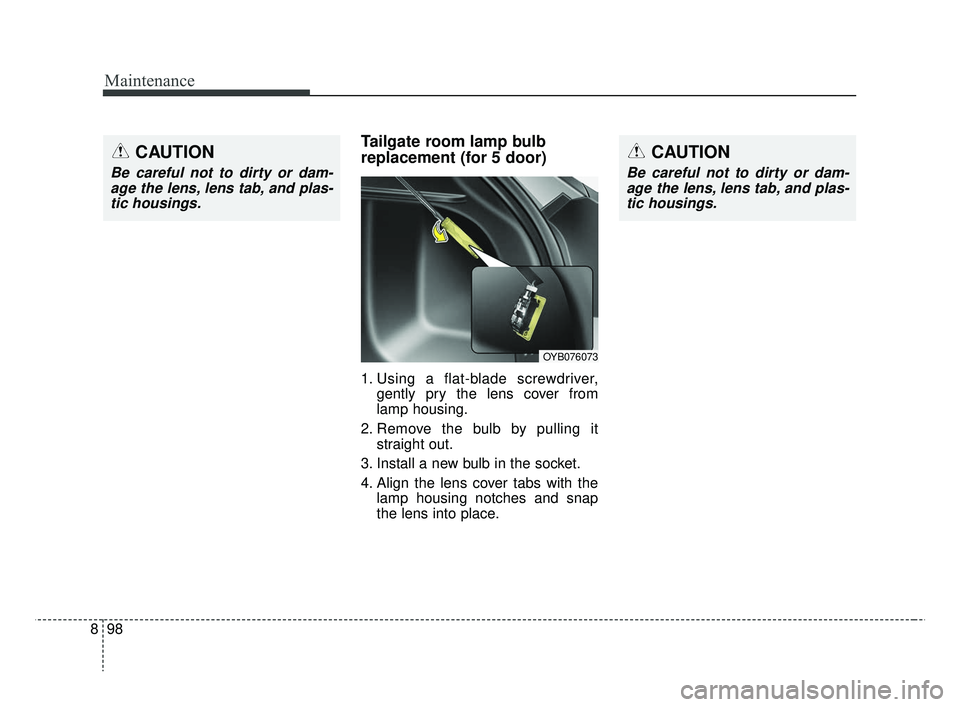

Tailgate room lamp bulb
replacement (for 5 door)
1. Using a flat-blade screwdriver,
gently pry the lens cover from
lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens cover tabs with the lamp housing notches and snap
the lens into place.
CAUTION
Be careful not to dirty or dam-age the lens, lens tab, and plas-tic housings.
OYB076073
CAUTION
Be careful not to dirty or dam-age the lens, lens tab, and plas-tic housings.
SC CAN (ENG) 8.qxp 7/18/2018 5:37 PM Page 98

Index
6I
Front fog lamp bulb replacement................................8-80
Front turn signal lamp bulb replacement (Headlamp Type A) ..................................................8-77
Front turn signal lamp bulb replacement (Headlamp Type B) ..................................................8-79
Glove box lamp bulb replacement ............................8-97
Headlamp (Low/High beam) (Bulb type) bulb replacement (Headlamp Type A) ..............................8-75
Headlamp (Low/High beam) (Bulb type) bulb replacement (Headlamp Type B) ..............................8-78
Headlamp (Low/High beam) (LED type) bulb replacement (Headlamp Type B) ..............................8-79
High mounted stop lamp bulb replacement (for 4 door)................................................................8-94
High mounted stop lamp bulb replacement (for 5 door)................................................................8-89
License plate lamp bulb replacement ........................8-89
Light bulb position (front) ..........................................8-72
Light bulb position (rear) (4 door)..............................8-74
Light bulb position (rear) (5 door)..............................8-73
Light bulb position (side)............................................\
8-75
Map lamp bulb replacement ......................................8-95
Position lamp + DRL (LED type) bulb replacement..8-81
Rear turn signal lamp bulb replacement (for 4 door) ..8-90
Rear turn signal lamp bulb replacement (for 5 door) ..8-84
Room lamp bulb replacement ....................................8-97
Side marker (front) (Bulb type) bulb replacement (Headlamp Type A) ..................................................8-76 Side marker (front) (LED type) bulb replacement
(Headlamp Type B) ..................................................8-80
Side marker (rear) (Bulb type) bulb replacement (Rear combination lamp Type A) (for 5 door) ........8-87
Side marker (rear) (LED type) bulb replacement (Rear combination lamp Type B) (for 4 door) ........8-92
Side marker (rear) (LED type) bulb replacement (Rear combination lamp Type B) (for 5 door) ........8-88
Side repeater lamp (bulb type) bulb Replacement ....8-82
Side repeater lamp (LED type) bulb Replacement ....8-82
Stop and tail lamp (LED type) bulb replacement (for 4 door)................................................................8-94
Stop and tail lamp (LED type) bulb replacement (for 5 door)................................................................8-85
Stop and tail lamp / Side marker (Bulb type) replacement (for 4 door) ..........................................8-91
Stop and tail lamp bulb replacement (for 5 door) ......8-83
Tail lamp (Bulb type) bulb replacement (for 4 door) ..8-93
Tail lamp (inside) bulb replacement (for 5 door) ......8-86
Tailgate room lamp bulb replacement (for 5 door) ....8-98
Trunk lamp bulb replacement (for 4 door) ................8-95
Vanity mirror lamp bulb replacement ........................8-96
Lighting........................................................................\
..4-92 Battery saver function ................................................4-92
Daytime running light ................................................4-93
Front fog light ............................................................4-97
Headlight escort function ............................................4-92
Headlight welcome function ......................................4-92
SC CAN (ENG) Index.qxp 7/18/2018 5:31 PM Page 6

Index
8I
Front seat adjustment ....................................................3-5
Headrest (for front seat) ................................................3-6
Rear seat ........................................................................\
3-2
Rear seat adjustment ....................................................3-9
Seatback pocket ............................................................3-9
Seat belts ........................................................................\
3-14 Care of seat belts ........................................................3-24
Pre-tensioner seat belt ................................................3-20
Seat belt precautions ..................................................3-22
Seat belt restraint system ............................................3-14
Smart key ........................................................................\
4-6 Smart key functions ......................................................4-6
Smart key precautions ..................................................4-8
Smart trunk (for 4 door) ................................................4-26
Special driving conditions ............................................6-58 Driving at night ..........................................................6-59
Driving in flooded areas ............................................6-61
Driving in the rain ......................................................6-60
Driving off-road ..........................................................6-61
Hazardous driving conditions ....................................6-58
Highway driving ........................................................6-61
Rocking the vehicle ....................................................6-58
Smooth cornering ........................................................6-59
Sport mode integrated control system ..........................6-55 Sport mode ..................................................................6-55
Starting the engine ........................................................6-12 Starting the engine with a smart key ..........................6-13
Starting the engine with an ignition key ....................6-12 Steering wheel...........................................................\
.....4-51
Electric Power Steering (EPS) ....................................4-51
Heated steering wheel ................................................4-53
Horn ........................................................................\
....4-52
Tilt and telescopic steering ........................................4-52
Storage compartment ..................................................4-133 Center console storage ..............................................4-133
Glove box ..................................................................4-133
Luggage net holder ..................................................4-134
Sunglass holder ........................................................4-134
Sunroof ........................................................................\
..4-45 Resetting the sunroof ..................................................4-49
Sliding the sunroof ....................................................4-47
Sunroof open warning ................................................4-46
Sunshade ....................................................................4-49\
Tilting the sunroof ......................................................4-48
Tailgate (for 5 door) ......................................................4-30 Closing the tailgate ....................................................4-30
Emergency tailgate safety release ..............................4-31
Opening the tailgate ....................................................4-30
Theft-alarm system ........................................................4-16 Armed stage ................................................................4-16
Disarmed stage ............................................................4-18
Theft-alarm stage ........................................................4-17
T
SC CAN (ENG) Index.qxp 7/18/2018 5:31 PM Page 8
