2019 KIA RIO HATCHBACK engine

Specifications & Consumer information
29
ENGINE

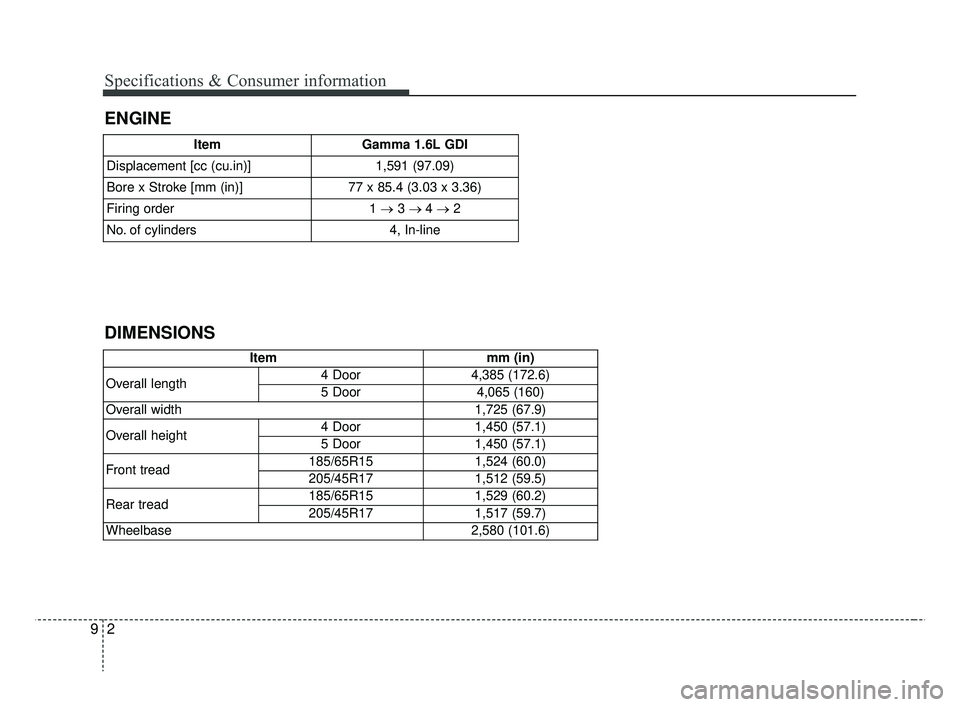

ItemGamma 1.6L GDI
Displacement [cc (cu.in)] 1,591 (97.09)
Bore x Stroke [mm (in)] 77 x 85.4 (3.03 x 3.36)
Firing order 1
→ 3 → 4 → 2
No. of cylinders 4, In-line
DIMENSIONS
Itemmm (in)
Overall length
4 Door 4,385 (172.6)
5 Door4,065 (160)
Overall width 1,725 (67.9)
Overall height
4 Door 1,450 (57.1)
5 Door1,450 (57.1)
Front tread
185/65R15 1,524 (60.0)
205/45R171,512 (59.5)
Rear tread185/65R151,529 (60.2)
205/45R171,517 (59.7)
Wheelbase2,580 (101.6)
SC CAN (ENG) 9.qxp 8/3/2018 5:47 PM Page 2

97
Specifications & Consumer information
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *1 *2 (drain and refill)
Recommends
Gamma 1.6L GDI3.5 l(3.7 US qt.)API Latest (ILSAC Latest)
Manual transmission fluidGamma 1.6L GDI1.6 ~ 1.7 l
(1.5 ~ 1.6 US qt.)
API Service GL-4 SAE 70W - HK SYN MTF 70W
- SPIRAX S6 GHME 70W MTF - GS MTF HD 70W
Automatic transmission fluidGamma 1.6L GDI6.7 l(7.1 US qt.)ATF SP-IV (Recommended MICHANG,
SK, NOCA, Kia genuine)
Coolant Gamma 1.6L GDI
M/T5.4 l (5.70 US qt.)Mixture of antifreeze and water
(Ethylene-glycol with phosphate
based coolant for cooling device)
A/T5.5 l (5.81 US qt.)
M/T : Manual transmission
A/T : Automatic transmission
SC CAN (ENG) 9.qxp 8/3/2018 5:47 PM Page 7

Specifications & Consumer information
89
*1 Refer to the recommended SAE viscosity numbers on the next page.
*
2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
LubricantVolumeClassification

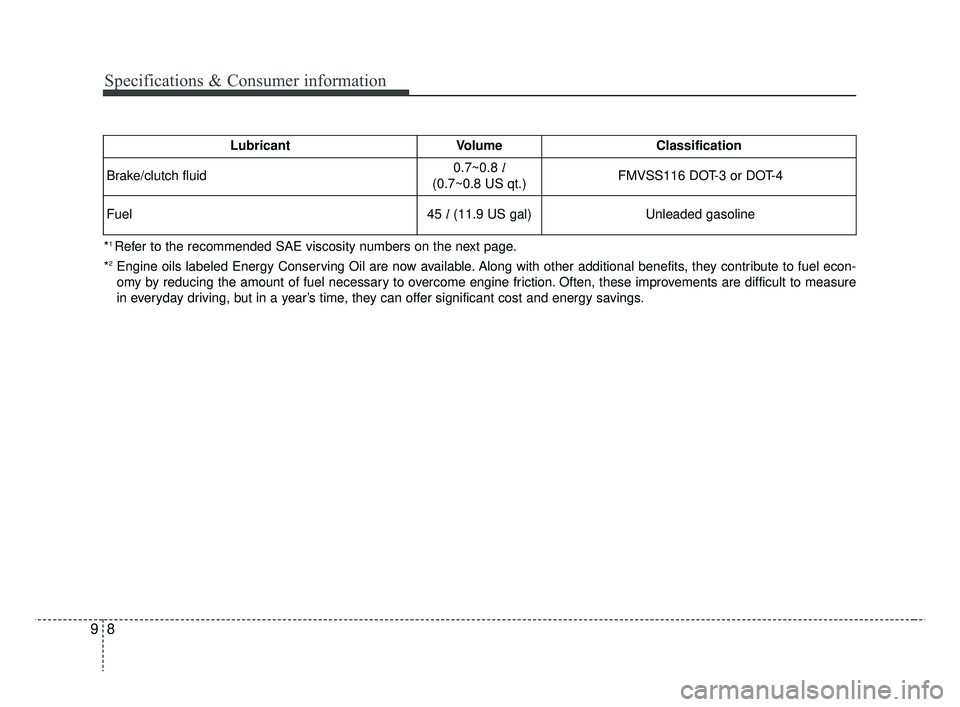

Brake/clutch fluid0.7~0.8 l
(0.7~0.8 US qt.)FMVSS116 DOT-3 or DOT-4
Fuel45 l(11.9 US gal)Unleaded gasoline
SC CAN (ENG) 9.qxp 8/3/2018 5:47 PM Page 8

99
Specifications & Consumer information

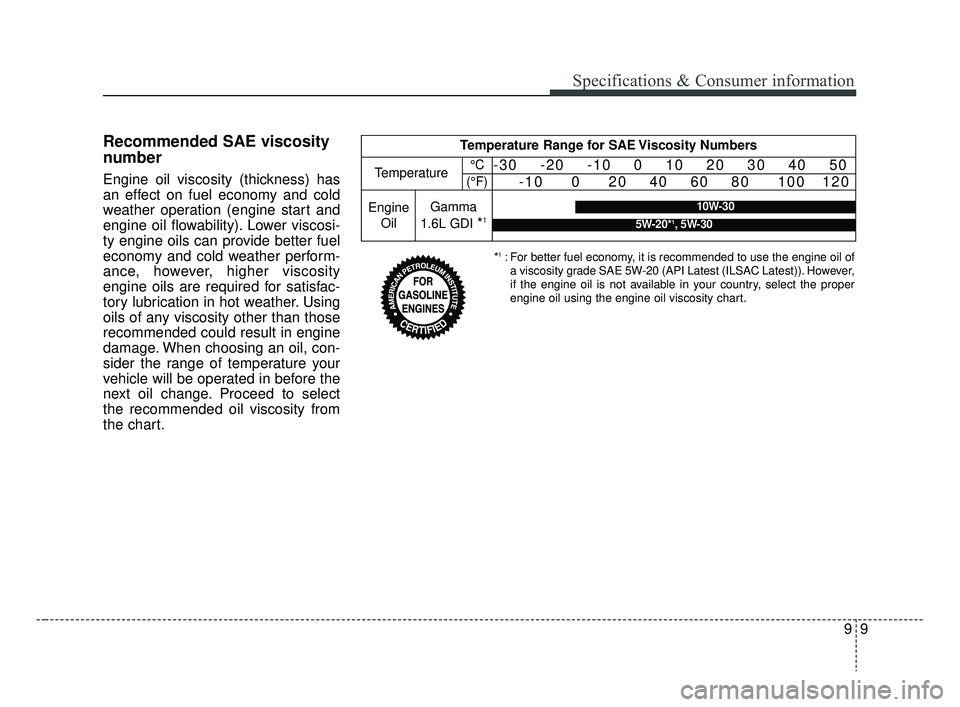

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operation (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage. When choosing an oil, con-
sider the range of temperature your
vehicle will be operated in before the
next oil change. Proceed to select
the recommended oil viscosity from
the chart.
*1: For better fuel economy, it is recommended to use the engine oil ofa viscosity grade SAE 5W-20 (API Latest (ILSAC Latest)). However,
if the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Gamma
1.6L GDI
*110W-30
5W-20*1, 5W-30
Engine Oil
SC CAN (ENG) 9.qxp 8/3/2018 5:47 PM Page 9

911
Specifications & Consumer information
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-

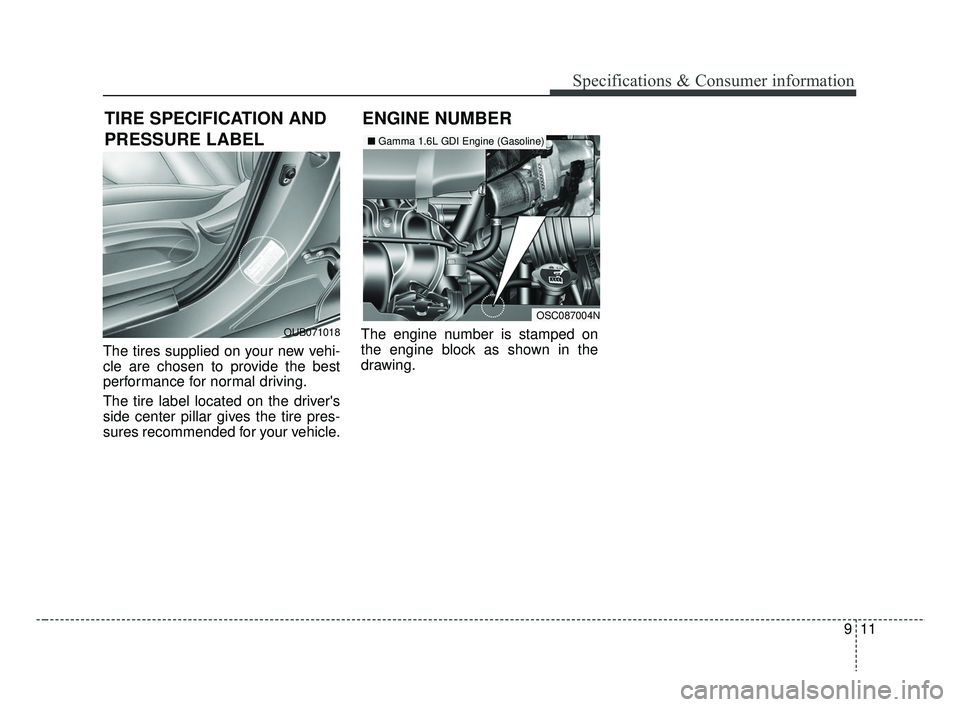

sures recommended for your vehicle.The engine number is stamped on
the engine block as shown in the
drawing.
TIRE SPECIFICATION AND
PRESSURE LABEL
OUB071018
ENGINE NUMBER
OSC087004N
■
Gamma 1.6L GDI Engine (Gasoline)
