2019 KIA RIO HATCHBACK headrest

Safety features of your vehicle
28
3
✽ ✽

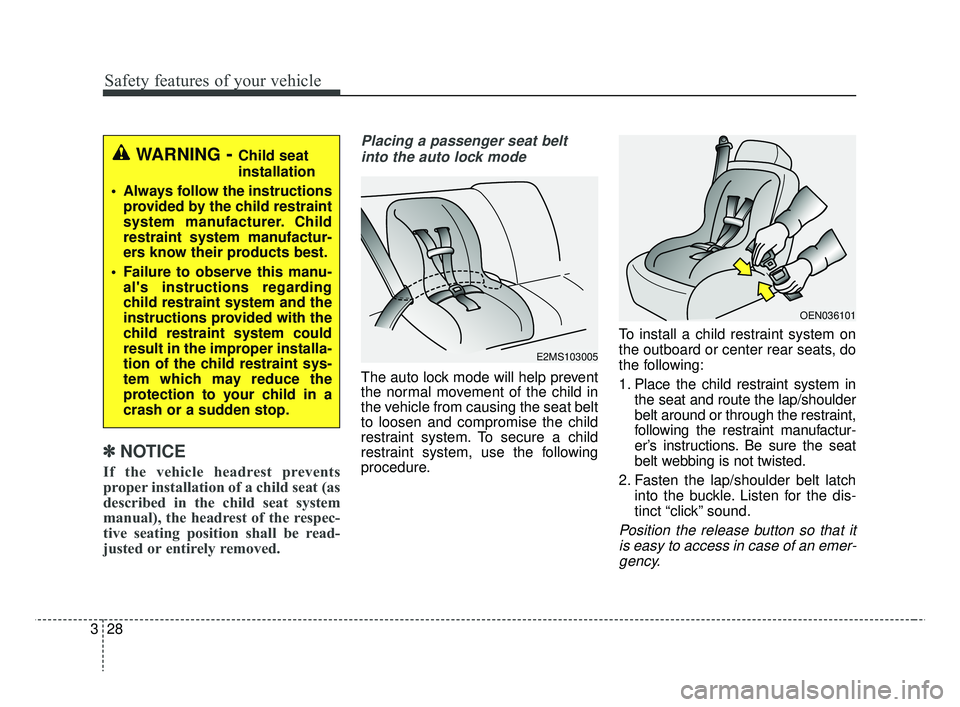

NOTICE
If the vehicle headrest prevents
proper installation of a child seat (as
described in the child seat system
manual), the headrest of the respec-
tive seating position shall be read-
justed or entirely removed.
Placing a passenger seat belt
into the auto lock mode
The auto lock mode will help prevent
the normal movement of the child in
the vehicle from causing the seat belt
to loosen and compromise the child
restraint system. To secure a child
restraint system, use the following
procedure. To install a child restraint system on
the outboard or center rear seats, do
the following:
1. Place the child restraint system in
the seat and route the lap/shoulder
belt around or through the restraint,
following the restraint manufactur-
er’s instructions. Be sure the seat
belt webbing is not twisted.
2. Fasten the lap/shoulder belt latch into the buckle. Listen for the dis-
tinct “click” sound.
Position the release button so that itis easy to access in case of an emer-gency.
WARNING- Child seat
installation
Always follow the instructions provided by the child restraint
system manufacturer. Child
restraint system manufactur-
ers know their products best.
Failure to observe this manu- al's instructions regarding
child restraint system and the
instructions provided with the
child restraint system could
result in the improper installa-
tion of the child restraint sys-
tem which may reduce the
protection to your child in a
crash or a sudden stop.
E2MS103005
OEN036101
SC CAN (ENG) 3.QXP 7/18/2018 5:56 PM Page 28

331
Safety features of your vehicle

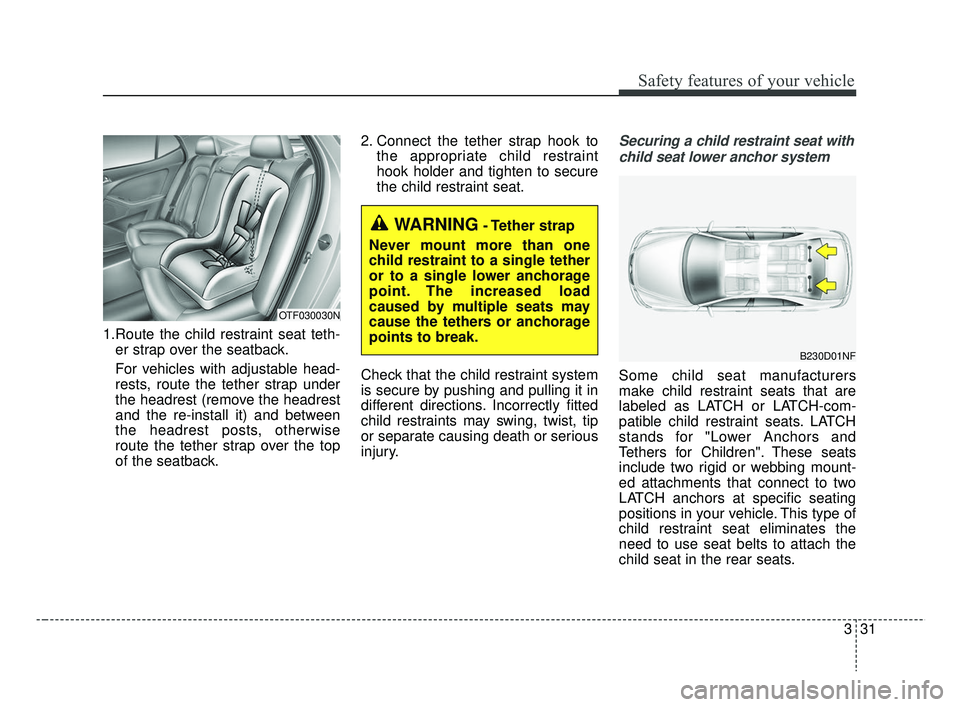

1.Route the child restraint seat teth-er strap over the seatback.
For vehicles with adjustable head-
rests, route the tether strap under
the headrest (remove the headrest
and the re-install it) and between
the headrest posts, otherwise
route the tether strap over the top
of the seatback. 2. Connect the tether strap hook to
the appropriate child restraint
hook holder and tighten to secure
the child restraint seat.
Check that the child restraint system
is secure by pushing and pulling it in
different directions. Incorrectly fitted
child restraints may swing, twist, tip
or separate causing death or serious
injury.
Securing a child restraint seat with child seat lower anchor system
Some child seat manufacturers
make child restraint seats that are
labeled as LATCH or LATCH-com-
patible child restraint seats. LATCH
stands for "Lower Anchors and
Tethers for Children". These seats
include two rigid or webbing mount-
ed attachments that connect to two
LATCH anchors at specific seating
positions in your vehicle. This type of
child restraint seat eliminates the
need to use seat belts to attach the
child seat in the rear seats.
OTF030030N
WARNING- Tether strap
Never mount more than one
child restraint to a single tether
or to a single lower anchorage
point. The increased load
caused by multiple seats may
cause the tethers or anchorage
points to break.
B230D01NF
SC CAN (ENG) 3.QXP 7/18/2018 5:56 PM Page 31

Index
8I
Front seat adjustment ....................................................3-5
Headrest (for front seat) ................................................3-6
Rear seat ........................................................................\
3-2
Rear seat adjustment ....................................................3-9
Seatback pocket ............................................................3-9
Seat belts ........................................................................\
3-14 Care of seat belts ........................................................3-24
Pre-tensioner seat belt ................................................3-20
Seat belt precautions ..................................................3-22
Seat belt restraint system ............................................3-14
Smart key ........................................................................\
4-6 Smart key functions ......................................................4-6
Smart key precautions ..................................................4-8
Smart trunk (for 4 door) ................................................4-26
Special driving conditions ............................................6-58 Driving at night ..........................................................6-59
Driving in flooded areas ............................................6-61
Driving in the rain ......................................................6-60
Driving off-road ..........................................................6-61
Hazardous driving conditions ....................................6-58
Highway driving ........................................................6-61
Rocking the vehicle ....................................................6-58
Smooth cornering ........................................................6-59
Sport mode integrated control system ..........................6-55 Sport mode ..................................................................6-55
Starting the engine ........................................................6-12 Starting the engine with a smart key ..........................6-13
Starting the engine with an ignition key ....................6-12 Steering wheel...........................................................\
.....4-51
Electric Power Steering (EPS) ....................................4-51
Heated steering wheel ................................................4-53
Horn ........................................................................\
....4-52
Tilt and telescopic steering ........................................4-52
Storage compartment ..................................................4-133 Center console storage ..............................................4-133
Glove box ..................................................................4-133
Luggage net holder ..................................................4-134
Sunglass holder ........................................................4-134
Sunroof ........................................................................\
..4-45 Resetting the sunroof ..................................................4-49
Sliding the sunroof ....................................................4-47
Sunroof open warning ................................................4-46
Sunshade ....................................................................4-49\
Tilting the sunroof ......................................................4-48
Tailgate (for 5 door) ......................................................4-30 Closing the tailgate ....................................................4-30
Emergency tailgate safety release ..............................4-31
Opening the tailgate ....................................................4-30
Theft-alarm system ........................................................4-16 Armed stage ................................................................4-16
Disarmed stage ............................................................4-18
Theft-alarm stage ........................................................4-17
T
SC CAN (ENG) Index.qxp 7/18/2018 5:31 PM Page 8
