Maintenance
84
8
8. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
9. Install the rear combination lamp assembly to the body of the vehi-
cle.Rear turn signal lamp bulb
replacement (for 5 door)
1. Open the trunk lid.
2. Loosen the light assembly retain-ing screws with a cross-tip screw-
driver. 3. Remove the rear combination
lamp assembly from the body of
the vehicle.
4. Disconnect the rear combination lamp connector.
OYB076060
OYB076061
SC CAN (ENG) 8.qxp 7/18/2018 5:36 PM Page 84

887
Maintenance
3. Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from bulb-socket by pulling it out.
5. Insert a new bulb by inserting it into the bulb-socket.
6. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Install the service cover by putting it into the service hole.

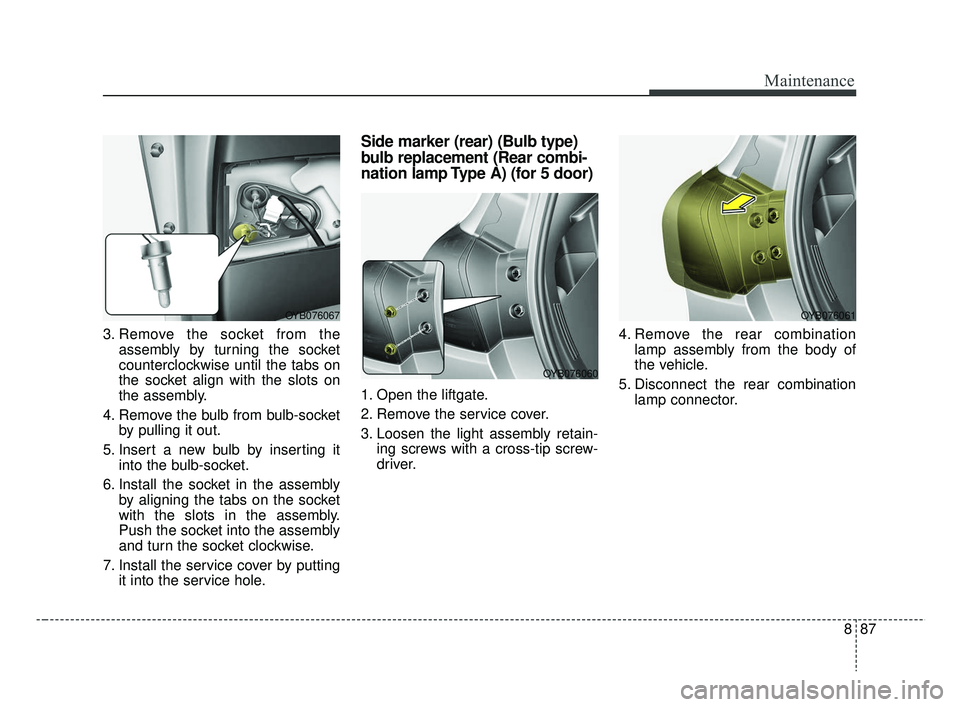

Side marker (rear) (Bulb type)
bulb replacement (Rear combi-
nation lamp Type A) (for 5 door)
1. Open the liftgate.
2. Remove the service cover.
3. Loosen the light assembly retain-ing screws with a cross-tip screw-
driver. 4. Remove the rear combination
lamp assembly from the body of
the vehicle.
5. Disconnect the rear combination lamp connector.
OYB076067
OYB076060
OYB076061
SC CAN (ENG) 8.qxp 7/18/2018 5:36 PM Page 87

899
Maintenance
Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning
and caution statements that appear
on the label.
Finish maintenance
Washing
To help protect your vehicle’s finish
from rust and deterioration, wash it
thoroughly and frequently at least
once a month with lukewarm or cold
water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to
the removal of any accumulation of
salt, dirt, mud, and other foreign mate-
rials. Make sure the drain holes in the
lower edges of the doors and rocker
panels are kept clear and clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar
deposits can damage your vehicle’s
finish if not removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, may be used.
After washing, rinse the vehicle thor-
oughly with lukewarm or cold water.
Do not allow soap to dry on the finish.
APPEARANCE CARE
WARNING
After washing the vehicle, test
the brakes while driving slowly
to see if they have been affected
by water. If braking performance
is impaired, dry the brakes by
applying them lightly while
maintaining a slow forward
speed.
SC CAN (ENG) 8.qxp 7/18/2018 5:37 PM Page 99

93
Specifications & Consumer information
BULB WATTAGE
Light BulbWattage(W)Bulb type
Front Head lamp (Low/High)
Bulb type 55/60W
HB2
LED type LED LED
Front turn signal lamps 21WPY21W
Front position lamps Bulb type
8WPY28/8W
LED type 0.5W x 12 LED
Front fog lamps* 51WHB4
Daytime running lamp (DRL)* Bulb type 21W
P21W
LED type 1W x 12 LED
Side Marker Lamp Bulb type
5W W5W
LED type 0.5W x 2 LED
Rear Rear Stop/Tail lamps (outside)
Bulb type21W/5W
P21/5W
Rear tail lamps (Inside) 5WW5W
Rear Stop/Tail lamps (outside) LED type1W LED
Rear tail lamps (Inside) 0.2WLED
Side Marker Lamp Bulb type
5W W5W
LED type 0.2W x 3 LED
Rear turn signal lamps 21WPY21W
Back-up lamps 16WW16W
High mounted stop lamp* 5W x 4W5W
License plate lamps 5W x 2W5W
* If equipped(Continued)
SC CAN (ENG) 9.qxp 8/3/2018 5:47 PM Page 3

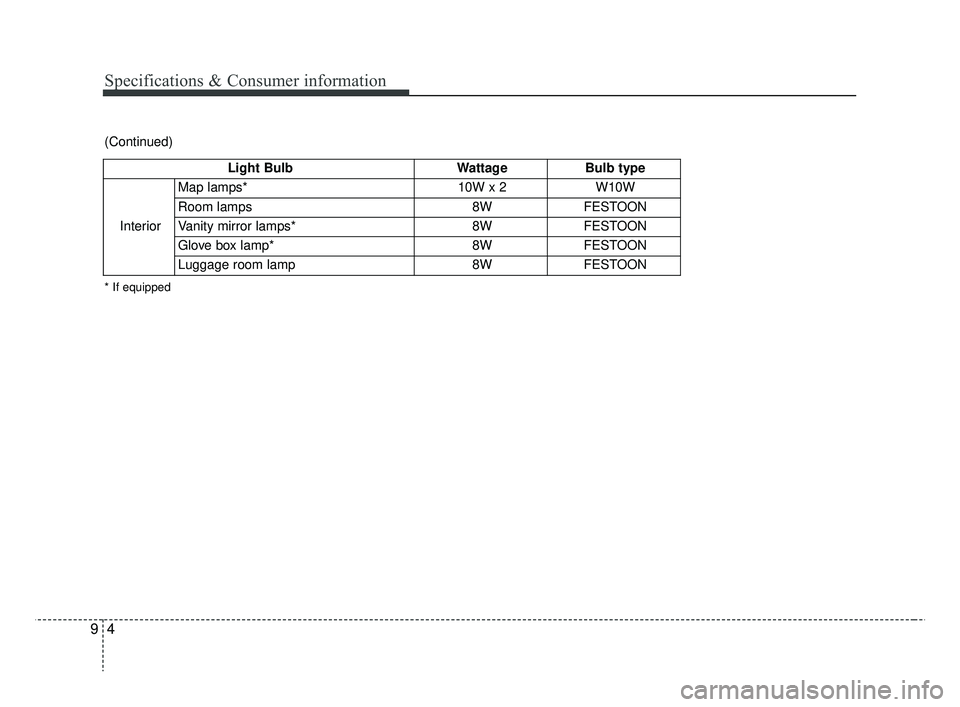

Specifications & Consumer information
49
Light BulbWattageBulb type
Interior Map lamps*
10W x 2W10W
Room lamps 8WFESTOON
Vanity mirror lamps* 8WFESTOON
Glove box lamp* 8WFESTOON
Luggage room lamp 8WFESTOON
(Continued)
* If equipped
