EPB malfunction indicator
(if equipped)
This warning light illuminates if the
engine start/stop button is changed
to the ON position and goes off in
approximately 3 seconds if the sys-
tem is operating normally.
If the EPB malfunction indicator
remains on, comes on while driving,
or does not come on when the igni-
tion switch or the engine start/stop
button is changed to the ON position,
this indicates that the EPB may have
malfunctioned. If this occurs, have your vehicle
checked by an authorized Kia dealer
as soon as possible.
The EPB malfunction indicator may
illuminate when the ESC indicator
comes on to indicate that the ESC is
not working properly, but it does not
indicate a malfunction of the EPB.
The EPB warning light may illumi-
nate if the EPB switch operates
abnormally. Shut the engine off
and turn it on again after a few min-
utes. The warning light will go off
and the EPB switch will operate
normally. However, if the EPB
warning light is still on, have the
system checked by an authorized
Kia dealer.
If the parking brake warning light does not illuminate or blinks even
though the EPB switch was pulled
up, the EPB is not applied.
If the parking brake warning light blinks when the EPB warning light
is on, press the switch, then pull it
up. Once more press it back to its
original position and pull it back up.
If the EPB warning does not go off,
have the system checked by an
authorized Kia dealer.
OJF055056
JFa PE USA 5.QXP 5/17/2018 6:11 PM Page 44

Driving your vehicle
46
5
AUTO HOLD (if equipped)
The Auto Hold maintains the vehicle
in a standstill even though the brake
pedal is not depressed after the driv-
er brings the vehicle to a complete
stop by depressing the brake pedal.
1.Depress the brake pedal, start theengine and then press the Auto
Hold button. The white AUTO
HOLD indicator will come on indi-
cating the system is in standby.
Before the Auto Hold will engage,
the driver's door and engine hood
must be closed. 2.When coming to a complete stop
by depressing the brake pedal, the
AUTO HOLD indicator changes
from white to green indicating the
AUTO HOLD is engaged and EPB
is applied. The vehicle will remain
at a standstill even if you release
the brake pedal.
3.If EPB is applied, Auto Hold will be released.
OJFA055020
W W
W W
h h
h h
i i
i i
t t
t t
e e
e eOJF058021
W W
W W
h h
h h
i i
i i
t t
t t
e e
e e
G G
G G
r r
r r
e e
e e
e e
e e
n n
n n
JFa PE USA 5.QXP 5/17/2018 6:11 PM Page 46

Driving your vehicle
50
5

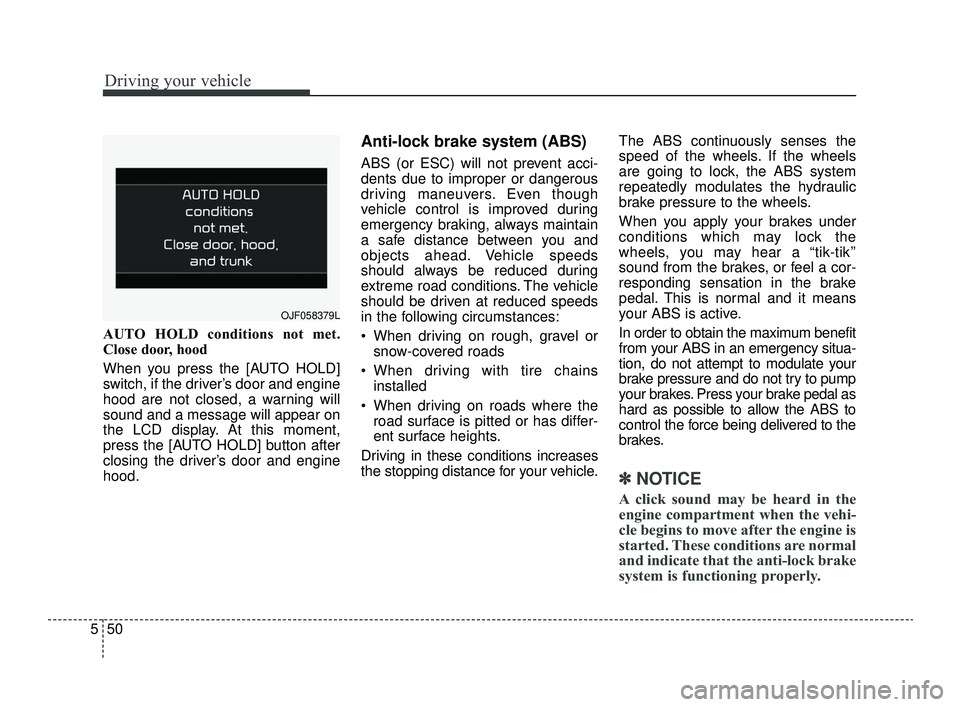

AUTO HOLD conditions not met.
Close door, hood
When you press the [AUTO HOLD]
switch, if the driver’s door and engine
hood are not closed, a warning will
sound and a message will appear on
the LCD display. At this moment,
press the [AUTO HOLD] button after
closing the driver’s door and engine
hood.
Anti-lock brake system (ABS)
ABS (or ESC) will not prevent acci-
dents due to improper or dangerous
driving maneuvers. Even though
vehicle control is improved during
emergency braking, always maintain
a safe distance between you and
objects ahead. Vehicle speeds
should always be reduced during
extreme road conditions. The vehicle
should be driven at reduced speeds
in the following circumstances:
When driving on rough, gravel or
snow-covered roads
When driving with tire chains installed
When driving on roads where the road surface is pitted or has differ-
ent surface heights.
Driving in these conditions increases
the stopping distance for your vehicle. The ABS continuously senses the
speed of the wheels. If the wheels
are going to lock, the ABS system
repeatedly modulates the hydraulic
brake pressure to the wheels.
When you apply your brakes under
conditions which may lock the
wheels, you may hear a “tik-tik’’
sound from the brakes, or feel a cor-
responding sensation in the brake
pedal. This is normal and it means
your ABS is active.
In order to obtain the maximum benefit
from your ABS in an emergency situa-
tion, do not attempt to modulate your
brake pressure and do not try to pump
your brakes. Press your brake pedal as
hard as possible to allow the ABS to
control the force being delivered to the
brakes.
✽ ✽
NOTICE
A click sound may be heard in the
engine compartment when the vehi-
cle begins to move after the engine is
started. These conditions are normal
and indicate that the anti-lock brake
system is functioning properly.
OJF058379L
JFa PE USA 5.QXP 5/17/2018 6:11 PM Page 50

Driving your vehicle
96
5
Smart cruise control will be tem-
porarily canceled when:
Cancelled manually
The smart cruise control is temporar-
ily canceled when the brake pedal is
depressed or the CANCEL button is
pressed. Depress the brake pedal
and press the CANCEL button at the
same time, when the vehicle is at a
standstill. The speed and vehicle to
vehicle distance indicator on the
cluster is disappeared and the
CRUISE indicator is illuminated con-
tinuously. Cancelled automatically
The driver's door is opened.
The shift lever is shifted to N
(Neutral), R (Reverse) or P (Paking).
The EPB (electronic parking brake) is applied.
The vehicle speed is over 110 mph (180 km/h)
The ESC, ABS or TCS is operating.
The ESC is turned off.
The sensor or the cover is dirty or blocked with foreign matter.
When the vehicle is stopped for over 5 minutes.
The driver starts driving by pushing the toggle switch up (RES+)/down
(SET-) or depressing the accelera-
tor pedal, after stopping the vehicle
with a vehicle stopped far away in
front.
Engine rpm is in the red zone.
The accelerator pedal is continu- ously depressed for long time.
The engine speed is in dangerous range.
The SCC system has malfunc- tioned. When activating the ISG mode.
When the braking control is operat-
ed for Forward Collision-Avoidance
Assist(FCA).
The vehicle is stopped for more than 5 minutes.
The driver starts driving by pushing the toggle switch up (RES+)/down
(SET-) or depressing the accelera-
tor pedal, after the vehicle is
stopped by the Smart Cruise
Control system with no other vehi-
cle ahead.
The vehicle stops and goes repeat- edly for a long period of time.
When the parking brake is locked.
Engine has some problems.
OJF058439L
JFa PE USA 5.QXP 5/17/2018 6:13 PM Page 96

Driving your vehicle
114
5
SPORT mode
SPORT mode focuses on
dynamic driving by auto-
matically adjusting the
steering wheel, engine
and transaxle system.

button is pressed and
the SPORT mode is
selected, the SPORT
indicator (yellow) will illu-
minate.
is activated, and the
engine start/stop button
is turned off and on it will
change to NORMAL
mode. To turn on the
SPORT mode press
DRIVE MODE button
again.
ed:
- While holding vehicle speed, it maintains the
gear and RPM for some
time even though the
accelerator pedal is not
depressed.
- Up-shifting is delayed.
✽ ✽
NOTICE
In Sport drive mode, the fuel effi-
ciency may decrease.
SPORT
JFa PE USA 5.QXP 5/17/2018 6:14 PM Page 114

What to do in an emergency
30
6
9. Connect between compressor and
the vehicle power outlet using the
cable and connectors (4).
✽ ✽NOTICE
Only use the front passenger side
power outlet.
10. With the engine start/stop button
position on: switch on the com-
pressor and let it run for approxi-
mately 5~7 minutes to fill the
sealant up to proper pressure
(refer to the "Tires and wheels" in
chapter 9). Be careful not to over-
inflate the tire and stay away from
the tire when filling it. When the
tire and wheel are damaged, do
not use Tire Mobility Kit for your
safety. 11. Switch off the compressor.
12. Detach the hose from the sealant
bottle connector and from the tire
valve.
Return the Tire Mobility Kit to its stor-
age location in the vehicle.
OJFA066038
WARNING
Do not attempt to drive your
vehicle if the tire pressure is
below 29 psi (200 kPa). This
could result in an accident due
to sudden tire failure.
WARNING
Carbon monoxide poisoning
and suffocation is possible if the
engine is left running in a poorly
ventilated or unventilated loca-
tion (such as inside a building).
JFa PE USA 6.qxp 5/17/2018 6:26 PM Page 30

769
Maintenance
Fuse NameFuse ratingCircuit Protected
S/HEATER FRT25AFront Air Ventilation Seat Control Module, Front Seat Warmer Control Module
MODULE 210AAudio, A/V & Navigation Head Unit, Keyboard, Around View Unit, AMP, Power Outside Mirror Switch, Smart
Key Control Module, BCM, Wireless Charger, Rear USB Charger #1/#2, E/R Junction Block (Power Outlet
Relay)
P/WINDOW RH25APower Window RH Relay, Rear Power Window Switch RH, Power Window Main Switch, Passenger Safety
Power Window Module
P/SEAT PASS25APassenger Seat Manual Switch, Walk In Relay Module, Passenger Reclining Limit Switch
AMP25AAMP (JBL)
BRAKE SWITCH10AStop Lamp Switch, Immobilizer Module, Smart Key Control Module, Start/Stop Button Switch
P/WINDOW LH25APower Window LH Relay, Rear Power Window Switch LH, Power Window Main Switch, Driver Safety Power
Window Module
P/SEAT DRV30ADriver Seat Manual Switch, Driver IMS Module
POWER OUTLET20AFront Power Outlet #1, Front Cigarette Lighter & Power Outlet #2
JFa PE USA 7.qxp 5/17/2018 6:35 PM Page 69

I3
Index
Back-up lamp bulb replacement . . . . . . . . . . . . . . . . . . 7-87
Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 7-42For best battery service . . . . . . . . . . . . . . . . . . . . . . 7-42
Recharging the battery . . . . . . . . . . . . . . . . . . . . . . . 7-43
Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44
Battery replacement (Folding key) . . . . . . . . . . . . . . . . . 4-8
Battery replacement (Smart key) . . . . . . . . . . . . . . . . . 4-15
Battery saver function. . . . . . . . . . . . . . . . . . . . . . . . . 4-103
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Blind-spot Collision Warning (BCW) system . . . . . . 5-115 BCW (Blind-spot Collision Warning) . . . . . . . . . . 5-116
RCCW (Rear Cross-traffic Collision Warning) . . . 5-119
Bonnet see the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
Brake system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-36 Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-36
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-38
Electronic Parking Brake (EPB) . . . . . . . . . . . . . . . 5-39
Auto hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-46
Anti-lock Brake System (ABS) . . . . . . . . . . . . . . . . 5-50
Electronic Stability Control (ESC) . . . . . . . . . . . . . 5-52
Vehicle Stability Management (VSM) . . . . . . . . . . . 5-56
Hill-start Assist Control (HAC) . . . . . . . . . . . . . . . . 5-58
Brakes fluid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-31\
Checking the brake fluid level . . . . . . . . . . . . . . . . . 7-31
Bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-76
Bulb replacement precaution . . . . . . . . . . . . . . . . . . . . 7-76 Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Button start/stop, see engine start/stop button . . . . . . . 5-10
California Perchlorate notice . . . . . . . . . . . . . . . . . . . 7-105
Camera (Rear view) . . . . . . . . . . . . . . . . . . . . . . . . . . 4-101
Capacities (Lubricants) . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
Care
Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33
Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-45\
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-94
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-99
Center console storage . . . . . . . . . . . . . . . . . . . . . . . . 4-148
Central door lock switch. . . . . . . . . . . . . . . . . . . . . . . . 4-22
Chains - Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-146
Checking fluid levels . . . . . . . . . . . . . . . . . . . . . . . . . . 7-25
Checking tire inflation pressure . . . . . . . . . . . . . . . . . . 7-46
Child restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-34 Selecting a Child Restraint System (CRS) . . . . . . . 3-35
Installing a Child Restraint System (CRS) . . . . . . . 3-38
Securing a child restraint with the LATCH anchors system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
40
Securing a child restraint seat with "Tether Anchor" system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
41
Child-protector rear door lock . . . . . . . . . . . . . . . . . . . 4-24
Climate control air filter . . . . . . . . . . . . . . . . . . . . . . . . 7-36 Filter inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
C
B
JFa PE USA Index.qxp 5/17/2018 6:44 PM Page 3
