Your vehicle at a glance
62
ENGINE COMPARTMENT
ODE076001
■ ■Hybrid (Kappa 1.6 GDI)
❈ The actual engine room in the vehicle may differ from the illustration. 1. Engine coolant reservoir ...................8-22
2. Engine oil filler cap ...........................8-19
3. Engine oil dipstick .............................8-19
4. Brake fluid reservoir ..........................8-26
5. Inverter coolant reservoir ..................8-22
6. Fuse box ...........................................8-56
7. Engine clutch actuator reservoir tank
.8-27
8. Air cleaner.........................................8-31
9. Windshield washer fluid reservoir .....8-29

27
Your vehicle at a glance
ODEP077001
■ ■Plug-in Hybrid (Kappa 1.6 GDI)
❈ The actual engine room in the vehicle may differ from the illustration. 1. Engine coolant reservoir ...................8-22
2. Engine oil filler cap ...........................8-19
3. Engine oil dipstick .............................8-19
4. Brake fluid reservoir ..........................8-26
5. Inverter coolant reservoir ..................8-22
6. Fuse box ...........................................8-56
7. Engine clutch actuator reservoir tank .8-27
8. Air cleaner.........................................8-31
9. Windshield washer fluid reservoir .....8-29

489
Features of your vehicle
Press START button again
(for smart key system)
This warning message illuminatesif you can not operate the Engine
Start/Stop Button when there is a
problem with the Engine Start/Stop
Button system.
It means that you could start the engine by pressing the Engine
Start/ Stop Button once more.
If the warning illuminates each time you press the Engine
Start/Stop Button, have your vehi-
cle inspected by an authorized Kia
dealer.
Press START button with smart key
(for smart key system)
This warning message illuminates if you press the Engine Start/Stop
Button while the warning message
“Key not detected” is illuminating.
At this time, the immobilizer indica- tor light blinks. Check fuse “BRAKE SWITCH”
(for smart key system)
This warning message illuminates
if the brake switch fuse is discon-
nected.
It means that you should replace the fuse with a new one. If that is
not possible, you can start the
engine by pressing the Engine
Start/Stop Button for 10 seconds in
the ACC position.
Shift to P or N to start engine
(for smart key system)
This warning message illuminates if you try to start the engine with
the shift lever not in the P (Park) or
N (Neutral) position.
✽ ✽ NOTICE
You can start the engine with the
shift lever in the N (Neutral) posi-
tion. But, for your safety, we recom-
mend that you start the engine with
the shift lever in the P (Park) posi-
tion.
Low Washer Fluid
This warning message illuminates
on the service reminder mode if
the washer fluid level in the reser-
voir is nearly empty.
It means that you should refill the washer fluid.
Low Fuel
This warning message illuminates if the fuel tank is nearly empty.
- When the low fuel level warning
light is illuminates.
Add fuel as soon as possible.

Features of your vehicle
122
4
✽ ✽
NOTICE
If there is heavy accumulation of
snow or ice on the windshield, defrost
the windshield for about 10 minutes,
or until the snow and/or ice is
removed before using the windshield
wipers to ensure proper operation.
If you do not remove the snow
and/or ice before using the wiper
and washer, it may damage the
wiper and washer system.
Front windshield washers
In the OFF position, pull the lever
gently toward you to spray washer
fluid on the windshield and to run the
wipers 1-3 cycles.
Use this function when the wind-
shield is dirty.
The spray and wiper operation will
continue until you release the lever.
If the washer does not work, check
the washer fluid level. If the fluid level
is not sufficient, you will need to add
appropriate non-abrasive windshield
washer fluid to the washer reservoir. The reservoir filler neck is located in
the front of the engine compartment
on the passenger side.
OQL045409
CAUTION - Washer pump
To prevent possible damage to
the washer pump, do not oper-ate the washer when the fluidreservoir is empty.

Features of your vehicle
124
4

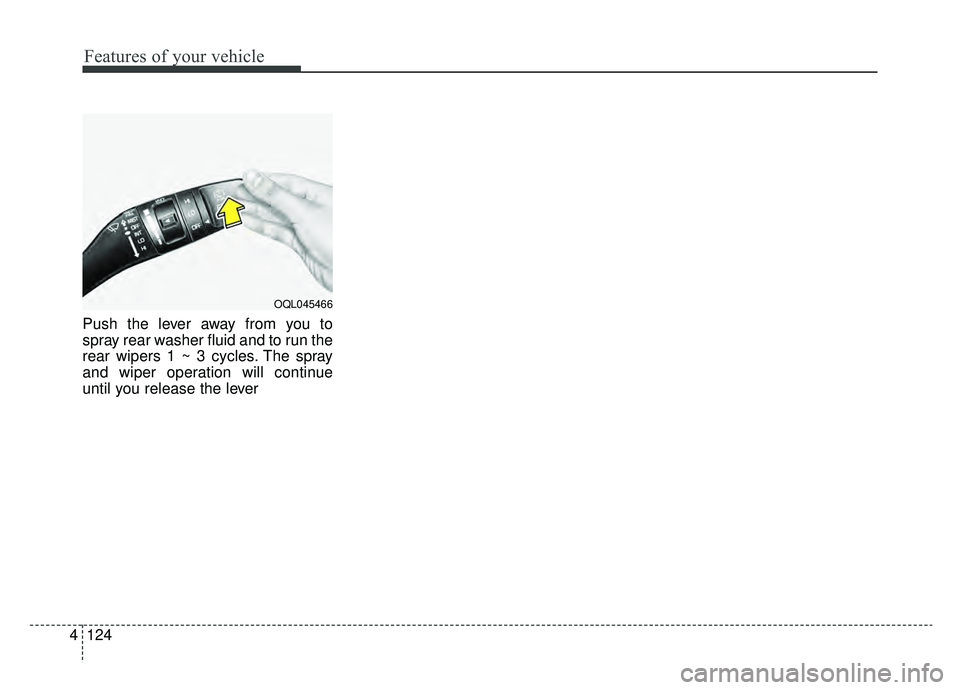

Push the lever away from you to
spray rear washer fluid and to run the
rear wipers 1 ~ 3 cycles. The spray
and wiper operation will continue
until you release the lever
OQL045466

Driving your vehicle
46
Before entering vehicle
• Be sure that all windows, outsidemirror(s), and outside lights are
clean.
Check the condition of the tires.
Check under the vehicle for any sign of leaks.
Be sure there are no obstacles behind you if you intend to back up.
Necessary inspections
Fluid levels, such as engine oil,
engine coolant, brake fluid, and
washer fluid should be checked on a
regular basis, at the exact interval
depending on the fluid. Further
details are provided in chapter 8,
“Maintenance”.
Before starting
Close and lock all doors.
Position the seat so that all con-trols are easily reached.
Buckle your seat belt.
Adjust the inside and outside rearview mirrors.
Be sure that all lights work.
Check all gauges.
Check the operation of warning lights when the engine start/stop
button is turned to the ON position.
Release the parking brake and make sure the brake warning light
goes out.
For safe operation, be sure you are
familiar with your vehicle and its
equipment.
BEFORE DRIVING
WARNING - Distracted driving
Focus on the road while driving.
The driver's primary responsi-
bility is in the safe and legal
operation of the vehicle. Use of
any handled devices, other
equipment or vehicle systems
that distract the driver should
not be used during vehicle
operation.

699
Driving your vehicle
To keep locks from freezing
To keep the locks from freezing,
squirt an approved de-icer fluid or
glycerine into the key opening. If a
lock is covered with ice, squirt it with
an approved de-icing fluid to remove
the ice. If the lock is frozen internally,
you may be able to thaw it out by
using a heated key. Handle the heat-
ed key with care to avoid injury.
Use approved window washer
anti-freeze in system
To keep the water in the window
washer system from freezing, add an
approved window washer anti-freeze
solution in accordance with instruc-
tions on the container. Window wash-
er anti-freeze is available from an
authorized Kia dealer and most auto
parts outlets. Do not use engine
coolant or other types of anti-freeze
as these may damage the paint fin-
ish.
Don’t let your parking brake
freeze
Under some conditions your parking
brake can freeze in the engaged
position. This is most likely to happen
when there is an accumulation of
snow or ice around or near the rear
brakes or if the brakes are wet. If
there is a risk the parking brake may
freeze, apply it only temporarily while
you put the gear shift lever in P (Park,
Dual clutch transmission) and block
the rear wheels so the vehicle cannot
roll. Then release the parking brake.
Don't let ice and snow accu-
mulate underneath
Under some conditions, snow and
ice can build up under the fenders
and interfere with the steering. When
driving in severe winter conditions
where this may happen, you should
periodically check underneath the
vehicle to be sure the movement of
the front wheels and the steering
components are not obstructed.
Carry emergency equipment
Depending on the severity of the
weather, you should carry appropri-
ate emergency equipment. Some of
the items you may want to carry
include tow straps or chains, flash-
light, emergency flares, sand, shov-
el, jumper cables, window scraper,
gloves, ground cloth, coveralls, blan-
ket, etc.
TRAILER TOWING
We do not recommend using this
vehicle for trailer towing.

Maintenance
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . 8-5
• Owner’s responsibility . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Owner maintenance precautions . . . . . . . . . . . . . . . . . 8-6
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
Owner maintenance schedule . . . . . . . . . . . . . . . . . . . 8-7
Scheduled maintenance service . . . . . . . . . . . . . . 8-9
Explanation of scheduled maintenance items . . . 8-15
Checking fluid levels . . . . . . . . . . . . . . . . . . . . . . . 8-18
Engine oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-19
Checking the engine oil level . . . . . . . . . . . . . . . . . . . 8-19
Changing the engine oil and filter . . . . . . . . . . . . . . . 8-20
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-21\
Checking the coolant level . . . . . . . . . . . . . . . . . . . . . 8-21
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22
Inverter coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22
Recommended coolant . . . . . . . . . . . . . . . . . . . . . . . . 8-23
Changing the coolant . . . . . . . . . . . . . . . . . . . . . . . . . 8-25
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-26
Checking the brake fluid level . . . . . . . . . . . . . . . . . 8-26
Engine clutch actuator fluid . . . . . . . . . . . . . . . . . 8-27
• Checking the engine clutch actuator fluid level 8-27
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-29
Checking the washer fluid level . . . . . . . . . . . . . . . . 8-29
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-30
• Checking the parking brake . . . . . . . . . . . . . . . . 8-30
Air cleaner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-31
Filter replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-31
Climate control air filter . . . . . . . . . . . . . . . . . . . . 8-33
Filter inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-33
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-35
• Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-35
• Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-35
Battery (Plug-in Hybrid) . . . . . . . . . . . . . . . . . . . . 8-38
For best battery service . . . . . . . . . . . . . . . . . . . . . . . 8-38
Recharging the battery . . . . . . . . . . . . . . . . . . . . . . . . 8-39
Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-40\
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-41
Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-41
Recommended cold tire inflation pressures . . . . . . . 8-41
Tire pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-42
Checking tire inflation pressure. . . . . . . . . . . . . . . . . 8-42
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-43
Wheel alignment and tire balance . . . . . . . . . . . . . . 8-44
Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-45
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-45
Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-46
Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-46
Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . . 8-46
