The Hybrid battery uses high voltage
to operate the electric motor and
other components and other compo-
nents. High voltage is dangerous if
touched.
Your vehicle is equipped with orange
colored insulation which covers over
the high voltage components to pro-
tect people from electric shock. High
voltage warning labels are attached
to some system components as addi-
tional warnings. Have your vehicle
serviced by an authorized Kia dealer.
WARNING - High voltage
components
Never touch orange or high
voltage labeled components
including wires, cables, and
connectors. If the insulators or
covers are damaged or
removed, severe injury or death
from electrocution may occur.
WARNING - Touching
HPCU
When replacing the fuses in the
engine compartment, never
touch the HPCU. The HPCU car-
ries high voltage. Touching the
HPCU could result in electrocu-
tion, serious injury, or death.
ODEQ016002
ODEQ016003
HPCU
HEV Battery
COMPONENTS OF THE HYBRID/PLUG-IN HYBRID VEHICLE (CONT.)

487
Features of your vehicle

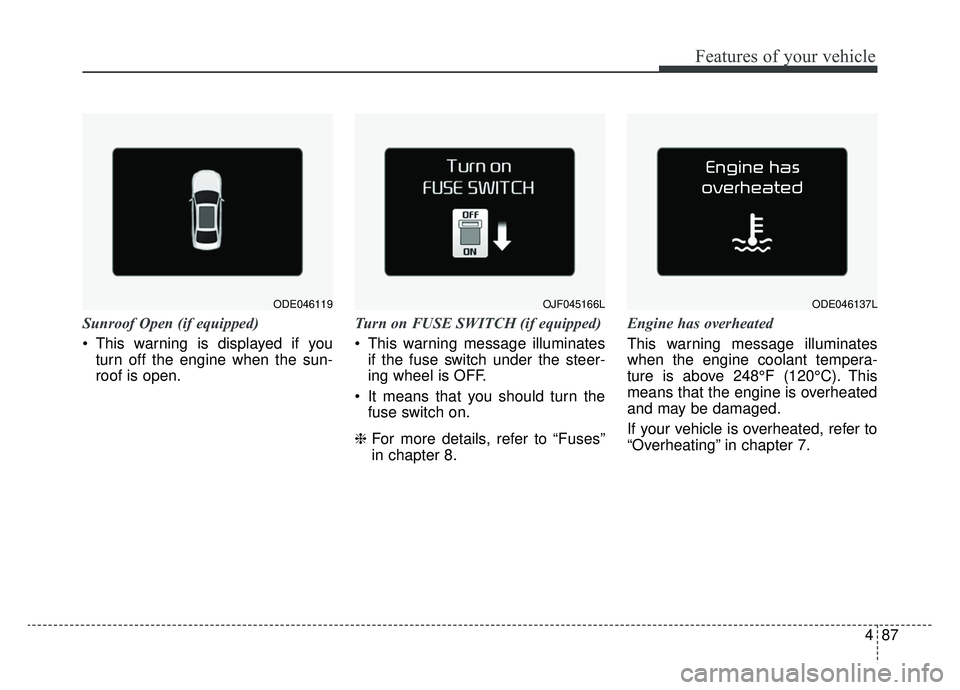

Sunroof Open (if equipped)
This warning is displayed if youturn off the engine when the sun-
roof is open. Turn on FUSE SWITCH (if equipped)
This warning message illuminates
if the fuse switch under the steer-
ing wheel is OFF.
It means that you should turn the fuse switch on.
❈ For more details, refer to “Fuses”
in chapter 8. Engine has overheated
This warning message illuminates
when the engine coolant tempera-
ture is above 248°F (120°C). This
means that the engine is overheated
and may be damaged.
If your vehicle is overheated, refer to
“Overheating” in chapter 7.
OJF045166LODE046119ODE046137L

Tire terminology and definitions . . . . . . . . . . . . . . . . 8-50
All season tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-53
Summer tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-53
Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-\
53
Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-54\
Radial-ply tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-54
Low aspect ratio tire . . . . . . . . . . . . . . . . . . . . . . . . . . 8-55
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-56
Inner panel fuse replacement . . . . . . . . . . . . . . . . . . . 8-57
Engine compartment fuse replacement. . . . . . . . . . . 8-59
Fuse/relay panel description. . . . . . . . . . . . . . . . . . . . 8-62
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-84
Bulb replacement precaution . . . . . . . . . . . . . . . . . . 8-84
Light bulb position (Front). . . . . . . . . . . . . . . . . . . . . 8-85
Light bulb position (Rear) . . . . . . . . . . . . . . . . . . . . . 8-86
Light bulb position (Side) . . . . . . . . . . . . . . . . . . . . . . 8-87
Headlamp (HID type) bulb replacement . . . . . . . . . 8-87
Headlamp (LED type) replacement. . . . . . . . . . . . . . 8-88
Headlamp (High/Low beam) bulb replacement . . . 8-88
Front turn signal lamp bulb replacement . . . . . . . . 8-89
Fog lamp/DRL bulb replacement . . . . . . . . . . . . . . . 8-90
Stop and tail lamp bulb replacement . . . . . . . . . . . . 8-90
Tail lamp (inside) bulb replacement . . . . . . . . . . . . . 8-92
Stop and tail lamp (LED type) bulb replacement . . 8-93
Back-up lamp bulb replacement . . . . . . . . . . . . . . . . 8-93
High mounted stop lamp bulb replacement . . . . . . . 8-93
License plate lamp bulb replacement . . . . . . . . . . . . 8-94
Side repeater lamp (LED type) bulb replacement . . 8-94
Map lamp (Bulb type) bulb replacement . . . . . . . . . 8-95
Map lamp (LED type) bulb replacement . . . . . . . . . 8-95
Vanity mirror lamp bulb replacement . . . . . . . . . . . 8-95
Room lamp (Bulb type) bulb replacement . . . . . . . . 8-96
Room lamp (LED type) bulb replacement . . . . . . . . 8-97
Liftgate room lamp bulb replacement . . . . . . . . . . . 8-97
Appearance care . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-98
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-98
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-103
Emission control system . . . . . . . . . . . . . . . . . . . 8-106
Crankcase emission control system . . . . . . . . . . . . . 8-106
Evaporative emission control (Including ORVR :
Onboard Refueling Vapor Recovery) system . . . . 8-106
Exhaust emission control system . . . . . . . . . . . . . . . 8-107
California perchlorate notice . . . . . . . . . . . . . . . 8-109
8

Maintenance
56
8
FUSES
❈ Left side : Normal , Right side : Blown
A vehicle’s electrical system is pro-
tected from electrical overload dam-
age by fuses.
This vehicle has 2 (or 3) fuse panels,
one located in the driver’s side panel
bolster, the other in the engine com-
partment near the battery.
If any of your vehicle’s lights, acces-
sories, or controls do not work, check
the appropriate circuit fuse. If a fuse
has blown, the element inside the
fuse will melt.
If the electrical system does not
work, first check the driver’s side
fuse panel.
Always replace a blown fuse with
one of the same rating.
If the replacement fuse blows, this
indicates an electrical problem. Avoid
using the system involved and imme-
diately consult an authorized Kia
dealer.
Three kinds of fuses are used: blade
type for lower amperage rating, car-tridge type, and multi fuse for higheramperage ratings.
Do not arbitrarily modify or add-on electric wiring to the vehicle.
WARNING- Fuse replace-
ment
Never replace a fuse with any- thing but another fuse of the
same rating.
A higher capacity fuse could cause damage and possibly a
fire.
Never install a wire or alu- minum foil instead of the
proper fuse - even as a tem-
porary repair. It may cause
extensive wiring damage and
a possible fire.
CAUTION
Do not use a screwdriver or anyother metal object to removefuses because it may cause ashort circuit and damage thesystem.
OJF075021
■
Blade type
■ Cartridge type
■ Multi fuse
■ BFT

857
Maintenance
✽ ✽NOTICE
• When replacing fuse, turn the
ignition “OFF” and turn off
switches of all electrical devices
then remove battery (-) terminal.
• The actual fuse/relay panel label may differ from equipped items.
Inner panel fuse replacement
1. Turn the engine start/stop button
to the OFF position and all other
switches off.
2. Open the fuse panel cover.
If the switch is located in the “OFF”
position, a caution indicator will be
displayed in the cluster.
WARNING- Electrical Fire
Always ensure replacements
fuses and relays are securely
fastened when installed. Failure
to do so can result in a vehicle
fire.
CAUTION
When replacing a blown fuse or relay, make sure the newfuse or relay fits tightly intothe clips. Failure to tightlyinstall the fuse or relay maycause damage to the wiringand electric systems.
Do not remove fuses, relays and terminals fastened withbolts or nuts. The fuses, relaysand terminals may not be fas-tened correctly which maycause vehicle damage.
ODE076017

Maintenance
58
8
3. Pull the suspected fuse straight
out. Use the removal tool provided
on the engine compartment fuse
panel cover.
4. Check the removed fuse; replace it if it is blown.
Spare fuses are provided in theengine compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly
in the clips.
If it fits loosely, consult an authorized
Kia dealer.
If you do not have a spare, use a fuse of the same rating from a circuityou may not need for operating thevehicle, such as the power outletfuse.
If the head lamp, turn signal lamp,
stop signal lamp, fog lamp, DRL, tail
lamp, HMSL do not work and the
fuses are OK, check the fuse panel
in the engine compartment. If a fuse
is blown, it must be replaced.
✽ ✽ NOTICE
If the headlamp, fog lamp, turn sig-
nal lamp, or tail lamp malfunction
even without any problem to the
lamps, have the vehicle checked by
an authorized Kia dealer for assis-
tance.
ODE076020
CAUTION
Do not input any other objects
except fuses or relays intofuse/relay terminals, such as adriver or wiring. It may causecontact failure and systemmalfunction.
Do not plug in screwdrivers or aftermarket wiring into the ter-minal originally designed forfuse and relays only. The elec-trical system and wiring of thevehicle interior may be dam-aged or burned due to contactfailure.
If you directly connect the wire on the taillight or replacethe bulb which is over the reg-ulated capacity to install trail-ers, etc., the inner junctionblock can get burned.

859
Maintenance
Fuse switch
Always set the fuse switch to the ON
position before using the vehicle.
If you move the switch to the OFF
position, some items such as audio
and digital clock must be reset and
transmitter (or smart key) may not
work properly. When the switch is
Off, the caution indicator will be dis-
played on the instrument cluster.
Always place the fuse switch in the
ON position while driving the vehicle.
If the switch is located in the “OFF”
position, a caution indicator will be
displayed in the cluster.
Engine compartment fuse
replacement
1. Turn the engine start/stop buttonto the OFF position and all other
switches off.
2. Remove the fuse panel cover by pressing the tab and pulling the
cover up. When the blade type
fuse is disconnected, remove it by
using the clip designed for chang-
ing fuses located in the engine
compartment fuse box. Upon
removal, securely insert reserve
fuse of the same rating.
ODE076018
ODE076021
CAUTION - Fuse Panel
Covers
Set all switches to ON beforedriving.
If the vehicle is going to be unused for over 1 month, setall switches to OFF to preventthe batteries from draining.
The contact points of the switches may wear out withexcessive use. Please refrainfrom excessive use of theswitches (except for long-termparking for over 1 month).

861
Maintenance
Main fuse (Plug-in Hybrid)
If the multi fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative batterycable.
3. Remove the nuts shown in the pic- ture above.
4. Replace the fuse with a new one of the same rating.
5. Reverse these steps to reinstall the multi fuse.
✽ ✽NOTICE
The electronic system may not func-
tion correctly even when the engine
compartment and internal fuse
box’s individual fuses are not dis-
connected. In such case the cause of
the problem may be disconnection
of the main fuse (BFT type), which is
located inside the positive battery
terminal (+) cap.
Since the main fuse is designed more
intricately than other parts, have the
vehicle checked by an authorized
Kia dealer.
✽ ✽NOTICE- Remodeling
Prohibited
Do not rewire your vehicle in any
way as doing so may affect the per-
formance of several safety features
in your vehicle. Rewiring your vehi-
cle may also void your warranty and
cause you to be responsible for any
subsequent vehicle damage which
may result.
CAUTION
Visually inspect the battery capto ensure it is securely closed.If the battery cap is not securelyclosed, moisture may enter thesystem and damage the electri-cal components.
WARNING- Random
wiring prohibited when
retrofitting equipment
Use of random wiring in the
vehicle might cause danger due
to failure and damage of the
vehicle’s performance.
Using random wires especially
when retrofitting AVN or theft
alarm system, remote engine
control, car phone or radio
might damage the vehicle or
cause fire.
