2019 KIA NIRO key

871
Maintenance
Fuse NameFuse ratingCircuit Protected
BATTERY
MANAGEMENT10ABMS (Battery Management System) Control Module
P/SEAT (DRV)30ADriver Seat Manual Switch, Driver IMS (Integrated memory system) Module
AMP30AAMP (Amplifier)
AMS10ABattery Sensor
MODULE 110AData Link Connector, AEB Module, Hazard Switch, Driver/Passenger Door Module, Driver/Passenger Smart
Key Outside Handle
DOOR LOCK20ADoor Lock/Unlock Relay, ICM Relay Box (Two Turn Unlock Relay)
WIPER2 (FRT)10AWiper Motor, Engine Room Junction Block (Front Wiper (Low) Relay), ECM (Engine Control Module), BCM
(Body Control Module)
MODULE 67.5ABCM (Body Control Module), Smart Key Control Module
S/HEATER (REAR)25ARear Seat Warmer Control Module
HEATED
MIRROR10ADriver Power Outside Mirror, Passenger Power Outside Mirror, Air Conditioner Control Module
WIPER 1 (FRT)30AWiper Motor, Engine Room Junction Block (Front Wiper (Low) Relay)

873
Maintenance
Engine room compartment fuse panel (Hybrid)
Fuse NameFuse ratingCircuit Protected
MULTI FUSE
B+ 560AFuse - BATTERY C/FAN, HORN, B/ALARM HORN, ECU2, Engine Control Relay
B+ 260AInstrument Panel Junction Block (Fuse - S/HEATER (REAR))
B+ 360AInstrument Panel Junction Block
B+ 450AInstrument Panel Junction Block (Fuse - BATTERY MANAGEMENT, P/WINDOW (LH), P/WIN-
DOW (RH), TAIL GATE OPEN, SUNROOF, AMP, S/HEATER (FRT), P/SEAT (DRV))
COOLING FAN60ACooling Fan Relay
REAR HEATED50ARear Heated Relay
BLOWER40ABlower Relay
IG 140A[Without Smart Key] Ignition Switch, [With Smart Key] PDM1 (ACC) Relay, PDM2 (IG1) Relay
IG 240A[Without Smart Key] Ignition Switch, [With Smart Key] PDM3 (IG2) Relay
MDPS80AMDPS (Motor Driven Power Steering) Unit
PTC
HEATER 150APTC Heater 1 Relay
PTC
HEATER 250APTC Heater 2 Relay
CLUTCH
ACTUATOR40AClutch Actuator (HEV)
MAIN150AFuse - POWER OUTLET1, H/LAMP HI, INVERTER, ACTIVE HYDRAULIC BOOSTER1,
ACTIVE HYDRAULIC BOOSTER2, WIPER RR, Low Voltage DC-DC Converter

877
Maintenance
Engine room compartment fuse panel (Plug-in Hybrid)
Fuse NameFuse ratingCircuit Protected
MULTI FUSE
B+ 560AFuse - BATTERY C/FAN, HORN, B/ALARM HORN, ECU2, Engine Control Relay
B+ 260AInstrument Panel Junction Block (Fuse - S/HEATER (REAR))
B+ 360AInstrument Panel Junction Block
B+ 450AInstrument Panel Junction Block (Fuse - BATTERY MANAGEMENT, P/WINDOW (LH), P/WIN-
DOW (RH), TAIL GATE OPEN, SUNROOF, AMP, S/HEATER (FRT), P/SEAT (DRV), IG3 1,
OBC, AMS)
COOLING FAN60ACooling Fan Relay
REAR HEATED50ARear Heated Relay
BLOWER40ABlower Relay
IG 140A[Without Smart Key] Ignition Switch, [With Smart Key] PDM1 (ACC) Relay, PDM2 (IG1) Relay
IG 240A[Without Smart Key] Ignition Switch, [With Smart Key] PDM3 (IG2) Relay
MDPS80AMDPS (Motor Driven Power Steering) Unit
PTC
HEATER 150APTC Heater 1 Relay
PTC
HEATER 250APTC Heater 2 Relay
CLUTCH
ACTUATOR40AClutch Actuator (PHEV)
MAIN150AFuse - POWER OUTLET1, H/LAMP HI, INVERTER, ACTIVE HYDRAULIC BOOSTER1,
ACTIVE HYDRAULIC BOOSTER2, WIPER RR, Low Voltage DC-DC Converter

Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL forgasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized Kia dealer.
Avoid driving with an extremely low fuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter. Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
Perchlorate Material-special handling
may apply, See www.dtsc.ca.gov/haz-
ardouswaste/ perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials,
such as air bag inflators, seatbelt
pretensioners and keyless remote
entry batteries, must be disposed of
according to Title 22 California Code
of Regulations Chapter 67384.10
(a).
CALIFORNIA
PERCHLORATE NOTICE
Maintenance
109
8

Index
4I
Defroster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
129Rear window defroster . . . . . . . . . . . . . . . . . . . . . . 4-129
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-\
2
Door locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
20 Child-protector rear door lock . . . . . . . . . . . . . . . . . 4-23
Operating door locks from inside the vehicle . . . . . 4-21
Operating door locks from outside the vehicle . . . . 4-20
Driver Attention Alert system (DAA). . . . . . . . . . . . . . 6-84 Resetting the system . . . . . . . . . . . . . . . . . . . . . . . . 6-86
System disabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-86
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 6-86
System setting and activation . . . . . . . . . . . . . . . . . . 6-84
Dual Clutch Transmission (DCT). . . . . . . . . . . . . . . . . 6-14 Dual Clutch Transmission operation . . . . . . . . . . . . 6-14
Good driving practices . . . . . . . . . . . . . . . . . . . . . . . 6-21
Economical operation . . . . . . . . . . . . . . . . . . . . . . . . . . 6-89
Electrical Equipment (U.S. only) . . . . . . . . . . . . . . . . . 9-15 Installation of a mobile two-way radio system . . . . 9-15
Emergency starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5 Before jump starting (for Hybrid) . . . . . . . . . . . . . . . 7-5
Jump starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
Method to disconnect the (-) cable for regularmaintenance (For Hybrid) . . . . . . . . . . . . . . . . . . . . 7-7 Push-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9
Emission control system . . . . . . . . . . . . . . . . . . . . . . . 8-106 Crankcase emission control system . . . . . . . . . . . . 8-106
Evaporative emission control(Including ORVR :Onboard Refueling Vapor Recovery) system. . . . 8-106
Exhaust emission control system . . . . . . . . . . . . . . 8-107
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 9-2
Engine clutch actuator fluid . . . . . . . . . . . . . . . . . . . . . 8-27 Checking the engine clutch actuator fluid level. . . . 8-27
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6, 8-3
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-\
19 Changing the engine oil and filter . . . . . . . . . . . . . . 8-20
Checking the engine oil level . . . . . . . . . . . . . . . . . . 8-19
Engine start/stop button . . . . . . . . . . . . . . . . . . . . . . . . . 6-9 Engine start/stop button position . . . . . . . . . . . . . . . . 6-9
Illuminated engine start/stop button. . . . . . . . . . . . . . 6-9
Starting the hybrid system . . . . . . . . . . . . . . . . . . . . 6-11
Explanation of scheduled maintenance items . . . . . . . 8-15
Exterior features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-165 Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-165
Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Folding key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
4 Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
E
D
F

I5
Index
Key operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Record your key number . . . . . . . . . . . . . . . . . . . . . . 4-4
Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . 4-6
Fuel filler lid (Plug-in Hybrid) . . . . . . . . . . . . . . . . . . . 4-35 Opening the fuel filler lid. . . . . . . . . . . . . . . . . . . . . 4-35
Fuel filler lid lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34 Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . 4-34
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Do not use methanol . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Fuel additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Gasoline containing alcohol and methanol . . . . . . . . 1-2
Operation in foreign countries . . . . . . . . . . . . . . . . . . 1-4
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 8-56 Engine compartment fuse replacement . . . . . . . . . . 8-59
Fuse/relay panel description. . . . . . . . . . . . . . . . . . . 8-62
Inner panel fuse replacement . . . . . . . . . . . . . . . . . . 8-57
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5
HEV/PHEV powertrain . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-32 Closing the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-33
Hood open warning . . . . . . . . . . . . . . . . . . . . . . . . . 4-33
Opening the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32 If an accident occurs . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-34
If the engine overheats . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
If the engine will not start . . . . . . . . . . . . . . . . . . . . . . . 7-4
If engine doesn't turn over or turns over slowly . . . . 7-4
If engine turns over normally but does not start . . . . 7-4
If you have a flat tire (with Tire Mobility Kit). . . . . . . 7-18 Checking the tire inflation pressure . . . . . . . . . . . . . 7-26
Components of the Tire Mobility Kit . . . . . . . . . . . 7-22
Distributing the sealant . . . . . . . . . . . . . . . . . . . . . . 7-25
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19
Notes on the safe use of the Tire Mobility Kit . . . . 7-20
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-28
Using the Tire Mobility Kit . . . . . . . . . . . . . . . . . . . 7-23
Important safety precautions . . . . . . . . . . . . . . . . . . . . . 3-2 Air bag hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Always wear your seat belt . . . . . . . . . . . . . . . . . . . . 3-2
Control your speed . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Driver distraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Keep your vehicle in safe condition . . . . . . . . . . . . . 3-3
Restrain all children . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
In case of an emergency while driving . . . . . . . . . . . . . . 7-3 If the engine stalls at a crossroad or crossing . . . . . . 7-3
If the engine stalls while driving . . . . . . . . . . . . . . . . 7-3
If you have a flat tire while driving . . . . . . . . . . . . . . 7-3
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-53 Dual clutch transmission shift indicator . . . . . . . . . 4-63
H
I
G

Index
6I
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
57
Instrument cluster control . . . . . . . . . . . . . . . . . . . . 4-56
LCD window control . . . . . . . . . . . . . . . . . . . . . . . . 4-56
Instrument panel overview . . . . . . . . . . . . . . . . . . . . . . . 2-5
Interior features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-152 AC inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Air ventilation seat . . . . . . . . . . . . . . . . . . . . . . . . . 4-154
Cargo security screen . . . . . . . . . . . . . . . . . . . . . . . 4-164
Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-162
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-152
Floor mat anchor (s) . . . . . . . . . . . . . . . . . . . . . . . . 4-162
Luggage net holder. . . . . . . . . . . . . . . . . . . . . . . . . 4-163
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-155
Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-152
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-155
USB charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-156
Wireless smart phone charging system . . . . . . . . . 4-158
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-125 Automatic turn off function . . . . . . . . . . . . . . . . . . 4-125
Liftgate room lamp. . . . . . . . . . . . . . . . . . . . . . . . . 4-127
Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-126
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-125
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . 4-127
Interior overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 Key positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
Ignition switch position . . . . . . . . . . . . . . . . . . . . . . . 6-6
Illuminated ignition switch . . . . . . . . . . . . . . . . . . . . 6-6
Starting the hybrid system . . . . . . . . . . . . . . . . . . . . . 6-7
Lane Keeping Assist System (LKAS) . . . . . . . . . . . . . 6-76 Driver's attention . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-82
LKAS Function Change . . . . . . . . . . . . . . . . . . . . . . 6-83
LKAS operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-77
Warning light and message . . . . . . . . . . . . . . . . . . . 6-80
LCD windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-64 Digital speedometer . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
Energy flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-69
Energy flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-75
LCD modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-77
One time driving information mode . . . . . . . . . . . . 4-68
Over view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-64
Trip information (Trip computer, for Hybrid) . . . . . 4-64
Trip information (Trip computer, forPlug-in Hybrid) . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-71
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-25 Closing the liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25K
L

Index
8I

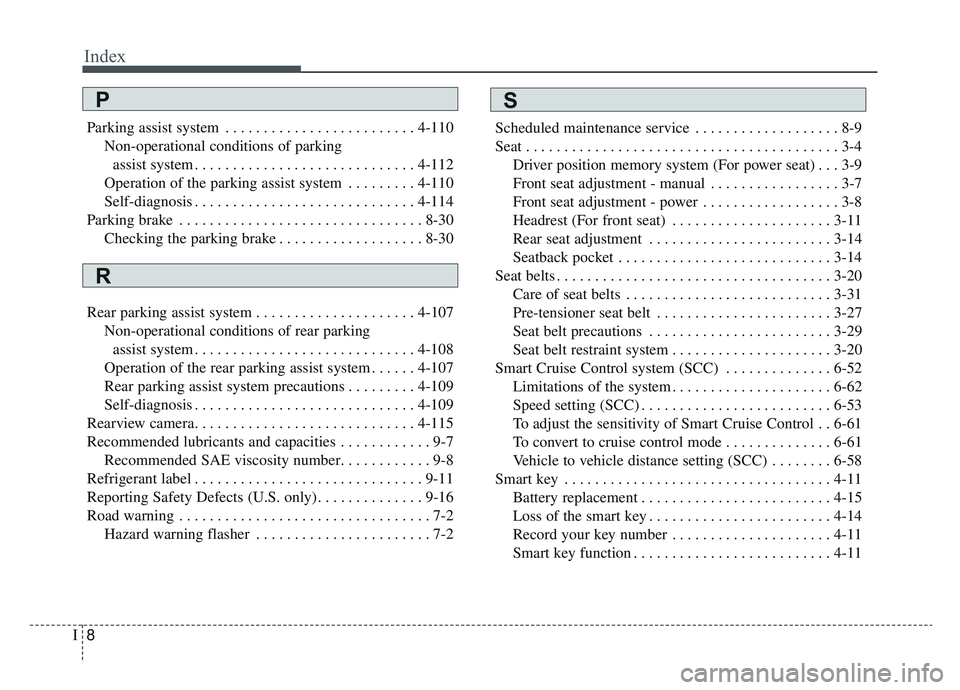

Parking assist system . . . . . . . . . . . . . . . . . . . . . . . . . 4-110Non-operational conditions of parkingassist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-112
Operation of the parking assist system . . . . . . . . . 4-110
Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-114
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-30 Checking the parking brake . . . . . . . . . . . . . . . . . . . 8-30
Rear parking assist system . . . . . . . . . . . . . . . . . . . . . 4-107 Non-operational conditions of rear parkingassist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
Operation of the rear parking assist system . . . . . . 4-107
Rear parking assist system precautions . . . . . . . . . 4-109
Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-109
Rearview camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Recommended lubricants and capacities . . . . . . . . . . . . 9-7 Recommended SAE viscosity number. . . . . . . . . . . . 9-8
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
Reporting Safety Defects (U.S. only) . . . . . . . . . . . . . . 9-16
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2 Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . . 7-2 Scheduled maintenance service . . . . . . . . . . . . . . . . . . . 8-9
Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 3-4
Driver position memory system (For power seat) . . . 3-9
Front seat adjustment - manual . . . . . . . . . . . . . . . . . 3-7
Front seat adjustment - power . . . . . . . . . . . . . . . . . . 3-8
Headrest (For front seat) . . . . . . . . . . . . . . . . . . . . . 3-11
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-20 Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . 3-27
Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . 3-29
Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . 3-20
Smart Cruise Control system (SCC) . . . . . . . . . . . . . . 6-52 Limitations of the system . . . . . . . . . . . . . . . . . . . . . 6-62
Speed setting (SCC) . . . . . . . . . . . . . . . . . . . . . . . . . 6-53
To adjust the sensitivity of Smart Cruise Control . . 6-61
To convert to cruise control mode . . . . . . . . . . . . . . 6-61
Vehicle to vehicle distance setting (SCC) . . . . . . . . 6-58
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
11 Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Loss of the smart key . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Record your key number . . . . . . . . . . . . . . . . . . . . . 4-11
Smart key function . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
PS
R
