2019 KIA NIRO switch

887
Maintenance
Light bulb position (Side)
(1) Side repeater lamp (LED type)
Headlamp (HID type) bulb
replacement
If the light bulb does not operate,
have the vehicle checked by an
authorized Kia dealer.
✽ ✽NOTICE
If your vehicle is equipped with
High Intensity Discharge (HID)
headlamps, these headlamps contain
mercury. If you need to have your
vehicle disposed, you should remove
the HID headlamps before disposal.
The removed HID headlamps
should be recycled, re-used or dis-
posed as hazardous waste.
✽ ✽NOTICE
HID lamps have superior perform-
ance vs. halogen bulbs. HID lamps
are estimated by the manufacturer to
last twice as long or longer than halo-
gen bulbs depending on their fre-
quency of use. They will probably
require replacement at some point in
the life of the vehicle. Cycling the
headlamps on and off more than typ-
ical use will shorten HID lamps life.
HID lamps do not fail in the same
manner as halogen incandescent
lamps. If a headlamp goes out after a
period of operation but will immedi-
ately relight when the headlamp
switch is cycled it is likely the HID
lamp needs to be replaced. HID
lamping components are more com-
plex than conventional halogen bulbs
thus have higher replacement cost.
ODE076034
WARNING- HID
Headlamp (if equipped)
Do not attempt to replace or
inspect the HID headlamp
(XENON bulb) due to risk of
electric shock. If the light bulb
does not operate, have your
vehicle checked by an author-
ized Kia dealer.

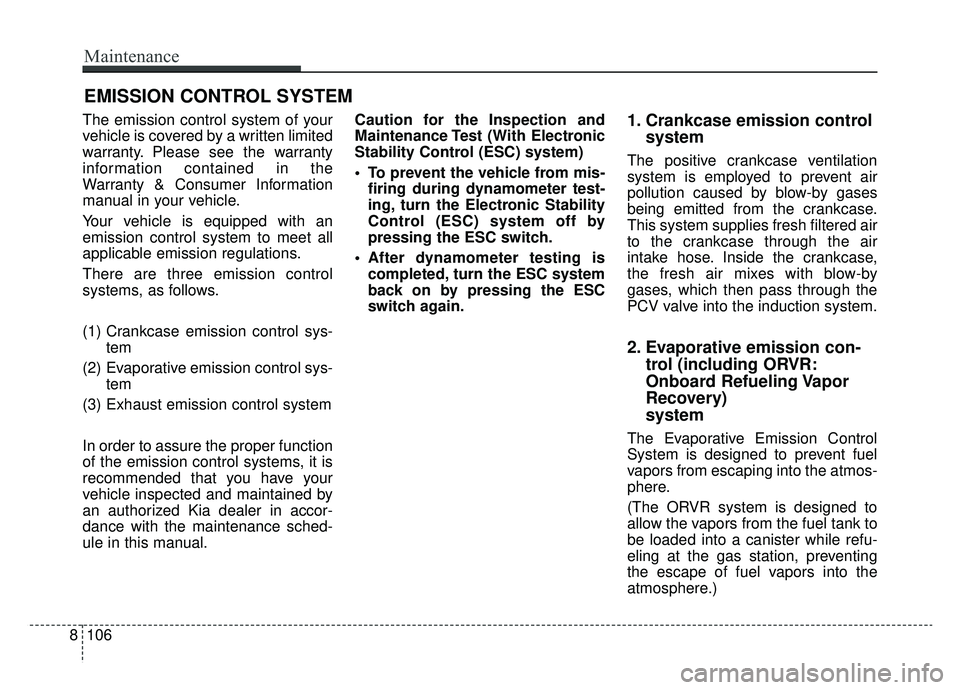

EMISSION CONTROL SYSTEM
The emission control system of your
vehicle is covered by a written limited
warranty. Please see the warranty
information contained in the
Warranty & Consumer Information
manual in your vehicle.
Your vehicle is equipped with an
emission control system to meet all
applicable emission regulations.
There are three emission control
systems, as follows.
(1) Crankcase emission control sys-tem
(2) Evaporative emission control sys- tem
(3) Exhaust emission control system
In order to assure the proper function
of the emission control systems, it is
recommended that you have your
vehicle inspected and maintained by
an authorized Kia dealer in accor-
dance with the maintenance sched-
ule in this manual. Caution for the Inspection and
Maintenance Test (With Electronic
Stability Control (ESC) system)
To prevent the vehicle from mis-
firing during dynamometer test-
ing, turn the Electronic Stability
Control (ESC) system off by
pressing the ESC switch.
After dynamometer testing is completed, turn the ESC system
back on by pressing the ESC
switch again.1. Crankcase emission control system
The positive crankcase ventilation
system is employed to prevent air
pollution caused by blow-by gases
being emitted from the crankcase.
This system supplies fresh filtered air
to the crankcase through the air
intake hose. Inside the crankcase,
the fresh air mixes with blow-by
gases, which then pass through the
PCV valve into the induction system.
2. Evaporative emission con-trol (including ORVR:
Onboard Refueling Vapor
Recovery)
system
The Evaporative Emission Control
System is designed to prevent fuel
vapors from escaping into the atmos-
phere.
(The ORVR system is designed to
allow the vapors from the fuel tank to
be loaded into a canister while refu-
eling at the gas station, preventing
the escape of fuel vapors into the
atmosphere.)
8 106
Maintenance

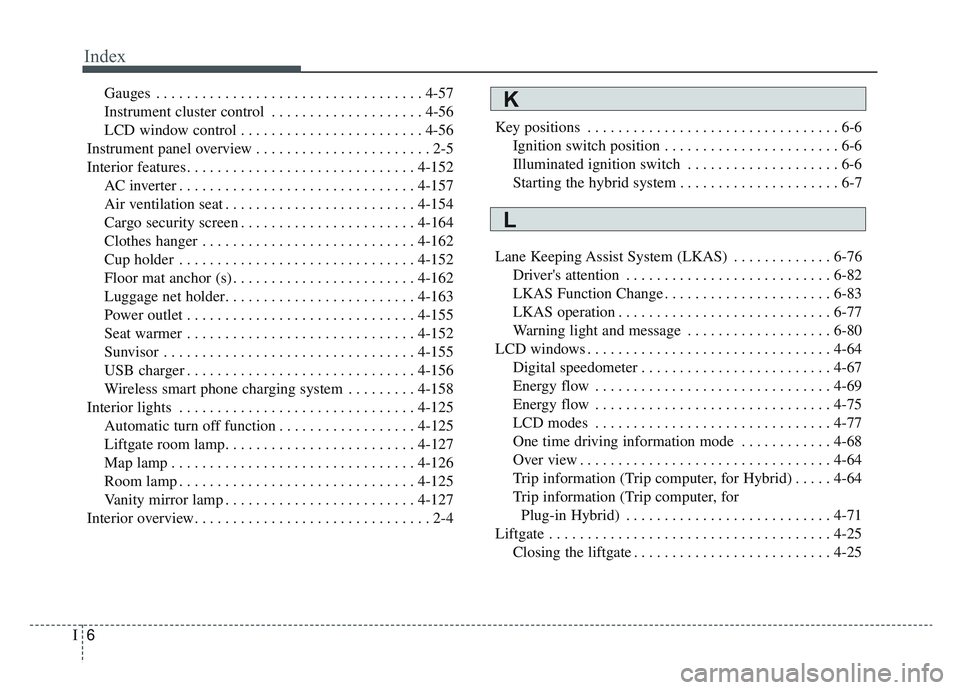

Index
6I
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
57
Instrument cluster control . . . . . . . . . . . . . . . . . . . . 4-56
LCD window control . . . . . . . . . . . . . . . . . . . . . . . . 4-56
Instrument panel overview . . . . . . . . . . . . . . . . . . . . . . . 2-5
Interior features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-152 AC inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Air ventilation seat . . . . . . . . . . . . . . . . . . . . . . . . . 4-154
Cargo security screen . . . . . . . . . . . . . . . . . . . . . . . 4-164
Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-162
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-152
Floor mat anchor (s) . . . . . . . . . . . . . . . . . . . . . . . . 4-162
Luggage net holder. . . . . . . . . . . . . . . . . . . . . . . . . 4-163
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-155
Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-152
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-155
USB charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-156
Wireless smart phone charging system . . . . . . . . . 4-158
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-125 Automatic turn off function . . . . . . . . . . . . . . . . . . 4-125
Liftgate room lamp. . . . . . . . . . . . . . . . . . . . . . . . . 4-127
Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-126
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-125
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . 4-127
Interior overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 Key positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
Ignition switch position . . . . . . . . . . . . . . . . . . . . . . . 6-6
Illuminated ignition switch . . . . . . . . . . . . . . . . . . . . 6-6
Starting the hybrid system . . . . . . . . . . . . . . . . . . . . . 6-7
Lane Keeping Assist System (LKAS) . . . . . . . . . . . . . 6-76 Driver's attention . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-82
LKAS Function Change . . . . . . . . . . . . . . . . . . . . . . 6-83
LKAS operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-77
Warning light and message . . . . . . . . . . . . . . . . . . . 6-80
LCD windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-64 Digital speedometer . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
Energy flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-69
Energy flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-75
LCD modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-77
One time driving information mode . . . . . . . . . . . . 4-68
Over view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-64
Trip information (Trip computer, for Hybrid) . . . . . 4-64
Trip information (Trip computer, forPlug-in Hybrid) . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-71
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-25 Closing the liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25K
L

I11
Index
Don’t let your parking brake freeze . . . . . . . . . . . . . 6-99
Don't let ice and snow accumulate underneath . . . . 6-99
Snowy or icy conditions . . . . . . . . . . . . . . . . . . . . . . 6-96
To keep locks from freezing. . . . . . . . . . . . . . . . . . . 6-99
Use approved window washer anti-freeze in system 6-99
Use high quality ethylene glycol coolant. . . . . . . . . 6-98
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-35 Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-35
Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 8-35
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-121 Front windshield washers. . . . . . . . . . . . . . . . . . . . 4-122
Rear window wiper and washer switch . . . . . . . . . 4-123
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . 4-121
