What to do in an emergency
10
6
✽ ✽
NOTICE
If the TPMS, Low Tire Pressure
indicator does not illuminate for 3
seconds when the Engine Start/Stop
button is turned to the ON, or
engine is running, or if they remain
illuminated after coming on for
approximately 3 seconds, take your
vehicle to your nearest authorized
K900 Kia dealer and have the sys-
tem checked.
Low tire pressure telltale
When the tire pressure monitoring
system warning indicators are illumi-
nated, one or more of your tires is
significantly under-inflated. If the telltale illuminates, immediately
reduce your speed, avoid hard cor-
nering and anticipate increased stop-
ping distances. You should stop and
check your tires as soon as possible.
Inflate the tires to the proper pres-
sure as indicated on the vehicle’s
placard or tire inflation pressure label
located on the driver’s side center pil-
lar outer panel. If you cannot reach a
service station or if the tire cannot
hold the newly added air, replace the
low pressure tire with the spare tire.
Then the TPMS malfunction indicator
and the Low Tire Pressure telltale
may turn on and illuminate after
restarting and about 20 minutes of
continuous driving before you have
the low pressure tire repaired and
replaced on the vehicle.
In winter or cold weather, the low tire
pressure telltale may be illuminated if
the tire pressure was adjusted to the
recommended tire inflation pressure
in warm weather. It does not mean
your TPMS is malfunctioning
because the decreased temperature
leads to a proportional lowering of
tire pressure.
WBH-11
ORJ048135L
■Low tire pressure position information

What to do in an emergency
24
6
Ensure any metal parts on the
tiedown straps do not contact
painted surfaces or the face of the
wheels.
Do not place straps over the body panels or through the wheels.
WARNING - Side and
curtain Air bag
If your vehicle is equipped with
side and curtain air bag, set the
the Engine Start/Stop button to
ACC position when the vehicle
is being towed.
The side and curtain air bag
may deploy when the ignition is
ON, and the rollover sensor
detects the situation as a
rollover.
ORJ068020
CAUTION
Attaching straps to the chassis, suspension or other parts of thebody can cause damage.
ORJ068021
ORJ068022
CAUTION - Towing
Do not tow the vehicle back- wards with the rear wheels onthe ground as this may causedamage to the vehicle.
Do not tow with sling-type equipment. Use wheel lift orflatbed equipment.

625
What to do in an emergency
When towing your vehicle in an
emergency without wheel dollies :
1. Set the Engine Start/Stop buttonto ACC position.
2. Place the transmission shift lever in N (Neutral).
3. Release the parking brake.Removable towing hook
1. Open the trunk, and remove the towing hook from the tool case.
2. Remove the hole cover pressing the lower part of the cover on the
bumper. 3. Install the towing hook by turning it
clockwise into the hole until it is
fully secured.
4. Remove the towing hook and install the cover after use.
CAUTION - Towing gear
position
Failure to place the transmis-sion shift lever in N (Neutral)may cause internal damage tothe transmission.ORJ068024
ORJ068026
■Front
■ Rear

What to do in an emergency
28
6

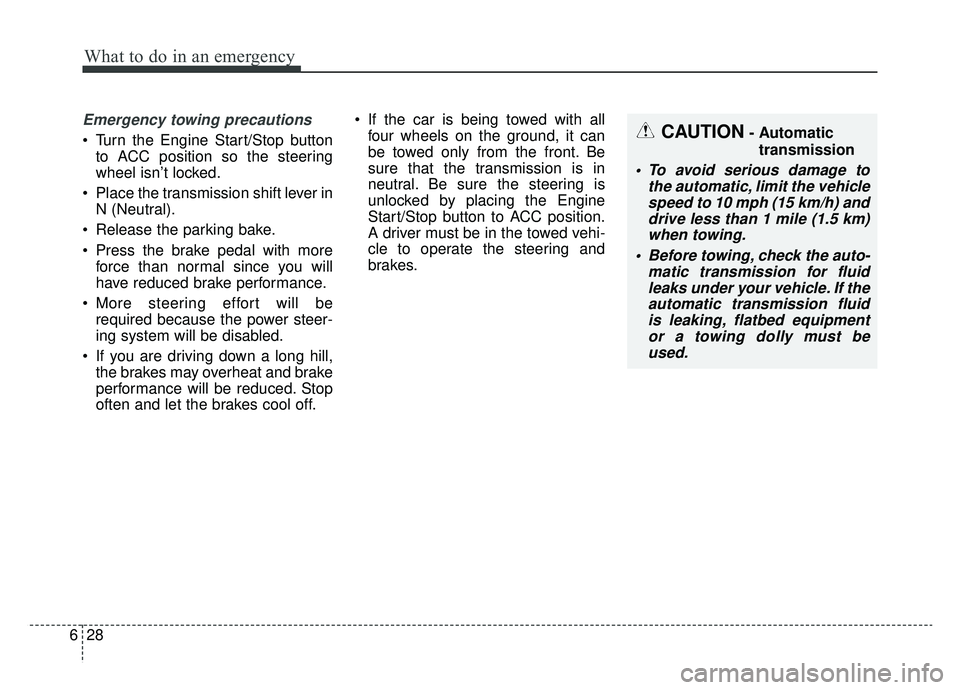

Emergency towing precautions
Turn the Engine Start/Stop button
to ACC position so the steering
wheel isn’t locked.
Place the transmission shift lever in N (Neutral).
Release the parking bake.
Press the brake pedal with more force than normal since you will
have reduced brake performance.
More steering effort will be required because the power steer-
ing system will be disabled.
If you are driving down a long hill, the brakes may overheat and brake
performance will be reduced. Stop
often and let the brakes cool off. If the car is being towed with all
four wheels on the ground, it can
be towed only from the front. Be
sure that the transmission is in
neutral. Be sure the steering is
unlocked by placing the Engine
Start/Stop button to ACC position.
A driver must be in the towed vehi-
cle to operate the steering and
brakes.CAUTION- Automatic
transmission
To avoid serious damage to the automatic, limit the vehiclespeed to 10 mph (15 km/h) anddrive less than 1 mile (1.5 km)when towing.
Before towing, check the auto- matic transmission for fluidleaks under your vehicle. If theautomatic transmission fluidis leaking, flatbed equipmentor a towing dolly must beused.

I3
Index
Battery replacement. . . . . . . . . . . . . . . . . . . . . . . 4-10, 7-34
Battery saver function . . . . . . . . . . . . . . . . . . . . . . . . . 4-114
Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 7-34Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . 7-34
Recharging the battery . . . . . . . . . . . . . . . . . . . . . . . 7-36
Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-37
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-31
Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-31
Blind-Spot Collision Warning/ Blind-Spot Collision-Avoidance Assist system . . . . . . . . . . . . 5-116
System description . . . . . . . . . . . . . . . . . . . . . . . . . 5-116
System setting and activation . . . . . . . . . . . . . . . . . 5-117
Warning message and system control . . . . . . . . . . 5-119
Limitations of the system . . . . . . . . . . . . . . . . . . . . 5-125
Blind-spot view monitor system . . . . . . . . . . . . . . . . . 4-113
Bonnet see the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-42
Brake discs, pads, calipers and rotors. . . . . . . . . . . . . . 7-20
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19, 7-26 Checking the brake fluid level . . . . . . . . . . . . . . . . . 7-26
Brake hoses and lines . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19
Brake system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-31 Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-31
Electronic Parking Brake (EPB) . . . . . . . . . . . . . . . 5-33
Auto hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-39
Anti-lock Brake System (ABS) . . . . . . . . . . . . . . . . 5-43 Electronic Stability Control (ESC) . . . . . . . . . . . . . 5-45
Vehicle Stability Management (VSM) . . . . . . . . . . . 5-49
Hill-start Assist Control (HAC) . . . . . . . . . . . . . . . . 5-51
Button start/stop, see engine start/stop button . . . . . . . . 5-7
California perchlorate notice . . . . . . . . . . . . . . . . . . . . 7-95
Camera (rear view) . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-111
Care Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-38
SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-75
Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-38
Center console storage . . . . . . . . . . . . . . . . . . . . . . . . 4-151
Central door lock switch. . . . . . . . . . . . . . . . . . . . . . . . 4-19
Chains - Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-153
Changing the coolant . . . . . . . . . . . . . . . . . . . . . . . . . . 7-25
Changing the engine oil and filter . . . . . . . . . . . . . . . . 7-22
Checking fluid levels . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20
Checking the brake fluid level . . . . . . . . . . . . . . . . . . . 7-26
Checking the coolant level . . . . . . . . . . . . . . . . . . . . . . 7-23
Checking the engine oil level . . . . . . . . . . . . . . . . . . . . 7-21
Checking the washer fluid level . . . . . . . . . . . . . . . . . . 7-27
Checking tire inflation pressure . . . . . . . . . . . . . . . . . . 7-39
C
B

I5
Index
ECO coasting system . . . . . . . . . . . . . . . . . . . . . . . . . . 5-23The ECO-coasting system setting . . . . . . . . . . . . . . 5-23
ECO-coasting operation conditions . . . . . . . . . . . . . 5-24
The ECO-coasting system release conditions . . . . . 5-24
Economical operation . . . . . . . . . . . . . . . . . . . . . . . . . 5-146
Electric Chromic Mirror (ECM) with
HomeLink
®system . . . . . . . . . . . . . . . . . . . . . . . . . 4-58
Electric power steering . . . . . . . . . . . . . . . . . . . . . . . . . 4-54
Electronic Parking Brake (EPB) . . . . . . . . . . . . . . . . . . 5-33
Electronic Stability Control (ESC) . . . . . . . . . . . . . . . . 5-45
Emergency starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5 Jump starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Emergency trunk safety release . . . . . . . . . . . . . . . . . . 4-36
Emergency while driving . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Emission control system . . . . . . . . . . . . . . . . . . . . . . . . 7-92 Crankcase emission control system . . . . . . . . . . . . . 7-92
Evaporative emission control (including ORVR:Onboard Refueling Vapor Recovery) system. . . . . 7-92
Exhaust emission control system . . . . . . . . . . . . . . . 7-93
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6, 7-4
Engine compartment fuse replacement . . . . . . . . . . . . 7-57
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23 Checking the coolant level . . . . . . . . . . . . . . . . . . . . 7-23
Changing the coolant . . . . . . . . . . . . . . . . . . . . . . . . 7-25
Engine coolant temperature gauge . . . . . . . . . . . . . . . . 4-72
Engine oil and filter . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17 Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
21
Checking the engine oil level . . . . . . . . . . . . . . . . . . 7-21
Changing the engine oil and filter . . . . . . . . . . . . . . 7-22
Engine overheats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Engine start/stop button . . . . . . . . . . . . . . . . . . . . . . . . . 5-7 Illuminated engine start/stop button. . . . . . . . . . . . . . 5-7
Engine start/stop button position . . . . . . . . . . . . . . . . 5-7
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
Engine start/stop button illumination . . . . . . . . . . . . . . . 5-7
Engine start/stop button position . . . . . . . . . . . . . . . . . . 5-7
Engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Evaporative emission control (including ORVR: Onboard Refueling Vapor Recovery) system . . . . . . 7-92
Exhaust emission control system . . . . . . . . . . . . . . . . . 7-93
Exhaust pipe and muffler . . . . . . . . . . . . . . . . . . . . . . . 7-20
Explanation of scheduled maintenance items . . . . . . . 7-17 Engine oil and filter . . . . . . . . . . . . . . . . . . . . . . . . . 7-17
Drive belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17
Fuel filter (for Gasoline) . . . . . . . . . . . . . . . . . . . . . 7-17
Fuel lines, fuel hoses and connections . . . . . . . . . . . 7-17
Vapor hose and fuel filler cap . . . . . . . . . . . . . . . . . 7-17
Vacuum crankcase ventilation hoses . . . . . . . . . . . . 7-18
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18
Spark plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18
Valve clearance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18
Cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
18
Automatic transmission fluid . . . . . . . . . . . . . . . . . . 7-18
E
