2019 KIA K900 headlamp

Maintenance
78
7
✽ ✽
NOTICE
• If the light bulb or lamp connector
is removed while the lamp is still
on, the fuse box's electronic sys-
tem may log it as a malfunction.
Therefore, a lamp malfunction
incident may be recorded as a
Diagnostic Trouble Code (DTC) in
the fuse box.
• It is normal for an operating lamp to flicker momentarily. This is due
to a stabilization function of the
vehicle’s electronic control device.
If the lamp lights up normally
after momentarily blinking, then
it is functioning as normal.
However, if the lamp continues to
flicker several times or turns off
completely, there may be an error
in the vehicle’s electronic control
device. Please have the vehicle
checked by an authorized K900
Kia dealer immediately.
✽ ✽ NOTICE
We recommend that the headlight
aiming be adjusted after an accident
or after the headlight assembly is rein-
stalled at an authorized K900 Kia
dealer.
✽ ✽NOTICE
After driving in heavy rain or wash-
ing, headlamp and taillight lenses
could appear foggy. This condition is
caused by the temperature differ-
ence between the lamp inside and
outside. This is similar to the con-
densation on your windows inside
your vehicle during the rain and
doesn’t indicate a problem with your
vehicle. If the water leaks into the
lamp bulb circuitry, we recommend
that you have the vehicle checked by
an authorized K900 Kia dealer.
If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized K900 Kia deal-
er. In many cases, it is difficult to
replace vehicle light bulbs because
other parts of the vehicle must be
removed before you can get to the
bulb. This is especially true if you
have to remove the headlamp
assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If non-genuine parts or substandard
bulbs are used, it may lead to blow-
ing a fuse or other wiring damages.
Do not install extra lamps or LEDs to
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other writing may
be damaged.

779
Maintenance
Light bulb position (Front)
(1) Headlamp (Low) (LED type)
(2,3) Headlamp (High/Low) (LED
type)
(4) Day time running lamp / Position lamp (LED type)
(5) Day time running lamp / Position lamp / Front turn signal lamp
(LED type)
(6) Side marker (LED type)
Light bulb position (Rear)
(1,2) Stop and tail lamp (LED type)
(3) Rear turn signal lamp (LED type)
(4) Side marker (LED type) (5) High mounted stop lamp (LED
type)
(6) License plate lamp (LED type)
(7) Back up lamp (LED type)
ORJ078030N
■ Head lamp
ORJ078031N
■Rear combination lamp
ORJ078032
■High mounted stop lamp
ORJ078033
■License plate lamp
ORJ078056L
■Rear fog lamp

Maintenance
80
7
Light bulb position (Side)
(1) Side repeater lamp (LED type)
Headlamp (LED type) bulb
replacement
If the Low/High beam lamp, day time
running lamp, position lamp, front turn
signal lamp and side marker
(1,2,3,4,5,6) do not operate, have the
vehicle checked by an authorized
K900 Kia dealer.
The LED lamp cannot be replaced as
a single component because it is part
of an integrated unit. The LED lamp
has to be replaced with the unit.
A skilled technician should check or
repair the head lamp (LED), for it
may damage related parts of the
vehicle.
Rear combination lamp (LED
type) bulb replacement
If the Low/High beam lamp, day time
running lamp, position lamp, front turn
signal lamp and side marker
(1,2,3,4,5,6) do not operate, have the
vehicle checked by an authorized
K900 Kia dealer.
The LED lamp cannot be replaced as
a single component because it is part
of an integrated unit. The LED lamp
has to be replaced with the unit.
A skilled technician should check or
repair the head lamp (LED), for it may
damage related parts of the vehicle.
ORJ078034
■ Side repeater lamp
ORJ078030N
■Head lamp
ORJ078031N
■Rear combination lamp

83
Specifications, Consumer information, Reporting safety defects
BULB WATTAGE
Light BulbWattage (W) Bulb type
Front Headlamps (Low/High)
LEDLED
Front turn signal lamps LEDLED
Front position lamps LEDLED
Daytime running light LEDLED
Side Repeater lamps LEDLED
Rear Rear Stop/Tail lamps (outside)
LEDLED
Rear tail lamps (Inside) LEDLED
Rear turn signal lamps LEDLED
Back-up lamps LEDLED
High mounted stop lamp LEDLED
License plate lamps LEDLED
Interior Map lamps
LEDLED
Room lamps LEDLED
Personal lamps LEDLED
Vanity mirror lamps LEDLED
Glove box lamp LEDLED
Trunk lamp LEDLED

I7
Index
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-71
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15\
1
Glove box lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-129
Glove box lamp (LED type) bulb replacement . . . . . . 7-83
Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Hazardous driving conditions . . . . . . . . . . . . . . . . . . . 5-148
Headlamp (LED type) bulb replacement . . . . . . . . . . . 7-80
Headlight (Headlamp) escort function . . . . . . . . . . . . 4-130
Headlight leveling device . . . . . . . . . . . . . . . . . . . . . . 4-121
Headlight position. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Headrest (front). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Heated steering wheel. . . . . . . . . . . . . . . . . . . . . . . . . . 4-56
High - beam operation . . . . . . . . . . . . . . . . . . . . . . . . 4-116
High beam assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-117
High mounted stop lamp (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-81
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-151
Hill-start Assist Control (HAC) . . . . . . . . . . . . . . . . . . 5-51
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-42
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-57 Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Important safety precautions . . . . . . . . . . . . . . . . . . . . . 3-2
Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Inflation condition (Air bags) . . . . . . . . . . . . . . . . . . . . 3-71
Inner panel fuse replacement . . . . . . . . . . . . . . . . . . . . 7-55
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . 4-58
Installing a Child Restraint System (CRS) . . . . . . . . . . 3-43
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-69
LCD window control . . . . . . . . . . . . . . . . . . . . . . . . 4-70
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
71
LCD windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-76
LCD modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-80
Service mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-82
Set Up mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-84
Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-76
Trip modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-76
Warning and indicator lights . . . . . . . . . . . . . . . . . . 4-91
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-91
Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Instrument panel overview . . . . . . . . . . . . . . . . . . . . . . . 2-5
Interior care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-89\
Interior features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-153 Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-153
Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-154
Air ventilation seat . . . . . . . . . . . . . . . . . . . . . . . . . 4-155
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-156
H
GI

I9
Index
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-77\
Lamp (LED type) bulb replacement . . . . . . . . . . . . 7-77
Light bulb position (front) . . . . . . . . . . . . . . . . . . . . 7-79
Light bulb position (rear) . . . . . . . . . . . . . . . . . . . . . 7-79
Light bulb position (side) . . . . . . . . . . . . . . . . . . . . . 7-80
Headlamp (LED type) bulb replacement . . . . . . . . . 7-80
Rear combination lamp (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-80
High mounted stop lamp (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-81
License plate lamp (LED type) bulb replacement . . 7-81
Rear fog lamp (LED type) bulb replacement. . . . . . 7-81
Side repeater lamp (LED type) bulb replacement . . 7-82
Map lamp (LED type) bulb replacement . . . . . . . . . 7-82
Vanity mirror lamp (front) (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-82
Room lamp (LED type) bulb replacement . . . . . . . . 7-83
Glove box lamp (LED type) bulb replacement . . . . 7-83
Trunk lamp (LED type) bulb replacement . . . . . . . . 7-83
Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-114 Battery saver function . . . . . . . . . . . . . . . . . . . . . . 4-114
Daytime running light . . . . . . . . . . . . . . . . . . . . . . 4-114
Parking & Tail light . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Auto light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Headlight position . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
High - beam operation . . . . . . . . . . . . . . . . . . . . . . 4-116
High beam assist . . . . . . . . . . . . . . . . . . . . . . . . . . 4-117
Turn signals and lane change signals . . . . . . . . . . . 4-120 Headlight leveling device . . . . . . . . . . . . . . . . . . . 4-121
Dynamic Bending Light (DBL) . . . . . . . . . . . . . . . 4-122
Low aspect ratio tire . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12\
6
Map lamp (LED type) bulb replacement . . . . . . . . . . . 7-82
Mechanical key operations . . . . . . . . . . . . . . . . . . . . . . 4-10
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-58 Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . 4-58
Electric Chromic Mirror (ECM) with HomeLink
®
system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
58
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-66
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
Folding the outside rearview mirror. . . . . . . . . . . . . 4-68
Non-inflation conditions (Air bags) . . . . . . . . . . . . . . . 3-73
Occupant Detection System . . . . . . . . . . . . . . . . . . . . . 3-57
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
73
Opening the trunk (Non-power trunk) . . . . . . . . . . . . . 4-23
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-66
M
N
O

Vacuum crankcase ventilation hoses . . . . . . . . . . . . . . 7-18
Valve clearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
Vanity mirror lamp (front) (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-82
Vapor hose and fuel filler cap . . . . . . . . . . . . . . . . . . . . 7-17
Vehicle load limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-157 Tire and loading information label. . . . . . . . . . . . . 5-157
Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . 5-160

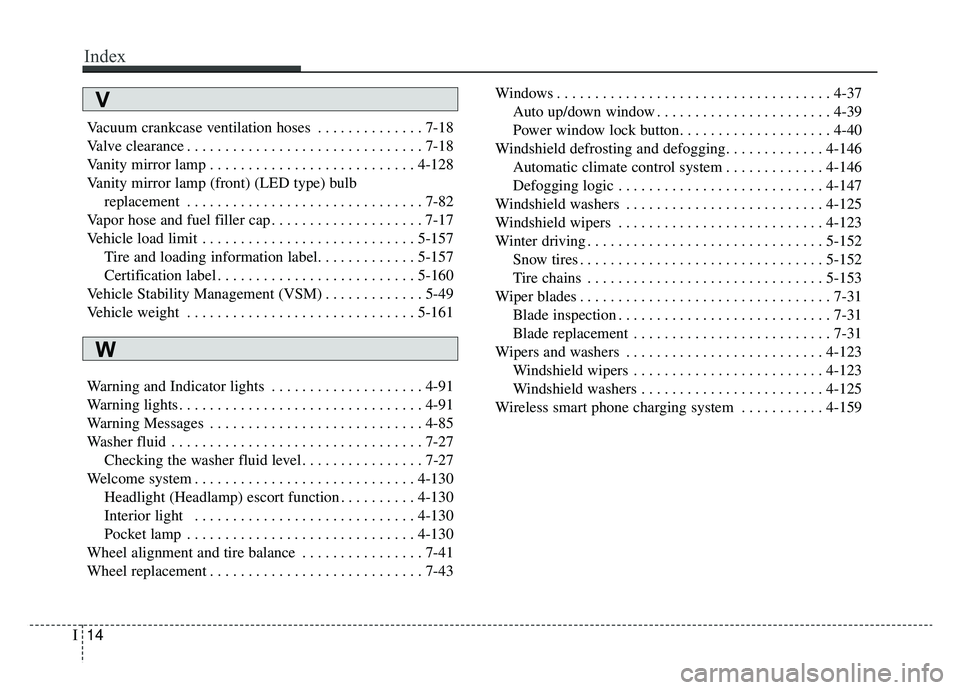

Vehicle Stability Management (VSM) . . . . . . . . . . . . . 5-49
Vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-161
Warning and Indicator lights . . . . . . . . . . . . . . . . . . . . 4-91
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-91
Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-85
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-27 Checking the washer fluid level . . . . . . . . . . . . . . . . 7-27
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-130 Headlight (Headlamp) escort function . . . . . . . . . . 4-130
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-130
Pocket lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-130
Wheel alignment and tire balance . . . . . . . . . . . . . . . . 7-41
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43 Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-37
Auto up/down window . . . . . . . . . . . . . . . . . . . . . . . 4-39
Power window lock button. . . . . . . . . . . . . . . . . . . . 4-40
Windshield defrosting and defogging. . . . . . . . . . . . . 4-146 Automatic climate control system . . . . . . . . . . . . . 4-146
Defogging logic . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-147
Windshield washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-125
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-123
Winter driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-152 Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-152
Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-153
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-31 Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-31
Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 7-31
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-123 Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . 4-123
Windshield washers . . . . . . . . . . . . . . . . . . . . . . . . 4-125
Wireless smart phone charging system . . . . . . . . . . . 4-159
I14
Index
W
V
