2019 KIA K900 fuse box

Maintenance
72
7

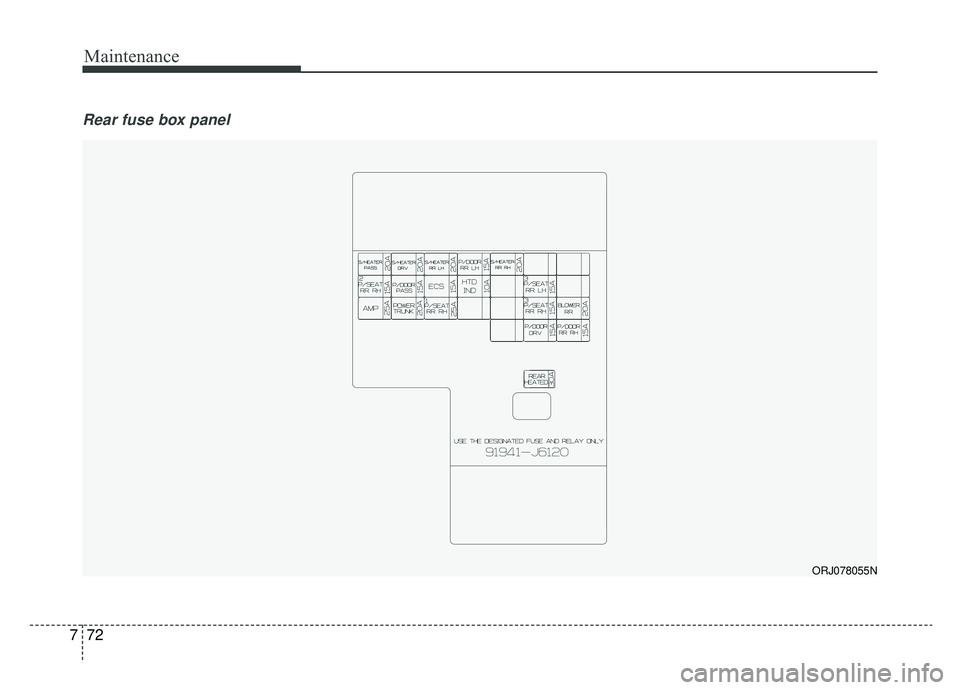

Rear fuse box panel
ORJ078055N

773
Maintenance

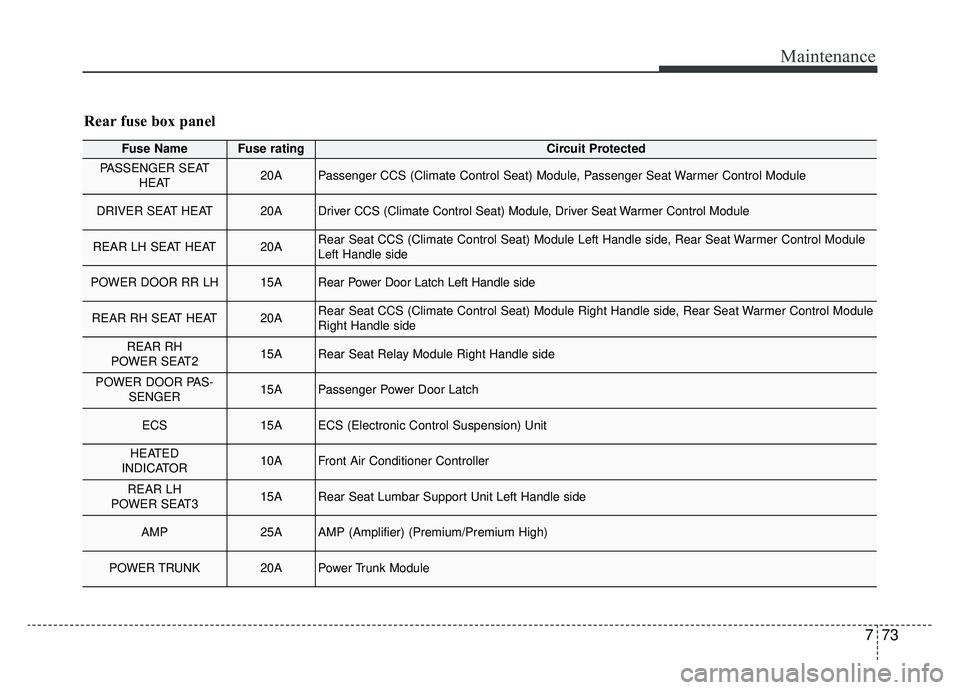

Fuse NameFuse ratingCircuit Protected
PASSENGER SEATHEAT20APassenger CCS (Climate Control Seat) Module, Passenger Seat Warmer Control Module
DRIVER SEAT HEAT20ADriver CCS (Climate Control Seat) Module, Driver Seat Warmer Control Module
REAR LH SEAT HEAT20ARear Seat CCS (Climate Control Seat) Module Left Handle side, Rear Seat Warmer Control Module
Left Handle side
POWER DOOR RR LH15ARear Power Door Latch Left Handle side
REAR RH SEAT HEAT20ARear Seat CCS (Climate Control Seat) Module Right Handle side, Rear Seat Warmer Control Module
Right Handle side
REAR RH
POWER SEAT215ARear Seat Relay Module Right Handle side
POWER DOOR PAS- SENGER15APassenger Power Door Latch
ECS15AECS (Electronic Control Suspension) Unit
HEATED
INDICATOR10AFront Air Conditioner Controller
REAR LH
POWER SEAT315ARear Seat Lumbar Support Unit Left Handle side
AMP25AAMP (Amplifier) (Premium/Premium High)
POWER TRUNK20APower Trunk Module
Rear fuse box panel

775
Maintenance

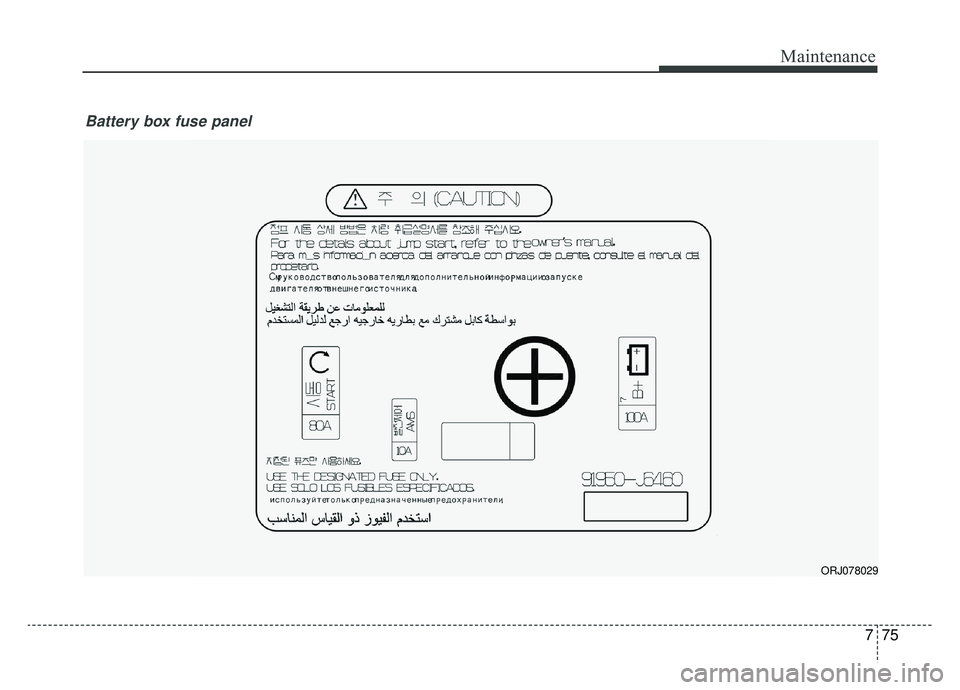

Battery box fuse panel
ORJ078029

Maintenance
76
7

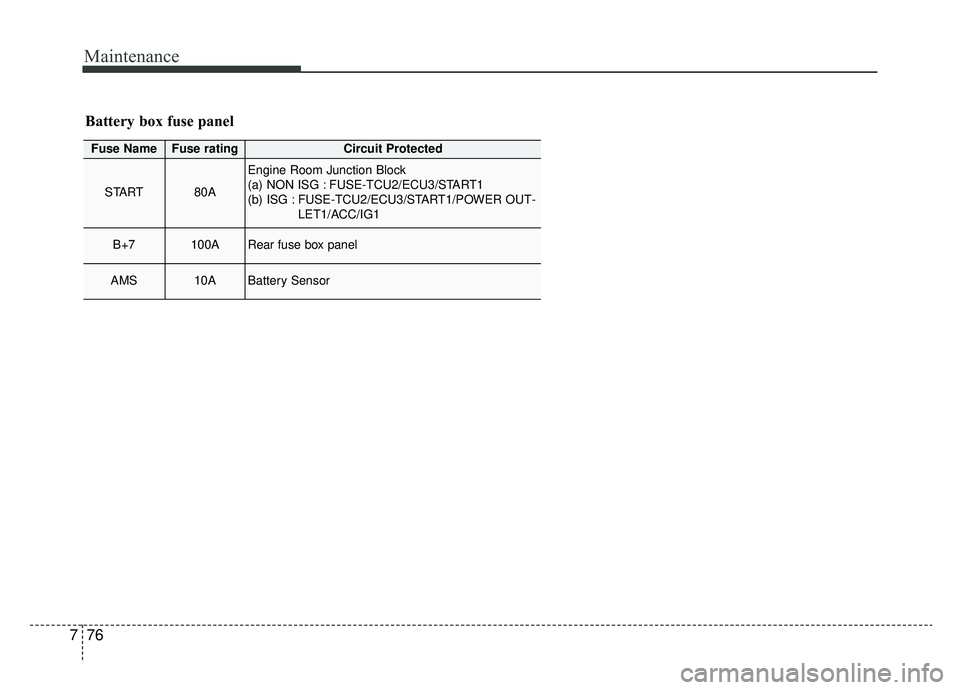

Fuse NameFuse ratingCircuit Protected
START80A
Engine Room Junction Block
(a) NON ISG : FUSE-TCU2/ECU3/START1
(b) ISG : FUSE-TCU2/ECU3/START1/POWER OUT-
LET1/ACC/IG1
B+7100ARear fuse box panel
AMS10ABattery Sensor
Battery box fuse panel

Maintenance
78
7
✽ ✽

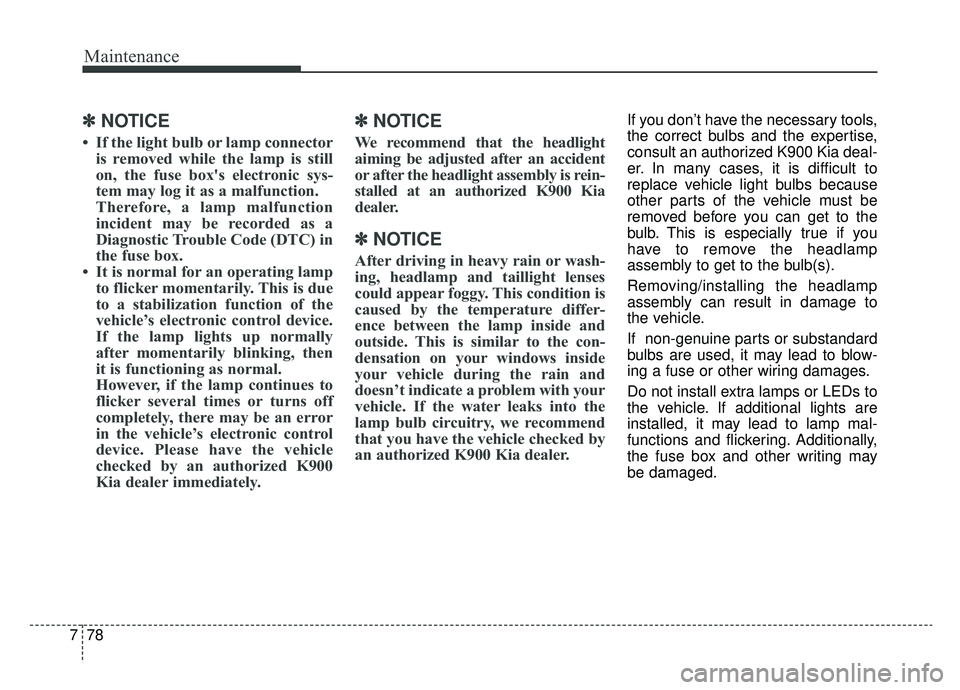

NOTICE
• If the light bulb or lamp connector
is removed while the lamp is still
on, the fuse box's electronic sys-
tem may log it as a malfunction.
Therefore, a lamp malfunction
incident may be recorded as a
Diagnostic Trouble Code (DTC) in
the fuse box.
• It is normal for an operating lamp to flicker momentarily. This is due
to a stabilization function of the
vehicle’s electronic control device.
If the lamp lights up normally
after momentarily blinking, then
it is functioning as normal.
However, if the lamp continues to
flicker several times or turns off
completely, there may be an error
in the vehicle’s electronic control
device. Please have the vehicle
checked by an authorized K900
Kia dealer immediately.
✽ ✽ NOTICE
We recommend that the headlight
aiming be adjusted after an accident
or after the headlight assembly is rein-
stalled at an authorized K900 Kia
dealer.
✽ ✽NOTICE
After driving in heavy rain or wash-
ing, headlamp and taillight lenses
could appear foggy. This condition is
caused by the temperature differ-
ence between the lamp inside and
outside. This is similar to the con-
densation on your windows inside
your vehicle during the rain and
doesn’t indicate a problem with your
vehicle. If the water leaks into the
lamp bulb circuitry, we recommend
that you have the vehicle checked by
an authorized K900 Kia dealer.
If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized K900 Kia deal-
er. In many cases, it is difficult to
replace vehicle light bulbs because
other parts of the vehicle must be
removed before you can get to the
bulb. This is especially true if you
have to remove the headlamp
assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If non-genuine parts or substandard
bulbs are used, it may lead to blow-
ing a fuse or other wiring damages.
Do not install extra lamps or LEDs to
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other writing may
be damaged.
