What to do in an emergency
If the engine stalls at a cross-
road or crossing
If the engine stalls at a crossroad or
crossing, set the shift lever in the N
(Neutral) position and then push the
vehicle to a safe place.
If you have a flat tire while
driving
If a tire goes flat while you are driv-
ing:
1. Take your foot off the acceleratorpedal and let the vehicle slow
down while driving straight ahead.
Do not apply the brakes immedi-
ately or attempt to pull off the road
as this may cause a loss of con-
trol. When the vehicle has slowed
to such a speed that it is safe to do
so, brake carefully and pull off the
road. Drive off the road as far as
possible and park on firm level
ground. If you are on a divided
highway, do not park in the median
area between the two traffic lanes. 2. When the vehicle is stopped, turn
on your emergency hazard flash-
ers, set the parking brake and put
the transmission in P (for Intelligent
Variable Transmission) or in
reverse (Manual Transmission).
3. Have all passengers get out of the vehicle. Be sure they all get out on
the side of the vehicle that is away
from traffic.
4. When changing a flat tire, follow the instruction provided later in
this section.
If the engine stalls while driv-
ing
1. Reduce your speed gradually,keeping a straight line. Move cau-
tiously off the road to a safe place.
2. Turn on your emergency flashers.
3. Try to start the engine again. If your vehicle will not start, contact
an authorized Kia dealer or seek
other qualified assistance.
✽ ✽NOTICE
If there was a check engine light and
loss of power or stall and if safe to do
so, wait at least 10 seconds to restart
the vehicle after it stalls. This may
reset the car so it will no longer run
at low power (limp home) condition.
IN CASE OF AN EMERGENCY WHILE DRIVING
BDm CAN (ENG) 6.qxp 7/4/2018 10:20 AM Page 3

69
What to do in an emergency

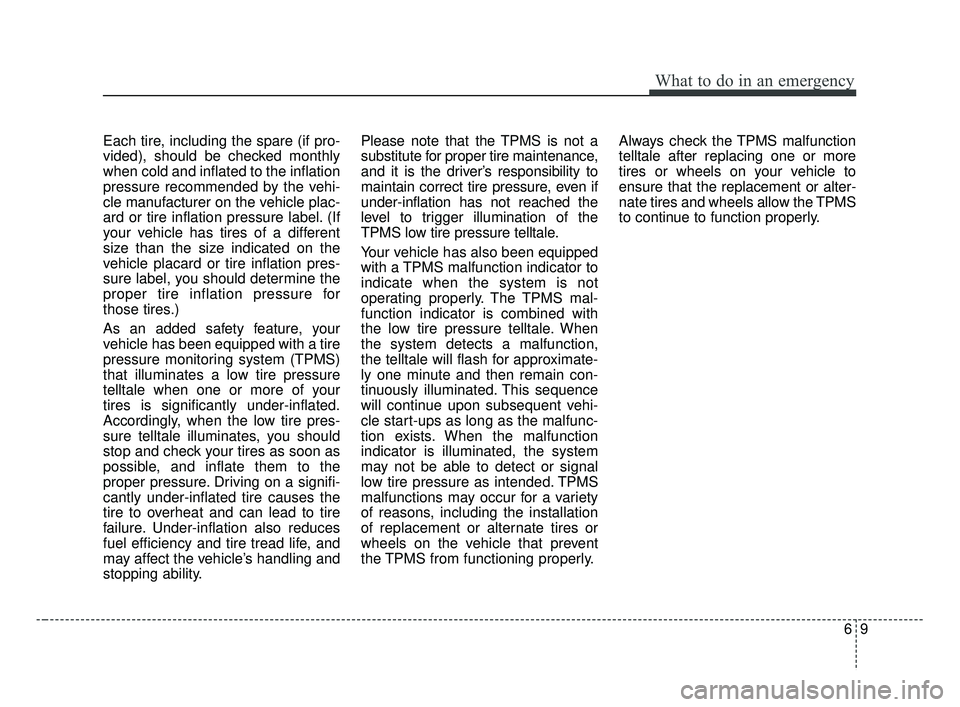

Each tire, including the spare (if pro-
vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehi-
cle manufacturer on the vehicle plac-
ard or tire inflation pressure label. (If
your vehicle has tires of a different
size than the size indicated on the
vehicle placard or tire inflation pres-
sure label, you should determine the
proper tire inflation pressure for
those tires.)
As an added safety feature, your
vehicle has been equipped with a tire
pressure monitoring system (TPMS)
that illuminates a low tire pressure
telltale when one or more of your
tires is significantly under-inflated.
Accordingly, when the low tire pres-
sure telltale illuminates, you should
stop and check your tires as soon as
possible, and inflate them to the
proper pressure. Driving on a signifi-
cantly under-inflated tire causes the
tire to overheat and can lead to tire
failure. Under-inflation also reduces
fuel efficiency and tire tread life, and
may affect the vehicle’s handling and
stopping ability.Please note that the TPMS is not a
substitute for proper tire maintenance,
and it is the driver’s responsibility to
maintain correct tire pressure, even if
under-inflation has not reached the
level to trigger illumination of the
TPMS low tire pressure telltale.
Your vehicle has also been equipped
with a TPMS malfunction indicator to
indicate when the system is not
operating properly. The TPMS mal-
function indicator is combined with
the low tire pressure telltale. When
the system detects a malfunction,
the telltale will flash for approximate-
ly one minute and then remain con-
tinuously illuminated. This sequence
will continue upon subsequent vehi-
cle start-ups as long as the malfunc-
tion exists. When the malfunction
indicator is illuminated, the system
may not be able to detect or signal
low tire pressure as intended. TPMS
malfunctions may occur for a variety
of reasons, including the installation
of replacement or alternate tires or
wheels on the vehicle that prevent
the TPMS from functioning properly.
Always check the TPMS malfunction
telltale after replacing one or more
tires or wheels on your vehicle to
ensure that the replacement or alter-
nate tires and wheels allow the TPMS
to continue to function properly.
BDm CAN (ENG) 6.qxp 7/4/2018 10:20 AM Page 9

What to do in an emergency
10
6
✽ ✽
NOTICE
If the TPMS, Low Tire Pressure
indicator does not illuminate for 3
seconds when the ignition switch is
turned to the ON position, or if they
remain illuminated after coming on
for approximately 3 seconds, take
your vehicle to your nearest author-
ized Kia dealer and have the system
checked.
Low tire pressure
telltale
Low tire pressure position tell-
tale
When the tire pressure monitoring
system warning indicators are illumi-
nated, one or more of your tires is
significantly under-inflated.
If the telltale illuminates, immediately
reduce your speed, avoid hard cor-
nering and anticipate increased stop-
ping distances. You should stop and
check your tires as soon as possible. Inflate the tires to the proper pres-
sure as indicated on the vehicle’s
placard or tire inflation pressure label
located on the driver’s side center pil-
lar outer panel. If you cannot reach a
service station or if the tire cannot
hold the newly added air, replace the
low pressure tire with the spare tire.
Then the TPMS malfunction indicator
and the Low Tire Pressure telltale
may turn on and illuminate after
restarting and about 20 minutes of
continuous driving before you have
the low pressure tire repaired and
replaced on the vehicle.
In winter or cold weather, the low tire
pressure telltale may be illuminated if
the tire pressure was adjusted to the
recommended tire inflation pressure
in warm weather. It does not mean
your TPMS is malfunctioning
because the decreased temperature
leads to a proportional lowering of
tire pressure.
OBDM068035
BDm CAN (ENG) 6.qxp 7/4/2018 10:20 AM Page 10

What to do in an emergency
30
6
8. Connect between compressor and
the vehicle power outlet using the
cable and connectors (4).
✽ ✽NOTICE
Only use the front passenger side
power outlet.
9. With the engine start/stop button
position on: switch on the compres-
sor and let it run for approximately
5~7 minutes to fill the sealant up to
proper pressure (refer to the "Tires
and wheels" in chapter 9). Be care-
ful not to overinflate the tire and
stay away from the tire when filling
it. When the tire and wheel are
damaged, do not use Tire Mobility
Kit for your safety. 10. Switch off the compressor.
11. Detach the hose from the sealant
bottle connector and from the tire
valve.
Return the Tire Mobility Kit to its stor-
age location in the vehicle.
OBD068009
WARNING
Do not attempt to drive your
vehicle if the tire pressure is
below 200 kPa (29 psi). This
could result in an accident due
to sudden tire failure.
WARNING
Carbon monoxide poisoning
and suffocation is possible if the
engine is left running in a poorly
ventilated or unventilated loca-
tion (such as inside a building).
BDm CAN (ENG) 6.qxp 7/4/2018 10:21 AM Page 30

Maintenance
64
7
Fuse NameFuse ratingCircuit Protected
CLUSTER7.5AInstrument Cluster
MODULE 37.5ASport Mode Switch, Stop Lamp Switch
START7.5AICM (Integrated Circuit Module) Relay Box (Burglar Alarm Relay), Transaxle Range Switch, IBU
(Integrated Body Control Unit), ECM (Engine Control Module)/PCM (Power train Control Module),
Engine Room Junction Block (Start)
IBU 27.5AIBU (Integrated Body Control Unit)
AIR BAG
INDICATOR7.5AInstrument Cluster, Air Conditioner Control Module
MODULE 67.5AIBU (Integrated Body Control Unit)
MODULE 210AAudio/Video & Navigation Head Unit, IBU (Integrated Body Control Unit), Rear USB Charger, Wireless
Charger, AMP (Amplifier), Power Outside Mirror Switch, Engine Room Junction Block (Power Outlet)
AIR BAG 115ASRS (Supplemental Restraint System) Control Module, Passenger Occupant Detection Sensor
AIR
CONDITIONER 210AEngine Room Junction Block (BLOWER Relay), Air Conditioner Control Module, Blower Resistor, Blower
Motor
POWER OUTLET20ACigarette Lighter
BDm CAN (ENG) 7.qxp 7/4/2018 10:25 AM Page 64

7101
Maintenance
Do not operate the engine in con-fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped vehicle for any extended time with
the engine running.
When the engine stalls or fails to start, excessive attempts to restart
the engine may cause damage to
the emission control system.Operating precautions for catalyt-
ic converters (if equipped)
WARNING- Catalytic converter
Keep away from the catalytic
converter and exhaust system
while the vehicle is running or
immediately thereafter. The
exhaust and catalytic systems
are very hot and may burn you.
WARNING- Fire
Do not park, idle or drive the vehicle over or near flamma-
ble objects, such as grass,
vegetation, paper, leaves, etc.
A hot exhaust system can
ignite flammable items under
your vehicle.
Also, do not remove the heat sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle or do not coat the
vehicle for corrosion control.
It may present a fire risk under
certain conditions.
BDm CAN (ENG) 7.qxp 7/4/2018 10:27 AM Page 101

I3
Index
Blind-Spot Collision Warning (BCW) system . . . . . . 5-102BCW (Blind-spot Collision Warning)/LCA (Lane Change Assist) . . . . . . . . . . . . . . . . . 5-103
RCCW (Rear Cross-traffic Collision Warning) . . . 5-106
Bonnet see the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-35
Brake system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-31 Anti-lock Brake System (ABS) . . . . . . . . . . . . . . . . 5-36
Electronic Stability Control (ESC) . . . . . . . . . . . . . 5-37
Hill-start Assist Control (HAC) . . . . . . . . . . . . . . . . 5-44
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-33
Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-31
Vehicle Stability Management (VSM) . . . . . . . . . . . 5-42
Brake/clutch fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-26 Checking the brake/clutch fluid level . . . . . . . . . . . 7-26
Bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-71
Bulb replacement precaution . . . . . . . . . . . . . . . . . . . . 7-71
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Button start/stop, see engine start/stop button . . . . . . . 5-11
Camera (Rear view) . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-99
Capacities (Lubricants) . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Care Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-91
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-96
SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-68 Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-40\
Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
Center console storage . . . . . . . . . . . . . . . . . . . . . . . . 4-142
Central door lock switch. . . . . . . . . . . . . . . . . . . . . . . . 4-21
Checking fluid levels . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20
Checking tire inflation pressure . . . . . . . . . . . . . . . . . . 7-41
Child restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-32 Installing a Child Restraint System (CRS) . . . . . . . 3-36
"Lower Anchors and Tether forChildren (LATCH) System" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-37
"Securing a child restraint seatwith “Tether Anchor” system" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-39\
"Securing a child restraint with alap/shoulder belt" 3-40
"Securing a child restraint withthe LATCH anchors system" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-38\
Selecting a Child Restraint System (CRS) . . . . . . . 3-33
Child-protector rear door lock . . . . . . . . . . . . . . . . . . . 4-22
Climate control air filter . . . . . . . . . . . . . . . . . . . . . . . . 7-31 Filter inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-31
Closing the trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25
Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-153
Combined instrument, see instrument cluster . . . . . . . 4-56
Compact spare tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 7-23
Cooling fluid, see engine coolant . . . . . . . . . . . . . . . . . 7-23
Crankcase emission control system . . . . . . . . . . . . . . . 7-99
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . . . 5-73 To cancel cruise control . . . . . . . . . . . . . . . . . . . . . . 5-75
C
BDm CAN (ENG) Index.qxp 6/30/2018 2:03 PM Page 3

I5
Index
Emergency Trunksafety release . . . . . . . . . . . . . . . . . . 4-25
Emergency while driving . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Emission control system . . . . . . . . . . . . . . . . . . . . . . . . 7-99Crankcase emission control system . . . . . . . . . . . . . 7-99
Evaporative emission control (including ORVR: Onboard Refueling Vapor Recovery) system . . . . 7-99
Exhaust emission control system . . . . . . . . . . . . . . 7-100
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 8-2
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23 Changing the coolant . . . . . . . . . . . . . . . . . . . . . . . . 7-25
Checking the coolant level . . . . . . . . . . . . . . . . . . . . 7-23
Engine coolant temperature gauge . . . . . . . . . . . . . . . . 4-59
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
21 Changing the engine oil and filter . . . . . . . . . . . . . . 7-22
Checking the engine oil level. . . . . . . . . . . . . . . . . . 7-21
Engine overheats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Engine start/stop button . . . . . . . . . . . . . . . . . . . . . . . . 5-11 Engine start/stop button position . . . . . . . . . . . . . . . 5-11
Illuminated engine start/stop button . . . . . . . . . . . . . 5-11
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14
Engine start/stop button illumination . . . . . . . . . . . . . . 5-11
Engine start/stop button position . . . . . . . . . . . . . . . . . 5-11
Engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4 Evaporative emission control (including ORVR:
Onboard Refueling Vapor Recovery) system . . . . . 7-99
Exhaust emission control system . . . . . . . . . . . . . . . . 7-100
Explanation of scheduled maintenance items . . . . . . . 7-16 Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17
Air conditioning refrigerant . . . . . . . . . . . . . . . . . . 7-20
Brake discs, pads, calipers and rotors . . . . . . . . . . . 7-19
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19
Brake hoses and lines . . . . . . . . . . . . . . . . . . . . . . . . 7-18
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17\
Cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17
Drive belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-16
Drive shafts and boots . . . . . . . . . . . . . . . . . . . . . . . 7-20
Engine oil and filter . . . . . . . . . . . . . . . . . . . . . . . . . 7-16
Exhaust pipe and muffler . . . . . . . . . . . . . . . . . . . . . 7-19
Fuel filter (for gasoline) . . . . . . . . . . . . . . . . . . . . . . 7-16
Fuel lines, fuel hoses and connections . . . . . . . . . . . 7-16
Intelligent Variable Transmission (IVT) fluid . . . . . 7-17
Manual transaxle fluid . . . . . . . . . . . . . . . . . . . . . . . 7-18
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19
Spark plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17
Steering gear box, linkage & boots/lower arm ball joint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20
Suspension mounting bolts . . . . . . . . . . . . . . . . . . . 7-19
Vacuum crankcase ventilation hoses . . . . . . . . . . . . 7-17
Vapor hose and fuel filler cap . . . . . . . . . . . . . . . . . 7-16
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-91
BDm CAN (ENG) Index.qxp 6/30/2018 2:03 PM Page 5
