2019 JEEP GRAND CHEROKEE LIMITED mirror controls

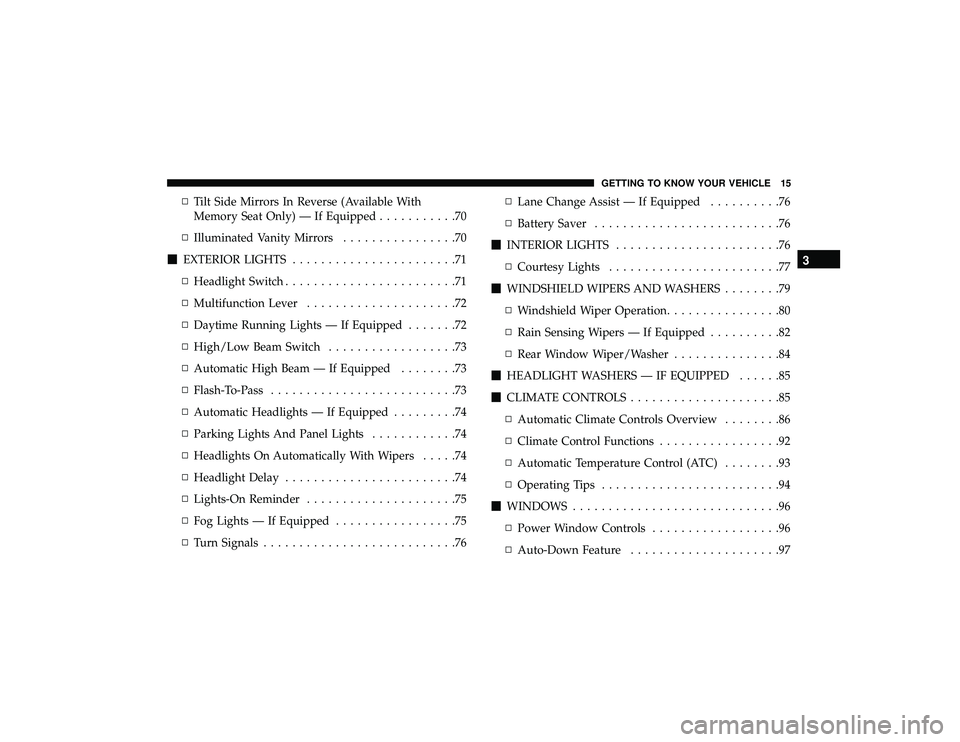

▫Tilt Side Mirrors In Reverse (Available With
Memory Seat Only) — If Equipped ...........70
▫ Illuminated Vanity Mirrors ................70
 EXTERIOR LIGHTS .......................71
▫ Headlight Switch ........................71
▫ Multifunction Lever .....................72
▫ Daytime Running Lights — If Equipped .......72
▫ High/Low Beam Switch ..................73
▫ Automatic High Beam — If Equipped ........73
▫ Flash-To-Pass ..........................73
▫ Automatic Headlights — If Equipped .........74
▫ Parking Lights And Panel Lights ............74
▫ Headlights On Automatically With Wipers .....74
▫ Headlight Delay ........................74
▫ Lights-On Reminder .....................75
▫ Fog Lights — If Equipped .................75
▫ Turn Signals ...........................76 ▫
Lane Change Assist — If Equipped ..........76
▫ Battery Saver ..........................76
 INTERIOR LIGHTS .......................76
▫ Courtesy Lights ........................77
 WINDSHIELD WIPERS AND WASHERS ........79
▫ Windshield Wiper Operation ................80
▫ Rain Sensing Wipers — If Equipped ..........82
▫ Rear Window Wiper/Washer ...............84
 HEADLIGHT WASHERS — IF EQUIPPED ......85
 CLIMATE CONTROLS .....................85
▫ Automatic Climate Controls Overview ........86
▫ Climate Control Functions .................92
▫ Automatic Temperature Control (ATC) ........93
▫ Operating Tips .........................94
 WINDOWS .............................96
▫ Power Window Controls ..................96
▫ Auto-Down Feature .....................97
3
GETTING TO KNOW YOUR VEHICLE 15

Outside Automatic Dimming Mirrors — If Equipped
The outside mirrors will automatically adjust for glare
from vehicles behind you. This feature is controlled by the
inside automatic dimming mirror. The mirrors will auto-
matically adjust for headlight glare when the inside mirror
adjusts.
Power Mirrors
The power mirror switch is located on the driver’s side
door trim panel.
The power mirror controls consist of mirror select buttons
and a four-way mirror control switch. To adjust a mirror,
push the mirror select button for the mirror that you want
to adjust. Using the mirror control switch, push on any of
the four arrows for the direction that you want the mirror
to move.Power mirror preselected positions can be controlled by
the optional Memory Seat Feature. Refer to “Driver
Memory Seat” in “Getting To Know Your Vehicle” for
further information.
Power Folding Outside Mirrors — If Equipped
If equipped with power folding mirrors, they can be
electrically folded rearward and unfolded into the drive
position.

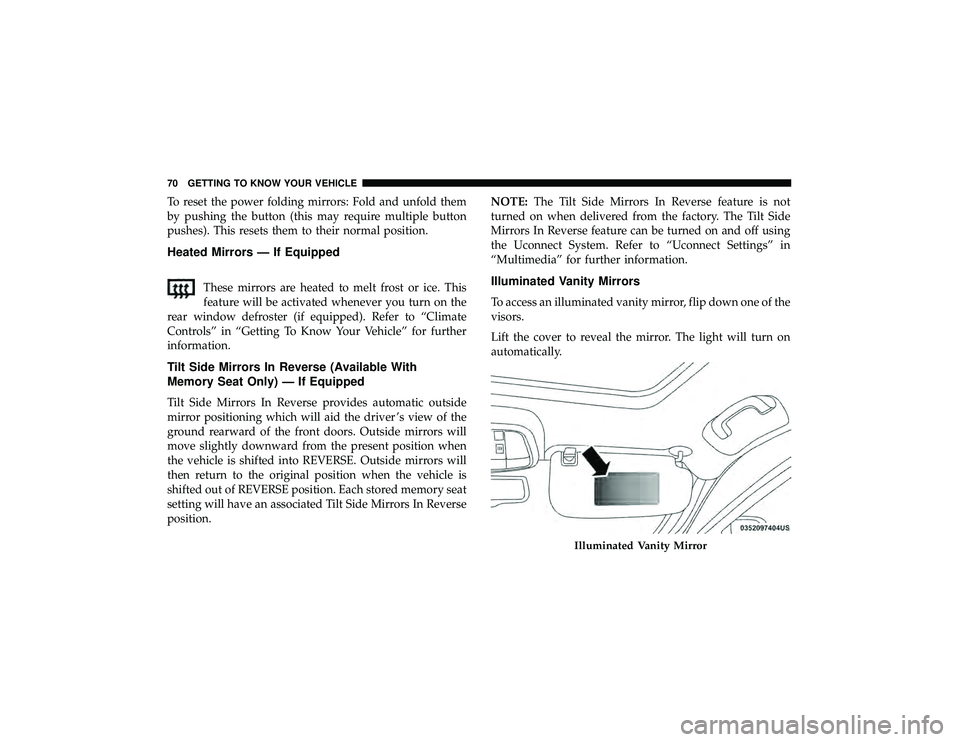

To reset the power folding mirrors: Fold and unfold them
by pushing the button (this may require multiple button
pushes). This resets them to their normal position.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature will be activated whenever you turn on the
rear window defroster (if equipped). Refer to “Climate
Controls” in “Getting To Know Your Vehicle” for further
information.
Tilt Side Mirrors In Reverse (Available With
Memory Seat Only) — If Equipped
Tilt Side Mirrors In Reverse provides automatic outside
mirror positioning which will aid the driver ’s view of the
ground rearward of the front doors. Outside mirrors will
move slightly downward from the present position when
the vehicle is shifted into REVERSE. Outside mirrors will
then return to the original position when the vehicle is
shifted out of REVERSE position. Each stored memory seat
setting will have an associated Tilt Side Mirrors In Reverse
position. NOTE:
The Tilt Side Mirrors In Reverse feature is not
turned on when delivered from the factory. The Tilt Side
Mirrors In Reverse feature can be turned on and off using
the Uconnect System. Refer to “Uconnect Settings” in
“Multimedia” for further information.
Illuminated Vanity Mirrors
To access an illuminated vanity mirror, flip down one of the
visors.
Lift the cover to reveal the mirror. The light will turn on
automatically.

HAZARD WARNING FLASHERS
The Hazard Warning flasher switch is located on the switch
bank just above the climate controls.Push the switch to turn on the Hazard Warning
flasher. When the switch is activated, all direc-
tional turn signals will flash on and off to warn
oncoming traffic of an emergency. Push the
switch a second time to turn off the Hazard Warning
flashers.
This is an emergency warning system and it should not be
used when the vehicle is in motion. Use it when your
vehicle is disabled and it is creating a safety hazard for
other motorists.
When you must leave the vehicle to seek assistance, the
Hazard Warning flashers will continue to operate even
though the ignition is placed in the OFF position.
NOTE: With extended use, the Hazard Warning flashers
may discharge the battery.
ASSIST AND SOS MIRROR — IF EQUIPPED
If equipped, the rearview mirror contains an ASSIST and a
SOS button.

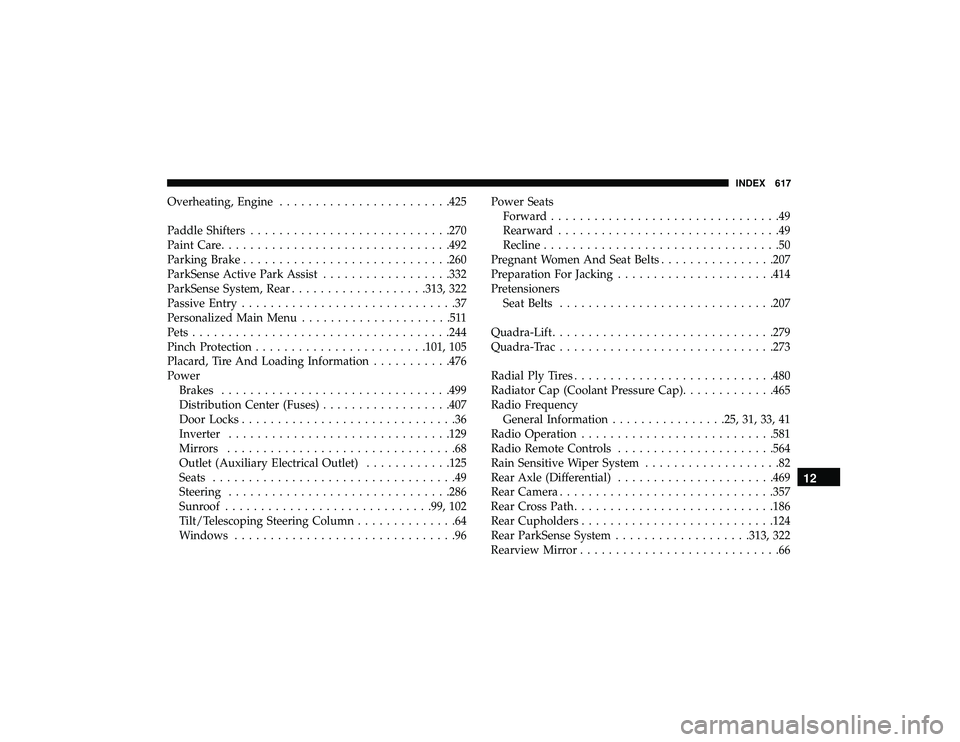

Overheating, Engine....................... .425
Paddle Shifters ........................... .270
Paint Care ............................... .492
Parking Brake ............................ .260
ParkSense Active Park Assist ..................332
ParkSense System, Rear .................. .313, 322
Passive Entry ..............................37
Personalized Main Menu .....................511
Pets ................................... .244
Pinch Protection ....................... .101, 105
Placard, Tire And Loading Information ...........476
Power Brakes ............................... .499
Distribution Center (Fuses) ..................407
Door Locks ..............................36
Inverter .............................. .129
Mirrors ................................68
Outlet (Auxiliary Electrical Outlet) ............125
Seats ..................................49
Steering .............................. .286
Sunroof ............................ .99, 102
Tilt/Telescoping Steering Column ..............64
Windows ...............................96 Power Seats
Forward ................................49
Rearward ...............................49
Recline .................................50
Pregnant Women And Seat Belts ................207
Preparation For Jacking ..................... .414
Pretensioners Seat Belts ............................. .207
Quadra-Lift .............................. .279
Quadra-Trac ............................. .273
Radial Ply Tires ........................... .480
Radiator Cap (Coolant Pressure Cap) .............465
Radio Frequency General Information ................25, 31, 33, 41
Radio Operation .......................... .581
Radio Remote Controls ..................... .564
Rain Sensitive Wiper System ...................82
Rear Axle (Differential) ..................... .469
Rear Camera ............................. .357
Rear

Cross Path ........................... .186
Rear Cupholders .......................... .124
Rear ParkSense System .................. .313, 322
Rearview Mirror ............................6612
INDEX 617
