2019 JEEP GRAND CHEROKEE LIMITED jacking

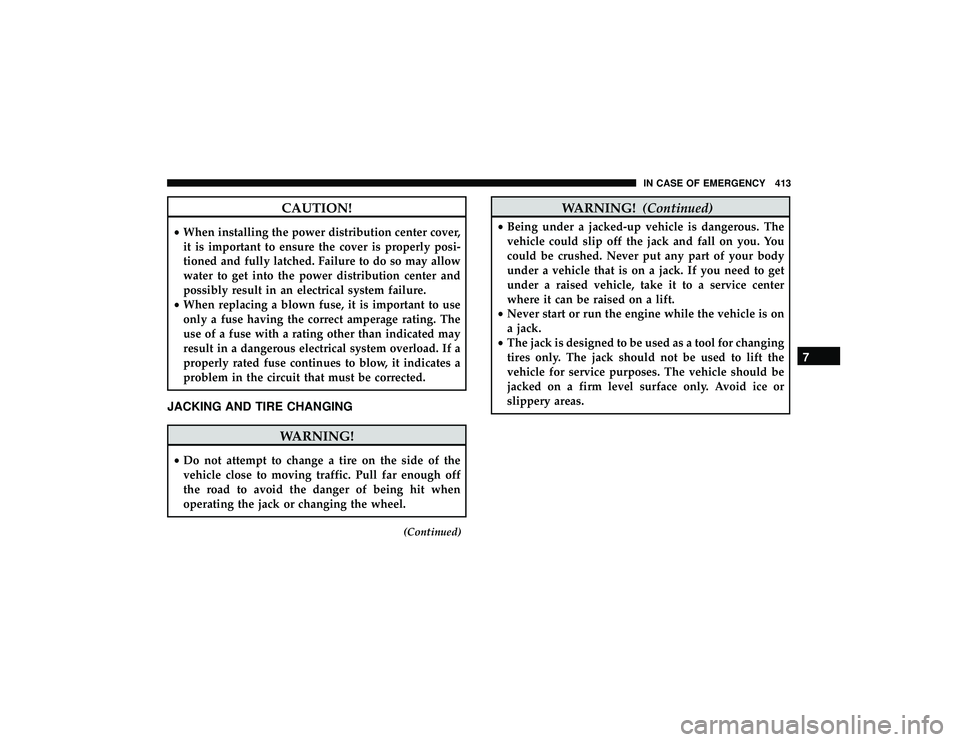

CAUTION!
•When installing the power distribution center cover,
it is important to ensure the cover is properly posi-
tioned and fully latched. Failure to do so may allow
water to get into the power distribution center and
possibly result in an electrical system failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If a
properly rated fuse continues to blow, it indicates a
problem in the circuit that must be corrected.
JACKING AND TIRE CHANGING

Jack Location
The scissor-type jack and tire changing tools are located in
the rear cargo area, below the load floor.
NOTE:The funnel for the Cap-Less Fuel System is located
on top of the spare tire. If your vehicle is out of fuel and an
auxiliary fuel can is needed, insert the funnel into the filler
neck and proceed to fill the vehicle. For vehicles not
equipped with a spare tire, the fuel filler funnel is stored in
the left storage bin under the load floor. For more informa-
tion on the Cap-Less Fuel System, refer to “Refueling The
Vehicle” in “Starting And Operating”.
Spare Tire Stowage
The spare tire is stowed under the load floor in the rear
cargo area and is secured to the body with a special wing
nut.
Preparations For Jacking

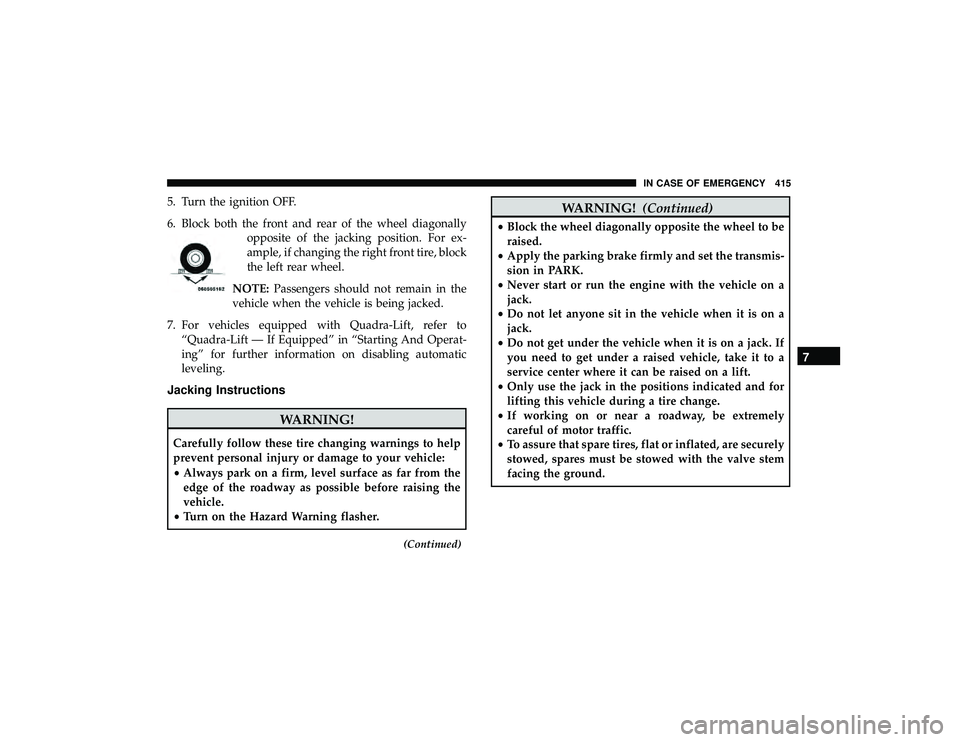

5. Turn the ignition OFF.
6. Block both the front and rear of the wheel diagonallyopposite of the jacking position. For ex-
ample, if changing the right front tire, block
the left rear wheel.
NOTE: Passengers should not remain in the
vehicle when the vehicle is being jacked.
7. For vehicles equipped with Quadra-Lift, refer to “Quadra-Lift — If Equipped” in “Starting And Operat-
ing” for further information on disabling automatic
leveling.
Jacking Instructions
7
IN CASE OF EMERGENCY 415

CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated in the Jacking

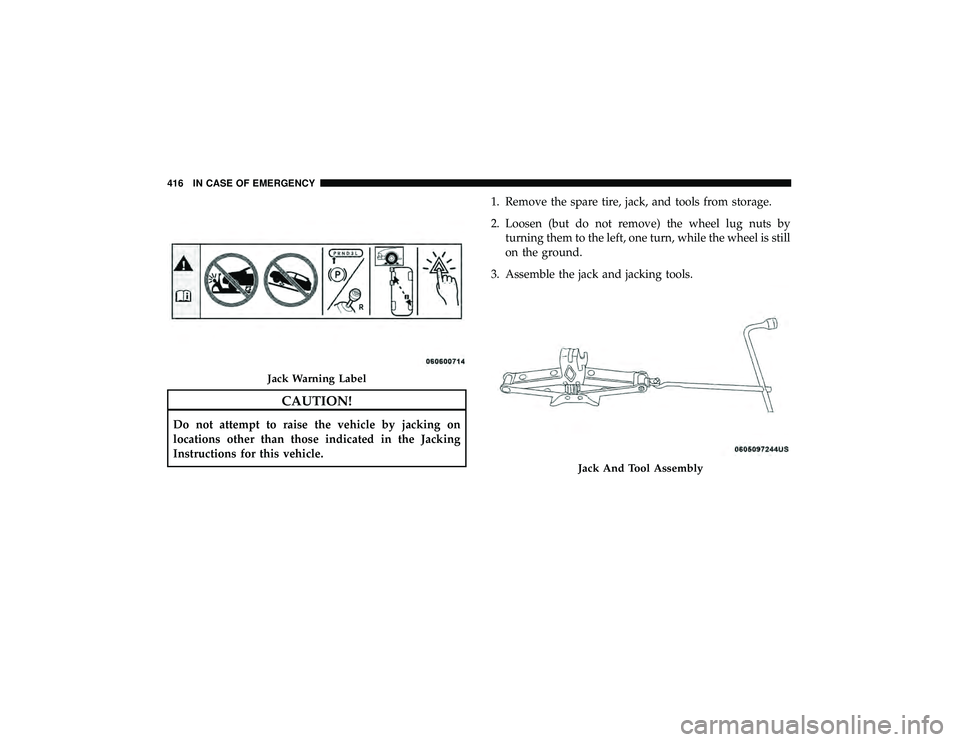

Instructions for this vehicle.1. Remove the spare tire, jack, and tools from storage.
2. Loosen (but do not remove) the wheel lug nuts by
turning them to the left, one turn, while the wheel is still
on the ground.
3. Assemble the jack and jacking tools.
Jack And Tool Assembly
416 IN CASE OF EMERGENCY

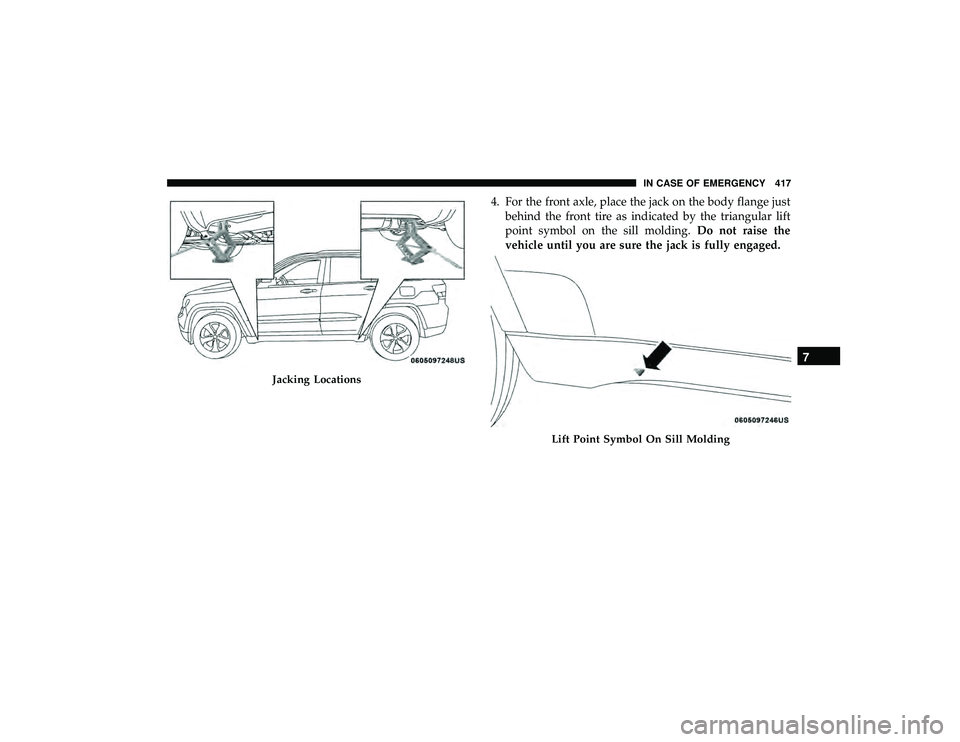

4. For the front axle, place the jack on the body flange justbehind the front tire as indicated by the triangular lift
point symbol on the sill molding. Do not raise the
vehicle until you are sure the jack is fully engaged.
Jacking Locations
Lift Point Symbol On Sill Molding
7
IN CASE OF EMERGENCY 417

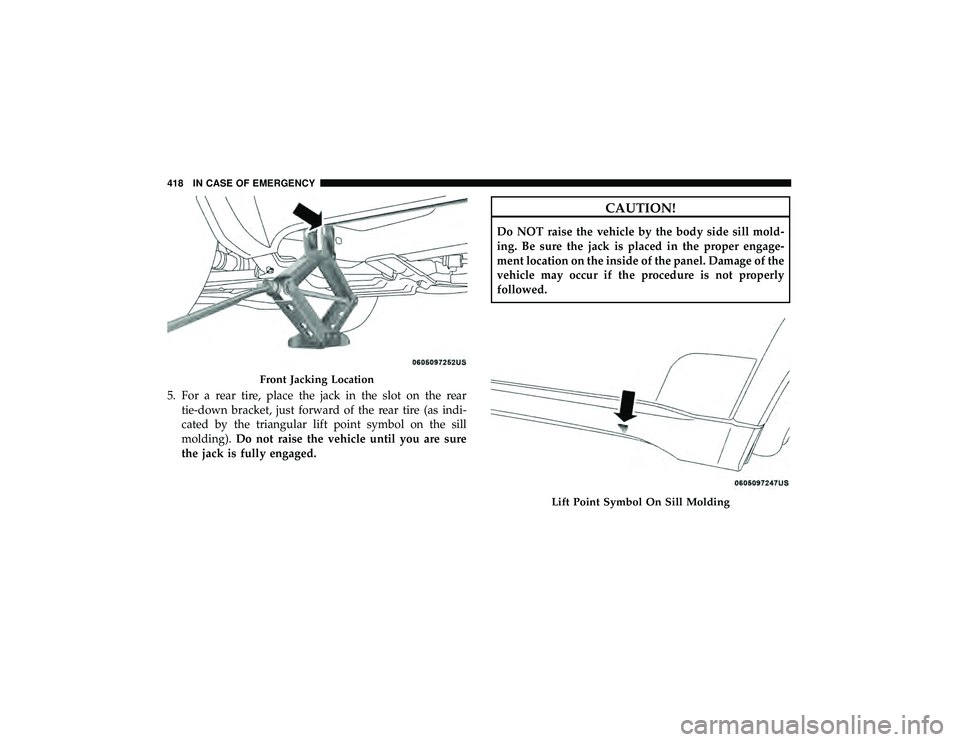

5. For a rear tire, place the jack in the slot on the reartie-down bracket, just forward of the rear tire (as indi-
cated by the triangular lift point symbol on the sill
molding). Do not raise the vehicle until you are sure
the jack is fully engaged.
CAUTION!
Do NOT raise the vehicle by the body side sill mold-
ing. Be sure the jack is placed in the proper engage-
ment location on the inside of the panel. Damage of the
vehicle may occur if the procedure is not properly
followed.
Front Jacking Location
Lift Point Symbol On Sill Molding
418 IN CASE OF EMERGENCY

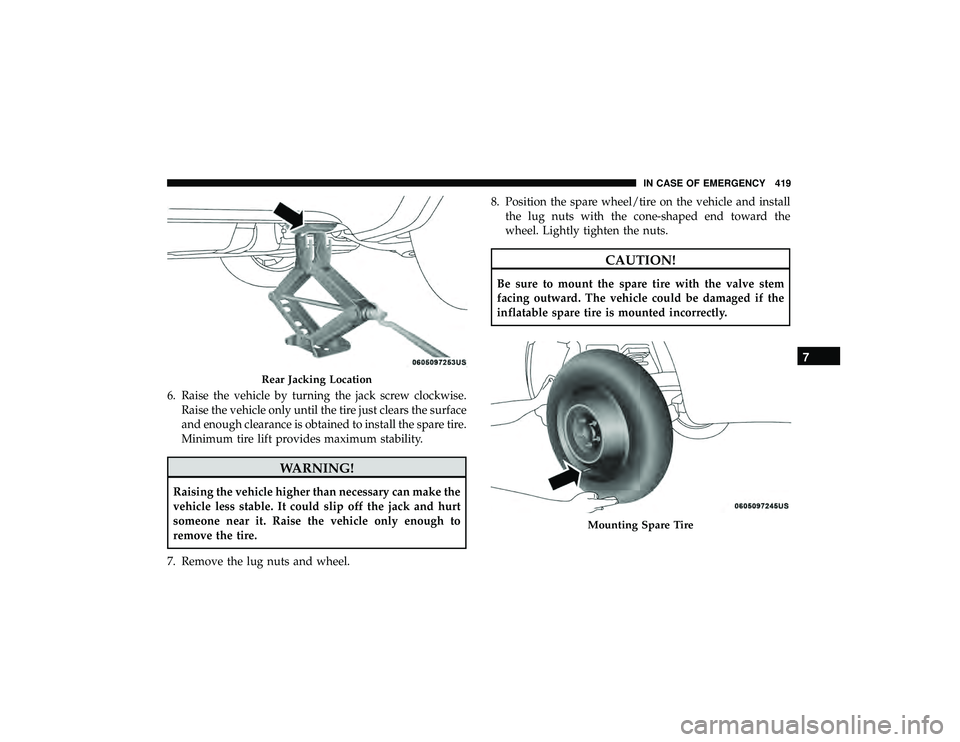

6. Raise the vehicle by turning the jack screw clockwise.Raise the vehicle only until the tire just clears the surface
and enough clearance is obtained to install the spare tire.
Minimum tire lift provides maximum stability.
Rear Jacking Location
Mounting Spare Tire
7
IN CASE OF EMERGENCY 419
