–When steering quickly.
– When the ICC, DCA, PFCW or FEB
with Pedestrian Detection warnings
sound.
– When the hazard warning flashers
are operated.
– When driving on a curve at a high
speed.
SYSTEM TEMPORARILY
UNAVAILABLE
When any of the following messages appear
on the vehicle information display, a chime
will sound and the BSI system will be turned
off automatically.
∙ “Unavailable: Road is slippery”: When the VDC system (except traction
control system function) or ABS oper-
ates.
∙ “Unavailable: VDC OFF”: When the VDC system is turned off.
∙ “Unavailable: Snow Mode Active”: When the Drive Mode Selector switch is
turned to the SNOW mode. ∙ “Unavailable: High Cabin Temp.”:
When the camera detects that the inte-
rior temperature is high (over approxi-
mately 104°F [40°C]).
∙ “Unavailable: Side Radar Obstruction”: When side radar blockage is detected.
Turn off the BSI system and turn it on again
when the above conditions no longer exist.
SYSTEM MALFUNCTION
When the BSI system malfunctions, it will be
turned off automatically, a chime will sound
and the BSI system warning light (orange) will
illuminate.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the warning
light (orange) continues to illuminate, have
the system checked. It is recommended that
you visit an INFINITI retailer for this service.
SYSTEM MAINTENANCE
The lane camera unit1for the BSI system is
located above the inside mirror. The two ra-
dar sensors
2for the BSI system are located
near the rear bumper. To keep the proper
operation of the BSI system and prevent a
system malfunction, be sure to observe the
following:
∙ Always keep the windshield and the area near the radar sensors clean.
LSD2153
5-58Starting and driving

SYSTEM MALFUNCTION
If the BCI system malfunctions, it will turn off
automatically, a chime will sound and the BCI
system warning light (orange) will illuminate.
Action to take:
Stop the vehicle in a safe location, turn the
engine off and restart the engine. If the warn-
ing light (orange) continues to illuminate,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
SYSTEM MAINTENANCE
The radar sensors1and the sonar sensors
2for the BCI system are located near the
rear bumper. Always keep the area near the
radar sensors clean.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors. Check for and remove objects obstructing
the area around the radar sensors.
Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a colli-
sion.
For USA
This device complies with part 15 of the FCC
Rules. (FCC Number UR8100261)
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
NOTE:
The manufacturer is not responsible for any
radio or TV interference caused by unau-
thorized modifications to this equipment.
Such modifications could void the user’s au-
thority to operate the equipment.
LSD2025
Starting and driving5-67

∙ICC system warning (orange):
Indicates that there is a malfunction in
the ICC system.
2. Vehicle ahead detection indicator: Indicates whether it detects a vehicle in
front of you.
3. Set distance indicator: Displays the selected distance between
vehicles set with the distance switch.
4. Set vehicle speed indicator: Indicates the set vehicle speed.
Preview function warning light and display
When the Preview Function is not operating
properly, the chime sounds and the system
warning light (orange) will come on.
Action to take:
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart
the engine and resume driving.
If the indicator stays on, it may indicate that
the Preview Function is malfunctioning (the
brake is operative). Although the vehicle is
still drivable under normal conditions, have
the vehicle checked. It is recommended that
you visit an INFINITI retailer for this service.
Conventional (fixed speed) cruise
control mode display and indicators
The display is located between the speedom-
eter and tachometer.1. CRUISE ON/OFF switch indicator: Indicates that the CRUISE ON/OFF
switch is on.
2. Cruise set switch indicator:
Displays while the vehicle speed is con-
trolled by the conventional (fixed speed)
cruise control mode of the ICC system.
3. Cruise system warning light:
Comes on if there is a malfunction in the
cruise control system.
LSD2067LSD2075
5-84Starting and driving

Warning light
When the system is not operating properly,
the chime sounds and the system warning
light (orange) will come on.
Action to take:
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart
the engine, resume driving and then perform
the setting again.If it is not possible to set or the indicator
stays on, it may indicate that the system is
malfunctioning. Although the vehicle is still
driveable under normal conditions, have the
vehicle checked. It is recommended that you
visit an INFINITI retailer for this service.OPERATING ICC
To turn on the cruise control,
quickly push
and release the CRUISE ON/OFF switch
A.
The ICC system ON indicator (white), set dis-
tance indicator and set vehicle speed indica-
tor come on in a standby state for setting.
LSD2067LSD2120
Starting and driving5-85

Action to take
When the conditions listed above are no lon-
ger present, turn the system off using the
CRUISE ON/OFF switch. Turn the ICC sys-
tem back on to use the system.
Condition B
When the radar sensor area of the front
bumper is covered with dirt or is obstructed,
the ICC system will automatically be can-
celed. If the sensor area is covered with ice, a
transparent or translucent vinyl bag, etc., the
ICC system may not detect vehicles ahead. In
these instances, the ICC system may not can-
cel and may not be able to maintain the se-
lected following distance from the vehicle
ahead. Be sure to check and clean the sensor
area.
The system warning light (orange) will illumi-
nate and the “Unavailable: Front Radar Ob-
struction” warning message will appear in the
vehicle information display.Action to take
If the warning light (orange) comes on, park
the vehicle in a safe location and turn the
engine off. Check to see if the radar sensor
window is blocked. If the radar sensor win-
dow is blocked, remove the blocking material.
Restart the engine. If the warning light con-
tinues to illuminate, have the ICC system
checked. It is recommended that you visit an
INFINITI retailer for this service.
Condition C
When the ICC system is not operating prop-
erly, a chime sounds and the system warning
light (orange) will come on.Action to take
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart
the engine, resume driving and set the ICC
system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the ve-
hicle is still drivable under normal conditions,
have the vehicle checked. It is recommended
that you visit an INFINITI retailer for this
service.
LSD2797LSD2175
5-96Starting and driving

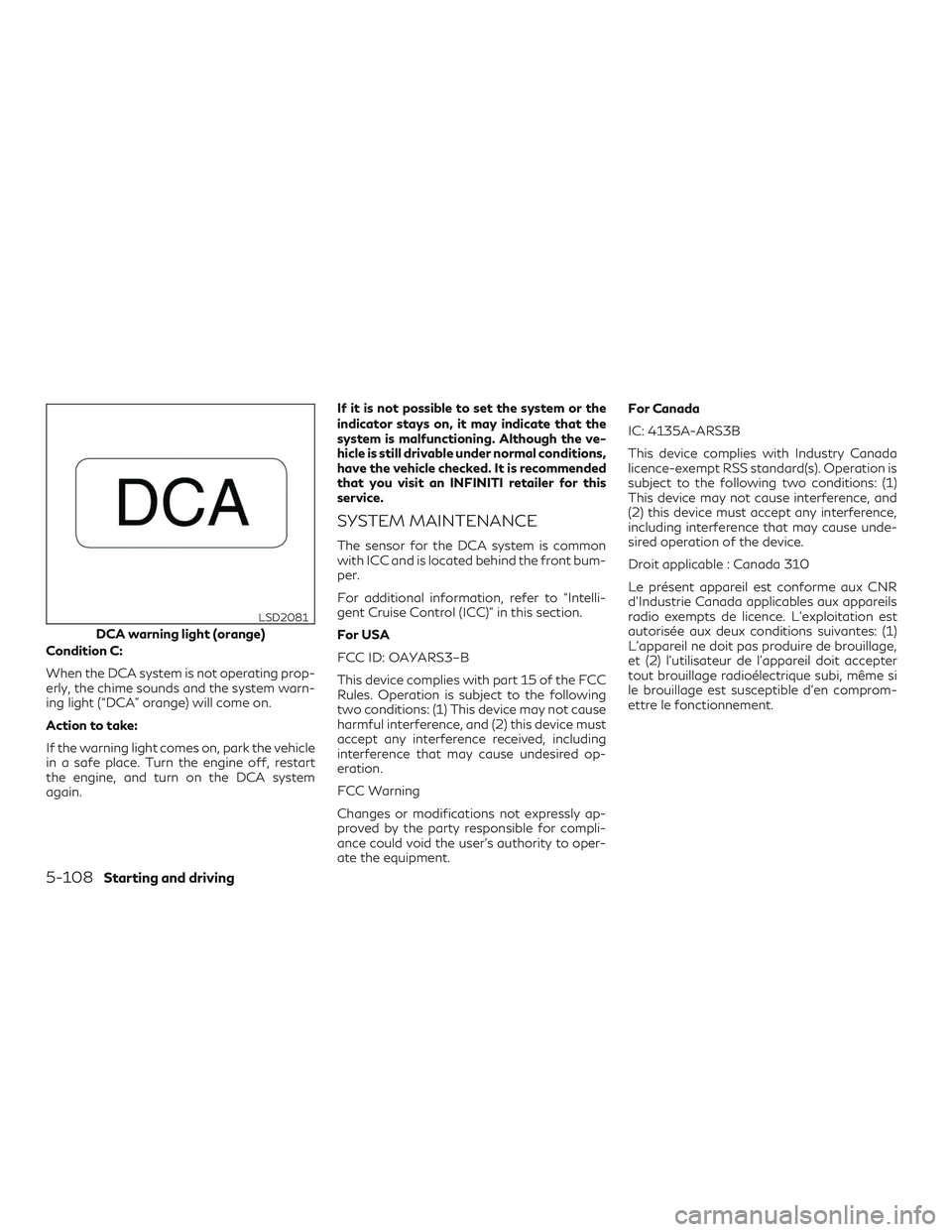

Condition C:
When the DCA system is not operating prop-
erly, the chime sounds and the system warn-
ing light (“DCA” orange) will come on.
Action to take:
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart
the engine, and turn on the DCA system
again.If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the ve-
hicle is still drivable under normal conditions,
have the vehicle checked. It is recommended
that you visit an INFINITI retailer for this
service.
SYSTEM MAINTENANCE
The sensor for the DCA system is common
with ICC and is located behind the front bum-
per.
For additional information, refer to “Intelli-
gent Cruise Control (ICC)” in this section.
For USA
FCC ID: OAYARS3–B
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.For Canada
IC: 4135A-ARS3B
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1)
This device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.
Droit applicable : Canada 310
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes: (1)
L’appareil ne doit pas produire de brouillage,
et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en comprom-
ettre le fonctionnement.
DCA warning light (orange)
LSD2081
5-108Starting and driving

NOTE:
When the inside of the windshield or camera
area is misted or frozen, it will take a period
of time to remove it after A/C turns ON. If
dirt appears on this area, have it checked. It
is recommended that you visit an INFINITI
retailer for this service.
Condition B:
In the following conditions, the FEB with Pe-
destrian Detection system warning light will
illuminate and the system will be turned off
automatically and the “Unavailable: Front
Radar Obstruction” warning message will ap-
pear in the vehicle information display.∙ The sensor area of the front bumper is covered with dirt or is obstructed.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe place, place the shift lever
in the P (Park) position and turn the engine
off. Clean the radar sensor area of the front
bumper or the camera area of the windshield
with a soft cloth, and restart the engine. If the
warning light continues to illuminate, have
the FEB with Pedestrian Detection system
checked. It is recommended that you visit an
INFINITI retailer for this service. NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system will also
stop working.
SYSTEM MALFUNCTION
If the FEB with Pedestrian Detection system
malfunctions, it will be turned off automati-
cally, a chime will sound, the FEB with Pedes-
trian Detection system warning light (orange)
will illuminate and the warning message
[Malfunction] will appear in the vehicle infor-
mation display.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the FEB with
Pedestrian Detection system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system will also
stop working.
SYSTEM MAINTENANCE
The radar sensorAis located behind the
lower grille of the front bumper. The camera
Bis located on the upper side of the wind-
shield.
To keep the FEB with Pedestrian Detection
system operating properly, be sure to ob-
serve the following:
∙ Always keep sensor areas of the front bumper and windshield clean.
∙ Do not strike or damage the areas around the sensors (ex. Bumper, windshield).
LSD2703
5-116Starting and driving

Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe place, place the shift lever
in the P (Park) position and turn the engine
off. Clean the radar cover on the lower grille
with a soft cloth, and restart the engine. If the
warning light continues to illuminate, have
the PFCW system checked. It is recom-
mended that you visit an INFINITI retailer for
this service.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system will also
stop working.
SYSTEM MALFUNCTION
If the PFCW system malfunctions, it will be
turned off automatically, a chime will sound,
the FEB with Pedestrian Detection system
warning light (orange) will illuminate and the
warning message [Malfunction] will appear
in the vehicle information display.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the PFCW sys-
tem checked. It is recommended that you visit
an INFINITI retailer for this service.
SYSTEM MAINTENANCE
The sensorAis located behind the lower
grille of the front bumper.
To keep the system operating properly, be
sure to observe the following:
∙ Always keep the sensor area of the front bumper clean.
∙ Do not strike or damage the areas around the sensor.
∙ Do not cover or attach stickers or similar objects on the front bumper near the sen-
sor area. This could cause failure or mal-
function. ∙ Do not attach metallic objects near the
sensor area (brush guard, etc.). This could
cause failure or malfunction.
∙ Do not alter, remove or paint the front bumper. Before customizing or restoring
the front bumper, it is recommended that
you visit an INFINITI retailer.
For USA
FCC ID: OAYARS3–B
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
LSD2702
Starting and driving5-127
