2019 INFINITI QX60 display

HOW TO ENABLE/DISABLE THE
BSI SYSTEM
When the BSI system is enabled in the vehicle
information display, the system can be turned
off temporarily by pushing the dynamic driver
assistance switch on the steering wheel.
Perform the following steps to enable or dis-
able the BSI system:1.
Press thebutton until “Settings” dis-
plays in the vehicle information display.
Use the
button to select “Driver As-
sistance.” Then press the ENTER button.
2. Select “Driving Aids” and press the EN- TER button.
3. To set the BSI system to on or off, use the
buttons to navigate in the
menu and use the ENTER button to se-
lect or change an item:
∙ Select “Blind Spot” and press the EN- TER button.
– To turn on the assistance system, use the ENTER button to check box for
“Assistance (BSI)”
– Select “Brightness” and use the EN- TER button to toggle through the
brightness choices —
“Bright/STD/Dark”
LSD2547
Starting and driving5-51

–When steering quickly.
– When the ICC, DCA, PFCW or FEB
with Pedestrian Detection warnings
sound.
– When the hazard warning flashers
are operated.
– When driving on a curve at a high
speed.
SYSTEM TEMPORARILY
UNAVAILABLE
When any of the following messages appear
on the vehicle information display, a chime
will sound and the BSI system will be turned
off automatically.
∙ “Unavailable: Road is slippery”: When the VDC system (except traction
control system function) or ABS oper-
ates.
∙ “Unavailable: VDC OFF”: When the VDC system is turned off.
∙ “Unavailable: Snow Mode Active”: When the Drive Mode Selector switch is
turned to the SNOW mode. ∙ “Unavailable: High Cabin Temp.”:
When the camera detects that the inte-
rior temperature is high (over approxi-
mately 104°F [40°C]).
∙ “Unavailable: Side Radar Obstruction”: When side radar blockage is detected.
Turn off the BSI system and turn it on again
when the above conditions no longer exist.
SYSTEM MALFUNCTION
When the BSI system malfunctions, it will be
turned off automatically, a chime will sound
and the BSI system warning light (orange) will
illuminate.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the warning
light (orange) continues to illuminate, have
the system checked. It is recommended that
you visit an INFINITI retailer for this service.
SYSTEM MAINTENANCE
The lane camera unit1for the BSI system is
located above the inside mirror. The two ra-
dar sensors
2for the BSI system are located
near the rear bumper. To keep the proper
operation of the BSI system and prevent a
system malfunction, be sure to observe the
following:
∙ Always keep the windshield and the area near the radar sensors clean.
LSD2153
5-58Starting and driving

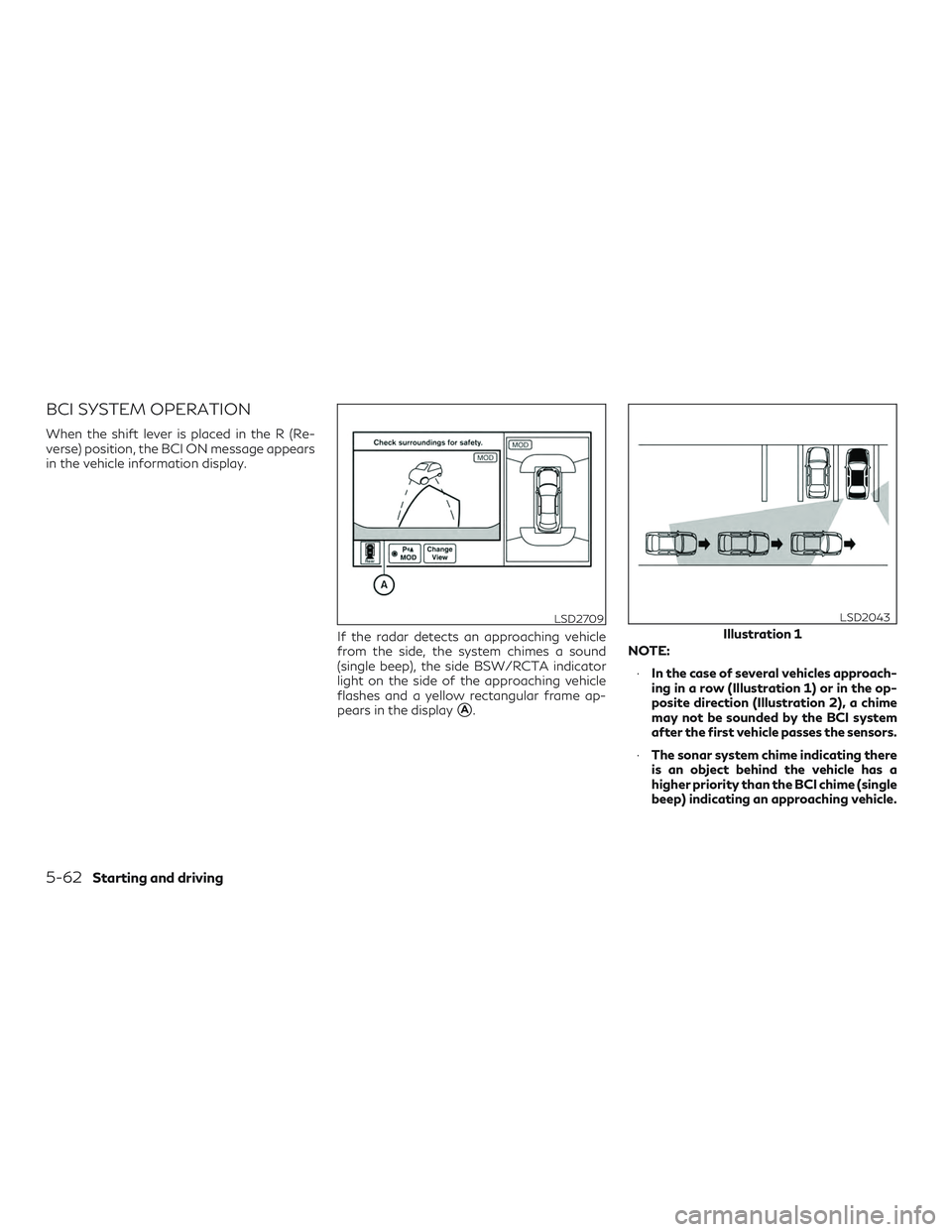

BCI SYSTEM OPERATION
When the shift lever is placed in the R (Re-
verse) position, the BCI ON message appears
in the vehicle information display.If the radar detects an approaching vehicle
from the side, the system chimes a sound
(single beep), the side BSW/RCTA indicator
light on the side of the approaching vehicle
flashes and a yellow rectangular frame ap-
pears in the display
A.NOTE:
∙ In the case of several vehicles approach-
ing in a row (Illustration 1) or in the op-
posite direction (Illustration 2), a chime
may not be sounded by the BCI system
after the first vehicle passes the sensors.
∙ The sonar system chime indicating there
is an object behind the vehicle has a
higher priority than the BCI chime (single
beep) indicating an approaching vehicle.
LSD2709
Illustration 1
LSD2043
5-62Starting and driving

If the sonar system detects an object be-
hind the vehicle and the BCI system de-
tects an approaching vehicle at the same
time the following indicators are pro-
vided:– The sonar system chime sounds
– The side BSW/RCTA indicator light
on the side of the approaching vehicle
flashes and
– A yellow rectangular frame appears
in the display If an approaching vehicle or object behind the
vehicle is detected when your vehicle is back-
ing up, a red frame will appear in the display
Aand the system will chime three times.
Then, the brakes will be applied momentarily.
After the automatic brake application, the
driver must depress the brake pedal to main-
tain brake pressure.
If the driver’s foot is on the accelerator pedal,
the system moves the accelerator pedal up-
ward before the braking is applied. However,
if you continue to accelerate, the system will
not engage the brakes.
The system does not operate if the object is
very close to the bumper.
Illustration 2
LSD2044LSD2709
Starting and driving5-63

TURNING THE BCI SYSTEM
ON/OFF
The BCI system automatically turns on every
time the engine is started.
The BCI system can be turned off temporarily
by pushing the BCI switch. The BCI OFF
message appears on the vehicle information
display. When the shift lever is placed in the R
(Reverse) position again the BCI system is
turned on.
Perform the following steps to enable or dis-
able the BCI system.1. Press the
button until “Settings”
displays in the vehicle information dis-
play. Use the
to select “Driver As-
sistance.” Then press the ENTER button.
2. Select “Back-up Collision Interv.,” and press the ENTER button.
3. Select “Ignition On Status” and press ENTER.
LSD2589
5-64Starting and driving

– IllustrationD: When an approaching
vehicle turns into your vehicle’s park-
ing lot aisle.
– Illustration
E: When the angle
formed by your vehicle and approach-
ing vehicle is small.
∙ The following conditions may reduce the ability of the radar to detect other
vehicles:
– Severe weather
– Road spray
– Ice/frost/dirt build up on the vehicle
∙ Do not attach stickers (including trans- parent material), install accessories or
apply additional paint near the radar sen-
sors. These conditions may reduce the
ability of the radar to detect other
vehicles.
∙ The sonar sensors detect stationary ob- jects behind the vehicle. The sonar sensor
may not detect:
– Small or moving objects
– Wedge-shaped objects
– Objects close to the bumper (less than approximately 1 ft [30 cm]) – Thin objects such as rope, wire and
chain, etc.
∙ The brake engagement by the BCI system is not as effective on a slope as it is on flat
ground. When on a steep slope the sys-
tem may not function properly.
∙ Do not use the BCI system under the fol- lowing conditions because the system
may not function properly:
– When driving with a tire that is not within normal tire conditions (e.g., tire
wear, low tire pressure, installation of
spare tire, tire chains, non-standard
wheels).
– When the vehicle is equipped with non-original brake parts or suspen-
sion parts.
∙ Do not use the BCI system when towing a trailer.
∙ Excessive noise (e.g., audio system vol- ume, open vehicle window) will interfere
with the chime sound, and it may not be
heard.
SYSTEM TEMPORARILY NOT
AVAILABLE
If the following messages appear on the ve-
hicle information display, a chime will sound
and the BCI system will be turned off auto-
matically:
∙ “Unavailable: High Accelerator Temp.”: If the vehicle is parked in direct sunlight
under high temperature conditions (over
approximately 104°F [40°C]) and then
started, the BCI system may be deacti-
vated automatically and the “Unavailable:
High Accelerator Temp” message will ap-
pear in the vehicle information display for
a period of time.
When the interior temperature is re-
duced, turn off the BCI system and turn it
on again.
∙ “Unavailable: Side Radar Obstruction”: When side radar blockage is detected.
When the blockage is removed, turn off
the BCI system and turn it on again.
5-66Starting and driving

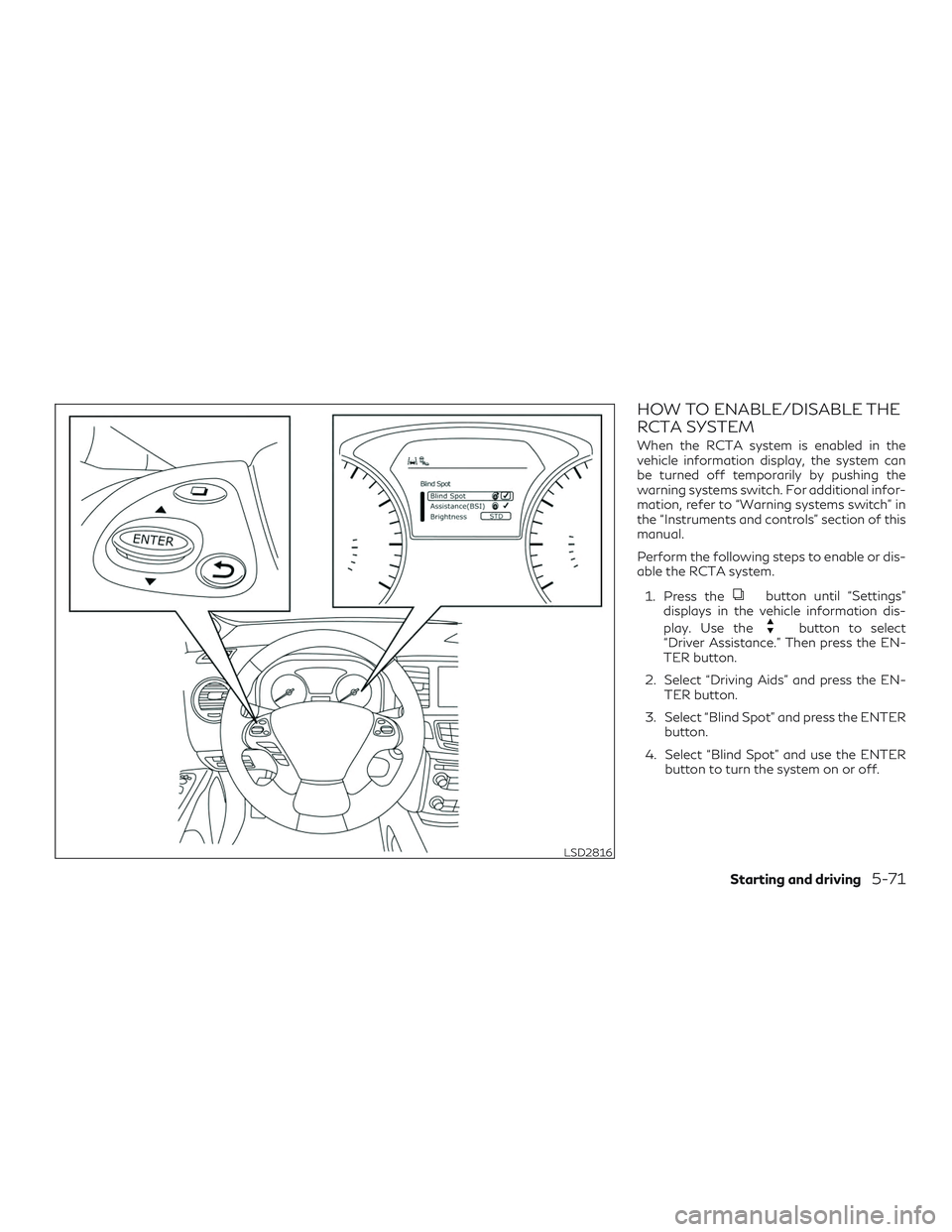

HOW TO ENABLE/DISABLE THE
RCTA SYSTEM
When the RCTA system is enabled in the
vehicle information display, the system can
be turned off temporarily by pushing the
warning systems switch. For additional infor-
mation, refer to “Warning systems switch” in
the “Instruments and controls” section of this
manual.
Perform the following steps to enable or dis-
able the RCTA system.1. Press the
button until “Settings”
displays in the vehicle information dis-
play. Use the
button to select
“Driver Assistance.” Then press the EN-
TER button.
2. Select “Driving Aids” and press the EN- TER button.
3. Select “Blind Spot” and press the ENTER button.
4. Select “Blind Spot” and use the ENTER button to turn the system on or off.
LSD2816
Starting and driving5-71

When the RCTA system is turned on, the
BSW/RCTA indicator (white) in the vehicle
information display illuminates.
NOTE:∙ The RCTA system is integrated into the
BSW system. There is not a separate se-
lection in the vehicle information display
for the RCTA system. When the BSW is
disabled, the RCTA system is also dis-
abled.
∙ When enabling/disabling the system,
the system setting will be retained even
if the engine is restarted.
RCTA SYSTEM LIMITATIONS
LSD3195
5-72Starting and driving
