LUGGAGE HOOKS
When securing items using luggage hooks
located on the side finisher do not apply a
load over more than 6.5 lbs. (29 N) to a single
hook.
The luggage hooks that are located on the
floor should have loads less than 110 lbs.
(490 N) to a single hook.
The luggage hooks can be used to secure
cargo with ropes or other types of straps.
WARNING
∙ Properly secure all cargo with ropes orstraps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.
∙ Use suitable ropes and hooks to secure cargo.
∙ Never allow anyone to ride in the luggage area. It is extremely dangerous to ride in a
cargo area inside of a vehicle. In a colli-
sion, people riding in these areas are more
likely to be seriously injured or killed.
∙ Do not allow people to ride in any area of your vehicle that is not equipped with
seats and seat belts.
∙ The child restraint top tether strap may be damaged by contact with items in the
cargo area. Secure any items in the cargo
area. Your child could be seriously injured
or killed in a collision if the top tether
strap is damaged.
∙ Be sure everyone in your vehicle is in a seat and using a seat belt properly.
ROOF RACK (if so equipped)
Do not apply any load directly to the roof side
rails. Cross bars must be installed before ap-
plying load/cargo/luggage to the roof of the
vehicle. Genuine NISSAN accessory cross
bars are available through an INFINITI re-
tailer. It is recommended that you visit an
INFINITI retailer for additional information.
The service load capacity for the roof side
rails is 165 lbs. (74 kg), however do not ex-
ceed the accessory cross bars load capacity.
LIC3684LIC2386
2-62Instruments and controls

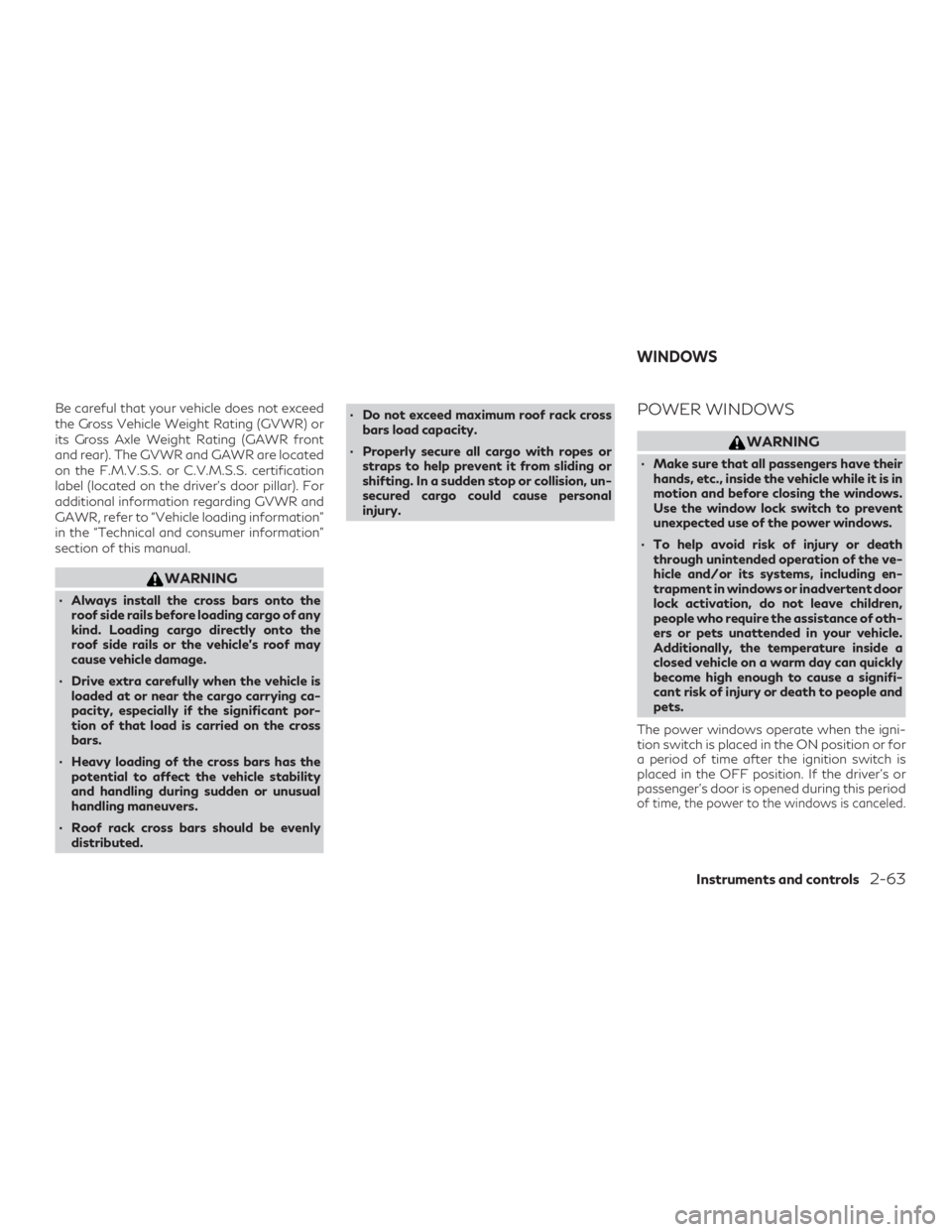

Be careful that your vehicle does not exceed
the Gross Vehicle Weight Rating (GVWR) or
its Gross Axle Weight Rating (GAWR front
and rear). The GVWR and GAWR are located
on the F.M.V.S.S. or C.V.M.S.S. certification
label (located on the driver’s door pillar). For
additional information regarding GVWR and
GAWR, refer to “Vehicle loading information”
in the “Technical and consumer information”
section of this manual.
WARNING
∙ Always install the cross bars onto theroof side rails before loading cargo of any
kind. Loading cargo directly onto the
roof side rails or the vehicle’s roof may
cause vehicle damage.
∙ Drive extra carefully when the vehicle is loaded at or near the cargo carrying ca-
pacity, especially if the significant por-
tion of that load is carried on the cross
bars.
∙ Heavy loading of the cross bars has the potential to affect the vehicle stability
and handling during sudden or unusual
handling maneuvers.
∙ Roof rack cross bars should be evenly distributed. ∙ Do not exceed maximum roof rack cross
bars load capacity.
∙ Properly secure all cargo with ropes or straps to help prevent it from sliding or
shifting. In a sudden stop or collision, un-
secured cargo could cause personal
injury.
POWER WINDOWS
WARNING
∙ Make sure that all passengers have theirhands, etc., inside the vehicle while it is in
motion and before closing the windows.
Use the window lock switch to prevent
unexpected use of the power windows.
∙ To help avoid risk of injury or death through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows or inadvertent door
lock activation, do not leave children,
people who require the assistance of oth-
ers or pets unattended in your vehicle.
Additionally, the temperature inside a
closed vehicle on a warm day can quickly
become high enough to cause a signifi-
cant risk of injury or death to people and
pets.
The power windows operate when the igni-
tion switch is placed in the ON position or for
a period of time after the ignition switch is
placed in the OFF position. If the driver’s or
passenger’s door is opened during this period
of time, the power to the windows is canceled.
WINDOWS
Instruments and controls2-63

play screen by sending a signal from a
sensor that is installed in each wheel.
The TPMS will activate only when the
vehicle is driven at speeds above
16 mph (25 km/h). Also, this system
may not detect a sudden drop in tire
pressure (for example a flat tire while
driving).
For additional information, refer to
“Low tire pressure warning light” in the
“Instruments and controls” section,
“Tire Pressure Monitoring System
(TPMS)” in the “Starting and driving”
section and “Flat tire” in the “In case of
emergency” section of this manual.
Tire inflation pressure
Check the tire pressures (including the
spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on
the F.M.V.S.S./C.M.V.S.S. certifica-
tion label or the Tire and Loading In-
formation label under the “Cold Tire
Pressure” heading. The Tire and Load-
ing Information label is affixed to thedriver side center pillar. Tire pressures
should be checked regularly because:
∙ Most tires naturally lose air over time.
∙ Tires can lose air suddenly when driven over potholes or other ob-
jects or if the vehicle strikes a curb
while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at mod-
erate speeds.
TPMS with Tire Inflation Indicator
provides visual and audible signals
outside the vehicle for inflating the
tires to the recommended COLD tire
pressure. For additional information,
refer to “TPMS with Tire Inflation In-
dicator” in the “Starting and driving”
section of this manual.
Incorrect tire pressure, including un-
der inflation, may adversely affect
tire life and vehicle handling.
WARNING
∙ Improperly inflated tires can fail suddenly and cause an accident.
∙ The Gross Vehicle Weight Rating (GVWR) is located on the
F.M.V.S.S./C.M.V.S.S. certifica-
tion label. The vehicle weight ca-
pacity is indicated on the Tire and
Loading Information label. Do not
load your vehicle beyond this ca-
pacity. Overloading your vehicle
may result in reduced tire life, un-
safe operating conditions due to
premature tire failure, or unfavor-
able handling characteristics and
could also lead to a serious acci-
dent. Loading beyond the speci-
fied capacity may also result in
failure of other vehicle
components.
∙ Before taking a long trip, or when- ever you heavily load your vehicle,
use a tire pressure gauge to ensure
that the tire pressures are at the
specified level.
8-28
Do-it-yourself

∙ For additional information re-garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.
Tire and Loading Information label
1Seating capacity: The maximum
number of occupants that can be
seated in the vehicle.
2Original tire size: The size of the
tires originally installed on the ve-
hicle at the factory.
3Cold tire pressure: Inflate the tires
to this pressure when the tires are
cold. Tires are considered COLD
after the vehicle has been parked
for 3 or more hours, or driven less
than 1 mile (1.6 km) at moderate speeds. The recommended cold
tire inflation is set by the manu-
facturer to provide the best bal-
ance of tire wear, vehicle handling,
driveability, tire noise, etc., up to
the vehicle’s GVWR.
4Tire size - refer to “Tire labeling” in
this section.
5Spare tire size.
6Vehicle load limit: Refer to “Ve-
hicle loading information” in the
“Technical and consumer informa-
tion” section of this manual.
LDI2737
Do-it-yourself8-29

Tire wear and damage
1. Wear indicator
2. Location mark
WARNING
∙ Tires should be periodically in- spected for wear, cracking, bulg-
ing or objects caught in the tread.
If excessive wear, cracks, bulging
or deep cuts are found, the tire(s)
should be replaced. ∙ The original tires have built-in
tread wear indicators. When the
wear indicators are visible, the
tire(s) should be replaced.
∙ Tires degrade with age and use. Have tires, including the spare,
over 6 years old checked by a
qualified technician because some
tire damage may not be obvious.
Replace the tires as necessary to
prevent tire failure and possible
personal injury.
∙ Improper service of the spare tire may result in serious personal in-
jury. If it is necessary to repair the
spare tire, it is recommended that
you visit an INFINITI retailer for
this service.
∙ For additional information re- garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.
Replacing wheels and tires
When replacing a tire, use the same size,
tread design, speed rating and load carrying
capacity as originally equipped. For addi-
tional information, refer to “Wheels and tires”
in the “Technical and consumer information”
section of this manual.
WARNING
∙ The use of tires other than those recom-
mended or the mixed use of tires of dif-
ferent brands, construction (bias, bias-
belted or radial), or tread patterns can
adversely affect the ride, braking, han-
dling, VDC system, ground clearance,
body-to-tire clearance, tire chain clear-
ance, speedometer calibration, headlight
aim and bumper height. Some of these
effects may lead to accidents and could
result in serious personal injury.
∙ For 2WD models, if your vehicle was originally equipped with four tires that
were the same size and you are only re-
placing two of the four tires, install the
new tires on the rear axle. Placing new
tires on the front axle may cause loss of
vehicle control in some driving conditions
and cause an accident and personal
injury.
WDI0259
8-36Do-it-yourself

10 Technical and consumer information
Recommended fluids/lubricants and capacities . . 10-2Fuel recommendation ....................... 10-3
Engine oil and oil filter recommendations .....10-6
Air conditioner system refrigerant and oil
recommendations ........................... 10-7
Specifications .................................. 10-8
Engine ...................................... 10-8
Wheels and tires ............................ 10-9
Dimensions and weights .....................10-9
When traveling or registering in another
country ....................................... 10-10
Vehicle identification .......................... 10-10
Vehicle Identification Number (VIN) plate . . . 10-10
Vehicle identification number
(chassis number) ........................... 10-10
Engine serial number ....................... 10-11
F.M.V.S.S./C.M.V.S.S. certification label .....10-11
Emission control information label ..........10-11
Tire and Loading Information label ..........10-12
Air conditioner specification label ...........10-12
Installing front license plate ....................10-12Vehicle loading information
....................10-13
Terms ..................................... 10-13
Vehicle load capacity ....................... 10-14
Securing the load ........................... 10-16
Loading tips ............................... 10-17
Measurement of weights ...................10-17
Towing a trailer ............................... 10-17
Maximum load limits ....................... 10-18
Towing load/specification ..................10-21
Towing safety ............................. 10-21
Flat towing for all–wheel drive vehicle
(if so equipped) ............................. 10-28
Flat towing for front wheel drive vehicle
(if so equipped) ............................. 10-28
Uniform tire quality grading ....................10-29
Emission control system warranty .............10-30
Reporting safety defects ......................10-31
Readiness for Inspection/Maintenance (I/M)
test ........................................... 10-32
Event Data

Recorders (EDR) ................... 10-32
Owner’s Manual/Service Manual order
information ................................... 10-33

∙ GVW (Gross Vehicle Weight) -curb weight plus the combined
weight of passengers and cargo.
∙ GVWR (Gross Vehicle Weight Rat- ing) - maximum total combined
weight of the unloaded vehicle,
passengers, luggage, hitch, trailer
tongue load and any other op-
tional equipment. This information
is located on the
F.M.V.S.S./C.M.V.S.S. certifica-
tion label.
∙ GAWR (Gross Axle Weight Rating) - maximum weight (load) limit
specified for the front or rear axle.
This information is located on the
F.M.V.S.S./C.M.V.S.S. certifica-
tion label.
∙ GCWR (Gross Combined Weight rating) - The maximum total
weight rating of the vehicle, pas-
sengers, cargo, and trailer. ∙ Vehicle Capacity Weight, Load
limit, Total load capacity - maxi-
mum total weight limit specified of
the load (passengers and cargo)
for the vehicle. This is the maxi-
mum combined weight of occu-
pants and cargo that can be
loaded into the vehicle. If the ve-
hicle is used to tow a trailer, the
trailer tongue weight must be in-
cluded as part of the cargo load.
This information is located on the
Tire and Loading Information la-
bel.
∙ Cargo capacity - permissible weight of cargo, the subtracted
weight of occupants from the load
limit.VEHICLE LOAD CAPACITY
Do not exceed the load limit of your
vehicle shown as “The combined
weight of occupants and cargo” on the
Tire and Loading Information label. Do
not exceed the number of occupants
shown as “Seating Capacity” on the
Tire and Loading Information label.
To get “the combined weight of occu-
pants and cargo”, add the weight of all
occupants, then add the total luggage
weight. Examples are shown in the
following illustration.
10-14
Technical and consumer information

Steps for determining correct load
limit
1. Locate the statement “The com-bined weight of occupants and
cargo should never exceed XXX
lbs. or XXX kg” on your vehicle’s
Tire and Loading Information la-
bel.
2. Determine the combined weight of the driver and passengers that
will be riding in your vehicle.
3. Subtract the combined weight of the driver and passengers from
XXX lbs. or XXX kg.
4. The resulting figure equals the available amount of cargo and
luggage load capacity. For ex-
ample, if the XXX amount equals
1,400 lbs. and there will be five
150 lbs. passengers in your ve-
hicle, the amount of available
cargo and luggage load capacity
is 650 lbs. (1,400-750 (5 X 150)
= 650 lbs.) or (640-340 (5 X 70) =
300 kg.)
Example
LTI2320
Technical and consumer information10-15
