2019 INFINITI QX60 headrest

ADJUST
For adjustable head restraint/headrest
Adjust the head restraint/headrest so the
center is level with the center of your ears. If
your ear position is still higher than the rec-
ommended alignment, place the head
restraint/headrest at the highest position.For non-adjustable head restraint/headrest
Make sure the head restraint/headrest is po-
sitioned so the lock knob is engaged in the
notch before riding in that designated seating
position.
Raise
To raise the head restraint/headrest, pull it
up.
Make sure the head restraint/headrest is po-
sitioned so the lock knob is engaged in the
notch before riding in that designated seating
position.
WRS0134LRS2351LRS2305
Safety—Seats, seat belts and supplemental restraint system1-15

Lower
To lower, push and hold the lock knob and
push the head restraint/headrest down.
Make sure the head restraint/headrest is po-
sitioned so the lock knob is engaged in the
notch before riding in that designated seating
position.
FOLDING HEAD RESTRAINT/
HEADREST
To fold the head restraint/headrest, pull the
strap located on the rear of the head
restraint/headrest.
If the head restraint/headrest has been
folded, make sure that it is returned to the
upright position.
Make sure the head restraint/headrest is po-
sitioned so the lock knobs are engaged in the
notches before riding in that designated
seating position.
WARNING
When the seat is returned to the normal
seating position, the head restraint/
headrest must be returned to the upright
position to properly protect vehicle
occupants.
LRS2306LRS2307
1-16Safety—Seats, seat belts and supplemental restraint system

INFANTS
Infants up to at least 1 year old should be
placed in a rear-facing child restraint.
INFINITI recommends that infants be placed
in child restraints that comply with Federal
Motor Vehicle Safety Standards or Canadian
Motor Vehicle Safety Standards. You should
choose a child restraint that fits your vehicle
and always follow the manufacturer’s in-
structions for installation and use.
SMALL CHILDREN
Children that are over 1 year old and weigh at
least 20 lbs. (9 kg) should remain in a rear-
facing child restraint as long as possible up to
the height or weight limit of the child re-
straint. Children who outgrow the height or
weight limit of the rear-facing child restraint
and are at least 1 year old should be secured
in a forward-facing child restraint with a har-
ness. Refer to the manufacturer’s instructions
for minimum and maximum weight and
height recommendations. INFINITI recom-
mends that small children be placed in child
restraints that comply with Federal Motor
Vehicle Safety Standards or Canadian Motor
Vehicle Safety Standards. You should choose
a child restraint that fits your vehicle and
always follow the manufacturer’s instruc-
tions for installation and use.
LARGER CHILDREN
Children should remain in a forward-facing
child restraint with a harness until they reach
the maximum height or weight limit allowed
by the child restraint manufacturer.
Once a child outgrows the height or weight
limit of the harness-equipped forward-facing
child restraint, INFINITI recommends that
the child be placed in a commercially available
booster seat to obtain proper seat belt fit. For
a seat belt to fit properly, the booster seat
should raise the child so that the shoulder belt
is properly positioned across the chest and
the top, middle portion of the shoulder. The
shoulder belt should not cross the neck or
face and should not fall off the shoulder. The
lap belt should lie snugly across the lower hips
or upper thighs, not the abdomen. A booster
seat can only be used in seating positions that
have a three-point type seat belt. The
booster seat should fit the vehicle seat and
have a label certifying that it complies with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards.A booster seat should be used until the child
can pass the seat belt fit test below:
∙ Are the child’s back and hips against the vehicle seatback?
∙ Is the child able to sit without slouching?
∙ Do the child’s knees bend easily over the front edge of the seat with feet flat on
the floor?
∙ Can the child safely wear the seat belt (lap belt low and snug across the hips and
shoulder belt across mid-chest and
shoulder)?
∙ Is the child able to use the properly ad- justed head restraint/headrest?
∙ Will the child be able to stay in position for the entire ride?
Safety—Seats, seat belts and supplemental restraint system1-27

2. Secure the child restraint anchor attach-ments to the LATCH lower anchors.
Check to make sure the LATCH attach-
ment is properly attached to the lower
anchors.
If the child restraint is equipped with a
top tether strap, route the top tether
strap and secure the tether strap to the
tether anchor point. For additional infor-
mation, refer to “Installing top tether
strap” in this section. Do not install child restraints that require
the use of a top tether strap in seating
positions that do not have a top tether
anchor.3. The back of the child restraint should be
secured against the vehicle seatback.
If necessary, adjust or remove the head
restraint/headrest to obtain the correct
child restraint fit. If the head
restraint/headrest is removed, store it in
a secure place. Be sure to reinstall the
head restraint/headrest when the child
restraint is removed. For additional in-
formation, refer to “Head restraints/
headrests” in this section.
If the seating position does not have an
adjustable head restraint/headrest and
it is interfering with the proper child re-
straint fit, try another seating position or
a different child restraint.
Forward-facing webbing-mounted – step 2
LRS2995
Forward-facing rigid-mounted – step 2
LRS2994
Safety—Seats, seat belts and supplemental restraint system1-39

1Top tether strap
2Anchor point
Installing top tether strap
The child restraint top tether strap must be
used when installing the child restraint with
the LATCH lower anchor attachments.
First, secure the child restraint with the
LATCH lower anchors (2nd row bench out-
board seating positions only).2nd row bench seat
OUTBOARD SEATING POSITIONS
1. Remove the head restraint/headrest and store it in a secure place. Be sure to
reinstall the head restraint/headrest
when the child restraint is removed. For
additional information, refer to “Head
restraints/headrests” in this section.
2. Position the top tether strap
1as
shown.
3. Secure the tether strap to the tether an- chor point
2as shown.
4. Tighten the tether strap according to the manufacturer’s instructions to remove
any slack.
If you have any questions when installing a
top tether strap, it is recommended that you
visit an INFINITI retailer for this service.
WARNING
Child restraint anchorages are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no cir-
cumstances are they to be used to attach
adult seat belts, or other items or equip-
ment to the vehicle. Doing so could damage
the child restraint anchorages. The child re-
straint will not be properly installed using
the damaged anchorage, and a child could
be seriously injured or killed in a collision.
FORWARD-FACING CHILD
RESTRAINT INSTALLATION
USING THE SEAT BELTS
WARNING
The three-point seat belt with Automatic
Locking Retractor (ALR) must be used
when installing a child restraint. Failure to
use the ALR mode will result in the child
restraint not being properly secured. The
restraint could tip over or be loose and
cause injury to a child in a sudden stop or
collision. Also, it can change the operation
of the front passenger air bag. For addi-
tional information, refer to “Front passen-
ger air bag and status light” in this section.
2nd row bench seat
LRS3041
Safety—Seats, seat belts and supplemental restraint system1-41

For additional information, refer to all Warn-
ings and Cautions in the “Child safety” and
“Child restraints” sections of this manual be-
fore installing a child restraint.
Do not use the lower anchors if the combined
weight of the child and the child restraint
exceeds 65 lbs. (29.5 kg). If the combined
weight of the child and the child restraint is
greater than 65 lbs. (29.5 kg), use the vehi-
cle’s seat belt (not the lower anchors) to in-
stall the child restraint. Be sure to follow the
child restraint manufacturer’s instructions for
installation.Follow these steps to install a forward-
facing child restraint using the vehicle seat
belt in the rear seats or in the front passenger
seat:
1. If you must install a child restraint in the
front seat, it should be placed in a
forward-facing direction only. Move
the seat to the rearmost position. Child
restraints for infants must be used in the
rear-facing direction and, therefore,
must not be used in the front seat.
2. Position the child restraint on the seat. Always follow the child restraint manu-
facturer’s instructions.
The back of the child restraint should be
secured against the vehicle seatback.
If necessary, adjust or remove the head
restraint/headrest to obtain the correct
child restraint fit. If the head restraint/
headrest is removed, store it in a secure
place. Be sure to reinstall the head
restraint/headrest when the child re-
straint is removed. For additional infor-
mation, refer to “Head restraints/
headrests” in this section. If the seating position does not have an
adjustable head restraint/headrest and
it is interfering with the proper child re-
straint fit, try another seating position or
a different child restraint.
Forward-facing (front passenger seat) –
step 1
WRS0699
1-42Safety—Seats, seat belts and supplemental restraint system

2nd row bench seat
OUTBOARD SEATING POSITIONS1. Remove the head restraint/headrest and store it in a secure place. Be sure to
reinstall the head restraint/headrest
when the child restraint is removed. For
additional information, refer to “Head
restraints/headrests” in this section.
2. Position the top tether strap
1as
shown.
3. Secure the tether strap to the tether an- chor point
2as shown.
4. Tighten the tether strap according to the manufacturer’s instructions to remove
any slack.
CENTER SEATING POSITION 1. Position the top tether strap
1as
shown.
2. Secure the tether strap to the tether an- chor point
2as shown.
3. Tighten the tether strap according to the manufacturer’s instructions to remove
any slack.
If you have any questions when installing a
top tether strap, it is recommended that you
visit an INFINITI retailer for this service.
WARNING
Child restraint anchorages are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no cir-
cumstances are they to be used to attach
adult seat belts, or other items or equip-
ment to the vehicle. Doing so could damage
the child restraint anchorages. The child re-
straint will not be properly installed using
the damaged anchorage, and a child could
be seriously injured or killed in a collision.
1Top tether strap
2Anchor point
3rd row bench seat
WARNING
In the 3rd row bench seat, a child restraint
with a top tether strap can only be used on
the passenger side seating position. Do not
place in the driver’s side seating position
and attempt to angle the tether strap to
the passenger side seating position.
3rd row bench seat
LRS2916
1-46Safety—Seats, seat belts and supplemental restraint system

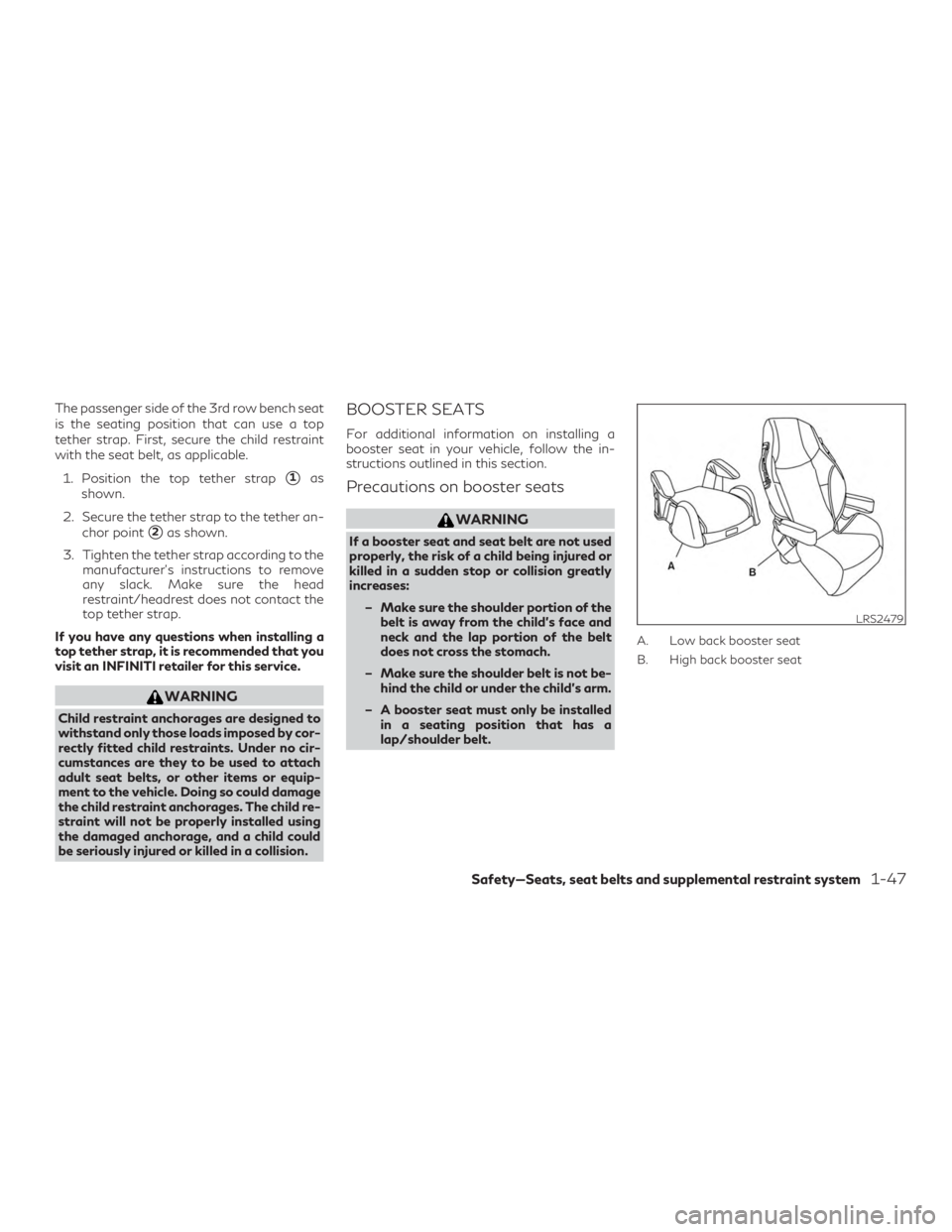

The passenger side of the 3rd row bench seat
is the seating position that can use a top
tether strap. First, secure the child restraint
with the seat belt, as applicable.1. Position the top tether strap
1as
shown.
2. Secure the tether strap to the tether an- chor point
2as shown.
3. Tighten the tether strap according to the manufacturer’s instructions to remove
any slack. Make sure the head
restraint/headrest does not contact the
top tether strap.
If you have any questions when installing a
top tether strap, it is recommended that you
visit an INFINITI retailer for this service.
WARNING
Child restraint anchorages are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no cir-
cumstances are they to be used to attach
adult seat belts, or other items or equip-
ment to the vehicle. Doing so could damage
the child restraint anchorages. The child re-
straint will not be properly installed using
the damaged anchorage, and a child could
be seriously injured or killed in a collision.
BOOSTER SEATS
For additional information on installing a
booster seat in your vehicle, follow the in-
structions outlined in this section.
Precautions on booster seats
WARNING
If a booster seat and seat belt are not used
properly, the risk of a child being injured or
killed in a sudden stop or collision greatly
increases: – Make sure the shoulder portion of the belt is away from the child’s face and
neck and the lap portion of the belt
does not cross the stomach.
– Make sure the shoulder belt is not be- hind the child or under the child’s arm.
– A booster seat must only be installed in a seating position that has a
lap/shoulder belt.
A. Low back booster seat
B. High back booster seat
LRS2479
Safety—Seats, seat belts and supplemental restraint system1-47
