2019 INFINITI QX50 key

tures. During this period, the climate control
display and buttons will be inoperable until
the ignition switch is turned on. In Remote
Engine Start defrosting mode, the rear win-
dow defroster, heated seat (if so equipped)
and heated steering wheel (if so equipped)
may be activated automatically. In Remote
Engine Start cooling mode, the climate con-
trolled seat (if so equipped) may be activated
automatically.
Voice Recognition logic (if so
equipped)
When the climate control system is on, the
fan speed may be automatically lowered so
that commands are more easily recognized.
Fan speed can be adjusted using the
fan
speed decrease and
increase buttons, if
desired.
MANUAL OPERATION
Fan speed control
Press thefan speed increase andfan speed decrease buttons to manually con-
trol the fan speed. Fan speed can also be
controlled by touching the
orkeys
on the lower display.
Press the AUTO button to return to auto-
matic control of the fan speed.
Temperature control
Press thetemperature control
buttons up or down to set the desired tem-
perature.
The temperature can be set within the fol-
lowing range:
∙ For U.S.: 60 to 90ºF (16 to 32ºC)
∙ For Canada: 64 to 90ºF (18 to 32ºC)
Air recirculation
Press theair recirculation button to re-
circulate interior air inside the vehicle.
The
indicator light on the button will
come on.
The air recirculation cannot be activated
when the air conditioner is in the
front
defrosting mode.
When the outside temperature exceeds 70°F
(21°C), the air conditioning system may de-
fault to air recirculation mode automatically
to reduce overall power consumption. To exit
air recirculation mode, deselect the
air
recirculation button (indicator will turn off) to
enter fresh air mode.
Automatic intake air control
In the AUTO mode, the intake air will be
controlled automatically. To manually control
the intake air, press the
air recirculation
button. To return to the automatic control
mode, press and hold the
air recircula-
tion button for about 2 seconds. The indica-
tor light will flash twice, and then the intake
air will be controlled automatically.
Air flow control
Press thebutton to manually control
air flow. Pressing the button repeatedly will
cycle through the available modes and dis-
play the corresponding icon on the lower dis-
play. Air flow can also be controlled by touch-
ing the
key on the lower display:
— Air flows from center and side
vents.
— Air flows from center and sidevents and foot outlets.
— Air flows mainly from footoutlets.
— Air flows from defroster andfoot outlets.
To turn system off
Press the ON-OFF button.
4-38Monitor, climate, audio, phone and voice recognition systems

CLIMATE SETTING SCREEN
Climate control settings can be changed on
the screen.
Available setting items may vary depending
on models and specifications.
Press the
CLIMATE button on the
lower display menu. The CLIMATE screen
will display on the lower display.
Heating (A/C off)
The air conditioner does not activate in this
mode. When you need to heat only, use this
mode. 1. Press the
CLIMATE button.
2. If the Climate system is off, press the ON-OFF button to turn the system on.
3. If the
A/C indicator is on, touch
the
A/C key to turn the A/C off.
4. Press the
temperature con-
trol buttons on the driver’s side to set the
desired temperature.
∙ When in AUTO mode, the temperature of the passenger compartment will be
maintained automatically. Air flow distri-
bution and fan speed are also controlled
automatically.
∙ Do not set the temperature lower than the outside air temperature or the system
may not work properly.
∙ This procedure is not recommended if windows fog up.
When the outside temperature decreases to
approximately 32°F (0°C), the A/C function
does not activate even if the
A/C indi-
cator light illuminates.
Air conditioning (A/C)
Touch theA/C key to turn the A/C
mode on or off. Turn on the A/C mode for effective cooling and dehumidifying. When
the A/C indicator light is on, the A/C mode is
on.
Sync mode setting
The driver’s, passenger’s and rear (if so
equipped) temperature setpoints can be syn-
chronized using the
SYNC key on the
lower display. When the key is touched, tem-
perature settings become synchronized and
the SYNC indicator turns on.
∙ If the driver’s side temperature buttons are pressed, the driver’s side, passenger’s
side, and rear (if so equipped) tempera-
ture settings will update simultaneously.
∙ If the passenger’s side or rear (if so equipped) temperature buttons are
pressed, Sync mode will exit, the indicator
light will go off, and the temperature will
update based on the button pressed.
Driver’s side temperature will remain the
same until manually changed.
Steering wheel heater (if so
equipped)
Touch theSteering Heater key on the
CLIMATE screen on the lower display to turn
the steering wheel heater on or off. When the
steering wheel heater is on, the indicator light
is on.
LHA4579
4-40Monitor, climate, audio, phone and voice recognition systems

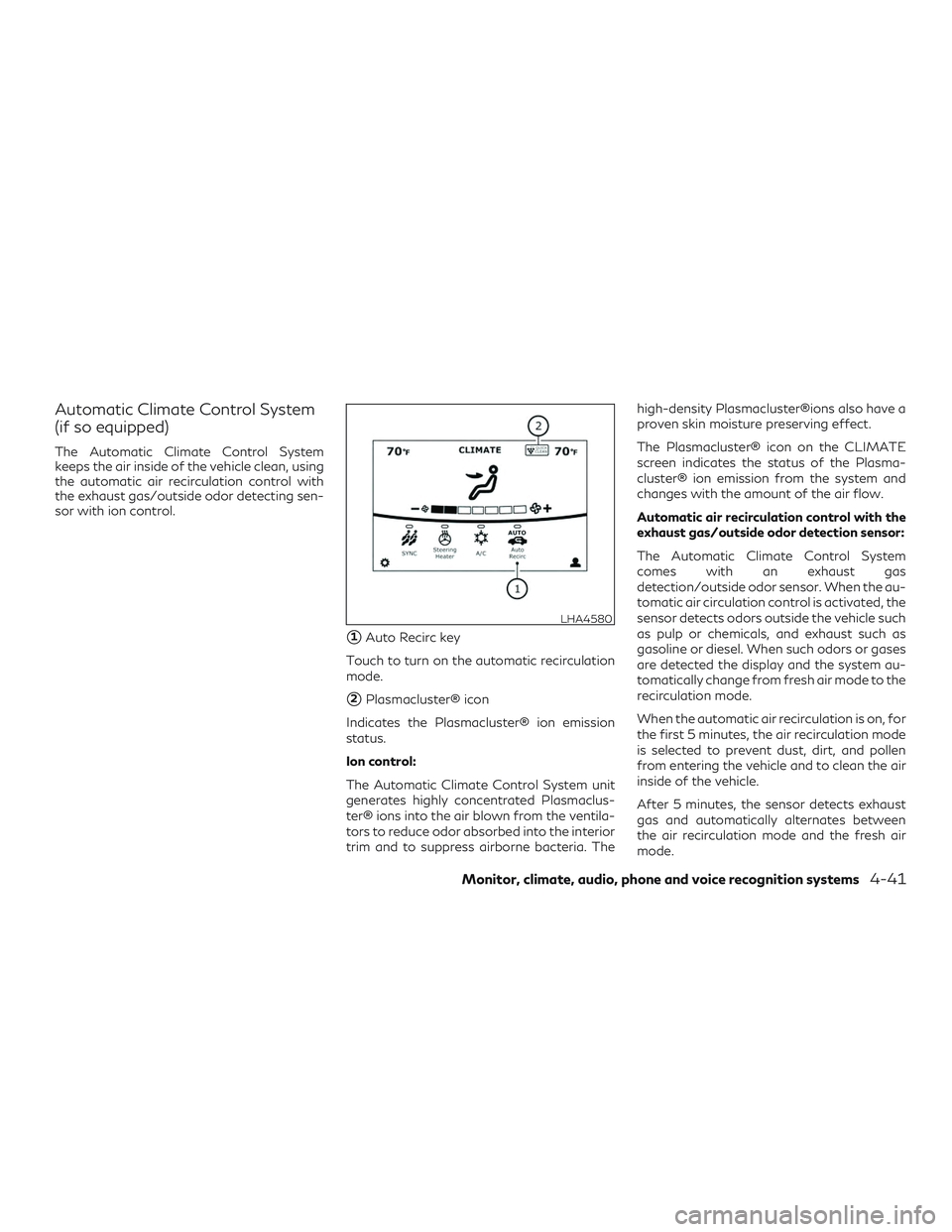

Automatic Climate Control System
(if so equipped)
The Automatic Climate Control System
keeps the air inside of the vehicle clean, using
the automatic air recirculation control with
the exhaust gas/outside odor detecting sen-
sor with ion control.
1Auto Recirc key
Touch to turn on the automatic recirculation
mode.
2Plasmacluster® icon
Indicates the Plasmacluster® ion emission
status.
Ion control:
The Automatic Climate Control System unit
generates highly concentrated Plasmaclus-
ter® ions into the air blown from the ventila-
tors to reduce odor absorbed into the interior
trim and to suppress airborne bacteria. The high-density Plasmacluster®ions also have a
proven skin moisture preserving effect.
The Plasmacluster® icon on the CLIMATE
screen indicates the status of the Plasma-
cluster® ion emission from the system and
changes with the amount of the air flow.
Automatic air recirculation control with the
exhaust gas/outside odor detection sensor:
The Automatic Climate Control System
comes with an exhaust gas
detection/outside odor sensor. When the au-
tomatic air circulation control is activated, the
sensor detects odors outside the vehicle such
as pulp or chemicals, and exhaust such as
gasoline or diesel. When such odors or gases
are detected the display and the system au-
tomatically change from fresh air mode to the
recirculation mode.
When the automatic air recirculation is on, for
the first 5 minutes, the air recirculation mode
is selected to prevent dust, dirt, and pollen
from entering the vehicle and to clean the air
inside of the vehicle.
After 5 minutes, the sensor detects exhaust
gas and automatically alternates between
the air recirculation mode and the fresh air
mode.
LHA4580
Monitor, climate, audio, phone and voice recognition systems4-41

The automatic air recirculation mode can be
activated under the following conditions.∙ The air flow control is not in the front defroster mode (the indicator light on
the
front defroster button is turned
off).
∙ The outside temperature is about 32°F (0°C) or more.
REAR CLIMATE CONTROL (if so
equipped)
1. Rear temperature display
2.
Rear temperature control in-
crease button
3.
Rear temperature control de-
crease button
You can adjust the climate control system for
rear seat passengers using the buttons on the
back of the console.
Press the
to increase the rear tempera-
ture. Press the
to decrease the rear tem-
perature.
If front passengers touch the
SYNC key
on the CLIMATE screen, the rear tempera-
ture settings will synchronize with the driver’s
and passenger’s side settings.
Rear temperature switch (if so equipped)
LHA4582
4-42Monitor, climate, audio, phone and voice recognition systems

Heater and air conditioner settings can be
changed on the screen.1. Press the
MENU button on the
lower display menu.
2. Using the arrow, tab over to the next screen and touch the Settings key. Touch
the arrow again to get to the next screen
and touch Other.
3. Touch the CLIMATE key.
Available setting items may vary depending
on models and specifications. Available settings
∙ Steering Wheel Heater
Touch to turn the steering wheel heater
on and off.
∙ Auto Steering Wheel Heater
The automatic control mode for the
steering-wheel heating can be turned on
and off. When the item is turned on, the
steering-wheel heating will turn on auto-
matically if the temperature inside the
vehicle compartment is low at the time
when the ignition switch is turned on.
Regardless of the temperature, the
steering-wheel heating will turn off after
30 minutes. If the steering-wheel heater
is turned on or off manually by
touchingon the CLIMATE screen,
the automatic steering-wheel heating
control mode will be canceled and will
return to the manual mode.
∙ If the surface temperature of the steering-wheel is above the tempera-
ture within which the system is de-
signed to operate, the system will not
heat the steering-wheel. This is not a
malfunction. The air conditioner system in your INFINITI
vehicle is charged with a refrigerant designed
with the environment in mind.
This refrigerant does not harm the earth’s
ozone layer.
Special charging equipment and lubricant is
required when servicing your INFINITI air
conditioner. Using improper refrigerants or
lubricants will cause severe damage to your
air conditioner system. For additional infor-
mation, refer to “Air conditioner system re-
frigerant and oil recommendations” in the
“Technical and consumer information” sec-
tion of this manual.
It is recommended that you visit an INFINITI
retailer for servicing your “environmentally
friendly” air conditioning system.WARNING
The air conditioner system contains refrig-
erant under high pressure. To avoid per-
sonal injury, any air conditioner service
should be done only by an experienced
technician with proper equipment.
LHA4583
HEATER AND AIR CONDITIONER
SETTINGS
SERVICING AIR CONDITIONER
Monitor, climate, audio, phone and voice recognition systems4-43

5 Starting and driving
Precautions when starting and driving.............5-4
Exhaust gas (carbon monoxide) ................5-4
Three-way catalyst ............................5-4
Tire Pressure Monitoring System (TPMS) .......5-5
On-pavement and off-road driving
precautions ...................................5-9
Avoiding collision and rollover ..................5-9
Off-road recovery .............................5-9
Rapid air pressure loss ....................... 5-10
Drinking alcohol/drugs and driving ...........5-10
Driving safety precautions ....................5-11
Intelligent All-Wheel Drive (AWD) driving
safety precautions (if so equipped) ...........5-13
Push-button ignition switch ....................5-13
Operating range ............................ 5-14
Push-button ignition switch positions .........5-15
Emergency engine shut off ..................5-16
INFINITI Intelligent Key battery
discharge ................................... 5-16
INFINITI Vehicle Immobilizer System ..........5-17
Before starting the engine .......................5-17
Starting the engine .............................. 5-17
Remote Engine Start (if so equipped) .........5-18 Driving the vehicle
.............................. 5-19
Continuously Variable Transmission
(CVT) ....................................... 5-19
Electronic parking brake ........................ 5-24
Automatic operation ........................ 5-24
Manual operation ........................... 5-25
When towing a trailer ....................... 5-26
Automatic brake hold ........................... 5-26
How to activate/deactivate the
automatic brake hold function ...............5-27
How to use the automatic brake hold
function .................................... 5-28
INFINITI Drive Mode Selector ..................5-29
Standard mode ............................. 5-29
Sport mode ................................. 5-29
Personal mode .............................. 5-29
ECO mode .................................. 5-30
Lane Departure Warning (LDW)
(if
so equipped) ................................. 5-33
LDW system operation ......................5-34
How to enable/disable the LDW system .....5-35
LDW system limitations .....................5-35
System temporarily unavailable ..............5-36

When the ignition switch is pushed without
depressing the brake pedal, the ignition
switch will change as follows:
Push the ignition switch center:∙ Once to change to ON.
∙ Two times to change to OFF.
The ignition switch will automatically return
to the LOCK position when any door is either
opened or closed with the switch in the OFF
position. The ignition lock is designed so that the igni-
tion switch cannot be placed in the OFF po-
sition until the shift lever is in the P (Park)
position.
When the ignition switch cannot be placed in
the OFF position, proceed as follows:
1. Press the Park button to place the ve- hicle in the P (Park) position.
2. Push the ignition switch. The ignition switch position will change to the ON
position.
3. Push the ignition switch again to the OFF position.
The shift lever can be moved from the P
(Park) position if the ignition switch is in the
ON position and the brake pedal is de-
pressed.
If the battery of the vehicle is discharged, the
ignition switch cannot be moved from the
LOCK position.
Some indicators and warnings for operation
are displayed on the vehicle information dis-
play. For additional information, refer to “Ve-
hicle information display” in the “Instruments
and controls” section of this manual.OPERATING RANGE
The Intelligent Key functions can only be used
when the Intelligent Key is within the speci-
fied operating range.
When the Intelligent Key battery is almost
discharged or strong radio waves are present
near the operating location, the Intelligent
Key system’s operating range becomes nar-
rower and may not function properly.
If the Intelligent Key is within the operating
range, it is possible for anyone, even some-
one who does not carry the Intelligent Key, to
push the ignition switch to start the engine.
LSD2911LSD2020
5-14Starting and driving

The operating range of the engine start func-
tion is inside of the vehicle
1.
∙ The luggage area is not included in the operating range, but the Intelligent Key
may function.
∙ If the Intelligent Key is placed on the in- strument panel, inside the glove box,
storage bin or door pocket, the Intelligent
Key may not function.
∙ If the Intelligent Key is placed near the door or window outside the vehicle, the
Intelligent Key may function.
PUSH-BUTTON IGNITION
SWITCH POSITIONS
LOCK (Normal parking position)
The ignition switch can only be locked in this
position.
The ignition switch will be unlocked when it is
placed in the ON position while carrying the
Intelligent Key.
The ignition switch will lock when any door is
opened or closed with the ignition switched
off. ON (Normal operating position)
This position turns on the ignition system and
electrical accessories.
ON has a battery saver feature that will place
the ignition switch in the OFF position, if the
vehicle is not running, after some time under
the following conditions:
∙ All doors are closed.
∙ The shift lever is in P (Park).
The battery saver feature will be canceled if
any of the following occur: ∙ Any door is opened.
∙ The shift lever is moved out of the P (Park) position.
∙ The ignition switch changes position.
CAUTION
Do not leave the vehicle with the ignition
switch in the ON position when the engine
is not running for an extended period. This
can discharge the battery. OFF
The ignition switch is in the OFF position
when the engine is turned off using the igni-
tion switch. No lights will illuminate on the
ignition switch.
AUTO ACC
With the vehicle in the P (Park) position, the
Intelligent Key with you and the ignition
switch placed from the ON position to the
OFF position, the radio can still be used for a
period of time, or until the driver’s door is
opened.
After a period of time, functions such as ra-
dio, navigation, and Bluetooth® Hands-Free
Phone System may be restarted by pressing
the POWER button/VOLUME control knob
or the key fob unlock button. For additional
information, refer to “Monitor, climate, audio,
phone and voice recognition systems” section
of this manual.
Starting and driving5-15
