2019 INFINITI QX50 stop start

Illustration 3: If the BSI system is on and your
vehicle is approaching a lane marker and a
vehicle is in the detection zone, the system
chimes a sound (three times), and the side
indicator light flashes. Then the BSI system
slightly applies the brakes on one side to help
return the vehicle back to the center of the
driving lane.NOTE:
Illustration 4: If you accelerate from a stop
with a vehicle in the detection zone, the
other vehicle may not be detected.Overtaking another vehicle
Illustration 5: The side indicator light illumi-
nates if you overtake a vehicle and that ve-
hicle stays in the detection zone for approxi-
mately 3 seconds.
The radar sensors may not detect slower
moving vehicles if they are passed quickly.
Illustration 3 – Approaching from behind
LSD2048
Illustration 4 – Accelerate from a stop
SSD1032
Illustration 5 – Overtaking another vehicle
SSD1033
5-60Starting and driving

Illustration 10: If the driver activates the turn
signal while another vehicle is in the detection
zone, then the side indicator light flashes and
a chime will sound twice.
NOTE:
If the driver activates the turn signal before
a vehicle enters the detection zone, the side
indicator light will flash but no chime will
sound when another vehicle is detected.Illustration 11: If the BSI system is on and
your vehicle approaches the lane marker
while another vehicle is in the detection zone,
the side indicator light flashes and a chime
will sound three times. Then, the BSI system
slightly applies the brakes on the appropriate
side to help return the vehicle back to the
center of the driving lane.
NOTE:
∙ Illustration 12: The BSI system will not
operate if your vehicle is on a lane marker
when another vehicle enters the detec-
tion zone. In this case, only the BSW sys-
tem operates.
∙ BSI braking will not operate or will stop
operating and only a warning chime will
sound under the following conditions:
– When the brake pedal is depressed.
– When the vehicle is accelerated dur-
ing BSI system operation.
Illustration 10 – Entering from the side
SSD1038
Illustration 11 – Entering from the side
SSD1094
Illustration 12 – Entering from the side
LSD2051
Starting and driving5-63

–When steering quickly.
– When the ICC, DCA, PFCW or FEB
with Pedestrian Detection warnings
sound.
– When the hazard warning flashers
are operated.
– When driving on a curve at a high
speed.
SYSTEM TEMPORARILY
UNAVAILABLE
When any of the following messages appear
on the vehicle information display, a chime
will sound and the BSI system will be turned
off automatically.
∙ “Not Available Poor Road Conditions”: When the VDC system (except traction
control system function) or ABS oper-
ates.
∙ “Currently Not Available”: When the VDC system is turned off.
∙ “Not Available: High Camera Temp”: When the camera detects that the inte-
rior temperature is high (over approxi-
mately 104°F [40°C]). ∙ “Unavailable: Side Radar Obstruction”:
When side radar blockage is detected.
Turn off the BSI system and turn it on again
when the above conditions no longer exist.
SYSTEM MALFUNCTION
When the BSI system malfunctions, it will be
turned off automatically, a chime will sound
and the BSI system warning light (orange) will
illuminate.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the warning
light (orange) continues to illuminate, have
the system checked. It is recommended that
you visit an INFINITI retailer for this service.
SYSTEM MAINTENANCE
The lane camera unit1for the BSI system is
located above the inside mirror. The two ra-
dar sensors
2for the BSI system are located
near the rear bumper. To keep the proper
operation of the BSI system and prevent a
system malfunction, be sure to observe the
following:
∙ Always keep the windshield and the area near the radar sensors clean.
LSD2924
5-64Starting and driving

SYSTEM MALFUNCTION
If the BCI system malfunctions, it will turn off
automatically, a chime will sound and the BCI
system warning light (orange) will illuminate.
Action to take:
Stop the vehicle in a safe location, turn the
engine off and restart the engine. If the warn-
ing light (orange) continues to illuminate,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
SYSTEM MAINTENANCE
The radar sensors1and the sonar sensors
2for the BCI system are located near the
rear bumper. Always keep the area near the
radar sensors clean.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors. Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a colli-
sion.
For USA
FCC: OAYSRR3B
This device complies with part 15 of the FCC
Rules.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
LSD2925
Starting and driving5-73

SYSTEM TEMPORARILY
UNAVAILABLE
When radar blockage is detected, the system
will be deactivated automatically. The “Un-
available: Side Radar Obstruction” warning
message will appear and the
BSI/BSW/BCI/RCTA indicator (white) will
blink
Ain the vehicle information display.
The systems are not available until the condi-
tions no longer exist.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
NOTE:
If the BSW system stops working, the RCTA
system will also stop working.
Action to take
When the above conditions no longer exist,
the system will resume automatically.
LSD3036
5-80Starting and driving

Malfunction
When the RCTA system malfunctions, it will
turn off automatically. The system malfunc-
tion warning message with the
BSI/BSW/BCI/RCTA indicator (orange) will
appear in the vehicle information display.
NOTE:
If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.
Action to take
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the mes-
sage continues to appear, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
SYSTEM MAINTENANCE
The two radar sensors1for the BSW and
RCTA systems are located near the rear
bumper. Always keep the area near the radar
sensors clean.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors. Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a colli-
sion.
Radio frequency statement
For USA
This device complies with part 15 of the FCC
Rules. (FCC Number UR8100261)
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
NOTE:
The manufacturer is not responsible for any
radio or TV interference caused by unau-
thorized modifications to this equipment.
Such modifications could void the user’s au-
thority to operate the equipment.
LSD2920
Starting and driving5-81

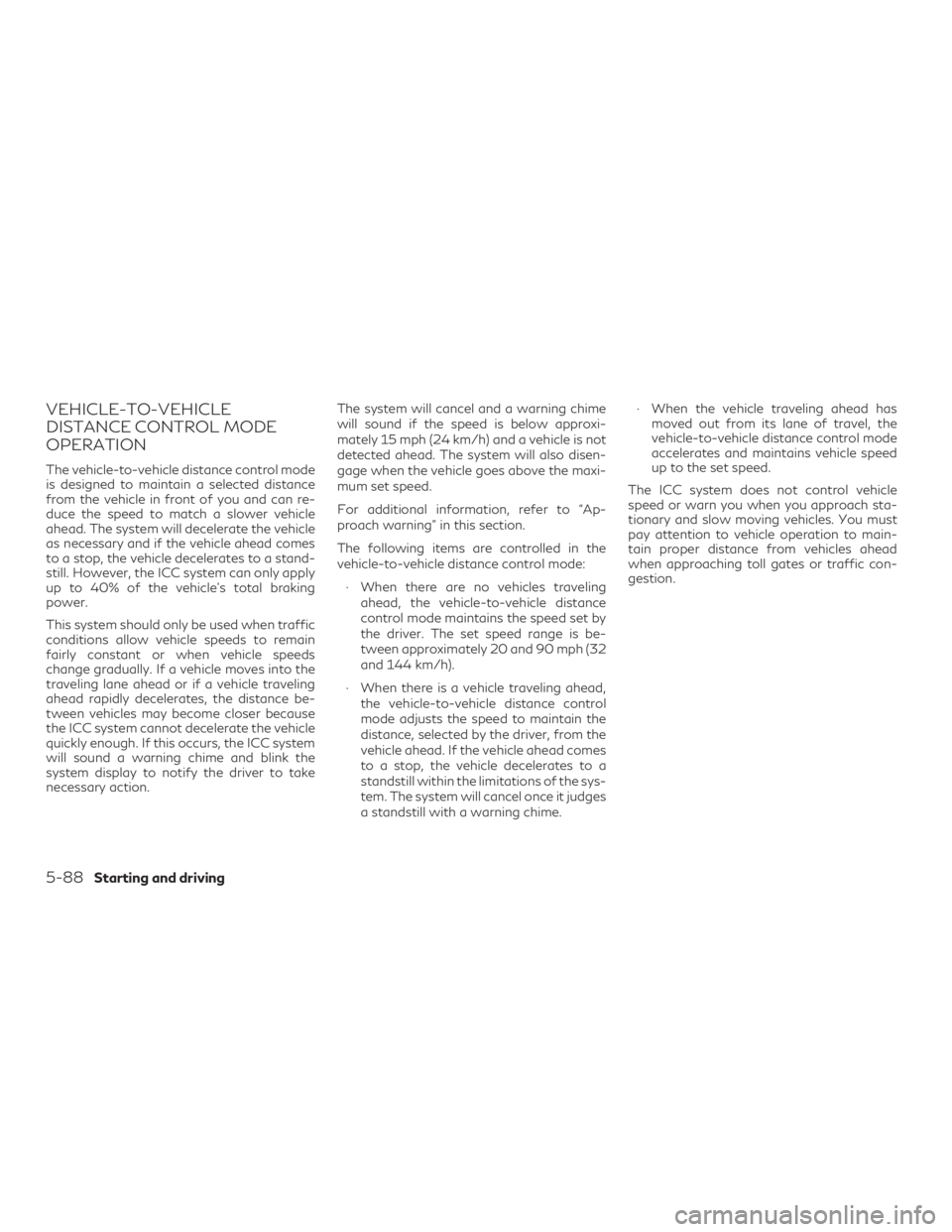

VEHICLE-TO-VEHICLE
DISTANCE CONTROL MODE
OPERATION
The vehicle-to-vehicle distance control mode
is designed to maintain a selected distance
from the vehicle in front of you and can re-
duce the speed to match a slower vehicle
ahead. The system will decelerate the vehicle
as necessary and if the vehicle ahead comes
to a stop, the vehicle decelerates to a stand-
still. However, the ICC system can only apply
up to 40% of the vehicle’s total braking
power.
This system should only be used when traffic
conditions allow vehicle speeds to remain
fairly constant or when vehicle speeds
change gradually. If a vehicle moves into the
traveling lane ahead or if a vehicle traveling
ahead rapidly decelerates, the distance be-
tween vehicles may become closer because
the ICC system cannot decelerate the vehicle
quickly enough. If this occurs, the ICC system
will sound a warning chime and blink the
system display to notify the driver to take
necessary action.The system will cancel and a warning chime
will sound if the speed is below approxi-
mately 15 mph (24 km/h) and a vehicle is not
detected ahead. The system will also disen-
gage when the vehicle goes above the maxi-
mum set speed.
For additional information, refer to “Ap-
proach warning” in this section.
The following items are controlled in the
vehicle-to-vehicle distance control mode:
∙ When there are no vehicles traveling ahead, the vehicle-to-vehicle distance
control mode maintains the speed set by
the driver. The set speed range is be-
tween approximately 20 and 90 mph (32
and 144 km/h).
∙ When there is a vehicle traveling ahead, the vehicle-to-vehicle distance control
mode adjusts the speed to maintain the
distance, selected by the driver, from the
vehicle ahead. If the vehicle ahead comes
to a stop, the vehicle decelerates to a
standstill within the limitations of the sys-
tem. The system will cancel once it judges
a standstill with a warning chime. ∙ When the vehicle traveling ahead has
moved out from its lane of travel, the
vehicle-to-vehicle distance control mode
accelerates and maintains vehicle speed
up to the set speed.
The ICC system does not control vehicle
speed or warn you when you approach sta-
tionary and slow moving vehicles. You must
pay attention to vehicle operation to main-
tain proper distance from vehicles ahead
when approaching toll gates or traffic con-
gestion.
5-88Starting and driving

When the SET– switch is pushed under the
following conditions, the system cannot be
set.
A warning chime will sound and a message
will pop up:∙ When the VDC system is off (To use the ICC system, turn on the VDC system.
Push the ICC switch to turn off the ICC
system and reset the ICC switch by push-
ing the ICC switch again.)
For additional information about the
VDC system, refer to “Vehicle Dynamic
Control (VDC) system” in this section.
∙ When VDC is operating
∙ When a wheel is slipping (To use the ICC system, make sure the wheels are no lon-
ger slipping.)
1System set display with vehicle ahead
2System set display without vehicle ahead
The driver sets the desired vehicle speed
based on the road conditions. The ICC sys-
tem maintains the set vehicle speed, similar to
standard cruise control, as long as no vehicle
is detected in the lane ahead. The ICC system
displays the set speed.
Vehicle detected ahead
When a vehicle is detected in the lane ahead,
the ICC system decelerates the vehicle by
controlling the throttle and applying the
brakes to match the speed of a slower vehicle ahead. The system then controls the vehicle
speed based on the speed of the vehicle
ahead to maintain the driver selected dis-
tance.
NOTE:
∙ The stop lights of the vehicle come on
when braking is performed by the ICC
system.
∙ When the brake operates, a noise may be
heard. This is not a malfunction.
When a vehicle ahead is detected, the vehicle
ahead detection indicator comes on. The ICC
system will also display the set speed and
selected distance.
Vehicle ahead not detected
When a vehicle is no longer detected ahead,
the ICC system gradually accelerates your
vehicle to resume the previously set vehicle
speed. The ICC system then maintains the set
speed.
When a vehicle is no longer detected, the
vehicle ahead detection indicator turns off.
If a vehicle ahead appears during accelera-
tion to the set vehicle speed or any time the
ICC system is in operation, the system con-
trols the distance to that vehicle.
LSD2719
5-92Starting and driving
