Headlight beam select
1To select the high beam function, push
the lever forward. The high beam lights
come on and the
light illuminates.
2Pull the lever back to select the low
beam.
3Pulling and releasing the lever flashes the
headlight high beams on and off.
High Beam Assist (if so equipped)
The High Beam Assist system will operate
when the vehicle is driven at speeds of ap-
proximately 25 mph (40 km/h) and above. If
an oncoming vehicle or leading vehicle ap-pears in front of your vehicle when the head-
light high beam is on, the headlight will be
switched to the low beam automatically.
WARNING
∙ The High Beam Assist system is a conve-
nience but it is not a substitute for safe
driving operation. The driver should re-
main alert at all times, ensure safe driving
practices and switch the high beams and
low beam manually when necessary.
∙ The high beam or low beam may not switch automatically under the following
conditions. Switch the high beam and low
beam manually.
– During bad weather (rain, fog, snow, wind, etc.).
– When a light source similar to a head- light or tail light is in the vicinity of the
vehicle.
– When the headlights of the oncoming vehicle or the leading vehicle are
turned off, when the color of the light
is affected due to foreign materials on
the lights, or when the light beam is
out of position.
– When there is a sudden, continuous change in brightness. – When driving on a road that passes
over rolling hills, or a road that has
level differences.
– When driving on a road with many curves.
– When a sign or mirror-like surface is reflecting intense light towards the
front of the vehicle.
– When the container, etc. being towed by a leading vehicle is reflecting in-
tense light.
– When a headlight on your vehicle is damaged or dirty.
– When the vehicle is leaning at an angle due to a punctured tire, being towed,
etc.
∙ The timing of switching the low beam and high beam may change under the follow-
ing situations.
– The brightness of the headlights of the oncoming vehicle or leading
vehicle.
– The movement and direction of the oncoming vehicle and the leading
vehicle.
LIC3820
Instruments and controls2-41

Ambient image sensor maintenance
The ambient image sensor
1for the High
Beam Assist system is located in front of the
inside mirror. To maintain the proper opera-
tion of the High Beam Assist system and
prevent a system malfunction, be sure to ob-
serve the following:
∙ Always keep the windshield clean.
∙ Do not attach a sticker (including trans- parent material) or install an accessory
near the ambient image sensor. ∙ Do not strike or damage the areas around
the ambient image sensor. Do not touch
the sensor lens that is located on the
ambient image sensor.
If the ambient image sensor is damaged due
to an accident, it is recommended that you
visit an INFINITI retailer.
Battery saver system
The battery saver system automatically turns
off the ignition after a period of time when
the ignition switch is left in the Auto ACC or
ON position.
The battery saver system automatically turns
off the following lights after a period of time
when the ignition switch is placed in the OFF
position and the doors are closed:
∙ Headlights, when the headlight switch is in the
orposition
∙ Interior lights, when left in the ON posi- tion
CAUTION
Even though the battery saver feature au-
tomatically turns off the headlights after a
period of time, you should turn the head-
light switch to the OFF position when the
engine is not running to avoid discharging
the vehicle battery.
Adaptive Front lighting System
(AFS) (if so equipped)
The Adaptive Front lighting System (AFS) will
automatically adjust the headlights (low
beam) toward the turning direction to im-
prove the driver’s view. When the headlight
switch is ON and the driver operates the
steering wheel in a turn, the AFS system will
be activated.
The AFS will operate:
∙ when the headlight switch is ON.
∙ when the shift lever is in any position other than P (Park) or R (Reverse).
LSD2712
Instruments and controls2-43

Auto-reverse function
The auto-reverse function can be activated
when a window is closed by automatic op-
eration.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the window oc-
curs.
WARNING
There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all passen-
gers have their hands, etc., inside the
vehicle before closing the window.
If the vehicle’s battery is disconnected, re-
placed, or jump started, the power window
auto-reverse function may not operate prop-
erly. If this occurs, it is recommended that you
visit an INFINITI retailer to re-initialize the
power window auto-reverse system.
If the control unit detects something caught
in a window equipped with automatic opera-
tion as it is closing, the window will be imme-
diately lowered.
POWER MOONROOF
The front moonroof is a power moonroof,
the rear moonroof is fixed glass. The power
moonroof will only operate when the ignition
switch is placed in the ON position. The
moonroof is operational for a period of time,
even if the ignition switch is placed in the OFF
position. If the driver’s door or the front pas-
senger’s door is opened during this period of
time, the power to the moonroof is canceled.
Sliding the moonroof
To slide the moonroof:
∙ To fully open the moonroof, push the switch
1toward the open position until
it reaches the second detent. If the
switch
1is pushed to the first detent,
only the sunshade will open.
∙ To fully close the moonroof, push the switch
2toward the close position until
it reaches the second detent. If the
switch
2is pushed to the first detent, the
moonroof will close but the sunshade will
remain open.
∙ To stop the moonroof during operation, push the
1,2or3switch to the de-
sired position.
Tilting the moonroof
To tilt up, push the moonroof switch3.To
tilt down the moonroof, push the switch
3,
or the switch
2to the first detent. When the
switch
2is pushed to the second detent, the
moonroof will tilt down and the sunshade will
close.
LIC3912
MOONROOF (if so equipped)
2-68Instruments and controls

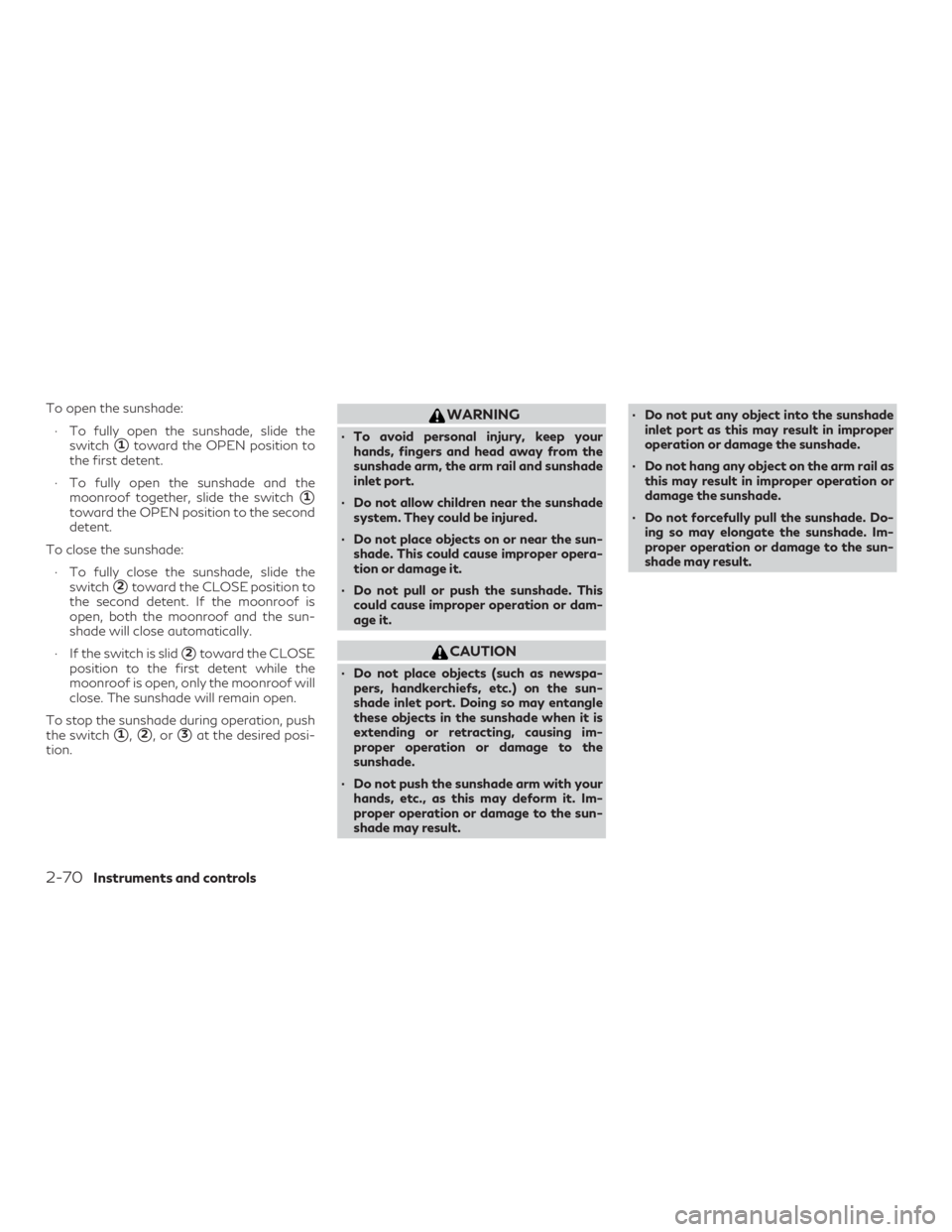

To open the sunshade:∙ To fully open the sunshade, slide the switch
1toward the OPEN position to
the first detent.
∙ To fully open the sunshade and the moonroof together, slide the switch
1
toward the OPEN position to the second
detent.
To close the sunshade: ∙ To fully close the sunshade, slide the switch
2toward the CLOSE position to
the second detent. If the moonroof is
open, both the moonroof and the sun-
shade will close automatically.
∙ If the switch is slid
2toward the CLOSE
position to the first detent while the
moonroof is open, only the moonroof will
close. The sunshade will remain open.
To stop the sunshade during operation, push
the switch
1,2,or3at the desired posi-
tion.
WARNING
∙ To avoid personal injury, keep your hands, fingers and head away from the
sunshade arm, the arm rail and sunshade
inlet port.
∙ Do not allow children near the sunshade system. They could be injured.
∙ Do not place objects on or near the sun- shade. This could cause improper opera-
tion or damage it.
∙ Do not pull or push the sunshade. This could cause improper operation or dam-
age it.
CAUTION
∙ Do not place objects (such as newspa-pers, handkerchiefs, etc.) on the sun-
shade inlet port. Doing so may entangle
these objects in the sunshade when it is
extending or retracting, causing im-
proper operation or damage to the
sunshade.
∙ Do not push the sunshade arm with your hands, etc., as this may deform it. Im-
proper operation or damage to the sun-
shade may result. ∙ Do not put any object into the sunshade
inlet port as this may result in improper
operation or damage the sunshade.
∙ Do not hang any object on the arm rail as this may result in improper operation or
damage the sunshade.
∙ Do not forcefully pull the sunshade. Do- ing so may elongate the sunshade. Im-
proper operation or damage to the sun-
shade may result.
2-70Instruments and controls

LOCKING WITH KEY
To lock or unlock the vehicle, turn the key as
shown.
Manual
To lock the doors and liftgate, turn the key
toward the front of the vehicle
1.
To unlock the driver’s door, turn the key to-
ward the rear of the vehicle
3, then return it
to the neutral position
2. To unlock all doors and the liftgate, turn the
key toward the rear of the vehicle again
3
within 60 seconds of unlocking the driver’s
door.
LOCKING WITH INSIDE LOCK
KNOB TYPE A (if so equipped)
To lock the door without the key, move the
inside lock to the lock position
1, then close
the door.
To unlock the door without the key, move the
inside lock knob to the unlock position
2.
Front doors
LPD2750
Inside lock
LPD2714
Pre-driving checks and adjustments3-5

interfere with the operation of the Intelligent
Key system under the following operating
conditions:∙ When operating near a location where strong radio waves are transmitted, such
as a TV tower, power station and broad-
casting station.
∙ When in possession of wireless equip- ment, such as a cellular telephone, trans-
ceiver or a CB radio.
∙ When the Intelligent Key is in contact with or covered by metallic materials.
∙ When any type of radio wave remote control is used nearby.
∙ When the Intelligent Key is placed near an electric appliance such as a personal
computer.
∙ When the vehicle is parked near a parking meter.
In such cases, correct the operating condi-
tions before using the Intelligent Key function
or use the mechanical key.
Although the life of the battery varies de-
pending on the operating conditions, the bat-
tery’s life is approximately two years. If the
battery is discharged, replace it with a new
one. When the Intelligent Key battery is low, a
“Key Battery Low” indicator illuminates in the
vehicle information display. For additional in-
formation, refer to “Vehicle information dis-
play warnings and indicators” in the “Instru-
ments and controls” section of this manual.
Since the Intelligent Key is continuously re-
ceiving radio waves, if the key is left near
equipment which transmits strong radio
waves, such as signals from a TV and per-
sonal computer, the battery life may become
shorter.
For additional information, refer to “Battery
replacement” in the “Do-it-yourself” section
of this manual.
CAUTION
Listed below are conditions or occurrences
which will damage the Intelligent Key:
∙ Do not allow the Intelligent Key, which
contains electrical components, to come
into contact with water or salt water.
This could affect the system function.
∙ Do not drop the Intelligent Key.
∙ Do not strike the Intelligent Key sharply against another object. ∙ Do not change or modify the Intelligent
Key.
∙ Wetting may damage the Intelligent Key. If the Intelligent Key gets wet, immedi-
ately wipe until it is completely dry.
∙ Do not place the Intelligent Key for an extended period in an area where tem-
peratures exceed 140°F (60°C).
∙ Do not attach the Intelligent Key with a key holder that contains a magnet.
∙ Do not place the Intelligent Key near equipment that produces a magnetic
field, such as a TV, audio equipment and
personal computers.
If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that In-
telligent Key from the vehicle. This may pre-
vent the unauthorized use of the Intelligent
Key to operate the vehicle. For information
regarding the erasing procedure, it is recom-
mended that you visit an INFINITI retailer.
3-8Pre-driving checks and adjustments

A pinch strip is mounted on each side of the
liftgate. If an obstacle is detected by a pinch
strip during power close, the liftgate will re-
verse direction and return to the full open
position.
NOTE:
If the pinch strip is damaged or removed, the
power close function will not operate.
WARNING
There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all passen-
gers have their hands, etc., inside the
vehicle before closing the liftgate.Manual Mode:
If power operation is not available, the lift-
gate may be operated manually. Power op-
eration may not be available if multiple ob-
stacles have been detected in a single power
cycle or if the battery voltage is low.
If the power liftgate opener switch
Ais
pushed during power open or close, the
power operation will be canceled and the
liftgate can be operated manually.
To open the liftgate manually, unlock the
doors, push the liftgate opener switch
Aand
lift the liftgate. To close, lower and push the liftgate down
securely.
MOTION-ACTIVATED LIFTGATE
(if so equipped)
The liftgate can be operated using a quick
kicking motion under the center of the rear
bumper.
To operate, the Intelligent Key must be within
31.5 in (80 cm) of the liftgate.
NOTE:
Tow hitches are available as an accessory for
this vehicle. If a tow hitch is installed, the
liftgate electronic control unit (ECU) needs
to be replaced with an ECU programmed
with towing logic for the Motion-Activated
Liftgate to function properly.
LPD2721
Pre-driving checks and adjustments3-27

CAUTION
∙ Interference or malfunction can becaused by parking in close proximity to
radio or satellite towers.
∙ Intelligent Key interference could be caused if you have your key fob stored
next to your cell phone or any RF-enabled
smart card. For additional information,
refer to “INFINITI Intelligent Key” in this
section.
POWER LIFTGATE MAIN
SWITCH
The power liftgate operation can be turned
ON
Aor OFFBby the power liftgate main
switch located in the glove box.
When the power liftgate main switch is
pushed to the OFF position, the power op-
eration is not available by the power liftgate
switch or liftgate request switch on the lift-
gate.
Power operation is only available when the
power liftgate main switch is in the OFF po-
sition by pushing the instrument panel switch
or pressing the liftgate button on the key fob. Motion-Activated Liftgate (if so equipped)
will not function when the power liftgate
main switch is in the OFF position.
LIFTGATE RELEASE
WARNING
∙ Always be sure the liftgate has been
closed securely to prevent it from open-
ing while driving.
∙ Do not drive with the liftgate open. This could allow dangerous exhaust gases to
be drawn into the vehicle. For additional
information, refer to “Exhaust gas (car-
bon monoxide)” in the “Starting and driv-
ing” section of this manual.
∙ To avoid personal injury, do not attempt to activate the power liftgate if one or
both of the liftgate struts are removed.
LPD2723
Pre-driving checks and adjustments3-29
