2019 INFINITI QX30 tow

1. Firmly apply the parking brake.
2. Press the P (Park) button.
3. To help prevent the vehicle from moving
into traffic when parked on an incline, it is
a good practice to turn the wheels as
illustrated.
HEADED DOWNHILL WITH CURB
1
Turn the wheels into the curb and move
the vehicle forward until the curb side
wheel gently touches the curb. Then apply
the parking brake.
HEADED UPHILL WITH CURB
2
Turn the wheels away from the curb and
allow the vehicle to move back until the
curb side wheel gently touches the curb.
Then apply the parking brake.HEADED UPHILL OR DOWNHILL,
WITHOUT CURB
3
Turn the wheels toward the side of the
road so the vehicle will move away from
the center of the road if the vehicle moves.
Then apply the parking brake.
4.
Put the ignition switch in the OFF position.
SWITCHING OFF THE ENGINE
WARNING
The automatic transmission switches to
position N (Neutral) when you switch off
the engine. The vehicle may roll away.
There is a risk of an accident.
After switching off the engine, always
switch to position P (Park). Prevent the
parked vehicle from rolling away by apply-
ing the parking brake.
Procedure
1. Apply the electric parking brake.
2. Shift the transmission to position P (Park).
3.With the key:turn the key to the position
OFF in the ignition switch and remove it
The immobilizer is activated.
If you switch the engine off with the trans-
mission in position R (Reverse) or D (Drive),
the automatic transmission shifts to N (Neu-
tral) automatically.
With the key: if you then open the driver's
door or the front-passenger door or remove
the key from the ignition, the automatic
transmission shifts to P (Park) automatically.
If you want the automatic transmission to
remain in neutral N (Neutral), e.g. when hav-
ing the vehicle cleaned in an automatic car
wash with a towing system:
With the key:
1. Switch the ignition on.
2. Depress the brake pedal and keep it de-
pressed.
3. Shift to N (Neutral).
SSD0488Z
5-88Starting and driving

6 In case of emergency
Hazard warning flasher switch.............6-2
Flat tire............................6-2
Tire Pressure Monitoring System (TPMS).....6-2
Stopping vehicle.....................6-3
Warning triangle (if equipped)............6-4
Run-flat tires.......................6-4Removing and fitting wheels.............6-5
Jump starting.......................6-10
Push starting........................6-12
If your vehicle overheats.................6-13
Towing your vehicle...................6-14
Towing recommended by INFINITI........6-14

•Be sure that the jumper cables do not
touch moving parts in the engine com-
partment and that the cable clamps do
not contact any other metal.
9. Start the engine of the other vehicle
Aand let it run for a few minutes. Keep the
engine speed at about 2,000 rpm.
10. Start the engine of your vehicle
Bin the
normal way.
CAUTION
Do not keep the starter motor engaged for
more than 10 seconds. If the engine does
not start right away, place the ignition
switch in the OFF position and wait 10 sec-
onds before trying again.
11. After starting the engine of your vehicle,
carefully disconnect the negative lead
and then the positive lead (
4→3→2→1).
12.
Remove and dispose of the cloth that was
used to cover the ventilator holes as it may
be contaminated with corrosive acid.
13. Install the ventilator caps (if equipped).
14. Close the hood.NOTE
For models which incorporate the Idle Stop/
Start System:
•Ensure that the battery fitted is the spe-
cial battery that is enhanced with regard
to the charge-discharge capacity and life
performance. Avoid using any other bat-
tery for the Idle Stop/Start System, as
this may cause early deterioration of the
battery or a malfunction of the Idle Stop/
Start System. It is recommended that a
Genuine INFINITI battery is fitted. For
more information, it is recommended you
contact an INFINITI retailer.
•If the battery terminal is disconnected
(for battery replacement, etc.) and then
reconnected, there may be some delay be-
fore the Idle top/Start System reacti-
vates.Do not attempt to start the engine by pushing
the vehicle.
CAUTION
•Automatic Transmission (AT) model
cannot be push-started or tow-started.
Attempting to do so may cause damage
to the transmission.
•Three-way catalyst equipped models
should not be started by pushing. At-
tempting to do so may cause damage to
the three-way catalyst.
•Never try to start the vehicle by towing
it; when the engine starts, the forward
surge could cause the vehicle to collide
with the tow vehicle.
PUSH STARTING
6-12In case of emergency

When towing your vehicle, all jurisdictions and
local regulations for towing must be followed.
Incorrect towing equipment could damage
your vehicle. Towing instructions are available
from an INFINITI retailer. Local service opera-
tors are generally familiar with the applicable
laws and procedures for towing. To assure
proper towing and to prevent accidental dam-
age to your vehicle, INFINITI recommends
having a service operator tow your vehicle. It is
advisable to have the service operator carefully
read the following precautions.
WARNING
•Never ride in a vehicle that is being
towed.
•Never get under your vehicle after it has
been lifted by a tow truck.
CAUTION
•When towing, make sure that the trans-
mission, axles, steering system and
powertrain are in working condition. If
any of these conditions apply, dollies or
a flatbed tow truck must be used.
•Always attach safety chains before
towing.
TOWING RECOMMENDED BY
INFINITI
INFINITI recommends towing your vehicle
based upon the type of drivetrain. Please re-
fer to the diagrams in this section to ensure
that your vehicle is properly towed.
NCE451
FWD (2WD) models
TOWING YOUR VEHICLE
6-14In case of emergency

Two-Wheel Drive (FWD) models
CAUTION
NEVER tow automatic transmission (DCT)
models with the front wheels on the
ground or with all four wheels on the
ground (forwards or backwards), as this
may cause serious and expensive damage
to the transmission. If it is necessary to tow
the vehicle with the rear wheels raised, al-
ways use towing dollies under the front
wheels.
Four-Wheel Drive (4WD) models
INFINITI recommends that towing dollies be
used under the front or rear wheels when
towing your vehicle or the vehicle be placed
on a flatbed tow truck as illustrated.
CAUTION
Never tow 4WD models with any of the
wheels on the ground. Doing so will cause
serious and expensive damage to the
drivetrain.
Vehicle recovery (freeing a stuck
vehicle)
WARNING
To avoid vehicle damage, serious personal
injury or death when recovering a stuck ve-
hicle:
•Contact a professional towing service to
recover the vehicle if you have any ques-
tions regarding the recovery procedure.
•Tow chains or cables must be attached
only to main structural members of the
vehicle.
•Do not use the vehicle tie downs to tow
or free a stuck vehicle.
•Only use devices specifically designed
for vehicle recovery and follow the
manufacturer's instructions.
•Always pull the recovery device straight
out from the front of the vehicle. Never
pull at an angle.
•Route recovery devices so they do not
touch any part of the vehicle except the
attachment point.
NCE450
4WD models
In case of emergency6-15

•On vehicles with a push button ignition
switch: you must remove the start/stop
button and use the key (see " Push-
button ignition switch (if equipped)").
Otherwise the automatic transmission
may shift to position P (Park) when the
driver's or front passenger door are
opened, which could lead to damage to
the transmission.
If your vehicle is stuck in sand, snow, mud,
etc., use a tow strap or other device designed
specifically for vehicle recovery. Always fol-
low the manufacturer’s instructions for the
recovery device.
Rocking a stuck vehicle
WARNING
•To avoid potential injury, stand clear of
a stuck vehicle.
•Do not spin your tires at high speed. This
could cause them to explode and result
in serious injury. Parts of your vehicle
could also overheat and be damaged.If your vehicle is stuck in sand, snow, mud,
etc., use the following procedure:
1. Turn off the Vehicle Dynamic Control
(VDC) system.
2. Make sure the area in front and behind the
vehicle is clear of obstructions.
3. Turn the steering wheel right and left to
clear an area around the front tires.
4. Slowly rock the vehicle forward and back-
ward.
•Shift back and forth between R (Reverse)
and D (Drive).
•Apply the accelerator as little as possible
to maintain the rocking motion.
•Release the accelerator pedal before shift-
ing between R (Reverse) and D (Drive).
•Do not spin the tires above 35 MPH
(55 km/h).
5. If the vehicle cannot be freed after a few
tries, contact a professional towing ser-
vice to remove the vehicle.
6-16In case of emergency

If you choose to use a tire dressing, take the
following precautions:
•Use a water-based tire dressing. The coat-
ing on the tire dissolves more easily than
with an oil-based tire dressing.
•Apply a light coat of tire dressing to help
prevent it from entering the tire tread/
grooves (where it would be difficult to re-
move).
•Wipe off excess tire dressing using a dry
towel. Make sure the tire dressing is com-
pletely removed from the tire tread/
grooves.
•Allow the tire dressing to dry as recom-
mended by tire dressing manufacturer.Occasionally remove loose dust from the in-
terior trim, plastic parts and seats using a
vacuum cleaner or soft bristled brush. Wipe
the vinyl and leather surfaces with a clean,
soft cloth dampened in mild soap solution,
then wipe clean with a dry, soft cloth.
Regular care and cleaning is required in order
to maintain the appearance of the leather.
Before using any fabric protector, read the
manufacturer’s recommendations. Some
fabric protectors contain chemicals that may
stain or bleach the seat material.
Use a soft cloth dampened only with water to
clean the meter and gauge lens covers.
WARNING
Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can dam-
age the seat or occupant classification sen-
sor. This can also affect the operation of
the air bag system and result in serious per-
sonal injury.
CAUTION
•Never use benzine, thinner or any similar
material on the interior surfaces or sur-
face damage may occur. Such damage is
not covered under the INFINITI war-
ranty.
•Small dirt particles can be abrasive
and damaging to leather surfaces and
should be removed promptly. Do not use
saddle soap, car waxes, polishes, oils,
cleaning fluids, solvents, detergents or
ammonia-based cleaners as they dam-
age the leather's natural finish.
•Never use fabric protectors unless rec-
ommended by the manufacturer.
•Do not use glass or plastic cleaner on
meter or gauge lens covers. It may dam-
age the lens covers.
AIR FRESHENERS
Most air fresheners use a solvent that could
affect the vehicle interior. If you use an air
freshener, take the following precautions:
CLEANING INTERIOR
7-4Appearance and care

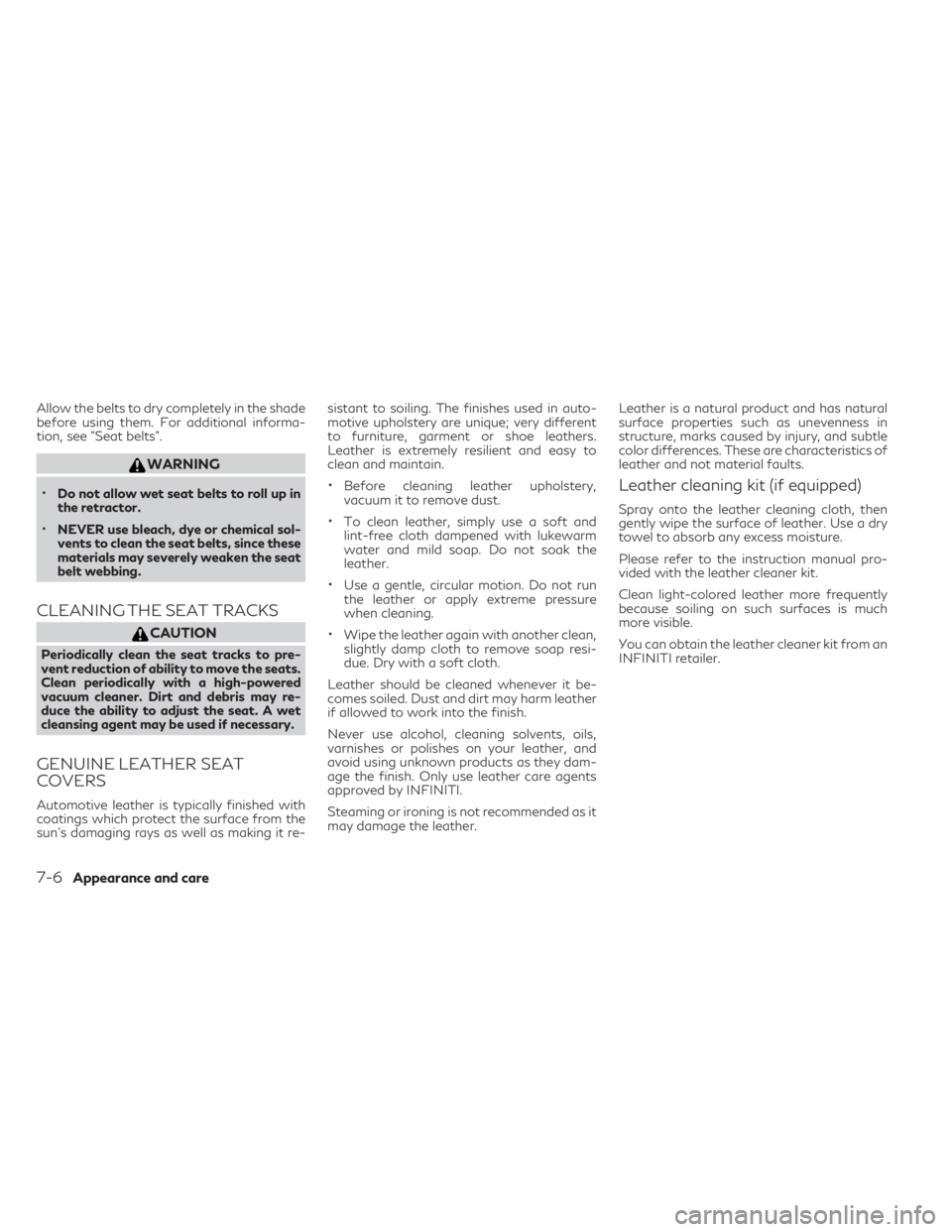

Allow the belts to dry completely in the shade
before using them. For additional informa-
tion, see "Seat belts".
WARNING
•Do not allow wet seat belts to roll up in
the retractor.
•NEVER use bleach, dye or chemical sol-
vents to clean the seat belts, since these
materials may severely weaken the seat
belt webbing.
CLEANING THE SEAT TRACKS
CAUTION
Periodically clean the seat tracks to pre-
vent reduction of ability to move the seats.
Clean periodically with a high-powered
vacuum cleaner. Dirt and debris may re-
duce the ability to adjust the seat. A wet
cleansing agent may be used if necessary.
GENUINE LEATHER SEAT
COVERS
Automotive leather is typically finished with
coatings which protect the surface from the
sun's damaging rays as well as making it re-sistant to soiling. The finishes used in auto-
motive upholstery are unique; very different
to furniture, garment or shoe leathers.
Leather is extremely resilient and easy to
clean and maintain.
•Before cleaning leather upholstery,
vacuum it to remove dust.
•To clean leather, simply use a soft and
lint-free cloth dampened with lukewarm
water and mild soap. Do not soak the
leather.
•Use a gentle, circular motion. Do not run
the leather or apply extreme pressure
when cleaning.
•Wipe the leather again with another clean,
slightly damp cloth to remove soap resi-
due. Dry with a soft cloth.
Leather should be cleaned whenever it be-
comes soiled. Dust and dirt may harm leather
if allowed to work into the finish.
Never use alcohol, cleaning solvents, oils,
varnishes or polishes on your leather, and
avoid using unknown products as they dam-
age the finish. Only use leather care agents
approved by INFINITI.
Steaming or ironing is not recommended as it
may damage the leather.Leather is a natural product and has natural
surface properties such as unevenness in
structure, marks caused by injury, and subtle
color differences. These are characteristics of
leather and not material faults.
Leather cleaning kit (if equipped)
Spray onto the leather cleaning cloth, then
gently wipe the surface of leather. Use a dry
towel to absorb any excess moisture.
Please refer to the instruction manual pro-
vided with the leather cleaner kit.
Clean light-colored leather more frequently
because soiling on such surfaces is much
more visible.
You can obtain the leather cleaner kit from an
INFINITI retailer.
7-6Appearance and care
