2019 INFINITI Q70 engine

JVT0159X
API certification mark
API service symbol
ENGINE OIL AND OIL FILTER
RECOMMENDATION
Selecting the correct oil
It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure
satisfactory engine life and performance,
see “Capacities and recommended fluids/
lubricants” (P.10-2). INFINITI recommends
the use of an energy conserving oil in order
to improve fuel economy.
Select only engine oils that meet the Amer-
ican Petroleum Institute (API) certificationor International Lubricant Standardization
and Approval Committee (ILSAC) certifica-
tion and SAE viscosity standard. These oils
have the API certification mark on the front
of the container. Oils which do not have the
specified quality label should not be used as
they could cause engine damage.Oil additives
INFINITI does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used
and maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.
Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is
important that the engine oil viscosity be
selected based on the temperatures at which
the vehicle will be operated before the next
oil change. Choosing an oil viscosity other
than that recommended could cause serious
engine damage.
Selecting the correct oil filter
Your new vehicle is equipped with a high-
quality genuine NISSAN oil filter. When
replacing, use the genuine oil filter or its
equivalent for the reason described in
change intervals.
Change intervals
The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Oil and filter other
than the specified quality, or oil and filter
change intervals longer than recommended
could reduce engine life. Damage to engines
caused by improper maintenance or use of
incorrect oil and filter quality and/or vis-
cosity is not covered by the new INFINITI
vehicle limited warranties.
Your engine was filled with a high quality
engine oil when it was built. You do not have
to change the oil before the first recom-
Technical and consumer information10-9

ENGINE
ModelVK56VDVQ37VHR
Type Gasoline, 4-cycleGasoline, 4-cycle
Cylinder arrangement 8-cylinder, V-slanted at 90° 6-cylinder, V-slanted at 60°
Bore × Stroke in (mm) 3.858 × 3.622
(98.0 × 92.0)3.760 × 3.385
(95.5 × 86.0)
Displacement cu in (cm
3) 338.78 (5,552) 225.54 (3,696)
Firing order 1-8-7-3-6-5-4-21-2-3-4-5-6
Idle speed rpm No adjustment is necessary.
Ignition timing
(B.T.D.C.) degree/rpm
Spark plug DILKAR7B11FXE24HR11
Spark plug gap
(Normal) in (mm)
0.043 (1.1) 0.043 (1.1)
Camshaft operation Timing chainTiming chain
This spark ignition system complies with the Canadian standard ICES-002.
STI0397B
VK56VD engine
STI0425
VQ37VHR engine
Technical and consumer information10-11
SPECIFICATIONS

10-14Technical and consumer information
If you plan to travel in another country,you
should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsi-
bility of the user. INFINITI is not responsible
for any inconvenience that may result.
STI0716
VEHICLE IDENTIFICATION NUM-
BER (VIN) PLATE
The vehicle identification number plate is
attached as shown. This number is the
identification for your vehicle and is used in
the vehicle registration.
STI0717
VEHICLE IDENTIFICATION NUM-
BER (chassis number)
The number is stamped as shown in the
engine compartment.
WHEN TRAVELING OR REGISTERING
IN ANOTHER COUNTRYVEHICLE IDENTIFICATION

STI0584
VK56VD engine
STI0509
VQ37VHR engine
ENGINE SERIAL NUMBER
The number is stamped on the engine as
shown.
STI0718
F.M.V.S.S./C.M.V.S.S. CERTIFICA-
TION LABEL
The Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certifica-
tion label is affixed as shown. This label
contains valuable vehicle information, such
as: Gross Vehicle Weight Ratings (GVWR),
Gross Axle Weight Rating (GAWR), month
and year of manufacture, Vehicle Identifica-
tion Number (VIN), etc. Review it carefully.
Technical and consumer information10-15

A vehicle equipped with Intelligent All-
Wheel Drive (AWD) should never be tested
using a two wheel dynamometer (such as the
dynamometers used by some states for
emissions testing), or similar equipment.
Make sure you inform test facility personnel
that your vehicle is equipped with AWD
before it is placed on a dynamometer. Using
the wrong test equipment may result in
transmission damage or unexpected vehicle
movement which could result in serious
vehicle damage or personal injury.
Due to legal requirements in some states/
areas, your vehicle may be required to be in
what is called the “ready condition” for an
Inspection/Maintenance (I/M) test of the
emission control system.
The vehicle is set to the “ready condition”
when it is driven through certain driving
patterns. Usually, the “ready condition” can
be obtained by ordinary usage of the vehicle.
If a powertrain system component is re-
paired or the battery is disconnected, the
vehicle may be reset to a “not ready condi-
tion”. Before taking the I/M test, check the
vehicle’s inspection/maintenance test readi-
ness condition. Place the ignition switch in
the ON position without starting the engine.
If the Malfunction Indicator Light (MIL)
comes on steady for 20 seconds and then
blinks for 10 seconds, the I/M test condition
is “not ready”. If the MIL does not blink after20 seconds, the I/M test condition is
“ready”.
It is recommended you visit an INFINITI
retailer to set the “ready condition” or to
prepare the vehicle for testing.
This vehicle is equipped with an Event Data
Recorder (EDR). The main purpose of an
EDR is to record, in certain crash or near
crash-like situations, such as an air bag
deployment or hitting a road obstacle, data
that will assist in understanding how a
vehicle’s systems performed. The EDR is
designed to record data related to vehicle
dynamics and safety systems for a short
period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record
such data as:
.
How various systems in your vehicle were
operating;
. Whether or not the driver and passenger
safety belts were buckled/fastened;
. How far (if at all) the driver was depres-
sing the accelerator and/or brake pedal;
and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which
crashes and injuries occur.
NOTE: EDR data are recorded by your
vehicle only if a nontrivial crash situation
occurs; no data are recorded by the EDR
under normal driving conditions and no
personal data (e.g. name, gender, age and
crash location) are recorded. However, other
parties, such as law enforcement, could
combine the EDR data with the type of
Technical and consumer information10-25
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST (US only)EVENT DATA RECORDERS (EDR)

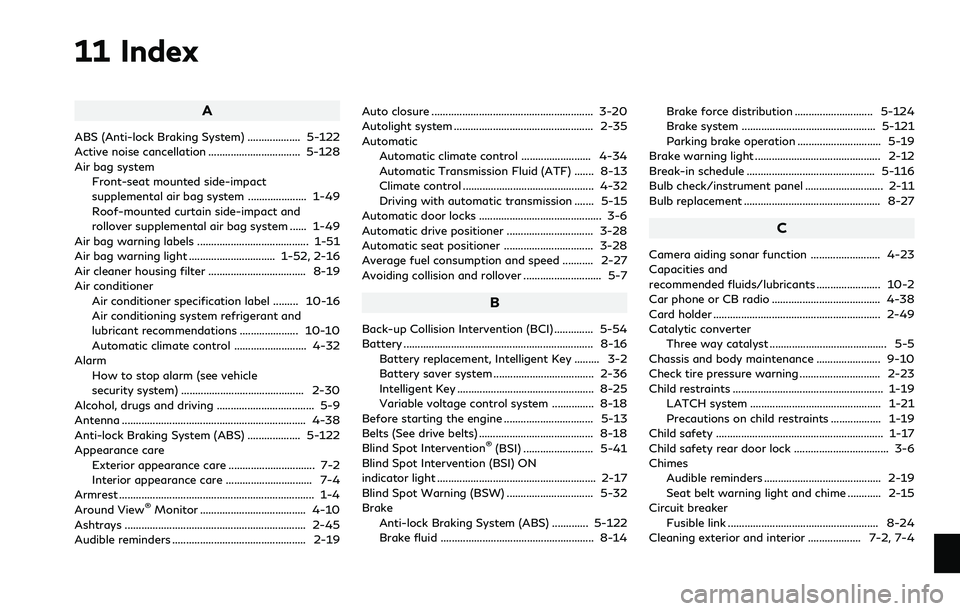

11 Index
A
ABS (Anti-lock Braking System) ................... 5-122
Active noise cancellation ................................. 5-128
Air bag systemFront-seat mounted side-impact
supplemental air bag system ..................... 1-49
Roof-mounted curtain side-impact and
rollover supplemental air bag system ...... 1-49
Air bag warning labels ........................................ 1-51
Air bag warning light ............................... 1-52, 2-16
Air cleaner housing filter ................................... 8-19
Air conditioner
Air conditioner specification label ......... 10-16
Air conditioning system refrigerant and
lubricant recommendations ..................... 10-10
Automatic climate control .......................... 4-32
Alarm
How to stop alarm (see vehicle
security system) ............................................ 2-30
Alcohol, drugs and driving ................................... 5-9
Antenna .................................................................. 4-38
Anti-lock Braking System (ABS) ................... 5-122
Appearance care
Exterior appearance care ............................... 7-2
Interior appearance care ............................... 7-4
Armrest ...................................................................... 1-4
Around View
®Monitor ...................................... 4-10
Ashtrays ................................................................. 2-45
Audible reminders ................................................ 2-19 Auto closure .......................................................... 3-20
Autolight system .................................................. 2-35
Automatic
Automatic climate control ......................... 4-34
Automatic Transmission Fluid (ATF) ....... 8-13
Climate control ............................................... 4-32
Driving with automatic transmission ....... 5-15
Automatic door locks ............................................ 3-6
Automatic drive positioner ............................... 3-28
Automatic seat positioner ................................ 3-28
Average fuel consumption and speed ........... 2-27
Avoiding collision and rollover ............................ 5-7
B
Back-up Collision Intervention (BCI) .............. 5-54
Battery .................................................................... 8-16
Battery replacement, Intelligent Key ......... 3-2
Battery saver system .................................... 2-36
Intelligent Key ................................................. 8-25
Variable voltage control system ............... 8-18
Before starting the engine ................................ 5-13
Belts (See drive belts) ......................................... 8-18
Blind Spot Intervention
®(BSI) ......................... 5-41
Blind Spot Intervention (BSI) ON
indicator light ......................................................... 2-17
Blind Spot Warning (BSW) ............................... 5-32
Brake
Anti-lock Braking System (ABS) ............. 5-122
Brake fluid ....................................................... 8-14 Brake force distribution ............................ 5-124
Brake system ................................................ 5-121
Parking brake operation .............................. 5-19
Brake warning light ............................................. 2-12
Break-in schedule .............................................. 5-116
Bulb check/instrument panel ............................ 2-11
Bulb replacement ................................................. 8-27
C
Camera aiding sonar function ......................... 4-23
Capacities and
recommended fluids/lubricants ....................... 10-2
Car phone or CB radio ....................................... 4-38
Card holder ............................................................ 2-49
Catalytic converter Three way catalyst .......................................... 5-5
Chassis and body maintenance ....................... 9-10
Check tire pressure warning ............................. 2-23
Child restraints ...................................................... 1-19 LATCH system ............................................... 1-21
Precautions on child restraints .................. 1-19
Child safety ............................................................ 1-17
Child safety rear door lock .................................. 3-6
Chimes Audible reminders .......................................... 2-19
Seat belt warning light and chime ............ 2-15
Circuit breaker Fusible link ...................................................... 8-24
Cleaning exterior and interior ................... 7-2, 7-4

11-2
Climate controlAutomatic climate control .......................... 4-32
Clock ........................................................................\
2-45
Coat hooks ............................................................ 2-50
Cockpit ...................................................................... 2-3
Cold weather driving ........................................ 5-126
Compact spare tire ............................................ 8-40
Console box ........................................................... 2-49
Coolant Capacities and
recommended fluids/lubricants ................. 10-2
Changing engine coolant ............................ 8-10
Checking engine coolant level ...................... 8-9
Corrosion protection ............................................. 7-7
Cruise control ....................................................... 5-65 Fixed speed cruise control (on
ICC system) ..................................................... 5-85
Intelligent Cruise Control (ICC) ................. 5-67
Cruise indicator .................................................... 2-24
Cup holders ........................................................... 2-47
Current fuel consumption ................................. 2-27
D
Daytime running light system .......................... 2-36
Defroster switch
Rear window and outside mirror
defroster switch ............................................. 2-34
Dimensions .......................................................... 10-13
Distance Control Assist (DCA) ........................ 5-88
Distance Control Assist (DCA) system
switch indicator .................................................... 2-24 Distance Control Assist (DCA) system
warning light ......................................................... 2-13
Distance to empty ............................................... 2-27
Drive belts .............................................................. 8-18
Drive positioner .................................................... 3-28
Driving
Cold weather driving .................................. 5-126
Driving with automatic transmission ....... 5-15
Precautions when starting and driving ..... 5-4
E
ECO drive indicator light .................................... 2-17
ECO mode ............................................................. 5-21
ECO pedal system ............................................... 5-21
Economy
Fuel .................................................................. 5-117
Elapsed time ......................................................... 2-27
Elapsed time and trip odometer ..................... 2-27
Emission control information label ............... 10-16
Emission control system maintenance ............ 9-8
Emission control system warranty .............. 10-23
Engine Before starting the engine .......................... 5-13
Break-in schedule ........................................ 5-116
Capacities and
recommended fluids/lubricants ................. 10-2
Changing engine coolant ............................ 8-10
Changing engine oil and filter .................... 8-11
Checking engine coolant level ...................... 8-9
Checking engine oil level ............................. 8-11
Coolant temperature gauge ......................... 2-8 Emergency engine shut off ......................... 5-12
Engine block heater .................................... 5-127
Engine compartment check locations ........ 8-3
Engine cooling system ................................... 8-8
Engine oil ........................................................ 8-10
Engine oil and oil
filter recommendation .................................. 10-9
Engine oil replacement indicator ............... 2-25
Engine oil viscosity ........................................ 10-9
Engine serial number ................................. 10-15
Engine specifications .................................. 10-11
Engine start operation indicator ............... 2-22
If your vehicle overheats ............................. 6-12
Starting the engine ....................................... 5-14
Engine coolant temperature gauge .................. 2-8
Entry/exit function
Automatic drive positioner ......................... 3-28
Event Data Recorders (EDR) ........................ 10-25
Exhaust gas (carbon monoxide) ........................ 5-4
Explanation of scheduled
maintenance items ................................................. 9-5
F
F.M.V.S.S./C.M.V.S.S. certification label .... 10-15
Filter Air cleaner housing filter ............................. 8-19
Changing engine oil and filter .................... 8-11
Flashers (See hazard warning
flasher switch) ......................................................... 6-2
Flat tire ...................................................................... 6-3
Flat towing ......................................................... 10-22

Floor mat cleaning ................................................. 7-5
Floor mat installation ............................................ 7-6
FluidAutomatic Transmission Fluid (ATF) ....... 8-13
Brake fluid ........................................... 8-14, 8-15
Capacities and
recommended fluids/lubricants ................. 10-2
Engine coolant .................................................. 8-8
Engine oil ........................................................ 8-10
Power steering fluid ..................................... 8-14
Window washer fluid ................................... 8-15
Fog light switch ................................................... 2-39
Forward Emergency Braking (FEB) ............. 5-101
Forward Emergency Braking (FEB) system
warning light ......................................................... 2-13
Front passenger air bag and status light ..... 1-46
Front power seat adjustment ............................. 1-3
Front seat Front seat adjustment .................................... 1-3
Front-seat active head restraints ...................... 1-9
Fuel Capacities and
recommended fluids/lubricants ................. 10-2
Fuel economy ............................................... 5-117
Fuel Information ............................... 10-4, 10-6
Fuel octane rating ............................ 10-4, 10-6
Fuel-filler cap .................................................. 3-22
Fuel-filler door ............................................... 3-22
Gauge .................................................................. 2-9
Fuel efficient driving tips ................................. 5-116
Fuses ....................................................................... 8-23 Fusible links ........................................................... 8-24
G
Garage door opener
HomeLink®Universal Transceiver ........... 2-60
Gas cap ................................................................... 3-22
Gauge ........................................................................\
. 2-6 Engine coolant temperature gauge ............ 2-8
Fuel gauge ......................................................... 2-9
Odometer ............................................................ 2-7
Speedometer ...................................................... 2-7
Tachometer ....................................................... 2-8
Trip computer ................................................. 2-27
General maintenance ............................................. 9-2
Glove box ............................................................... 2-48
H
Hazard warning flasher switch ........................... 6-2
Head restraints/headrests .................................. 1-5
Headlights
Aiming control (See Adaptive Front
lighting System (AFS)) ................................. 2-36
Bulb replacement .......................................... 8-28
Headlight switch ............................................ 2-34
Heated seats ......................................................... 2-41
Heated steering wheel ....................................... 2-40
Heater Automatic climate control .......................... 4-32
Engine block heater .................................... 5-127
Hill start assist system ..................................... 5-125 HomeLink
®Universal Transceiver .................. 2-60
Hood release ......................................................... 3-17
Hook Coat hooks ..................................................... 2-50
Horn ........................................................................\
. 2-40
I
Ignition switch (Push-button) ................................................. 5-10
Automatic transmission models ................ 5-15
Immobilizer system .............................................. 2-30
Indicator
Lights ................................................................ 2-16
Vehicle information display ........................ 2-20
Indicator lights ...................................................... 2-16
INFINITI Drive Mode Selector ......................... 5-20
INFINITI InTouch™ Owner’s Manual ............... 4-2
INFINITI Vehicle Immobilizer System ............ 2-30
Engine start .................................................... 2-30
Inside mirror .......................................................... 3-25
Inspection/maintenance (I/M) test ............. 10-25
Instrument brightness control ......................... 2-38
Instrument panel ..................................................... 2-5
Intelligent All-Wheel Drive (AWD) ............... 5-118
Intelligent Cruise Control (ICC) ....................... 5-67
Intelligent Cruise Control (ICC) system
MAIN switch indicator ....................................... 2-24
Intelligent Cruise Control (ICC) system
warning light ......................................................... 2-13
Intelligent Key .......................................................... 3-2
11-3
