2019 INFINITI Q50 clock

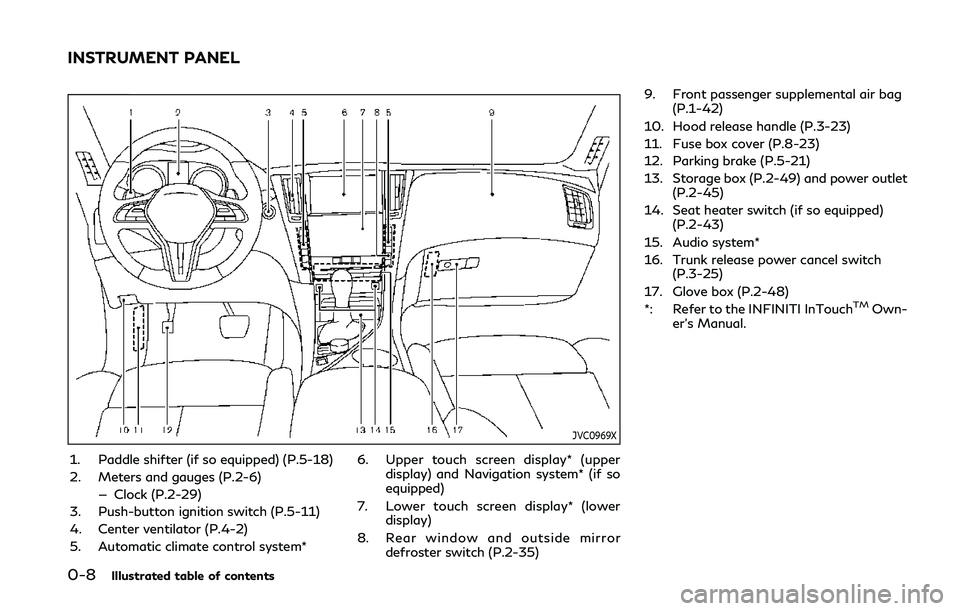

0-8Illustrated table of contents
JVC0969X
1. Paddle shifter (if so equipped) (P.5-18)
2. Meters and gauges (P.2-6)— Clock (P.2-29)
3. Push-button ignition switch (P.5-11)
4. Center ventilator (P.4-2)
5. Automatic climate control system* 6. Upper touch screen display* (upper
display) and Navigation system* (if so
equipped)
7. Lower touch screen display* (lower display)
8. Rear window and outside mirror defroster switch (P.2-35) 9. Front passenger supplemental air bag
(P.1-42)
10. Hood release handle (P.3-23)
11. Fuse box cover (P.8-23)
12. Parking brake (P.5-21)
13. Storage box (P.2-49) and power outlet (P.2-45)
14. Seat heater switch (if so equipped) (P.2-43)
15. Audio system*
16. Trunk release power cancel switch (P.3-25)
17. Glove box (P.2-48)
*: Refer to the INFINITI InTouch
TMOwn-
er’s Manual.
INSTRUMENT PANEL

2 Instruments and controls
Cockpit ........................................................................\
......... 2-3
Instrument panel ............................................................... 2-5
Meters and gauges .......................................................... 2-6Speedometer and odometer ..................................... 2-7
Tachometer ................................................................... 2-8
Engine coolant temperature gauge ....................... 2-8
Fuel gauge ..................................................................... 2-9
Warning lights, indicator lights and
audible reminders ............................................................ 2-10 Checking lights ........................................................... 2-10
Warning lights ............................................................ 2-10
Indicator lights ........................................................... 2-16
Audible reminders ..................................................... 2-18
Vehicle information display .......................................... 2-19 Indicators for operation .......................................... 2-21
Indicators for maintenance .................................... 2-25
Trip computer ............................................................. 2-27
Clock and outside air temperature ....................... 2-29
Security systems ............................................................ 2-30 Vehicle Security System ......................................... 2-30
INFINITI Vehicle Immobilizer System .................. 2-31
Wiper and washer switch ............................................. 2-33 Rain-sensing auto wiper system ........................... 2-34
Rear window and outside mirror
defroster switch .............................................................. 2-35 Headlight and turn signal switch ............................... 2-36
Headlight switch ..................................................... 2-36
Turn signal switch ................................................... 2-41
Fog light switch ....................................................... 2-42
Horn ........................................................................\
........... 2-42
Vehicle Dynamic Control (VDC) OFF switch ......... 2-43
Heated seats (if so equipped) ..................................... 2-43 Operation with switch .......................................... 2-44
Operation with touch screen .............................. 2-44
AUTO mode setting .............................................. 2-44
Heated steering wheel (if so equipped) ................... 2-45
Power outlets .................................................................. 2-45
Storage ........................................................................\
..... 2-46 Cup holders ............................................................... 2-46
Soft bottle holder .................................................... 2-47
Sunglasses holder ................................................... 2-48
Glove box .................................................................. 2-48
Console box .............................................................. 2-49
Card holder ............................................................... 2-49
Storage box .............................................................. 2-49
Coat hooks ............................................................... 2-50
Trunk hooks ............................................................. 2-50
Windows ........................................................................\
... 2-51
Power windows ....................................................... 2-51

JVC0969X
1. Paddle shifter (if so equipped) (P.5-18)
2. Meters and gauges (P.2-6)— Clock (P.2-29)
3. Push-button ignition switch (P.5-11)
4. Center ventilator (P.4-2)
5. Automatic climate control system* 6. Upper touch screen display* (upper
display) and Navigation system* (if so
equipped)
7. Lower touch screen display* (lower display)
8. Rear window and outside mirror defroster switch (P.2-35) 9. Front passenger supplemental air bag
(P.1-42)
10. Hood release handle (P.3-23)
11. Fuse box cover (P.8-23)
12. Parking brake (P.5-21)
13. Storage box (P.2-49) and power outlet (P.2-45)
14. Seat heater switch (if so equipped) (P.2-43)
15. Audio system*
16. Trunk release power cancel switch (P.3-25)
17. Glove box (P.2-48)
*: Refer to the INFINITI InTouch
TMOwn-
er’s Manual.
Instruments and controls2-5
INSTRUMENT PANEL

11. Chassis control
When Active Lane Control (if so equipped) or
the active trace control system is operated, it
shows the operating condition. See “Active
Lane Control” (P.5-26) and “Active trace
control” (P.5-135) for more details.
12. Oil control system (for
VR30DDTT engine models)
Engine oil information informs the distance
to oil change.
Distance to oil change:
The distance to oil change is displayed if the
distance to oil change comes to be less than
940 miles (1,500 km).
Oil replacement indicator:
When the set mileage approaches, the
engine oil replacement indicator will appear
on the display. After the oil is changed, reset
the oil control system by pushing the
orswitch for longer than 1 second.
The oil change interval cannot be adjusted
manually. The distance to oil change interval
is calculated depending on the driving con-
ditions and set automatically by the oil
control system.
CAUTION
If the oil replacement indicator is dis-
played, change the engine oil as soon as
possible. Operating your vehicle with
deteriorated oil can damage the engine.
Warning check
The present warnings are displayed. If no
warning is present, “No Warning” is dis-
played.
JVI0679M
CLOCK AND OUTSIDE AIR TEM-
PERATURE
The clockand outside air temperatureare displayed on the upper side of the vehicle
information display.
Clock
The clock can be adjusted on the lower
display. See the INFINITI InTouchTMOwn-
er’s Manual.
Outside air temperature (°F or °C)
The outside air temperature is displayed in °F
or °C in the range of −22 to 131°F (−30 to
55°C).
Instruments and controls2-29

malfunction and possible injury. It
could also cause the Malfunction
Indicator Light (MIL) to come on.
. Never pour fuel into the throttle body
to attempt to start your vehicle.
. Do not fill a portable fuel container in
the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable
fuel containers:
— Always place the container on the ground when filling.
— Do not use electronic devices when filling.
— Keep the pump nozzle in contact with the container while you are
filling it.
— Use only approved portable fuel containers for flammable liquid.
CAUTION
. If fuel is spilled on the vehicle body,
flush it away with water to avoid
paint damage. .
Insert the cap straight into the fuel-
filler tube, then tighten the fuel-filler
cap until a single click is heard. Failure
to tighten the fuel-filler cap properly
may cause the
Malfunction In-
dicator Light (MIL) to illuminate. If
the
light illuminates because the
fuel-filler cap is loose or missing,
tighten or install the cap and con-
tinue to drive the vehicle. The
light should turn off after a few
driving trips. If thelight does
not turn off after a few driving trips,
have the vehicle inspected. It is
recommended you visit an INFINITI
retailer for this service.
. The Loose Fuel Cap warning will
appear if the fuel-filler cap is not
properly tightened. It may take a few
driving trips for the warning to be
displayed. Failure to tighten the fuel-
filler cap properly after the Loose
Fuel Cap warning appears may cause
the
Malfunction Indicator Light
(MIL) to illuminate.
. For additional information, see “Mal-
function Indicator Light (MIL)” (P.2-
17).
JVP0204X
To remove the fuel-filler cap:
1. Turn the fuel-filler cap counterclockwise
to remove.
2. Put the fuel-filler cap on the cap holder
while refueling.
To install the fuel-filler cap:
1. Insert the fuel-filler cap straight into the fuel-filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
Pre-driving checks and adjustments3-27

CE1089-A
Jack-up point
1. Place the jack directly under the jack-up point as illustrated so the top of the jack
contacts the vehicle at the jack-up point.
Align the jack head between the two
notches in the front or the rear as shown.
Also fit the groove of the jack head
between the notches as shown.
The jack should be used on level firm
ground.SCE0504
2. Loosen each wheel nut one or two turnsby turning counterclockwise with the
wheel nut wrench. Do not remove the
wheel nuts until the tire is off the
ground.
3. Carefully raise the vehicle until the tire clears the ground. To lift the vehicle,
securely hold the jack lever and rod with
both hands as shown above. Remove the
wheel nuts, and then remove the tire.
In case of emergency6-7

engine damage.
6. Coat the gasket on the new filter with clean engine oil.
7. For VR30DDTT engine models: Screw in the oil filter clockwise until a slight
resistance is felt, then tighten addition-
ally more than 2/3 turn.
For 2.0L turbo gasoline engine models:
Securely tighten the oil filter. Do not use
excessive force.
Oil filter tightening torque:
VR30DDTT engine models
11 to 15 ft-lb
(14.7 to 20.6 N·m)
2.0L turbo gasoline engine models 19 ft-lb
(25 N·m)
8. Clean and re-install the drain plug with a new washer. Securely tighten the drain
plug with a wrench.
Drain plug tightening torque:
VR30DDTT engine models22 to 29 ft-lb
(29.4 to 39.2 N·m)
2.0L turbo gasoline engine models 22 ft-lb
(30 N·m) Do not use excessive force.
9. Refill engine with recommended oil and install the oil filler cap securely.
See “Capacities and recommended
fluids/lubricants” (P.10-2) for drain and
refill capacity. The drain and refill capa-
city depends on the oil temperature and
drain time. Use these specifications for
reference only. Always use the dipstick
to determine the proper amount of oil in
the engine.
10. Start the engine and check for leakage around the drain plug and the oil filter.
Correct as required.
11. Turn the engine off and wait more than 15 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.
After the operation
1. Install the engine undercover into posi-tion as the following steps.
a. Pull the center of the small plastic clip
out.
b. Hold the engine undercover into posi- tion.
c. Insert the clip through the undercover into the hole in the frame, then push
the center of the clip in to lock the clip
in place. d. Install the other bolts that hold the
undercover in place. Be careful not to
strip the bolts or over-tighten them.
2. Lower the vehicle carefully to the ground.
3. Dispose of waste oil and filter properly.
WARNING
. Prolonged and repeated contact with
used engine oil may cause skin cancer.
. Try to avoid direct skin contact with
used oil. If skin contact is made, wash
thoroughly with soap or hand cleaner
as soon as possible.
. Keep used engine oil out of reach of
children.
Do-it-yourself8-13

11 Index
A
ABS (Anti-lock Braking System) ................... 5-132
Active Lane Control ............................................ 5-26
Active noise cancellation ................................. 5-145
Active sound enhancement ............................ 5-145
Active trace control .......................................... 5-135
Air bag systemFront-seat mounted side-impact
supplemental air bag system ..................... 1-57
Roof-mounted curtain side-impact
supplemental air bag system ..................... 1-57
Air bag warning labels ....................................... 1-60
Air bag warning light .............................. 1-60, 2-15
Air cleaner housing filter ................................... 8-21
Air conditioner
Air conditioner specification label ......... 10-16
Air conditioning system refrigerant and
lubricant recommendations ..................... 10-10
Air deflectors ..................................................... 10-18
Alarm How to stop alarm (see vehicle
security system) ............................................. 2-31
Alcohol, drugs and driving ................................ 5-10
Antenna .................................................................... 4-3
Anti-lock Braking System (ABS) ................... 5-132
Appearance care
Exterior appearance care ............................... 7-2
Interior appearance care ................................ 7-5
Armrest ...................................................................... 1-7 Audible reminders ................................................ 2-18
Autolight system .................................................. 2-36
Automatic
Automatic Transmission Fluid (ATF) ....... 8-14
Driving with automatic transmission ....... 5-16
Automatic door locks ............................................ 3-6
Automatic drive positioner ............................... 3-33
Automatic seat positioner ................................ 3-33
Avoiding collision and rollover ............................ 5-9
B
Back-up Collision Intervention (BCI) .............. 5-62
Battery .................................................................... 8-16 Battery replacement, Intelligent Key ......... 3-2
Battery saver system .................................... 2-39
Intelligent Key ................................................. 8-26
Variable voltage control system ............... 8-19
Before starting the engine ................................ 5-14
Belts (See drive belts) ......................................... 8-19
Blind Spot Intervention
®(BSI) ......................... 5-49
Blind Spot Warning (BSW) ............................... 5-41
Brake
Anti-lock Braking System (ABS) ............. 5-132
Brake fluid ....................................................... 8-15
Brake force distribution ............................ 5-134
Brake system ................................................ 5-131
Parking brake operation .............................. 5-21
Brake warning light .............................................. 2-11
Break-in schedule .............................................. 5-123 Bulb check/instrument panel ........................... 2-10
Bulb replacement ................................................. 8-29
C
Capacities and
recommended fluids/lubricants ....................... 10-2
Car phone or CB radio ......................................... 4-4
Card holder ............................................................ 2-49
Catalytic converter
Three-way catalyst ......................................... 5-5
Changing intercooler coolant ........................... 8-10
Chassis and body maintenance ....................... 9-13
Chassis control ................................................... 5-137
Check tire pressure warning ............................. 2-22
Checking intercooler coolant level .................. 8-10
Child restraints ..................................................... 1-23 LATCH system ............................................... 1-26
Precautions on child restraints .................. 1-24
Child safety ............................................................ 1-21
Child safety rear door lock .................................. 3-6
Chimes Audible reminders .......................................... 2-18
Seat belt warning light and chime ............ 2-15
Circuit breaker Fusible link ....................................................... 8-25
Cleaning exterior and interior .................... 7-2, 7-5
Clock ...................................................................... 2-29
Coat hooks ............................................................ 2-50
Cockpit ...................................................................... 2-3
