2019 Hyundai Tucson oil capacities

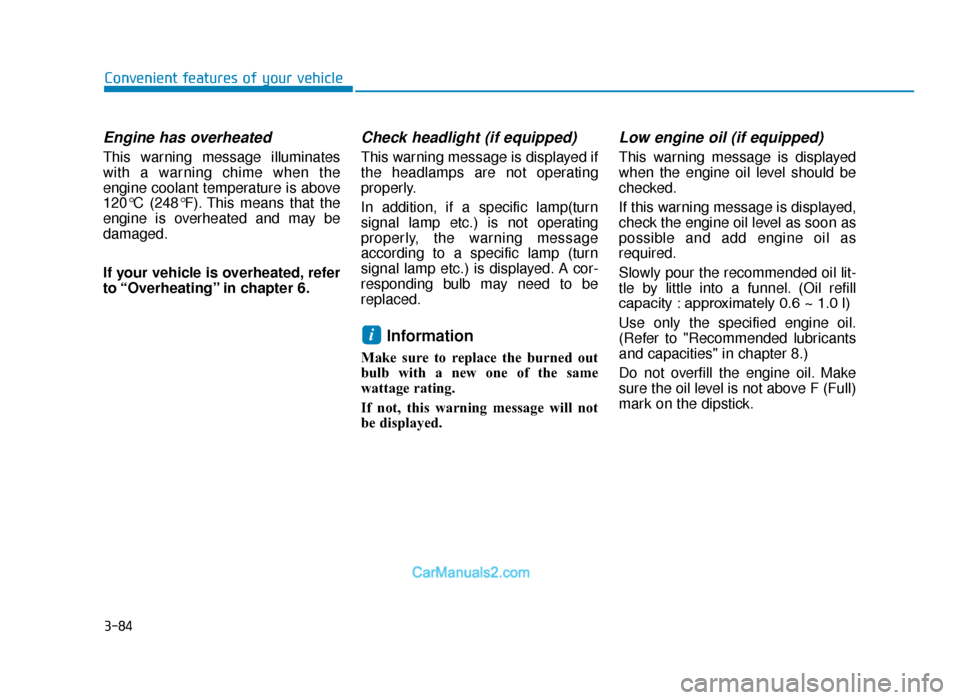

3-84
Convenient features of your vehicle
Engine has overheated
This warning message illuminates
with a warning chime when the
engine coolant temperature is above
120°C (248°F). This means that the
engine is overheated and may be
damaged.
If your vehicle is overheated, refer
to “Overheating” in chapter 6.
Check headlight (if equipped)
This warning message is displayed if
the headlamps are not operating
properly.
In addition, if a specific lamp(turn
signal lamp etc.) is not operating
properly, the warning message
according to a specific lamp (turn
signal lamp etc.) is displayed. A cor-
responding bulb may need to be
replaced.
Information
Make sure to replace the burned out
bulb with a new one of the same
wattage rating.
If not, this warning message will not
be displayed.
Low engine oil (if equipped)
This warning message is displayed
when the engine oil level should be
checked.
If this warning message is displayed,
check the engine oil level as soon as
possible and add engine oil as
required.
Slowly pour the recommended oil lit-
tle by little into a funnel. (Oil refill
capacity : approximately 0.6 ~ 1.0 l)
Use only the specified engine oil.
(Refer to "Recommended lubricants
and capacities" in chapter 8.)
Do not overfill the engine oil. Make
sure the oil level is not above F (Full)
mark on the dipstick.
i
TLe UK 3a(~109).qxp 6/12/2018 2:27 PM Page 84

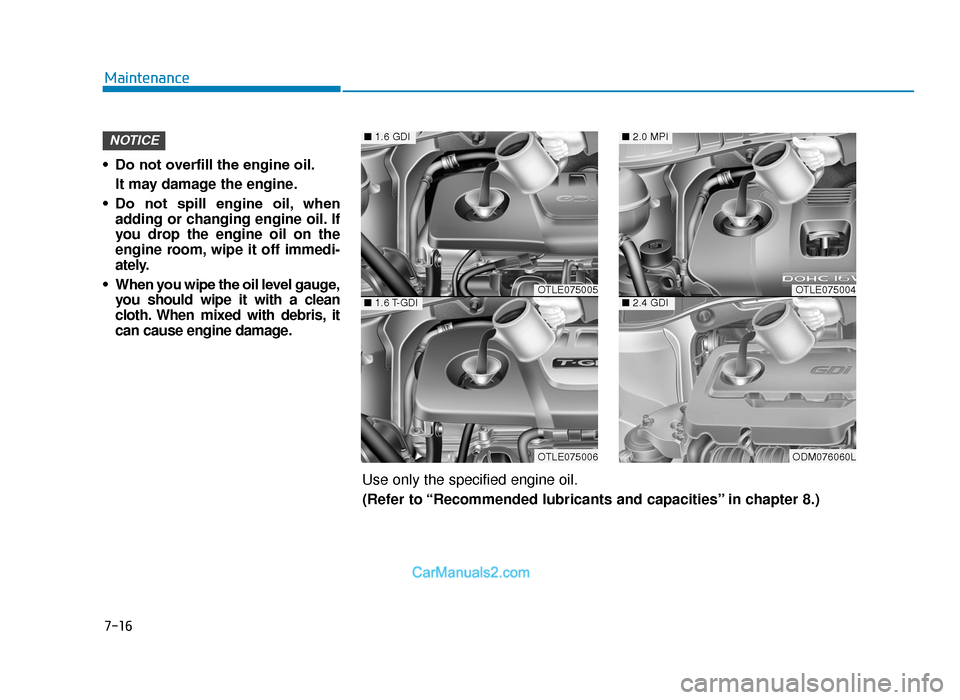

7-16
Maintenance
• Do not overfill the engine oil. It may damage the engine.
• Do not spill engine oil, when adding or changing engine oil. If
you drop the engine oil on the
engine room, wipe it off immedi-
ately.
• When you wipe the oil level gauge, you should wipe it with a clean
cloth. When mixed with debris, it
can cause engine damage.
NOTICE
OTLE075005
OTLE075006
■ 1.6 GDI
■1.6 T-GDIOTLE075004
ODM076060L
■2.0 MPI
■2.4 GDI
Use only the specified engine oil.
(Refer to “Recommended lubricants and capacities” in chapter 8.)
TLe UK 7.qxp 5/10/2018 1:32 PM Page 16

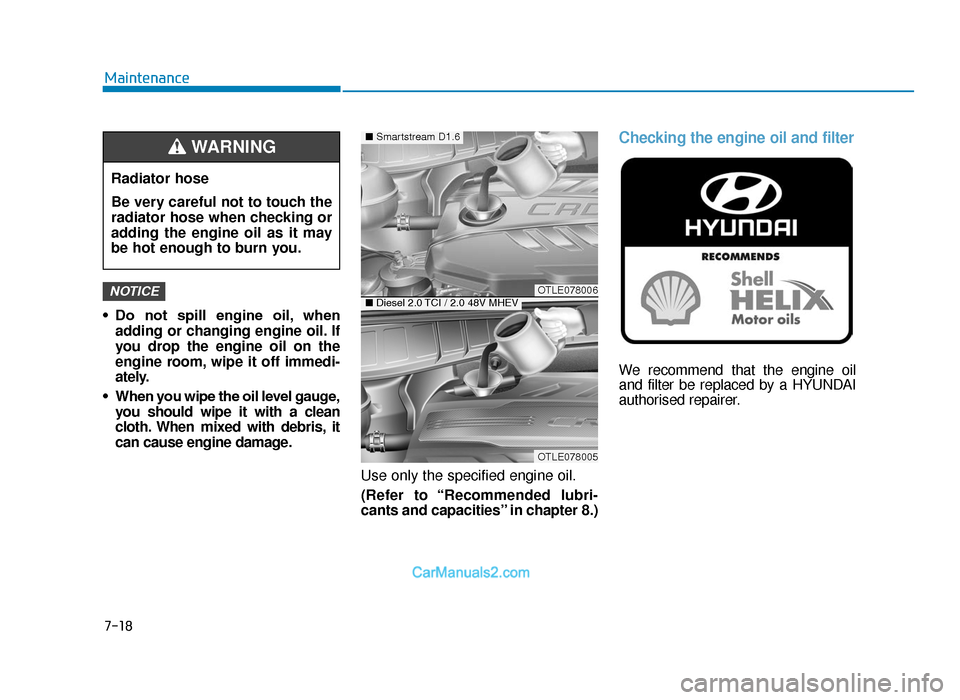

7-18
Maintenance
• Do not spill engine oil, when adding or changing engine oil. If
you drop the engine oil on the
engine room, wipe it off immedi-
ately.
• When you wipe the oil level gauge, you should wipe it with a clean
cloth. When mixed with debris, it
can cause engine damage.
Use only the specified engine oil.
(Refer to “Recommended lubri-
cants and capacities” in chapter 8.)
Checking the engine oil and filter
We recommend that the engine oil
and filter be replaced by a HYUNDAI
authorised repairer.
NOTICEOTLE078006
OTLE078005
■Smartstream D1.6
■Diesel 2.0 TCI / 2.0 48V MHEV
Radiator hose
Be very careful not to touch the
radiator hose when checking or
adding the engine oil as it may
be hot enough to burn you.
WARNING
TLe UK 7.qxp 5/10/2018 1:33 PM Page 18

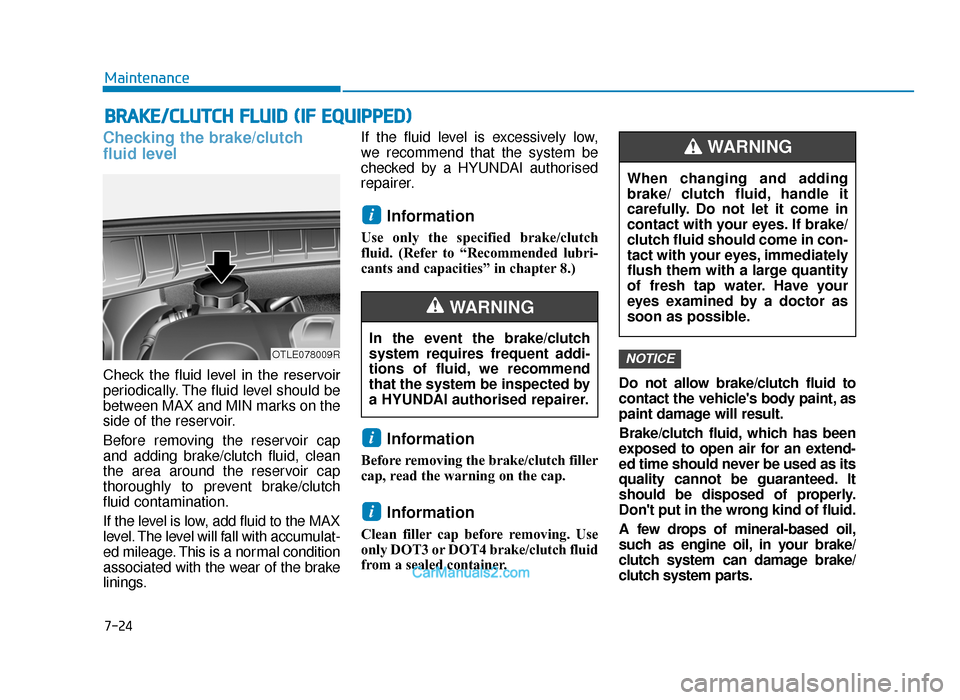

7-24
Maintenance
BRAKE/CLUTCH FLUID (IF EQUIPPED)
Checking the brake/clutch
fluid level
Check the fluid level in the reservoir
periodically. The fluid level should be
between MAX and MIN marks on the
side of the reservoir.
Before removing the reservoir cap
and adding brake/clutch fluid, clean
the area around the reservoir cap
thoroughly to prevent brake/clutch
fluid contamination.
If the level is low, add fluid to the MAX
level. The level will fall with accumulat-
ed mileage. This is a normal condition
associated with the wear of the brake
linings.If the fluid level is excessively low,
we recommend that the system be
checked by a HYUNDAI authorised
repairer.
Information
Use only the specified brake/clutch
fluid. (Refer to “Recommended lubri-
cants and capacities” in chapter 8.)
Information
Before removing the brake/clutch filler
cap, read the warning on the cap.
Information
Clean filler cap before removing. Use
only DOT3 or DOT4 brake/clutch fluid
from a sealed container.
Do not allow brake/clutch fluid to
contact the vehicle's body paint, as
paint damage will result.
Brake/clutch fluid, which has been
exposed to open air for an extend-
ed time should never be used as its
quality cannot be guaranteed. It
should be disposed of properly.
Don't put in the wrong kind of fluid.
A few drops of mineral-based oil,
such as engine oil, in your brake/
clutch system can damage brake/
clutch system parts.
NOTICE
i
i
i
OTLE078009R
In the event the brake/clutch
system requires frequent addi-
tions of fluid, we recommend
that the system be inspected by
a HYUNDAI authorised repairer.
WARNING
When changing and adding
brake/ clutch fluid, handle it
carefully. Do not let it come in
contact with your eyes. If brake/
clutch fluid should come in con-
tact with your eyes, immediately
flush them with a large quantity
of fresh tap water. Have your
eyes examined by a doctor as
soon as possible.
WARNING
TLe UK 7.qxp 5/10/2018 1:33 PM Page 24

8
Specifications & Consumer information
8
Specifications & Consumer information
8
Dimensions ..............................................................8-2
Engine ......................................................................8-\
2
Bulb wattage ...........................................................8-3
Tyres and wheels ...................................................8-5
Load and speed capacity tyres ............................8-6
Gross vehicle weight .............................................8-7
Luggage volume .....................................................8-8
Recommended lubricants and capacities ...........8-9
Recommended engine oil ..............................................8-12
Recommended sae viscosity number .........................8-12
Vehicle identification number (VIN) ..................8-14
Vehicle certification label ...................................8-14
Tyre specification and pressure label ..............8-15
Engine number .....................................................8-15
Air conditioner compressor label ......................8-16
Refrigerant label ..................................................8-16
Declaration of conformity ..................................8-16
Fuel label ..............................................................8-17
Petrol engine ....................................................................8-17\
Diesel engine ....................................................................8-17\
TLe UK 8.qxp 6/12/2018 3:30 PM Page 1

8-9
8
Specifications & Consumer information

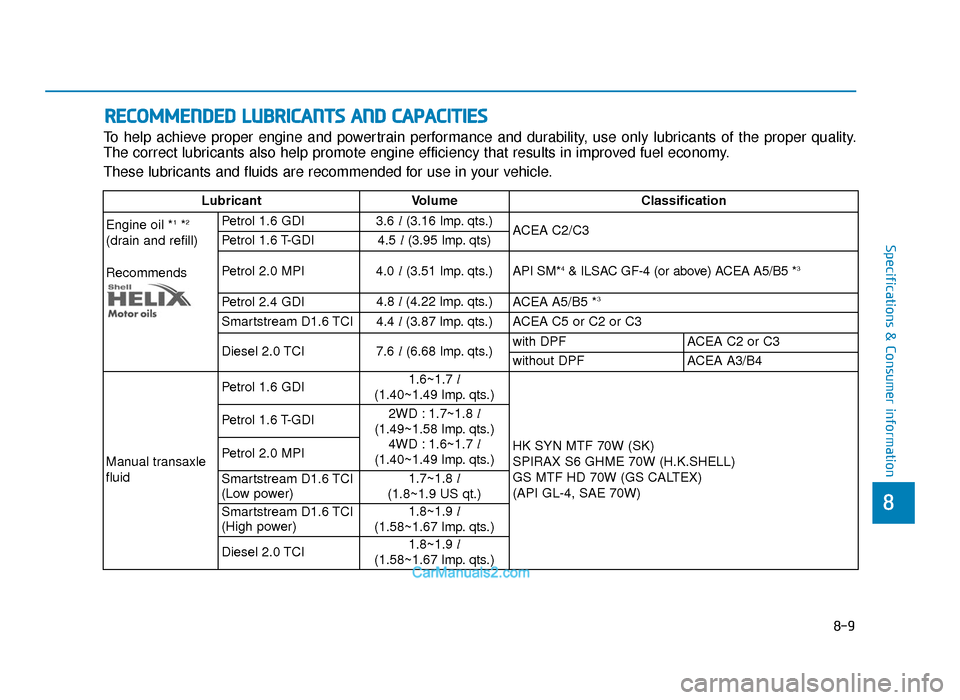

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolume Classification
Engine oil *
1*2
(drain and refill)
Recommends Petrol 1.6 GDI
3.6
l(3.16 lmp. qts.)
ACEA C2/C3
Petrol 1.6 T-GDI 4.5
l(3.95 lmp. qts)
Petrol 2.0 MPI 4.0
l(3.51 lmp. qts.)
API SM*
4& ILSAC GF-4 (or above) ACEA A5/B5 *3
Petrol 2.4 GDI 4.8
l (4.22 lmp. qts.)
ACEA A5/B5 *3
Smartstream D1.6 TCI 4.4
l (3.87 lmp. qts.)
ACEA C5 or C2 or C3
Diesel 2.0 TCI 7.6
l(6.68 lmp. qts.) with DPF
ACEA C2 or C3
without DPF ACEA A3/B4
Manual transaxle
fluid Petrol 1.6 GDI
1.6~1.7
l
(1.40~1.49 lmp. qts.)
HK SYN MTF 70W (SK)
SPIRAX S6 GHME 70W (H.K.SHELL)
GS MTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W)
Petrol 1.6 T-GDI
2WD : 1.7~1.8
l
(1.49~1.58 lmp. qts.) 4WD : 1.6~1.7 l
(1.40~1.49 lmp. qts.)
Petrol 2.0 MPI
Smartstream D1.6 TCI
(Low power)1.7~1.8 l
(1.8~1.9 US qt.)
Smartstream D1.6 TCI
(High power)1.8~1.9 l
(1.58~1.67 lmp. qts.)
Diesel 2.0 TCI1.8~1.9 l
(1.58~1.67 lmp. qts.)
TLe UK 8.qxp 6/12/2018 3:17 PM Page 9

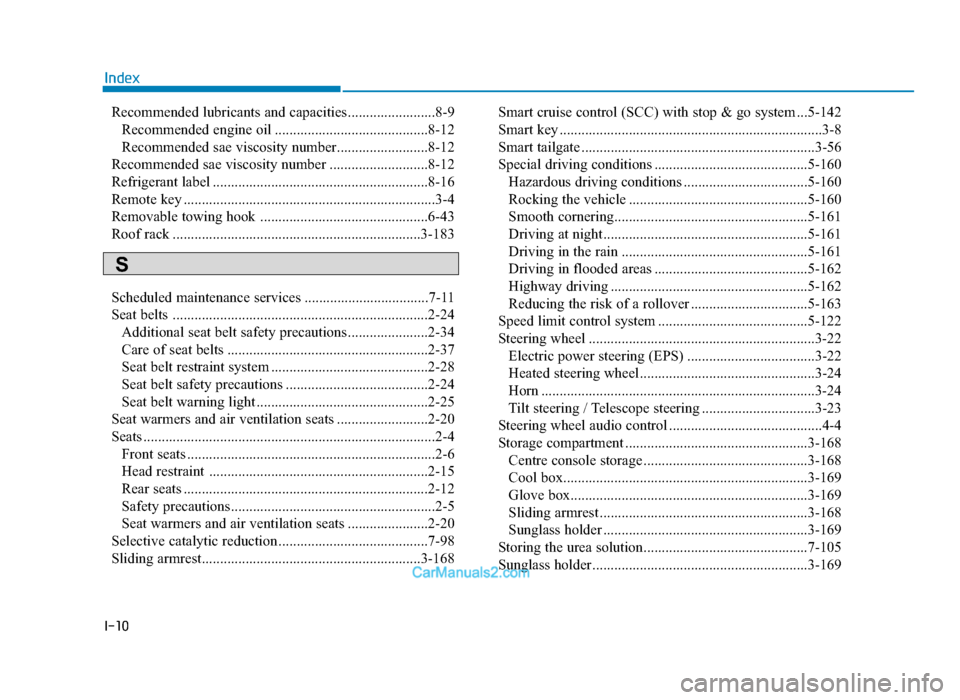

I-10
IndexRecommended lubricants and capacities........................8-9 Recommended engine oil ..........................................8-12
Recommended sae viscosity number.........................8-12
Recommended sae viscosity number ...........................8-12
Refrigerant label ...........................................................8-16
Remote key .....................................................................3-4\
Removable towing hook ..............................................6-43
Roof rack ....................................................................3-18\
3
Scheduled maintenance services ..................................7-11
Seat belts ......................................................................2-\
24 Additional seat belt safety precautions ......................2-34
Care of seat belts .......................................................2-37
Seat belt restraint system ...........................................2-28
Seat belt safety precautions .......................................2-24
Seat belt warning light ...............................................2-25
Seat warmers and air ventilation seats .........................2-20
Seats ........................................................................\
........2-4 Front seats ....................................................................2-6
Head restraint ............................................................2-15
Rear seats ...................................................................2-12
Safety precautions........................................................2-5
Seat warmers and air ventilation seats ......................2-20
Selective catalytic reduction .........................................7-98
Sliding armrest............................................................3-168 Smart cruise control (SCC) with stop & go system ...5-142
Smart key ........................................................................\
3-8
Smart tailgate ................................................................3-56
Special driving conditions ..........................................5-160
Hazardous driving conditions ..................................5-160
Rocking the vehicle .................................................5-160
Smooth cornering.....................................................5-161
Driving at night........................................................5-161
Driving in the rain ...................................................5-161
Driving in flooded areas ..........................................5-162
Highway driving ......................................................5-162
Reducing the risk of a rollover ................................5-163
Speed limit control system .........................................5-122
Steering wheel ..............................................................3-22 Electric power steering (EPS) ...................................3-22
Heated steering wheel ................................................3-24
Horn ........................................................................\
...3-24
Tilt steering / Telescope steering ...............................3-23
Steering wheel audio control ..........................................4-4
Storage compartment ..................................................3-168 Centre console storage .............................................3-168
Cool box...................................................................3-169\
Glove box.................................................................3-169
Sliding armrest .........................................................3-168
Sunglass holder ........................................................3-169
Storing the urea solution.............................................7-105
Sunglass holder ...........................................................3-169
S
TLe UK Index.qxp 6/12/2018 3:27 PM Page 10
