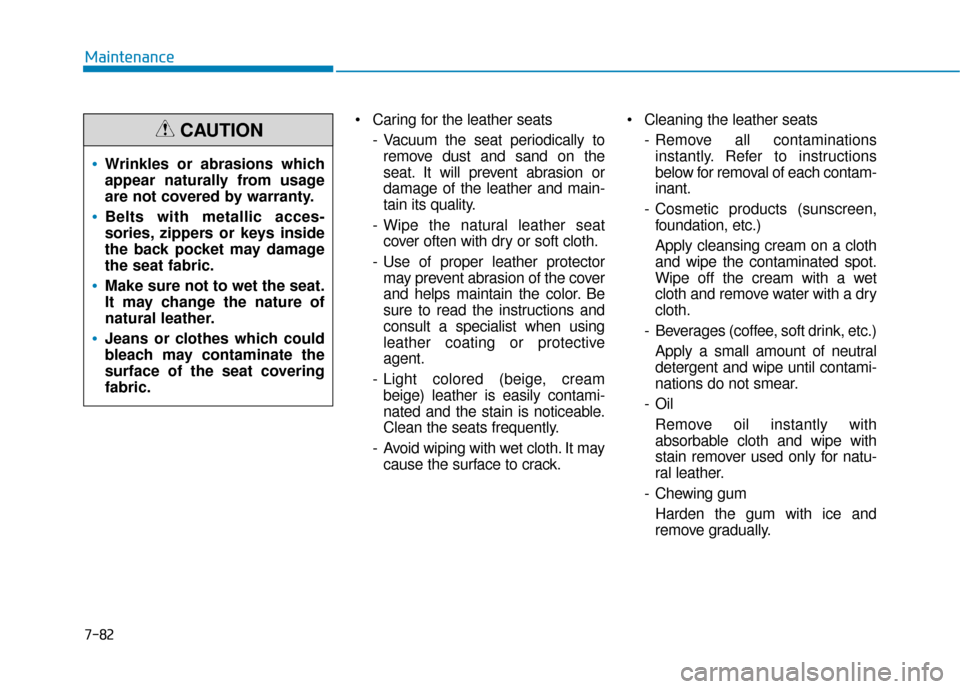

Caring for the leather seats- Vacuum the seat periodically toremove dust and sand on the
seat. It will prevent abrasion or
damage of the leather and main-
tain its quality.
- Wipe the natural leather seat cover often with dry or soft cloth.
- Use of proper leather protector may prevent abrasion of the cover
and helps maintain the color. Be
sure to read the instructions and
consult a specialist when using
leather coating or protective
agent.
- Light colored (beige, cream beige) leather is easily contami-
nated and the stain is noticeable.
Clean the seats frequently.
- Avoid wiping with wet cloth. It may cause the surface to crack. Cleaning the leather seats
- Remove all contaminationsinstantly. Refer to instructions
below for removal of each contam-
inant.
- Cosmetic products (sunscreen, foundation, etc.)
Apply cleansing cream on a cloth
and wipe the contaminated spot.
Wipe off the cream with a wet
cloth and remove water with a dry
cloth.
- Beverages (coffee, soft drink, etc.) Apply a small amount of neutral
detergent and wipe until contami-
nations do not smear.
- Oil Remove oil instantly with
absorbable cloth and wipe with
stain remover used only for natu-
ral leather.
- Chewing gum Harden the gum with ice and
remove gradually.
Wrinkles or abrasions which
appear naturally from usage
are not covered by warranty.
Belts with metallic acces-
sories, zippers or keys inside
the back pocket may damage
the seat fabric.
Make sure not to wet the seat.
It may change the nature of
natural leather.
Jeans or clothes which could
bleach may contaminate the
surface of the seat covering
fabric.
CAUTION
Maintenance
7-82

C
CA
A L
LI
IF
F O
O R
RN
N I
IA
A
P
P E
ER
R C
CH
H L
LO
O R
RA
A T
TE
E
N
N O
O T
TI
IC
C E
E

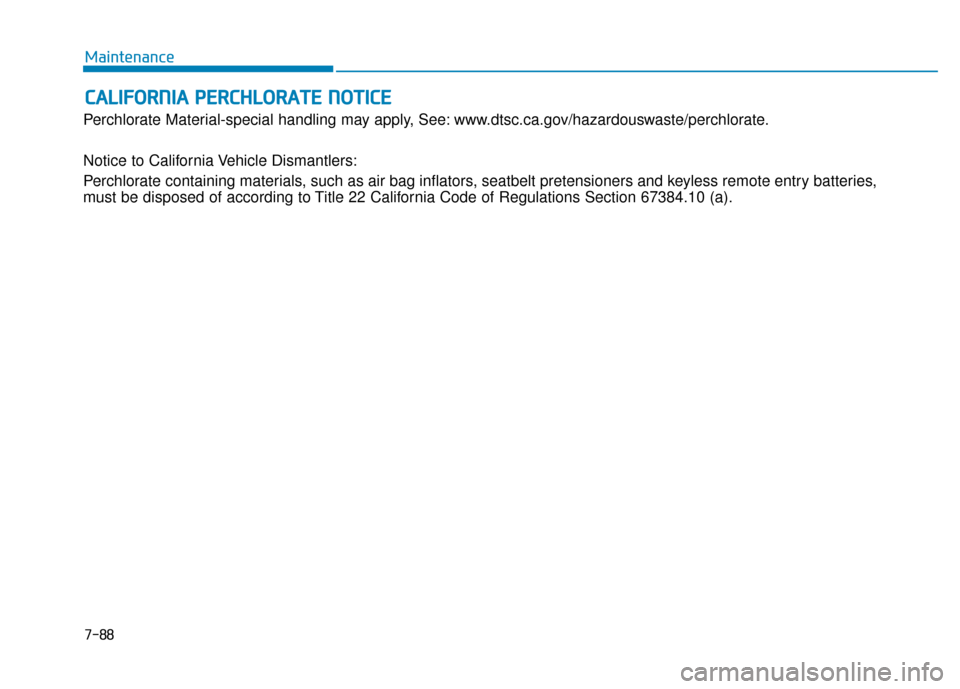

Perchlorate Material-special handling may apply, See: www.dtsc.ca.gov/hazardouswaste/perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as air bag inflators, seatbelt pretensioners and keyless remote entry batteries,
must be disposed of according to Title 22 California Code of Regulations Section 67384.10 (a).Maintenance
7-88

I-6
Gauges and meters ..........................................................3-70
Glove box......................................................................3-\
165
Hazard warning flasher .....................................................6-2
Hazardous driving conditions .......................................5-125
Head restraints ................................................................2-17Front seat head restraints............................................2-18
Rear seat head restraints .............................................2-20
Head up display.........................................................\
....3-112
Headlamp delay function ..............................................3-121
Headlamp leveling device.............................................3-121
Headlamp position ........................................................3-115
Headlight bulb replacement ............................................7-65
Heated steering wheel .....................................................3-30
High beam operation .....................................................3-116
Highway driving ...........................................................5-127
Hill-start assist control (HAC)........................................5-36
Hood........................................................................\
........3-51
Horn ........................................................................\
........3-29
How to use this manual ....................................................F-6
Idle Stop and Go (ISG) ...................................................5-46
If the engine doesn't turn over or turns over slowly.........6-3 If the engine overheats ......................................................6-6
If the engine stalls at a crossroad or crossing...................6-2
If the engine stalls while driving ......................................6-2
If the engine turns over normally but doesn't start ...........6-3
If the engine will not start.................................................6-3
If you have a flat tire while driving ..................................6-3
Ignition switch
Engine Start/Stop button ..............................................5-9
Key ignition switch ......................................................5-6
Immobilizer system.........................................................3-12
Improtant safety precautions.............................................2-2 Air bag hazards ............................................................2-2
Always wear your seat belt ..........................................2-2
Control your speed .......................................................2-3
Driver distraction..........................................................2-2
Keep your vehicle in safe condition.............................2-3
Restrain all children .....................................................2-2
In case of emergency while driving..................................6-2
Indicator light..................................................................3-74
Inside rearview mirror ....................................................3-30
Instrument cluster ...........................................................3-68 Assist mode ................................................................3-95
Gauges and meters .....................................................3-70
Instrument panel illumination ....................................3-69
LCD display control ...................................................3-93
LCD display messages ...............................................3-87
LCD display modes ....................................................3-94
Shift indicator pop-up ................................................3-74
Transmission shift indicator .......................................3-73
Index
G
H
I

I-7
Trip computer mode ...................................................3-95
User settings mode .....................................................3-97
Warning and indicator lights ......................................3-74
Instrument panel fuse replacement .................................7-53
Instrument panel overview ...............................................1-5
Interior care .....................................................................7-8\
1
Interior features AC inverter ...............................................................3-171
Ashtray .....................................................................3-1\
68
Bottle holder .............................................................3-168
Cargo security screen ...............................................3-178
Clock ........................................................................\
3-175
Coat hook .................................................................3-176
Cup holder ................................................................3-168
Floor mat anchor(s) ..................................................3-176
Luggage net holder ...................................................3-177
Power outlet..............................................................3-170
Side curtain...............................................................3-180
Sunvisor ....................................................................3-16\
9
USB charger .............................................................3-173
Wireless cellular phone charging system .................3-173
Interior lamp AUTO cut................................................3-122
Interior lights.................................................................3-122 Front lamps...............................................................3-122
Interior lamp AUTO cut ...........................................3-122
Luggage compartment lamp .....................................3-123
Puddle lamp ..............................................................3-124
Rear lamps ................................................................3-123
Vanity mirror lamp ...................................................3-124
Interior overview...............................................................1-4 Jump starting .....................................................................6-4\
Key ignition switch ...........................................................5-6
Label
Refrigerant label .........................................................8-11
Tire sidewall labeling .................................................7-43
Tire specification and pressure label ..........................8-11
Vehicle certification label ...........................................8-10
Lane change signals ......................................................3-119
Lane Keeping Assist (LKA) system ...............................5-93
Lap/shoulder belt ............................................................2-28
LCD display LCD display modes ....................................................3-94
Assist mode ................................................................3-95
Master warning mode .................................................3-96
Quick guide ................................................................3-98
Trip computer mode ...................................................3-95
Turn By Turn (TBT) mode.........................................3-95
User settings mode .....................................................3-97
LCD display messages Check Blind-Spot Collision Warning system ............3-91
Check BRAKE SWITCH fuse ...................................3-88
I
Index
J
K
L

I-8
Check Driver Attention Warning system ...................3-92
Check Forward Collision Avoidance Assist system...3-91
Check headlight ..........................................................3-91
Check headlight LED .................................................3-91
Check High Beam Assist (HBA) system ...................3-91
Check Lane Keeping Assist (LKA) system ...............3-92
Check Smart Cruise Control System .........................3-92
Check turn signal........................................................3-91
Door, Hood, Liftgate open indicator ..........................3-88
Engine overheated ......................................................3-90
Key not detected .........................................................3-87
Key not in vehicle ......................................................3-87
Lights mode ................................................................3-90
Low fuel .....................................................................3-9\
0
Low key battery..........................................................3-87
Low pressure ..............................................................3-89
Low washer fluid........................................................3-90
Press brake pedal to start engine ................................3-87
Press START button again .........................................3-87
Press START button with key ....................................3-88
Shift to P.....................................................................3-8\
7
Shift to P or N to start engine ....................................3-87
Sunroof open indicator ...............................................3-89
Window open indicator ..............................................3-89
Wiper mode ................................................................3-90
LCD display modes ........................................................3-94
Leading vehicle departure alert ....................................5-123 Liftgate ........................................................................\
....3-52
Power liftgate .............................................................3-54
Smart liftgate ..............................................................3-61
Light ........................................................................\
......3-114 Auto light position ....................................................3-114
Battery saver function ..............................................3-120
Daytime running light (DRL)...................................3-114
Front fog lamp ..........................................................3-120
Headlamp delay function .........................................3-121
Headlamp leveling device ........................................3-121
Headlamp position ....................................................3-115
High Beam Assist (HBA) system.............................3-116
High beam operation ................................................3-116
Lane change signals..................................................3-119
One-touch turn signal function ................................3-120
Parking lamp position...............................................3-115
Turn signals ..............................................................3-119
Light bulbs ......................................................................7-\
65
Lubricants and capacities..................................................8-7
Luggage compartment lamp .........................................3-123
Luggage net holder .......................................................3-177
Luggage tray .................................................................3-167
Maintenance Explanation of scheduled maintenance items ............7-18
Maintenance services ...................................................7-4
Index
M

I-10
Range ........................................................................\
......3-73
Rear center seat belt ........................................................2-31
Rear Cross-Traffic Collision Avoidance Assist (RCCA) system .................................................5-82
Rear Cross-Traffic Collision Warning (RCCW) system ..5-82
Rear Occupant Alert (ROA) system ...............................3-22
Rear seat adjustment .......................................................2-13 Armrest .......................................................................2\
-16
Armrest .......................................................................2\
-16
Folding the rear seat ...................................................2-13
Rear seat head restraints .................................................2-20 Adjusting the height up and down .............................2-20
Removal/Reinstallation ..............................................2-21
Rear view monitor ........................................................3-130
Recommended cold tire inflation pressures ...................7-38
Recommended lubricants and capacities ..........................8-7
Reduce the risk of a rollover ........................................5-128
Refrigerant label..............................................................8-11
Remote key .......................................................................3\
-4 Battery replacement......................................................3-7
Locking........................................................................\
.3-4
Mechanical key ............................................................3-6
Unlocking .....................................................................3-4\
Unlocking the liftgate ...................................................3-5
Replacement light bulb ...................................................7-65
Reverse parking aid function ..........................................3-41 Rocking the vehicle ......................................................5-125
Roof side rails ...............................................................3-181
Rotation (Tire) ................................................................7-39
Safe Exit Assist (SEA) system .......................................3-20
Safety messages ................................................................F-6
Scheduled maintenance services.......................................7-7
Seat belt warning light
Driver's seat ................................................................2-26
Front passenger's seat .................................................2-27
Seat belts ........................................................................\
.2-25 Additional seat belt safety precautions ......................2-34
Care of seat belts ........................................................2-37
Convertible locking retractor .....................................2-30
Do not lie down ..........................................................2-36
Emergency locking retractor ......................................2-28
Height adjustment ......................................................2-29
Keep belts clean and dry ............................................2-37
Lap/shoulder belt ........................................................2-28
One person per belt ....................................................2-36
Periodic inspection .....................................................2-37
Pre-tensioner seat belt ................................................2-31
Rear center seat belt ...................................................2-31
Seat belt safety precautions ........................................2-25
Seat belt use and children...........................................2-3\
5
Seat belt use during pregnancy ..................................2-34
Seat belt warning light ...............................................2-26
Index
R
S

I-11
Transporting an injured person ..................................2-36
When to replace seat belts..........................................2-37
Seat warmers ...................................................................2-21
Seats ........................................................................\
..........2-4 Air ventilation seats....................................................2-22
Front seat adjustment ...................................................2-6
Front seat warmers .....................................................2-21
Head restraints ............................................................2-17
Rear seat adjustment ..................................................2-13
Rear seat warmers ......................................................2-23
Safety precautions ........................................................2-5
Side air bags....................................................................2-52\
Side curtain ...................................................................3-180\
Side view mirrors............................................................3-40
Smart cruise control ......................................................5-106
Smart high beam ...........................................................3-116
Smart key ........................................................................\
..3-7 Battery replacement....................................................3-12
Locking........................................................................\
.3-8
Mechanical key ..........................................................3-10
Opening the liftgate ......................................................3-9
Unlocking .....................................................................3-8\
Smart liftgate...................................................................3-61
SMART mode .................................................................5-52
Smooth cornering..........................................................5-126
Snow tires .....................................................................5-1\
29
Spare tire Compact spare tire replacement .................................7-42 Special driving conditions
Driving at night ........................................................5-126
Driving in flooded areas ...........................................5-127
Driving in the rain ....................................................5-126
Hazardous driving conditions ..................................5-125
Highway driving.......................................................5-127
Reduce the risk of a rollover ....................................5-128
Rocking the vehicle ..................................................5-125
Smooth cornering .....................................................5-126
Speedometer....................................................................3-70\
SPORT mode ..................................................................5-51
Starting difficulties, see engine will not start ...................6-3
Steering wheel Electric Power Steering (EPS) ...................................3-28
Heated steering wheel ................................................3-30
Horn ........................................................................\
....3-29
Tilt steering / Telescope steering................................3-29
Steering wheel audio controls...........................................4-3
Storage compartment ....................................................3-165 Center console storage .............................................3-165
Glove box .................................................................3-165
Luggage tray.............................................................3-167
Sunglass holder ........................................................3-166
Tray........................................................................\
...3-166
Sunglass holder .............................................................3-166
Sunroof........................................................................\
....3-47
Sunroof inside air recirculation ....................................3-164
Sunvisor ........................................................................\
3-169
Surround view monitoring ............................................3-131
I
Index
